Old 01-27-2009, 02:00 AM   #41
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cjernigan View Post
You spent all that money on your car to make it a track machine and you don't have a cold air box for your intake? Seriously man what gives?

Quote:
Originally Posted by jedduh01 View Post
+1

And you still have the cruise control operational... along with EGR Canister... and OBD bracket and connection box still in sight.

Beautiful car tho....built right.

Sorry about the thread jack.
I need cruise because of my popping-knee, the carbon can is coming out, the diagnotic box is nice to have for troubleshooting.


back to the DIY heatsheild thread please.
hustler is offline   Reply With Quote
Old 01-27-2009, 11:51 AM   #42
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by patsmx5 View Post
Coating may work slightly, but not much. The ****'s too thin to do anything meaningful. If you put 1/2" of the coating on, it would help. But .006" worth ain't ****.
Word
ZX-Tex is offline   Reply With Quote
Old 01-27-2009, 12:41 PM   #43
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

I'm going to try that license plate heat shield I saw a while back.
Turbo_4 is offline   Reply With Quote
Old 01-27-2009, 12:55 PM   #44
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Swain Tech White-Lighting ftw

White Lightning Exhaust by Swain Tech for Automotive Coatings including engine piston coatings, ceramic coating services engine, automotive ceramic coating, ceramic header coating, dry film lubricant, race engine coatings, exhaust header coating

The only "ceramic" coating that will have a measureable effect. I plan on one day getting my turbine housing, manifold and downpipe all coated by Swain Tech.

Last edited by Efini~FC3S; 01-27-2009 at 12:55 PM. Reason: My grammar was teh worstest.
Efini~FC3S is offline   Reply With Quote
Old 01-27-2009, 03:39 PM   #45
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by Turbo_4 View Post
I'm going to try that license plate heat shield I saw a while back.
I've got one I will sell you for $20 plus freight.
sixshooter is offline   Reply With Quote
Old 01-27-2009, 04:01 PM   #46
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Hustler gave me a good idea. I'm putting one of my mt.net stickers on my box when it's finished.

Getting back ON TOPIC...

Should I build two layers of steel over the turbine? The OEM part is two layers of steel, but they're pretty much touching each other. I could build the part that goes around the turbine say 1/4" clearance around the turbo, then a second layer riveted over it with a 1/8" air gap or something like that. Would an air gap make much difference between the two shields? I would think so.
patsmx5 is offline   Reply With Quote
Old 01-27-2009, 04:35 PM   #47
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Hustler gave me a good idea. I'm putting one of my mt.net stickers on my box when it's finished.

Getting back ON TOPIC...

Should I build two layers of steel over the turbine? The OEM part is two layers of steel, but they're pretty much touching each other. I could build the part that goes around the turbine say 1/4" clearance around the turbo, then a second layer riveted over it with a 1/8" air gap or something like that. Would an air gap make much difference between the two shields? I would think so.
definitely incorporate a gap between the 2 shields. As I am sure you know air is not a favorite medium of energy. I think closing it off would make it even better..... Just strap about 5 flasks together and call it done
mazda/nissan is offline   Reply With Quote
Old 01-27-2009, 06:19 PM   #48
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Better yet layer a thin blanket of fiberglass between the two. You could use the sheet version of the exhaust wrap tape.
ZX-Tex is offline   Reply With Quote
Old 01-27-2009, 06:54 PM   #49
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

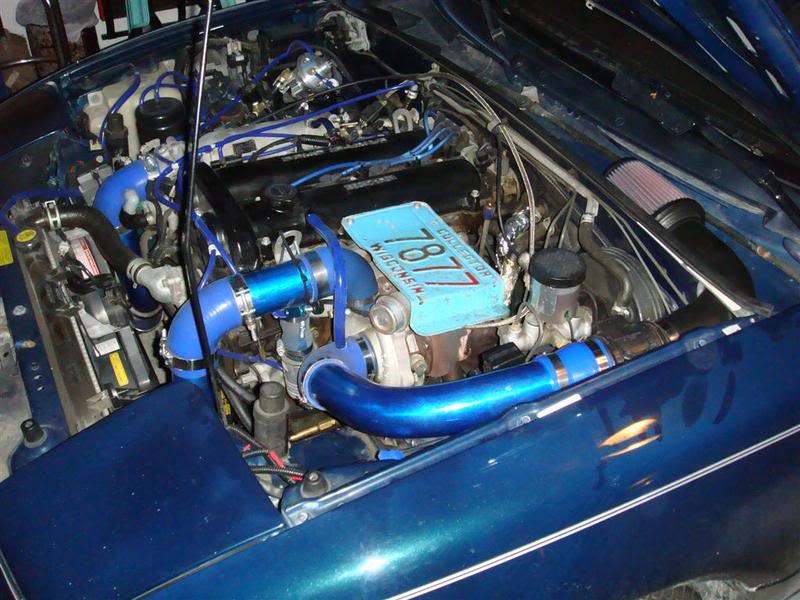

Name:  0e5bc851.jpg
Views: 3
Size:  85.3 KB

It's a good thing my turbo has hot water running through it, or it would ice up with my shield.
SamS is offline   Reply With Quote
Old 01-27-2009, 08:23 PM   #50
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

seal up the two pieces of metal on the outside, and create a vacuum on the inside, like a thermos.
hustler is offline   Reply With Quote
Old 01-27-2009, 09:27 PM   #51
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Looking at various people's setups the question arose in my mind, does the length of tubing pre-turbo to the filter matter at all? SamS's for example is very long whereas some have but a few inches..
ThePass is offline   Reply With Quote
Old 01-27-2009, 09:32 PM   #52
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by ThePass View Post
Looking at various people's setups the question arose in my mind, does the length of tubing pre-turbo to the filter matter at all? SamS's for example is very long whereas some have but a few inches..
I'm gonna say the length doesn't matter much. I'm not even sure that the temperature matters. Again, I'm just doing all this to keep it cool so I can fill this box with foam to make it quieter.
patsmx5 is offline   Reply With Quote
Old 01-27-2009, 11:01 PM   #53
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Two layers is always going to be better for insulating because air is the insulator.
You stop the radiant heat with the shield, and the convective heat with the air gap. Double win. Most people don't spend the time/money/effort to do a second layer, but it will help.
sixshooter is offline   Reply With Quote
Old 01-27-2009, 11:54 PM   #54
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeah, air gap FTW. I need to learn more about heat transfer. Like how shields reflect heat and all is news to me. Never saw it that way. Taking Thermo II now and heat transfer next semester though.

lol at your sig....
patsmx5 is offline   Reply With Quote
Old 01-28-2009, 12:03 AM   #55
Junior Member
iTrader: (5)

Join Date: Feb 2008
Posts: 77
Total Cats: 0
Default

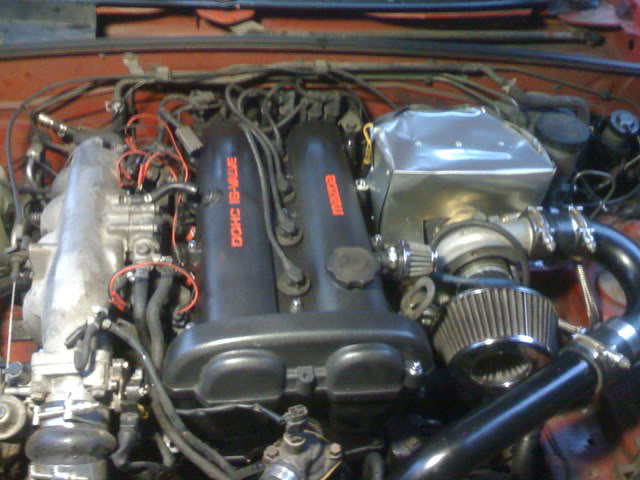

I made mine using aluminum sheeting and aluminum bars from home depot. stuck it together with rivets and bent the bar by hand. everything is cool to the touch around it so it's stopping all the radiant heat beautifully.

Name:  IMG_0213.jpg
Views: 3
Size:  56.7 KB
eljefe305 is offline   Reply With Quote
Old 01-28-2009, 12:12 AM   #56
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Mine is a single-layer steel construction, with the whole inner surface (top, side, rear) lined in Thermo Tec aluminized fiberglass blanket (this is why there are so many rivets; some of them are holding trim strips that retain the blanket). After a long drive, the outer surface of the shield, while warm, is cool enough to lay your hand on. If you really want to keep the heat in, but can't quite manage fully dual-layer construction, just line the inside with this stuff.

Last edited by Joe Perez; 01-28-2009 at 11:38 PM. Reason: fixed link
Joe Perez is offline   Reply With Quote
Old 02-01-2009, 11:58 PM   #57
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

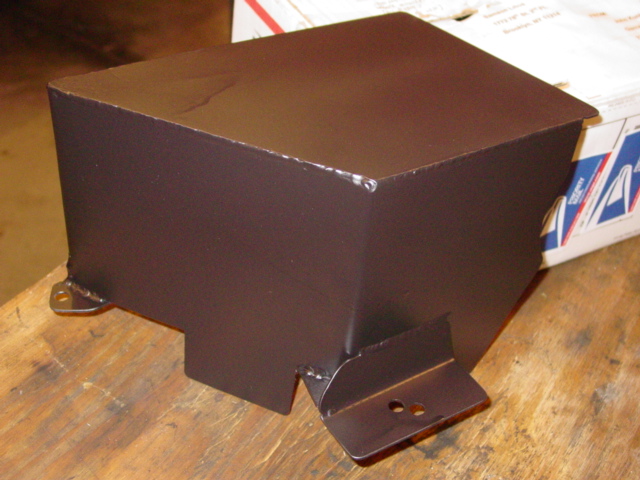

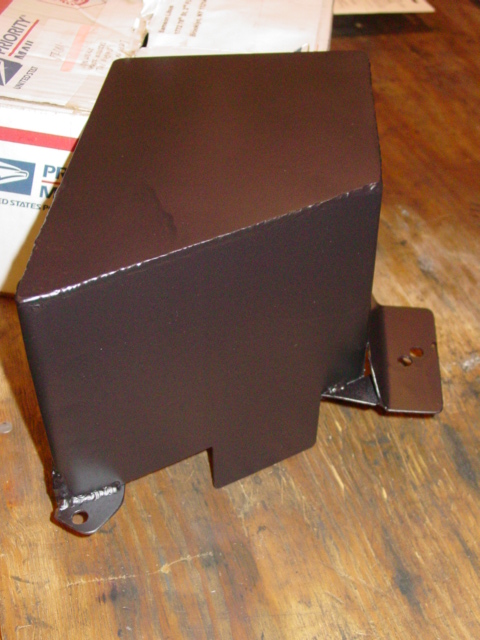

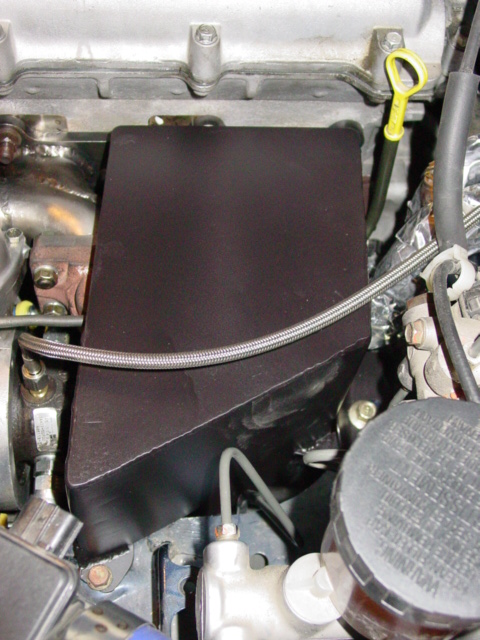

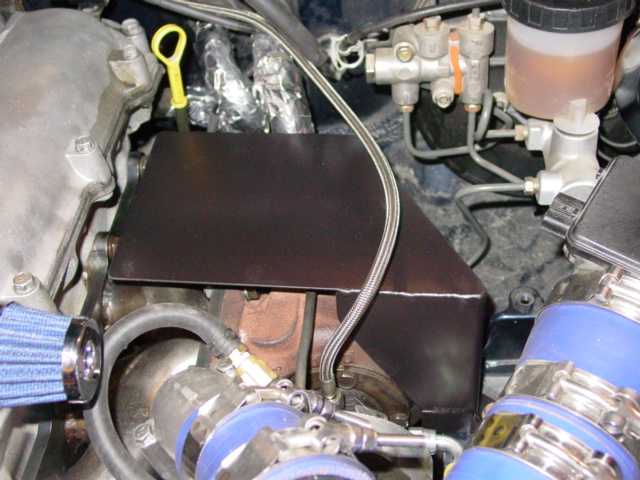

Here's the one that I built tonight. It's not perfect and the 1,200* paint didn't lay down that well, but it will work.
Attached Thumbnails
DIY Heatshields In Progress-dsc01309.jpg   DIY Heatshields In Progress-dsc01310.jpg   DIY Heatshields In Progress-dsc01311.jpg   DIY Heatshields In Progress-dsc01312.jpg
Stein is offline   Reply With Quote
Old 02-02-2009, 12:07 AM   #58
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

^^ Hey I like that. Any chance I could get a drawing for the sheet patterns?

EDIT: Never mind, wrong manifold. Looks easy enough to pattern up though.
ZX-Tex is offline   Reply With Quote
Old 02-02-2009, 12:20 AM   #59
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by ZX-Tex View Post
^^ Hey I like that. Any chance I could get a drawing for the sheet patterns?

EDIT: Never mind, wrong manifold. Looks easy enough to pattern up though.
My pattern was a Busch Light box (24 pack, of course) and duct tape. And, yeah, nobody has that mani except me. It's a DIY job.
Stein is offline   Reply With Quote
Old 02-02-2009, 12:23 AM   #60
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

That's a very nice looking cover, Stein. I really wish I could have figured out a way to mount mine to the body rather than the engine, as it would have saved a lot of frustration with the early versions failing due to vibration. It took several tries to come up with a design that wouldn't crack in short order. With the placement of the turbo on the Greddy manifold however, there was nothing for it.
Joe Perez is offline   Reply With Quote
