Old 05-07-2009, 01:13 AM   #21
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by curly View Post
Actually driving your miata FTMFW
lol **** you dude!

Its been over a year now since I drove it last. Everything is covered in hardcore dust down at the bodyshop still waiting for paint. I need to get going on that...
Vashthestampede is offline   Reply With Quote
Old 05-07-2009, 01:33 AM   #22
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

I only use the smiley every month or so, and I laugh every time knowing you still haven't driven your car, makes the smiley that much better.
curly is offline   Reply With Quote
Old 05-08-2009, 06:14 AM   #23
Junior Member

Join Date: Apr 2009
Location: Auckland, New Zealand
Posts: 50
Total Cats: 0
Default

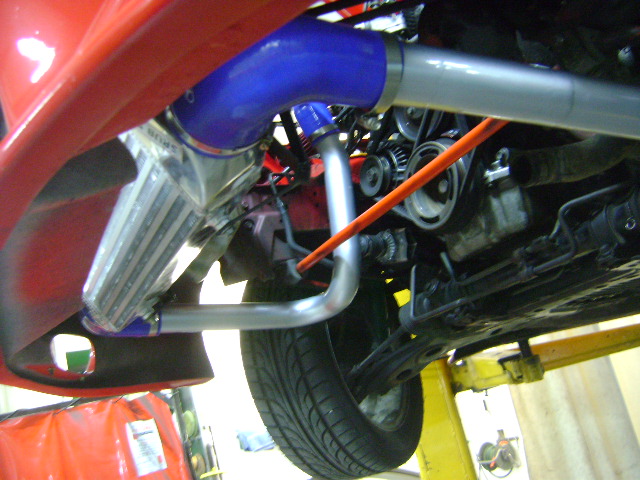

radiator is out in this picture but there is plenty of room for a condensor also
(this is with a veilside kit and i/c mounted infront of the front bumper beam)
Attached Thumbnails
DIY intercooler fitment question-plumb.jpg
sprsta is offline   Reply With Quote
Old 05-08-2009, 11:06 AM   #24
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Springfield Oregon
Posts: 174
Total Cats: 0
Default

I have the 22X5.5x2.5 core (27x5.5x2.5 overall) intercooler, and had some fitment issues (mostly the condenser), but was able to work around all of them.

You'll have to move the condenser up a bit, but all you have to do is unbolt all of the mounting brackets on the lines (temporarily), then loosen the clamp that holds the condenser and push it up. It'll move 1-1.5 inches up, then clamp it back down. You may also have to VERY GENTLY bend some of the lines, too. I used some pieces of aluminum to make spacers along with longer bolts to re-use the brackets on the A/C lines so they'd still be properly clamped down.

I can see a 7" core working, it'll just have an inch or two behind the bottom of the "mouth". Should still tuck up under the bottom of the car though I think.
miatamoxie is offline   Reply With Quote
Old 05-17-2009, 12:54 AM   #25
Newb

Join Date: May 2009
Posts: 1
Total Cats: 0
Default

Here's another option on ebay. It's 24x6x2.5. It's a few inches smaller than most other ebay intercoolers. I have a 96 and I'm keeping A/C and P/S. Ordering this in the next few days.
ebay ic 24x6x2.5
rev_miata is offline   Reply With Quote
Old 05-17-2009, 12:23 PM   #26
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by rev_miata View Post
Here's another option on ebay. It's 24x6x2.5. It's a few inches smaller than most other ebay intercoolers. I have a 96 and I'm keeping A/C and P/S. Ordering this in the next few days.
ebay ic 24x6x2.5
If looking for small but efficient, I bought this one myself:

Yonaka Motorsports Products - Intercoolers - Intercooler Type 9 18x6x2.5"

It's 26x6x2.5.
dustinb is offline   Reply With Quote
Old 07-18-2009, 03:53 AM   #27
Junior Member
iTrader: (3)

Join Date: May 2009
Location: Birmingham, AL
Posts: 435
Total Cats: -5
Default

any updates on how it went?
MiataMX5 is offline   Reply With Quote
