Default DIY: Oil pan drill vacuum

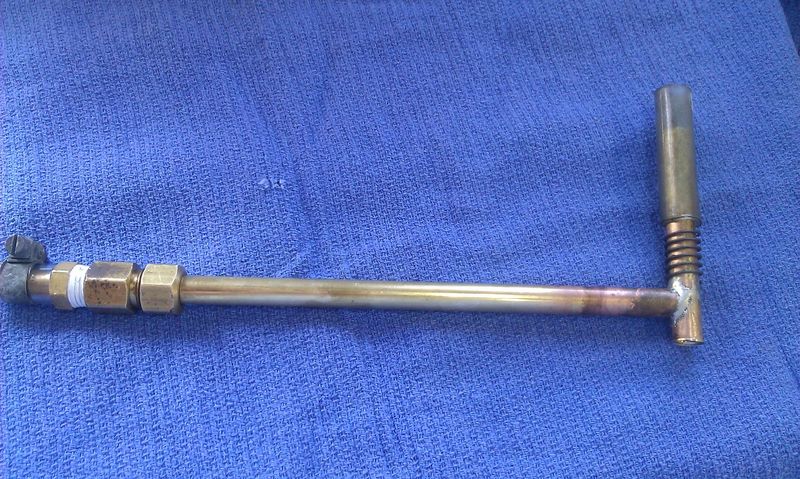

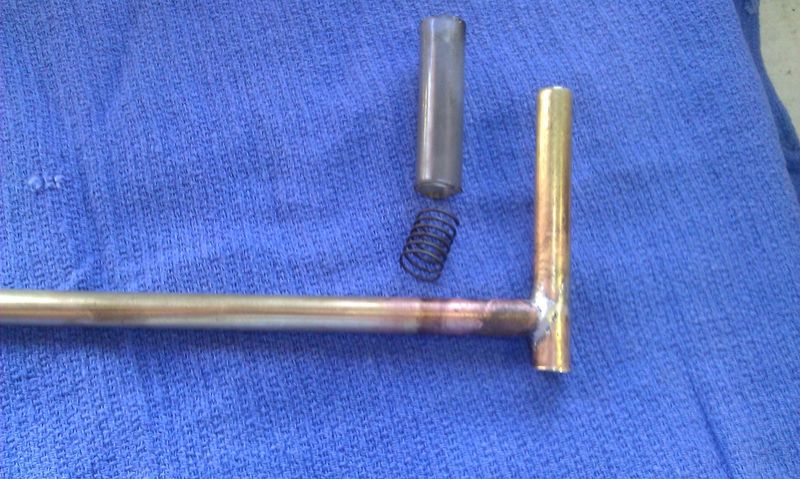

This DIY device was created for drilling a Porsche M96 block for an oil feed fitting. Looks simple enough to create for drilling the Miata oil pan too.



In action:
Attached Thumbnails
DIY: Oil pan drill vacuum-imag02911338922430.jpg   DIY: Oil pan drill vacuum-imag02901338922396.jpg   DIY: Oil pan drill vacuum-imag02911338922430.jpg   DIY: Oil pan drill vacuum-imag02901338922396.jpg
m2cupcar is offline   Reply With Quote
Old 02-04-2014, 02:05 PM   #2
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

That looks brilliant, and woudl probably be even easier to make if you used a t-fitting instead of soldering the pipes together.
mlev is offline   Reply With Quote
Old 02-04-2014, 02:34 PM   #3
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,517
Total Cats: 142
Default

Quote:
Originally Posted by mlev View Post
That looks brilliant, and woudl probably be even easier to make if you used a t-fitting instead of soldering the pipes together.
Ehh, I'd think their way allows for a nice clear, smooth pathway for the drill bit as well as the shavings, with no offsets or snag points likely to be encountered with any t-fitting.
good2go is offline   Reply With Quote
Old 02-04-2014, 03:19 PM   #4
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

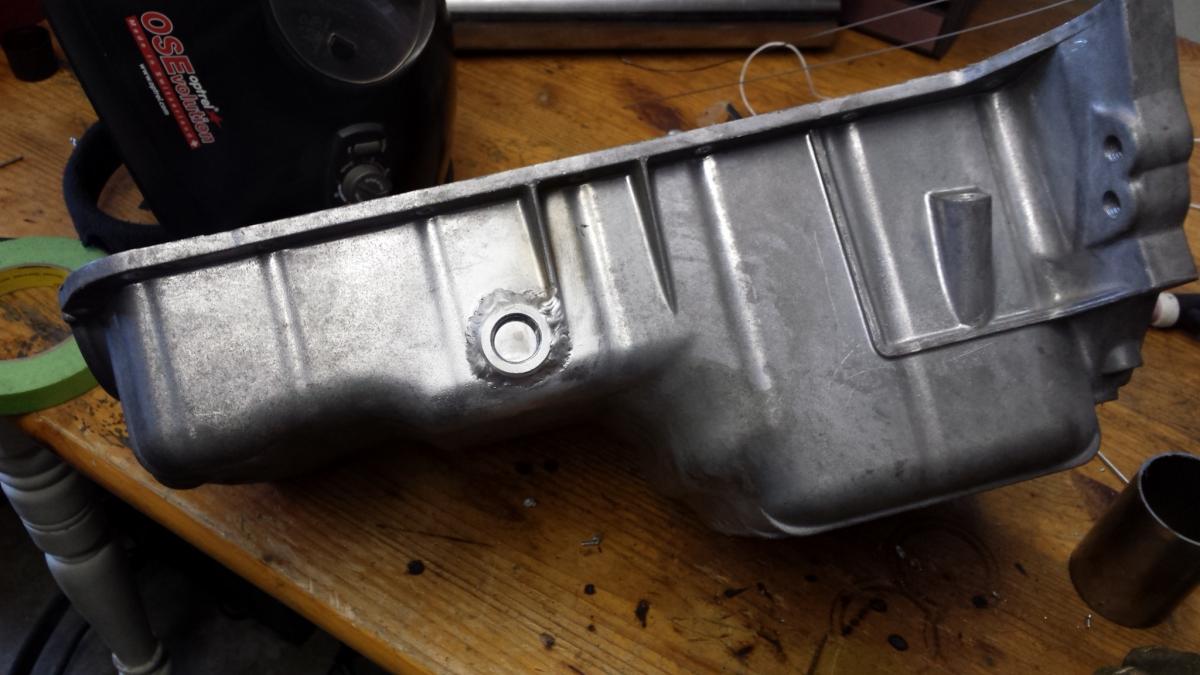

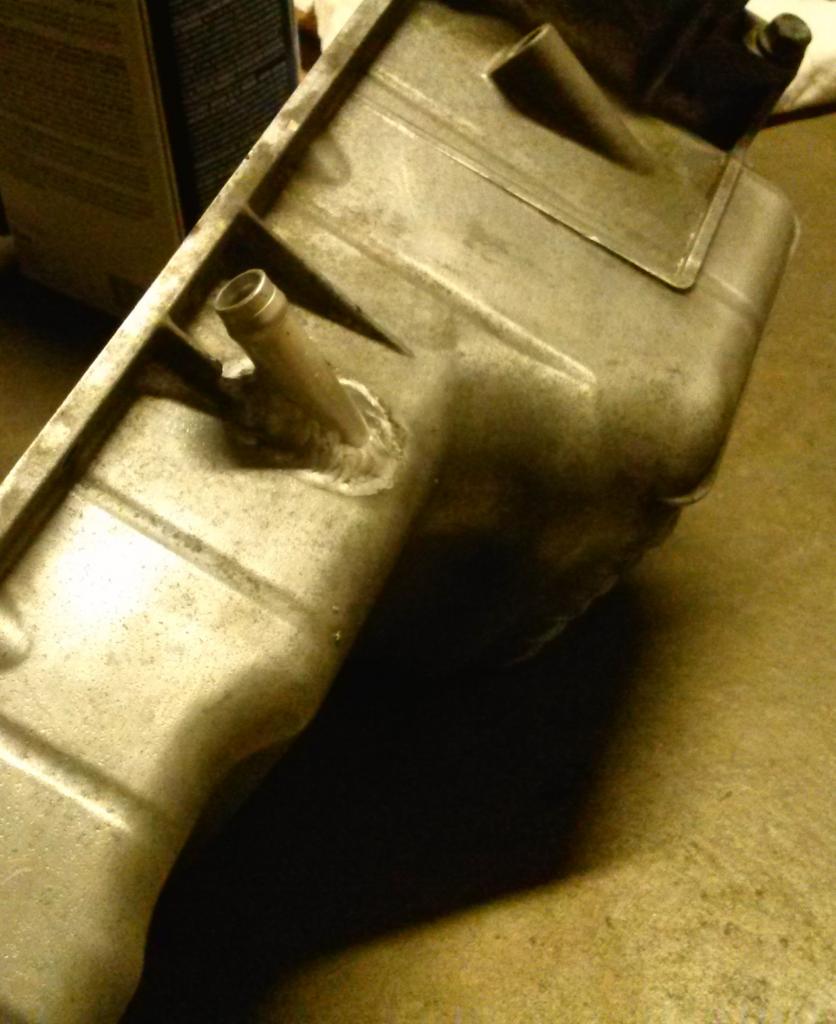

Y'all need friends with TIG welders





But this IS cool, the vacuum thing is a pretty neat idea. After drilling my pan this last weekend there is no way in HELL I'd be comfortable doing it the BEGI or FM way. The "optional" air compressor should be mandatory as far as I'm concerned.
Attached Thumbnails
DIY: Oil pan drill vacuum-vvrn5nr.jpg
EO2K is offline   Reply With Quote
Old 02-04-2014, 05:28 PM   #5
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,247
Total Cats: 291
Default

Quote:
Originally Posted by EO2K View Post
Y'all need friends with TIG welders
Explain how a TIG welder avoids the need to a drill a hole. Srsly- My point of the tool was for drilling the pan while installed on the block.
m2cupcar is offline   Reply With Quote
Old 02-04-2014, 05:43 PM   #6
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Well, welding obviously requires removal of the pan

...and I did say this was a neat idea. Someone motivated enough to make one could probably pair it with a drill and tap and then add it to the loaner drill and tap thread.
EO2K is offline   Reply With Quote
Old 02-04-2014, 08:03 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

I've said it before, the amount of chips that went in my pan, and the pain in my *** from cleaning them all out, I seriously doubt a little grease on a bit could keep all that out. I'm glad others have had success with the drilling method, but I'm VERY glad I did mine with the pan off the car.
curly is offline   Reply With Quote
Old 02-04-2014, 08:21 PM   #8
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

This doesnt solve tapping it, and there is hardly enough room for a very small drill alone, let alone all that stuff also.

Dann
nitrodann is offline   Reply With Quote
Old 02-05-2014, 12:02 AM   #9
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

Quote:
Originally Posted by m2cupcar View Post
Explain how a TIG welder avoids the need to a drill a hole. Srsly- My point of the tool was for drilling the pan while installed on the block.
Duh, you just push 300 amps into the pan and voila - a hole for your oil return.
krazykarl is offline   Reply With Quote
Old 02-05-2014, 12:10 AM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,336
Default

Quote:
Originally Posted by nitrodann View Post
This doesnt solve tapping it, and there is hardly enough room for a very small drill alone, let alone all that stuff also.

Dann
I'll give you one guess as to whether tapping or drilling produces more shavings.
Savington is offline   Reply With Quote
Old 02-05-2014, 12:18 AM   #11
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Tapping produces more that make it into the pan due to the fact that during 90% of the drilling procedure the pan doesnt have a hole in it yet.

Ive done dozens and dozens.

Dann
nitrodann is offline   Reply With Quote
Old 02-05-2014, 09:39 AM   #12
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,247
Total Cats: 291
Default

Aside from the fact I find it hard to believe that the tap puts more trash in than a standard bit (using the grease method)- I don't see why you can't use the vacuum with the tap.

I just did this job using a stepper bit with grease and was surprised it did such a good job catching the trash. I just pulled it out with every step, cleaned it, regreased and proceeded. In my experience the stepper does a way job of catching trash and producing a cleaner hole than a standard bit. The reality is that a large percentage are not going to pull their engine, and then pan to put an oil drain in. And of that majority very few every suffer consequences from the job. That said- I'm uncomfortable with job and doubt I could do it my own for exactly Curly's experience.

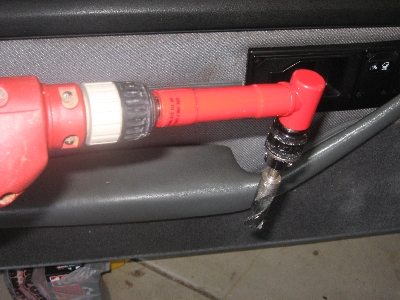

BTW- a right angle drill is a wonderful tool when working in tight spaces. If you find yourself empty handed, some genius came up with this
Attached Thumbnails
DIY: Oil pan drill vacuum-rightangledrill.jpg
m2cupcar is offline   Reply With Quote
Old 02-05-2014, 10:14 AM   #13
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

I could see how the tap would create more shavings that get IN, seeing as how the hole is already there for the entire tapping process, but that's probably why BEGi recommends greasing the tap and re-greasing it after like every single turn.
