Default DIY Radiator Panel / Cowl Cover

Well it's the weekend, so naturally it's shitty out.

Not in the mood to drive around in the snow and mess with the MS, I decided to design my own cowl cover / radiator panel / whatever it's called...

All I can say is there's a reason why I'm not an engineer, but I don't think I did horrible for not knowing what I'm doing.

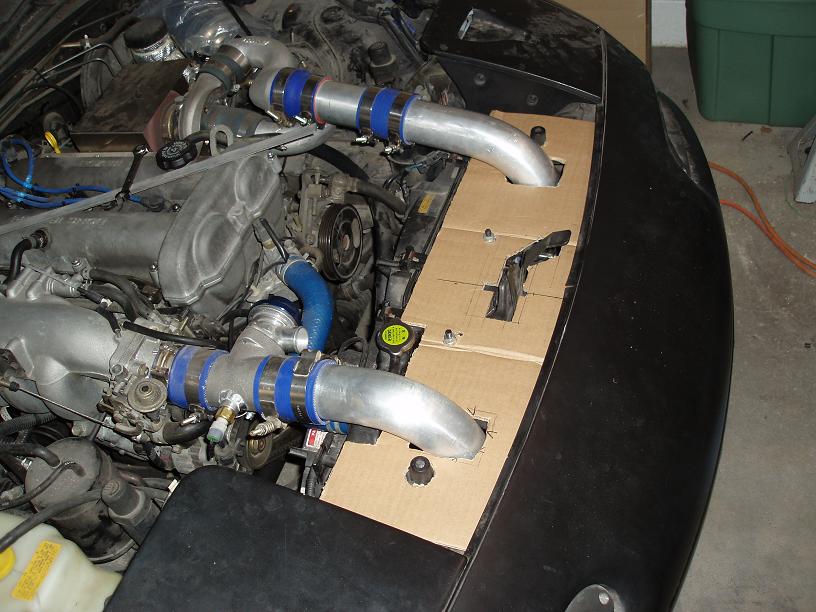

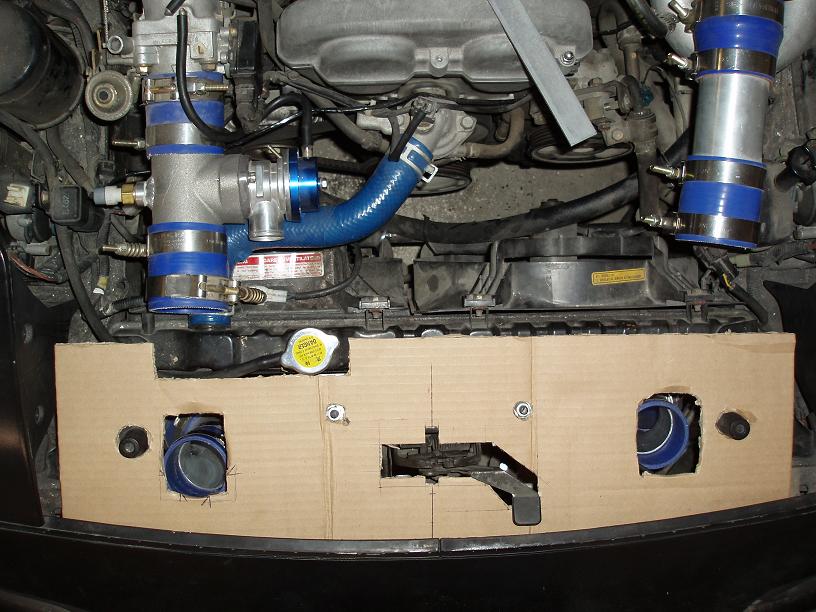

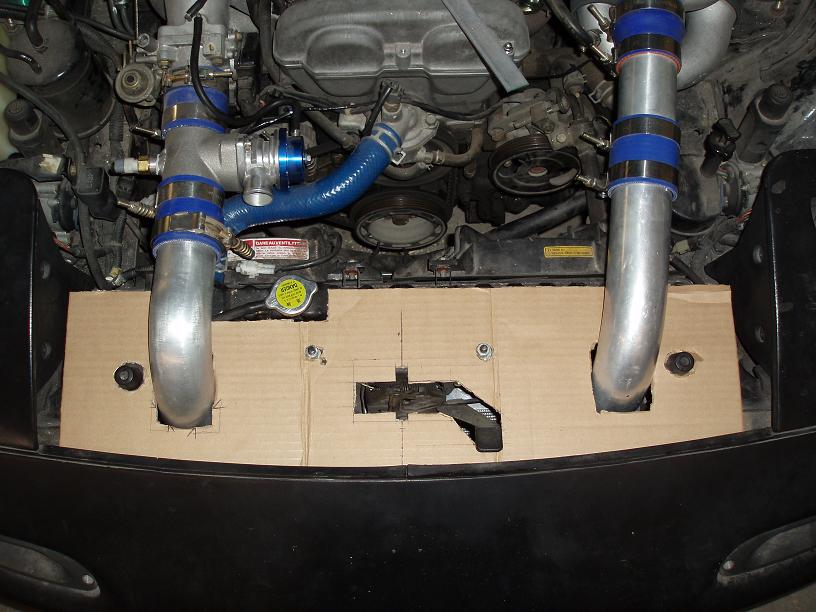

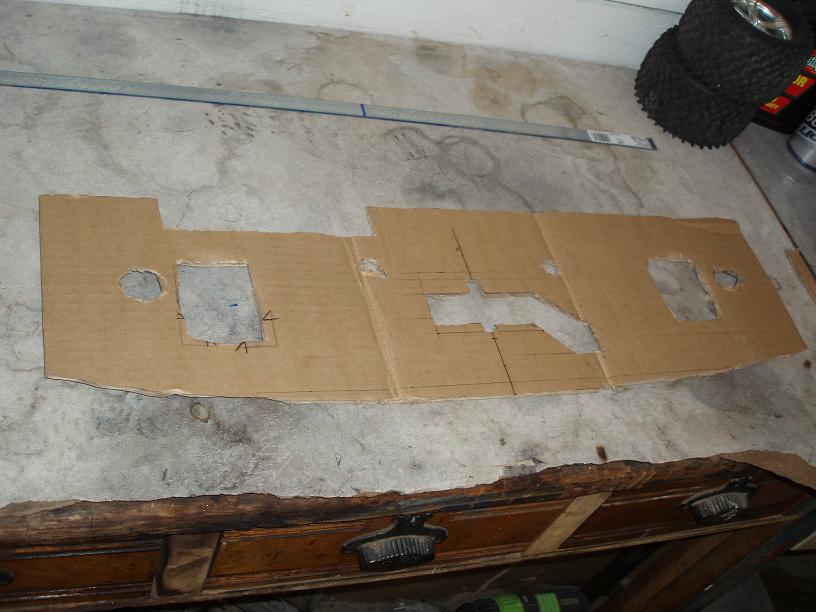

This is just a cardboard 'rough draft' so far. Before i actually cut some metal to make the final product, I wanted to hear from you guys and get some thoughts / suggestions....
Attached Thumbnails
DIY Radiator Panel / Cowl Cover-rad-cowl-cover.jpg   DIY Radiator Panel / Cowl Cover-rad-cowl-cover-1-.jpg   DIY Radiator Panel / Cowl Cover-rad-cowl-cover-2-.jpg   DIY Radiator Panel / Cowl Cover-rad-cowl-cover-3-.jpg
SHOthang is offline   Reply With Quote
Old 04-05-2009, 06:55 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

looks good. now make one
18psi is offline   Reply With Quote
Old 04-05-2009, 07:11 PM   #3
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

looks good. what material are you gonna use?
paul is offline   Reply With Quote
Old 04-05-2009, 07:17 PM   #4
Junior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2006
Location: Omaha,NE
Posts: 46
Total Cats: 0
Default

I got a sheet of stainless steel from a friend that I plan on using. I'm not sure of the width, it's really thin though.

That was actually going to be my next question.. What should In use to cut the center parts of the metal? I figure tin snips will suffice for cutting the outer lines, but not sure what to use for the holes. Whaddya think?
SHOthang is offline   Reply With Quote
Old 04-05-2009, 07:20 PM   #5
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

If you only have access to household tools I'm gonna say use a Dremel.
paul is offline   Reply With Quote
Old 04-05-2009, 07:21 PM   #6
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Also, make the holes slightly bigger than you show here for the piping because the piping will vibrate and eventually the SS sheet will cut into it. Maybe put a coupler on the pipe there for cushion too.
paul is offline   Reply With Quote
Old 04-05-2009, 07:26 PM   #7
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Looks familiar, lmao, I used .o40" CRS for mine...sheet metal is tough to work with by hand (I used a turret press and a press brake at work to make mine) take your time and I'm sure it'll come out good....post some pics when its all done

PS- I've used a jig saw with a smooth cut blade before with good luck....
Cspence is offline   Reply With Quote
Old 04-05-2009, 10:40 PM   #8
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I would suggest using ABS (much easier to fabricate) but if you already have the material...
ZX-Tex is offline   Reply With Quote
Old 04-06-2009, 12:04 AM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I used a jigsaw to make my wastegate bracket, turned out nice. They're cheap at Harbor Freight. For the inner bits, drill a hole and go to town!
kotomile is offline   Reply With Quote
Old 04-06-2009, 05:49 AM   #10
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Bristol
Posts: 442
Total Cats: 0
Default

Looks good.

Make it a lil taller and put a nice curve on the top edge then radius all the corners. Then it'l look great.

Last edited by Duckie_uk; 04-06-2009 at 08:12 PM.
Duckie_uk is offline   Reply With Quote
Old 04-06-2009, 12:28 PM   #11
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Spray the cardboard black and call it a day



































Turbo_4 is offline   Reply With Quote
Old 04-07-2009, 10:07 AM   #12
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by Turbo_4 View Post
Spray the cardboard black and call it a day


cardboard could be the definitive material in terms of lightness

Jokes apart, I think it's going to look good.
ismael_pt is offline   Reply With Quote
Old 04-28-2009, 11:34 PM   #13
Junior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2006
Location: Omaha,NE
Posts: 46
Total Cats: 0
Default

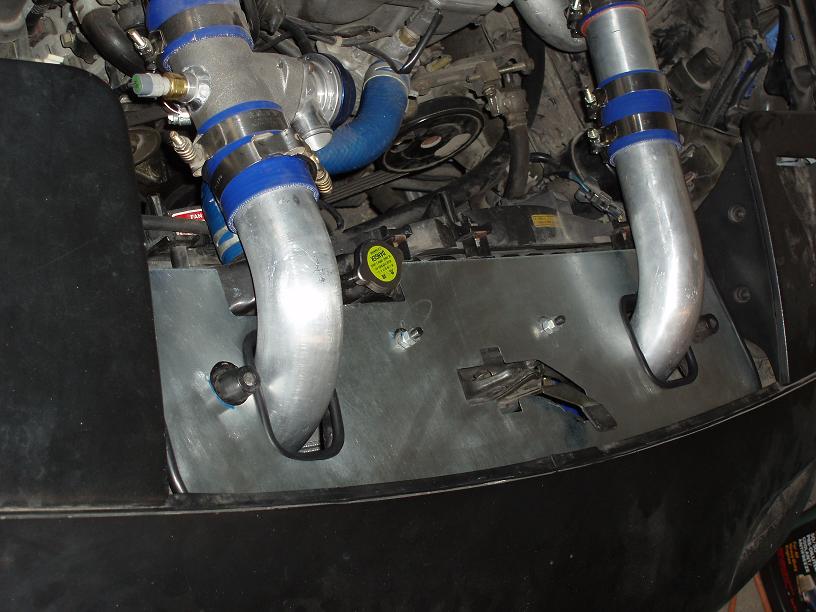

3 weeks later....

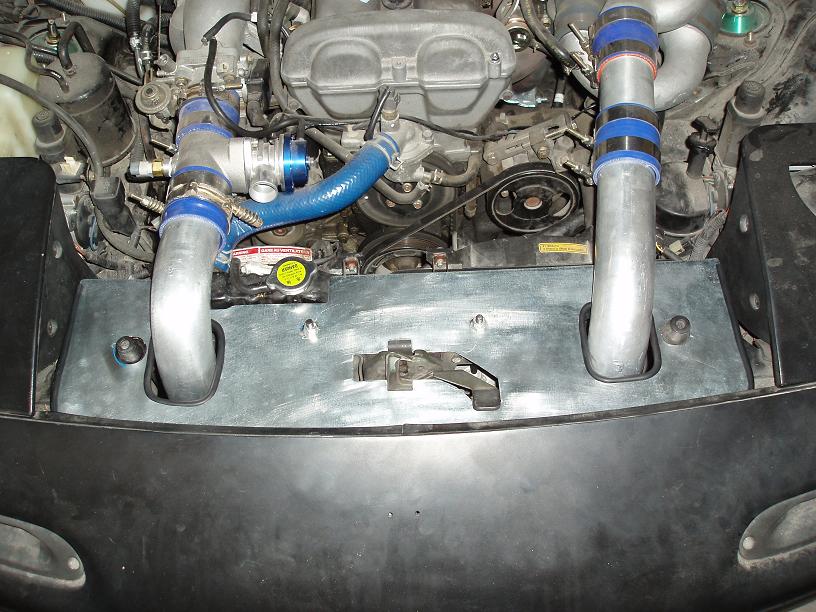

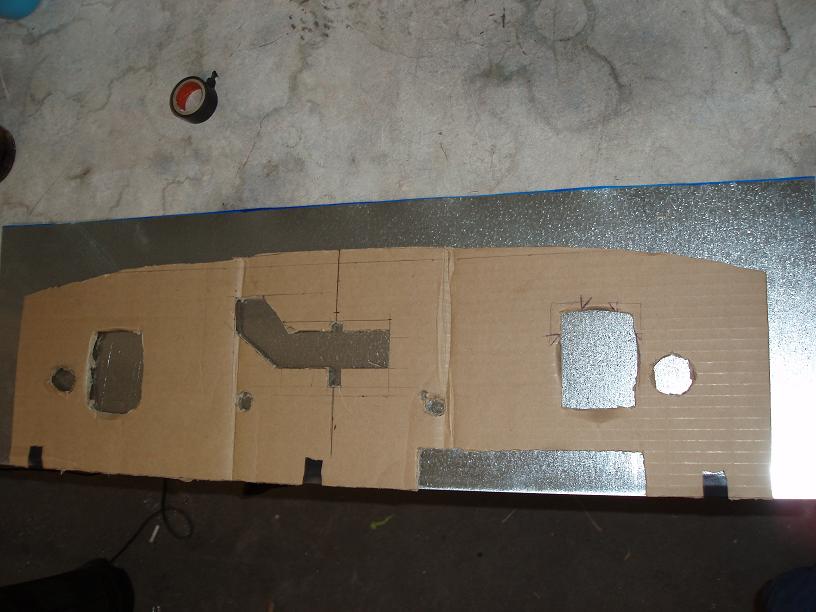

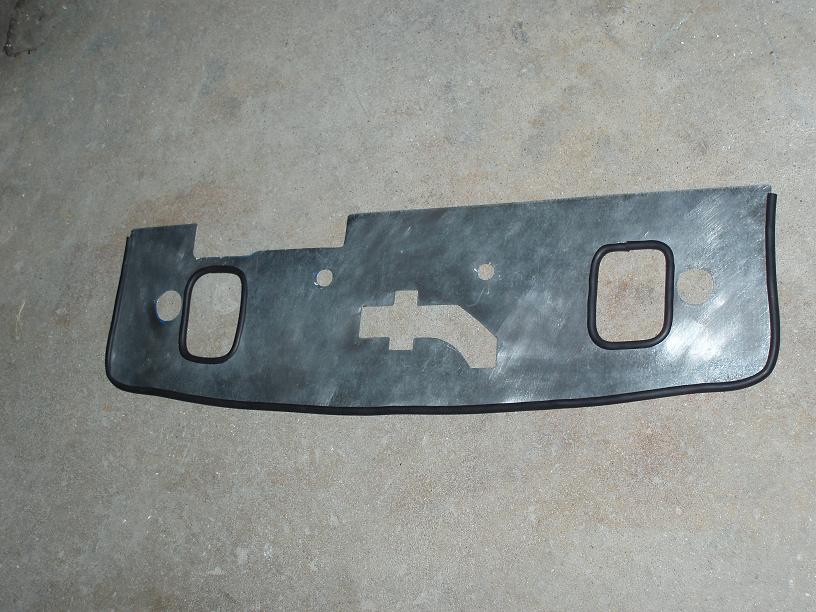

I've got something close to a finished product.
This sucked alot more that I thought it would!

Ended up buying tin snips, a rotary tool, attachment set and extra diamond bits from harbor freight. I could have bought one of these covers for close to the amount spent in materials, but it was an experience.

The material isn't actually stainless steel, but it was still free

Used vacuum hose for cushioning and noise reduction.
Haven't ran the car with it in, but seems stable.

I'll probably end up painting it flat black to hide the imperfections a bit better.

It's nowhere close to Cspence's or any vendors' but It'll do...
Attached Thumbnails
DIY Radiator Panel / Cowl Cover-cowl-cover-resize.jpg   DIY Radiator Panel / Cowl Cover-cowl-cover-resize-1-.jpg   DIY Radiator Panel / Cowl Cover-cowl-cover-resize-2-.jpg   DIY Radiator Panel / Cowl Cover-cowl-cover-resize-3-.jpg
SHOthang is offline   Reply With Quote
Old 04-28-2009, 11:38 PM   #14
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Good job, I love the intercooler piping, details please?
BenR is offline   Reply With Quote
Old 04-28-2009, 11:41 PM   #15
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Not bad for doing it by hand and once you get it painted it'll look mint....god bless your efforts, I'd prolly had given up myself if I did'nt have the facilities to do it...sheet metal work is a bitch!
Cspence is offline   Reply With Quote
Old 04-28-2009, 11:58 PM   #16
Junior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2006
Location: Omaha,NE
Posts: 46
Total Cats: 0
Default

Thanks guys.

As far as IC pipes. Those were a bitch too.
Had to cut the rad support & hood to make them fit.
Got the pipes off ebay and cut them to the sizes I needed (using a hacksaw hehe)

My intro thread has the basic gist of what I did if you want some more pics...

https://www.miataturbo.net/forum/t27110/
SHOthang is offline   Reply With Quote
Old 04-29-2009, 12:02 AM   #17
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I like it a lot.

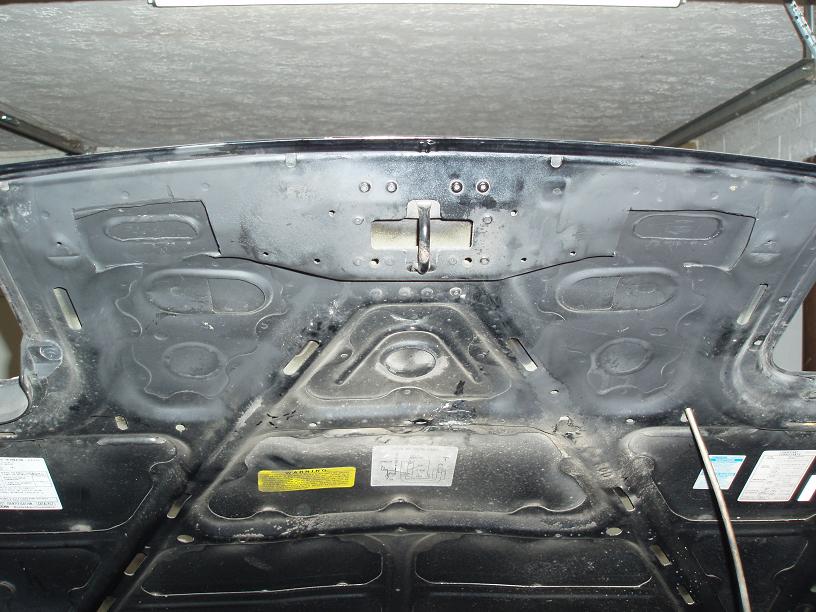

Pics of relief cuts in hood please.
samnavy is offline   Reply With Quote
Old 04-29-2009, 12:13 AM   #18
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

I went the easy way with my panel, I used some reflectix bubble foil. Took about 5 minutes.
BenR is offline   Reply With Quote
Old 04-29-2009, 12:42 AM   #19
Junior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2006
Location: Omaha,NE
Posts: 46
Total Cats: 0
Default

Some more awesome metalworking skills comming right up... Hehe
Attached Thumbnails
DIY Radiator Panel / Cowl Cover-p1010020.jpg
