Old 12-07-2011, 12:37 AM   #41
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 201
Total Cats: 37
Default

Quote:
Originally Posted by bbundy View Post
My current system that has worked for a number of years now. Diving board support off the motor mount to the turbine outlet. This is very similar to what Mazda does on every B6/BP OEM factory install.
1” wide band clamp holding the downpipe to the transmission.

The two failures I have had.

1) Bell housing bolts holding the transmission bracket came out. Forgot to tighten them after a transmission swap. One track session later and the nuts holding the downpipe flange to the turbine outlet were loose and two of
the studs broke off.
2) The single bolt connecting the diving board to the to the turbine outlet flange broke off once. A few sessions later and the manifold became cracked near the turbo flange. Also the first diving board I made out of mild steel and it cracked. current one is made of 4130 plate and hasn't cracked.

I have since added a 1” long spacer to the single bolt on the diving board. It gives the bolt a longer length and ability to stretch some without yielding and it hasn’t snapped since. Using 10mm Inconel studs with Nord locks seems to have almost cured the turbine flange to header problems as long as my two other supports on the downpipe stay functional.

My prior experience with Using U-bolts around the downpipe to secure it were not good. A U-bolt doesn’t have enough bearing surface on the pipe and you can’t keep it securely tight without it crushing the tube after some heat cycles it loosens up as it crushes the pipe.

Bob
Thanks Bob, I read your other thread about the strap clamp and I think it makes perfect sense, I plan to do something similar but likely further back (just in front of the flex joint) and utilize the front PPF bolts.

I would also like to add a "diving board", but I struggle with the same issue as hustler - how does one mount a diving board to a v-band housing? Using the CHRA bolts, given the problems hustler had, seems like a poor choice. But the diving board concept seems like a logical idea - its always good to mimic OEM setups! And I agree with JKav about the changing the natural frequency of the system with a solid brace versus a crane.
mx592 is offline   Reply With Quote
Old 12-08-2011, 09:54 PM   #42
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Subaru has multiple braces on the factory downpipe that attach to the tranny. Flex is after the downpipe.
Faeflora is offline   Reply With Quote
Old 04-01-2013, 03:22 AM   #43
Junior Member

Join Date: Dec 2008
Posts: 72
Total Cats: 2
Default

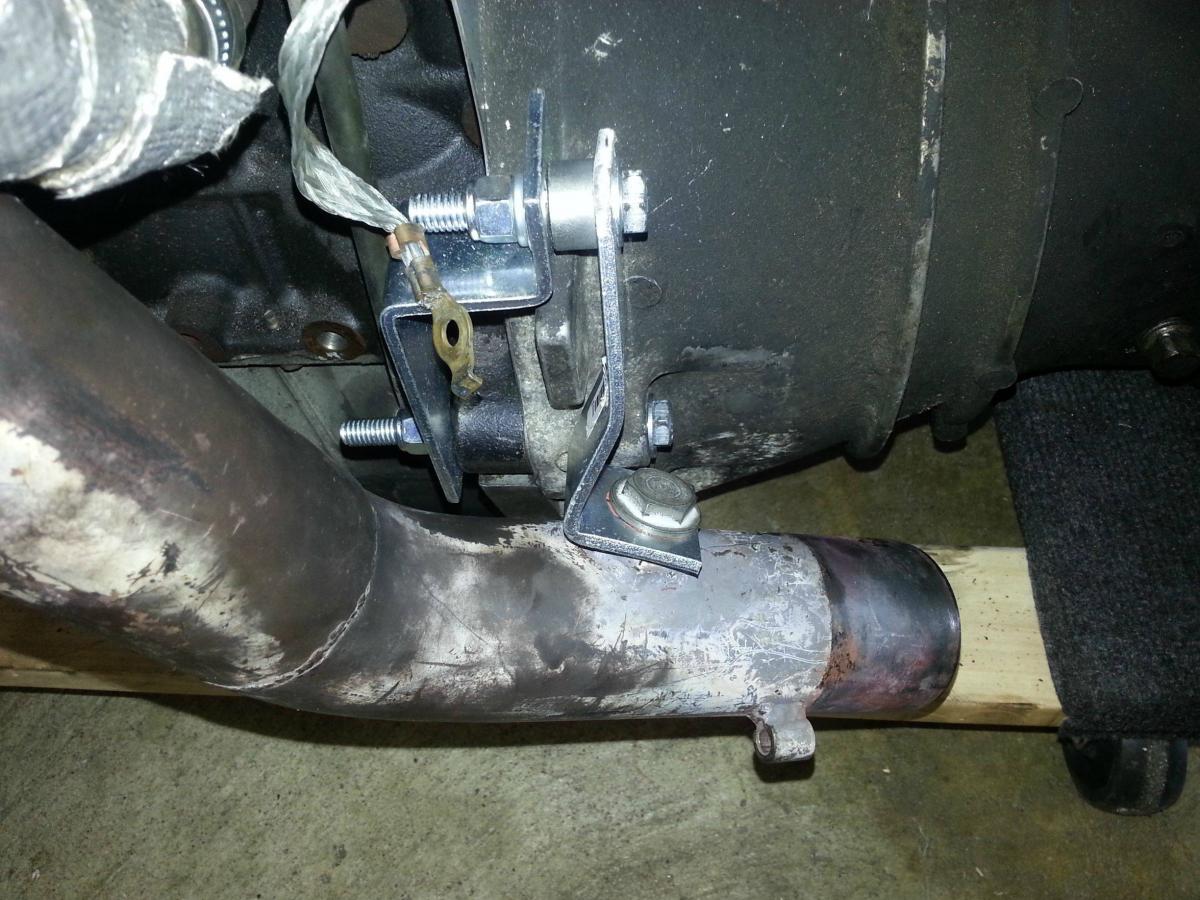

The unused O2 sensor bung was so close to the bellhousing I couldn't resist to cobble together a brace for my BEGi DP while the engine was out of the car. Not sure how it will hold up, time will tell.

Attached Thumbnails
Downpipe Bracing - What Works and What Doesn't?-bjh6tun.jpg
Sclippy96 is offline   Reply With Quote
Old 04-01-2013, 11:16 AM   #44
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

That will hold up for some time, but eventually will break/crack.

You wanna have a band/ sleeve around the whole pipe holding it down rather than just attach it at 1 point like that.
18psi is offline   Reply With Quote
Old 04-01-2013, 01:53 PM   #45
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I keep seeing these and I know I'll be pulling at least 1.5G constant with the hoosiers on, and just thinking about the amount of force on the exhaust where it mounts to the engine. Do we know how much the PPF can twist? I mean, what if we take the trans brace and combine it with the husterl brace, basically hard mount the exhaust to the PPF on both ends of the PPF. Then we wont get the folcrum effect that bundy is legitimately concerned with, and wont get significantly more NHV. I dont see a downside here.

I want to know what bundy used as his wide strap clamp. Shaft collars were looking like a good idea, but they're 60 bucks a piece for 1" wide steel or 7/8" wide 304 stainless. And the 5 dolla exhaust strap clamps on ebay only have 1 bolt and thats not gonna fly for a solid mount.
Leafy is offline   Reply With Quote
Old 04-01-2013, 01:58 PM   #46
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Quote:
Originally Posted by Leafy View Post
I dont see a downside here.
How about the ppf moving a lot more than you think and you'll essentially be doing the same thing with the muffler/axleback resulting in breakage in the back vs at the dp.

Sounds like a terrible idea tbh
18psi is offline   Reply With Quote
Old 04-01-2013, 03:14 PM   #47
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Why not brace the exhaust at the rear subframe?
hustler is offline   Reply With Quote
Old 04-01-2013, 03:16 PM   #48
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Or just get $15 hardened poly bushings for the hangars and not overcomplicate this
18psi is offline   Reply With Quote
Old 04-01-2013, 03:19 PM   #49
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by hustler View Post
Why not brace the exhaust at the rear subframe?
Because the engine, tranny, PPF, and diff all move relatively together with some flexing in the PPF (I have no idea how much though, could be completely minor). Assuming the PPF doesnt flex much, hard mounting the exhaust to the front and back of the PPF would basically eliminate any movement of the exhaust with respect to the engine. IE the exhaust would exert minimal force on the turbo manifold and related bits.
Leafy is offline   Reply With Quote
Old 04-01-2013, 04:05 PM   #50
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Leafy View Post
Because the engine, tranny, PPF, and diff all move relatively together with some flexing in the PPF (I have no idea how much though, could be completely minor). Assuming the PPF doesnt flex much, hard mounting the exhaust to the front and back of the PPF would basically eliminate any movement of the exhaust with respect to the engine. IE the exhaust would exert minimal force on the turbo manifold and related bits.
I had my exhaust done with a flex up front by the DP and ehxaust hard-mounted at the subframe and never had a problem. I think it would be a lot easier to mitigate movement back by the sub-frame rather than up front.
hustler is offline   Reply With Quote
Old 04-02-2013, 01:39 PM   #51
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,279
Total Cats: 53
Default

I'm thinking getting the FM brace and welding a thin ban of SS around the down pipe effective increase the pipe thickness. I'll make a flexable test pipe for track days.
Midtenn is offline   Reply With Quote
Old 04-02-2013, 02:15 PM   #52
Junior Member
iTrader: (1)

Join Date: Feb 2010
Location: Montreal, Canada
Posts: 55
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
I had my exhaust done with a flex up front by the DP and ehxaust hard-mounted at the subframe and never had a problem. I think it would be a lot easier to mitigate movement back by the sub-frame rather than up front.
I'm running with something similar to this with no issues.
Adamsm is offline   Reply With Quote
Old 04-02-2013, 06:45 PM   #53
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Cape Coral, FL
Posts: 155
Total Cats: 1
Default

Quote:
Originally Posted by Adamsm View Post
I'm running with something similar to this with no issues.
Quote:
Originally Posted by hustler View Post
I had my exhaust done with a flex up front by the DP and ehxaust hard-mounted at the subframe and never had a problem. I think it would be a lot easier to mitigate movement back by the sub-frame rather than up front.
Do either of you have a picture of this setup?
94LagunaR is offline   Reply With Quote
Old 04-02-2013, 07:50 PM   #54
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

I welded a tab onto the rear muffler that bolts to one of the rear towhook bolts using an OEM (from a ford falcon intercooler) rubber bolt thing. Its a cylinder of runner with threads each end constructed the same way an OEM miata engine mount is.

The exhaust cannot swing left and right more than 1mm at the rear btu can twist along with the engine, its braced on the DP and has a flex at the start of the exhaust.

The downpipe brace Ive done will probably fatigue and snap off you really need the full circle exhaust clamp style brace.

Dann
nitrodann is offline   Reply With Quote
Old 04-04-2013, 03:43 PM   #55
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

I used a SS band clamp and hooked it up to the trans. That way there is not pin point stress on the Down Pipe for the the very thin clamp like FM uses. Basicaly I used their design and improved (in my mind) it.

MicaCeli is offline   Reply With Quote
Old 04-14-2013, 12:07 AM   #56
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Quote:
Originally Posted by MicaCeli View Post
I used a SS band clamp and hooked it up to the trans. That way there is not pin point stress on the Down Pipe for the the very thin clamp like FM uses. Basicaly I used their design and improved (in my mind) it.

I think I may try this idea, that band looks like it will spread the force well.
Landrew is offline   Reply With Quote
Old 04-19-2015, 12:45 AM   #57
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

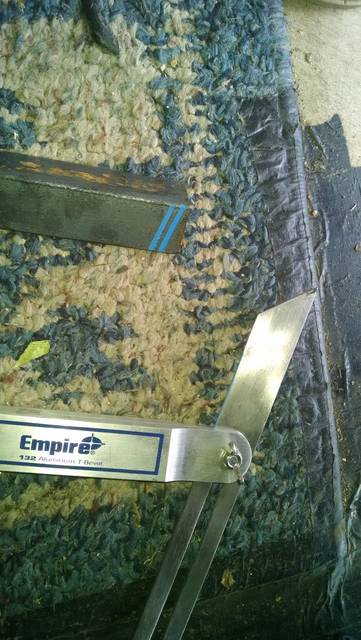

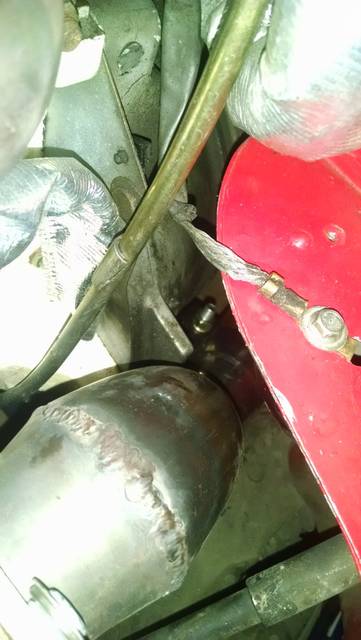

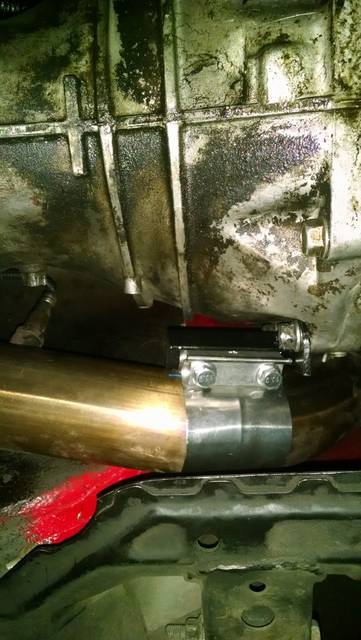

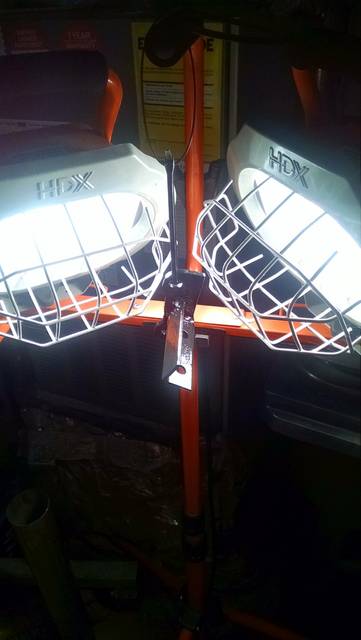

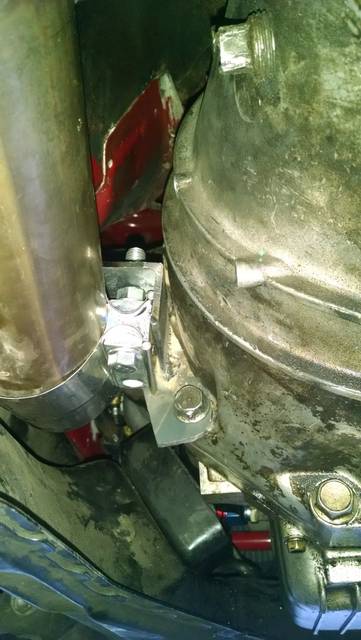

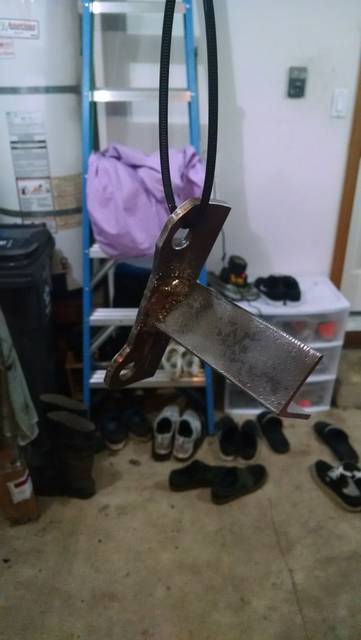

Back from the dead to post pics of my downpipe brace.






Attached Thumbnails
Downpipe Bracing - What Works and What Doesn't?-rcc6n5yl.jpg   Downpipe Bracing - What Works and What Doesn't?-posmvjml.jpg   Downpipe Bracing - What Works and What Doesn't?-gt9tyfll.jpg   Downpipe Bracing - What Works and What Doesn't?-nbehkfsl.jpg   Downpipe Bracing - What Works and What Doesn't?-rwn2hz0l.jpg

Downpipe Bracing - What Works and What Doesn't?-h2zoc6pl.jpg
aidandj is offline   Reply With Quote
Old 06-12-2015, 01:03 AM   #58
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Exhaust brace setup. Seems to work ok as tested by unbolting both Tial V-Bands and having it keep things stable. Time will tell.







Landrew is offline   Reply With Quote
Old 06-12-2015, 01:06 AM   #59
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Landrew View Post
Exhaust brace setup. Seems to work ok as tested by unbolting both Tial V-Bands and having it keep things stable. Time will tell.<br />
<br /><br />
<br /><a href="http://s120.photobucket.com/user/Landrew109/media/20150609_222921.jpg.html" target="_blank"><img src="https://www.miataturbo.net/attachment.php?attachmentid=141384&amp;dateline=14 33913487" border="0" alt="" /></a><br />
<br /><br />
<br /><br />
<br /><a href="http://s120.photobucket.com/user/Landrew109/media/20150609_222935.jpg.html" target="_blank"><img src="https://www.miataturbo.net/attachment.php?attachmentid=141385&amp;dateline=14 33913487" border="0" alt="" /></a><br />
<br /><br />
<br /><br />
<br /><a href="http://s120.photobucket.com/user/Landrew109/media/20150609_222942.jpg.html" target="_blank"><img src="https://www.miataturbo.net/attachment.php?attachmentid=141386&amp;dateline=14 33913487" border="0" alt="" /></a>
<br />
<br /><br />
<br />I would make some sort of support to hold that clamp, instead of a single bolt.
