Not really. Why wouldn't i put one of those on a BP?
concealer404 is offline   Reply With Quote
Old 12-04-2014, 04:27 PM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by concealer404 View Post
Not really. Why wouldn't i put one of those on a BP?
His point was T2 flanged.
Leafy is offline   Reply With Quote
Old 12-04-2014, 04:32 PM   #23
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Leafy View Post
His point was T2 flanged.
Attached Thumbnails
Downpipe tech...  FM Turbine outlet vs 3" elbow vs BEGI Separated-you-dont-say-fb.jpg
concealer404 is offline   Reply With Quote
Old 12-04-2014, 06:26 PM   #24
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by Chiburbian View Post
Thanks. The question is though, will the added complexity of the dual tube design cost me too much in money to be worth it?

FM housing costs $220 plus $550 "three inch conversion" kit. Add a cat and complete the midpipe... Yikes!
The $520 FM "3 inch conversion kit" includes a 3" metal core cat. It goes all the way from the outlet casting to a midpipe flange (note, not the same flange as stock -- you can't fit three inches between the bolts on the stock midpipe flange).

The FM stuff is expensive, but it fits well and ships with minimal delays.

--Ian
codrus is offline   Reply With Quote
Old 12-04-2014, 06:53 PM   #25
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Here is the plan:

FM elbow with standard four bolt flange replaced with v-band! (IF we can get the v-band to reliably weld to the turbine elbow***)

Custom v-band downpipe to v-band mid pipe to v-band muffler...

All 3 inch.


*** my fabricator feels he will be able to do this reliably but wants to see the elbow first before committing. Worse comes to worse we need to fabricate the flange for the downpipe side.

Last edited by Chiburbian; 12-04-2014 at 09:18 PM.
Chiburbian is offline   Reply With Quote
Old 12-04-2014, 10:44 PM   #26
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Chiburbian is offline   Reply With Quote
Old 12-05-2014, 01:11 AM   #27
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

What you want is something like GSP T25 T28 GT25 GT28 5 Bolt to 3" V Band Turbo Outlet Downpipe Flange Adapter | eBay

That's actually in my cards if I decide to upgrade my mani/downpipe and go with a EWG.

P.S. Abe built me an entire exhaust, with resonator, and downpipe for a little bit more, including shipping, then what you are talking about spending on a couple pieces. Stop trying to be cheap, you are costing yourself money.
blaen99 is offline   Reply With Quote
Old 12-05-2014, 01:15 AM   #28
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by Chiburbian View Post
Good find, hopefully would bolt right up.

I figured all 2.5"/4-bolt flanges were the same, but the FM version did not match up with a paper gasket I directly compared it to over at Silicone Intakes prior to installation (so far off I didn't buy the gasket). Just sayin' it might need some tweaking to make it fit.
matthewdesigns is offline   Reply With Quote
Old 12-05-2014, 07:35 AM   #29
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

My thinking is that I would be surprised if FM decided to reinvent the wheel in regards to flanges. Every part that is unique to thier part is another that they have to have a special supply chain for.

Blaen, the reason The FM piece is attractive to me over the 3" grand directly on the back of the turbo is that the tight bend is already done. With the current DP there is less than 3/8" clearance between the DP and the tray. If I upgraded to a different manifold that changed the position of the turbine exit I think your idea is perfect.

My fabricator told me that a good amount of labor time would have gone into making that elbow and he estimate that in materials and cost it would equal out to be about the same cost.

The FM part is on order and when it arrives I will be doing some measurements and see hat works best.
Chiburbian is offline   Reply With Quote
Old 12-05-2014, 08:03 AM   #30
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

I find seperated gases easier to build and a LOT easier to work on.

Plus dem haich peez and spool.
nitrodann is offline   Reply With Quote
Old 12-05-2014, 11:54 AM   #31
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by Chiburbian View Post
My thinking is that I would be surprised if FM decided to reinvent the wheel in regards to flanges.
My thought as well, which is why I was surprised to find that the gasket didn't fit. Certainly possible that the cheap **** SI sells is the oddball shape, though.
matthewdesigns is offline   Reply With Quote
Old 12-05-2014, 01:34 PM   #32
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Chiburbian View Post
My thinking is that I would be surprised if FM decided to reinvent the wheel in regards to flanges. Every part that is unique to thier part is another that they have to have a special supply chain for.

Blaen, the reason The FM piece is attractive to me over the 3" grand directly on the back of the turbo is that the tight bend is already done. With the current DP there is less than 3/8" clearance between the DP and the tray. If I upgraded to a different manifold that changed the position of the turbine exit I think your idea is perfect.

My fabricator told me that a good amount of labor time would have gone into making that elbow and he estimate that in materials and cost it would equal out to be about the same cost.

The FM part is on order and when it arrives I will be doing some measurements and see hat works best.
Are you trolling me?

If I had ordered my full exhaust from Abe with no resonator, I think it would have been something like $950 shipped.

You are talking about $770 for just an elbow and maybe a downpipe. Plus what your fabricator charges you.

How in the world does this make financial sense for you? Abe already knows and does all of that on everything he builds with what you are talking about.

I mean, do what you want man, but you seem to be spending more on something for at best no gain, at worst worse - for more money! If you want what I have dyno proven, copying me would be less money instead of going into uncharted territory that has no mentionable benefit I can see.
blaen99 is offline   Reply With Quote
Old 12-05-2014, 01:44 PM   #33
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

LOL No!

My fabricator is going to be far less.

Plus I'm not using anything except the FM elbow. My price out the door will be less than the ARtech price.
Chiburbian is offline   Reply With Quote
Old 12-05-2014, 02:01 PM   #34
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Ahh.

Well, awaiting dyno results then. But fire your fabricator if he puts another 90 degree in the exhaust plox.
blaen99 is offline   Reply With Quote
Old 12-05-2014, 02:12 PM   #35
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

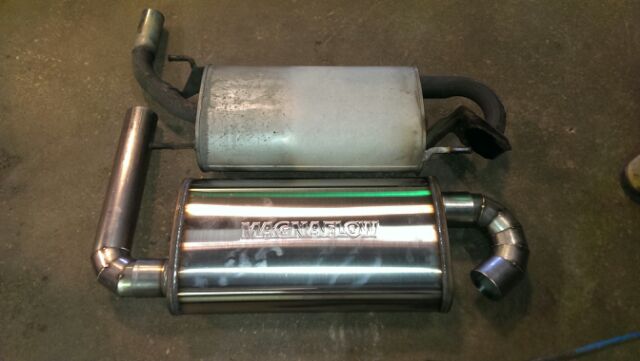

There is an unfortunate amount of bends in the exhaust path but that isn't until you get to the muffler. I have that big honking magnaflow mounting in the factory position and the exhaust routes around the differential/axles the same way the stock one does. The bends are nice and wide though.

Attached Thumbnails
Downpipe tech...  FM Turbine outlet vs 3" elbow vs BEGI Separated-84841d1375592794-chiburbians-2001-ls-parallel-install-imag0626.jpg
Chiburbian is offline   Reply With Quote
Old 12-05-2014, 07:28 PM   #36
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

SI that REALLY what you are paying for?

I wouldnt be happy with it personally.





Dann
nitrodann is offline   Reply With Quote
Old 12-05-2014, 07:53 PM   #37
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

now figure out a way to ship all your parts to us without them costing a gazillion and we'll keep you busy and making money for the rest of your life

18psi is offline   Reply With Quote
Old 12-06-2014, 03:50 AM   #38
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Neat exhaust Dann.
sturovo is offline   Reply With Quote
Old 12-06-2014, 04:15 AM   #39
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Cheers.
nitrodann is offline   Reply With Quote
