Old 07-05-2012, 06:11 PM   #21
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

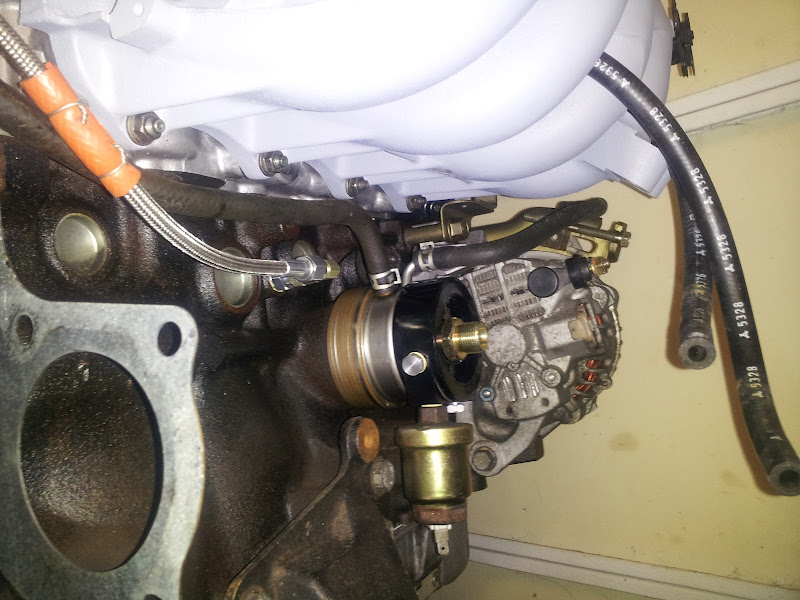

I never considered the sandwich plate offered unfiltered oil but you're absolutely right Joe. In light of that, I believe this would be the best solution to your conundrum:



Eaton 1/8"BNPSTWIERHJK to -4AN fitting then attach your pressure sending unit to sandwich plate and hope it doesn't leak all over the place.
Attached Thumbnails
Drilling block for oil feed?-20120705_155807.jpg
elesjuan is offline   Reply With Quote
Old 07-05-2012, 06:22 PM   #22
Newb
Thread Starter

Join Date: Dec 2010
Posts: 9
Total Cats: 0
Default

A damn good shout that actually Scott!

And the oem sender is 1/8NPT yes?
godders is offline   Reply With Quote
Old 07-05-2012, 06:24 PM   #23
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Quote:
Originally Posted by godders View Post
A damn good shout that actually Scott!

And the oem sender is 1/8NPT yes?
Nope, stock sender is 1/8BSPT.

--Ferdi
ftjandra is offline   Reply With Quote
Old 07-05-2012, 06:44 PM   #24
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Indeed. 1/8 BSPT.

The specs two are *really* close. 1/8 NPT is 27 TPI with a major diameter of 0.405", whereas 1/8 BSP is 28 TPI with a 0.383" major diameter.

Some folks report that the two can be interchanged, provided that one exercises caution and is liberal in the use of sealant.

Others prefer to use the correct adapters.

https://www.pegasusautoracing.com/gr...D=PLUMADAPTBSP
Joe Perez is offline   Reply With Quote
Old 07-05-2012, 07:10 PM   #25
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Use an oil safe sealant (Rectorseal5 for example) on the OEM sending unit, it will thread into a 1/8NPT standard port perfectly, you just can't install 1/8NPT into a 1/BSPT hole. Ask me how I know. Didn't even know such a thing as "BSPT" existed until Husty and some others clued me in on my thread, not that I'm a pipe fitter or anything . . .
elesjuan is offline   Reply With Quote
Old 07-05-2012, 08:54 PM   #26
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Look a ahiity old block is like $100.

I will tap ur block bby

It is not like our block is rare am commodueit
Faeflora is offline   Reply With Quote
Old 07-05-2012, 09:17 PM   #27
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Speaking of oil feeding.
I have an NBB so I want to run a mechanical oil guage in the car, any idea what length I need of 4AN braided going from block port through firewall to guage near steering wheel. I could measure myself but then what good is that gonna do?
Landrew is offline   Reply With Quote
Old 07-05-2012, 10:19 PM   #28
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

what the *** is rong with you

no. do not run mechanical oil gauge into the damn cabin. 200* oil spraying on you is fail
Faeflora is offline   Reply With Quote
Old 07-05-2012, 11:06 PM   #29
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Hmm food for thought.

You know I had a nylon line in my VW for years but never thought about the temperature of the oil. It never leaked after years of use so I never paid the "what ifs" much attention.

I know there are people that do it, is not braided line to brass gauge fittings very very reliable?

My mechanical fuel gauge with heater hose line in the cabin has never leaked, gets a bit of fumes going after a hard run but that's all. Since I'm so busy texting I get the kids to watch the dial when I'm full throttlin'.

Last edited by Landrew; 07-05-2012 at 11:20 PM.
Landrew is offline   Reply With Quote
Old 07-05-2012, 11:24 PM   #30
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

whatever. go ahead and live on the edge.

you may as well run the fuel gauge in your lap.
Faeflora is offline   Reply With Quote
Old 07-05-2012, 11:29 PM   #31
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

sure it didn't break before.
but just think: if it happens just 1 time there's a good chance you'll be f*'d for life.
18psi is offline   Reply With Quote
Old 07-05-2012, 11:40 PM   #32
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Ha the fuel guage was a joke.

So then get an electrical guage and sender but run the braided line from the block out a few feet then connect to the sender so to avoid vibration damage to the sender unit??
Landrew is offline   Reply With Quote
Old 07-05-2012, 11:55 PM   #33
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

run a stupid remote sensor like the rest of the 205th sentury
Faeflora is offline   Reply With Quote
Old 07-06-2012, 12:08 AM   #34
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by Landrew View Post
So then get an electrical guage and sender but run the braided line from the block out a few feet then connect to the sender so to avoid vibration damage to the sender unit??
Pretty much.

I've never seen it happen, but there are a few horror-stories floating around about hoses (or gauges themselves) failing, with the result of 250 degree oil being sprayed into the driver's compartment at 60+ PSI. I'd imagine that this is probably an unpleasant thing to experience.

They do make diaphragm-style isolators for use with mechanical fuel pressure gauges. Not sure if I've ever seen one rated for use with oil, but they may be out there.

On the other hand, as cheap and reliable as electric gauges are, coupled with the fact that it's a lot easier to run a wire than a braided line, I'd personally stick with the electric gauges across the board. Direct-reading mechanical gauges are so 19'th century.
Joe Perez is offline   Reply With Quote
Old 07-06-2012, 01:29 AM   #35
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Prosport Gauges Oil Pressure Gauge 52mm

$43 bux and some change for shipping. Don't cheap out when it comes to something safety related...
elesjuan is offline   Reply With Quote
Old 07-06-2012, 01:38 AM   #36
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Going with electric unit.

Isn't there a reasonable amount of vibration failures associated with attaching the electric sending unit directly to the block. I had heard running some hose/line from block then the sender unit will isolate it from quite a bit of vibration and ensure a longer life.
Paranoid or overkill ?
Wait did I just go from borderline unsafe to oversafe?
Landrew is offline   Reply With Quote
Old 07-06-2012, 02:02 AM   #37
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by elesjuan View Post
Incidental: I have heard that those blackout-style gauge can be difficult to read when exposed to direct sunlight in a convertible with the top down.

Quote:
Originally Posted by Landrew View Post
Isn't there a reasonable amount of vibration failures associated with attaching the electric sending unit directly to the block. I had heard running some hose/line from block then the sender unit will isolate it from quite a bit of vibration and ensure a longer life.
Considering that the '90-'94 engines all had analog sensors mounted to the block, and they don't seen to be experiencing an abnormally high rate of failure after 18-22 years, I'd have to say that no, this is not a serious concern.


What I have heard (but never seen first-hand) is that putting the heavy analog sender on the end of a tee-adapter combination can lead to stress-induced fracturing of the mechanical fittings between the sensor and the block. This would argue for a remote fitting if your application requires intermediate hardware, such as when using the oil pressure hole for a turbo oil feed on a later-model engine.
Joe Perez is offline   Reply With Quote
Old 07-06-2012, 02:52 AM   #38
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Thanks for the tip on the blackout gauges, good point, and the leverage on the fittings when piggybacking the block port.

If a sandwich plate is used as well as the block port what is the best spot for the turbo line and pressure gauge when choosing from either feed?
Landrew is offline   Reply With Quote
Old 07-06-2012, 03:06 AM   #39
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Joe is correct, direct sunlight makes it a little difficult to see but not impossible.

Oil line from block, pressure from sandwich.
elesjuan is offline   Reply With Quote
Old 07-06-2012, 04:04 AM   #40
Newb
Thread Starter

Join Date: Dec 2010
Posts: 9
Total Cats: 0
Default

Okay I have a plan forming in my head, the last piece of the puzzle that Im not 100% on is if I use -3AN or -4AN line for the turbo feed? Seen them both mentioned in different threads!
godders is offline   Reply With Quote
