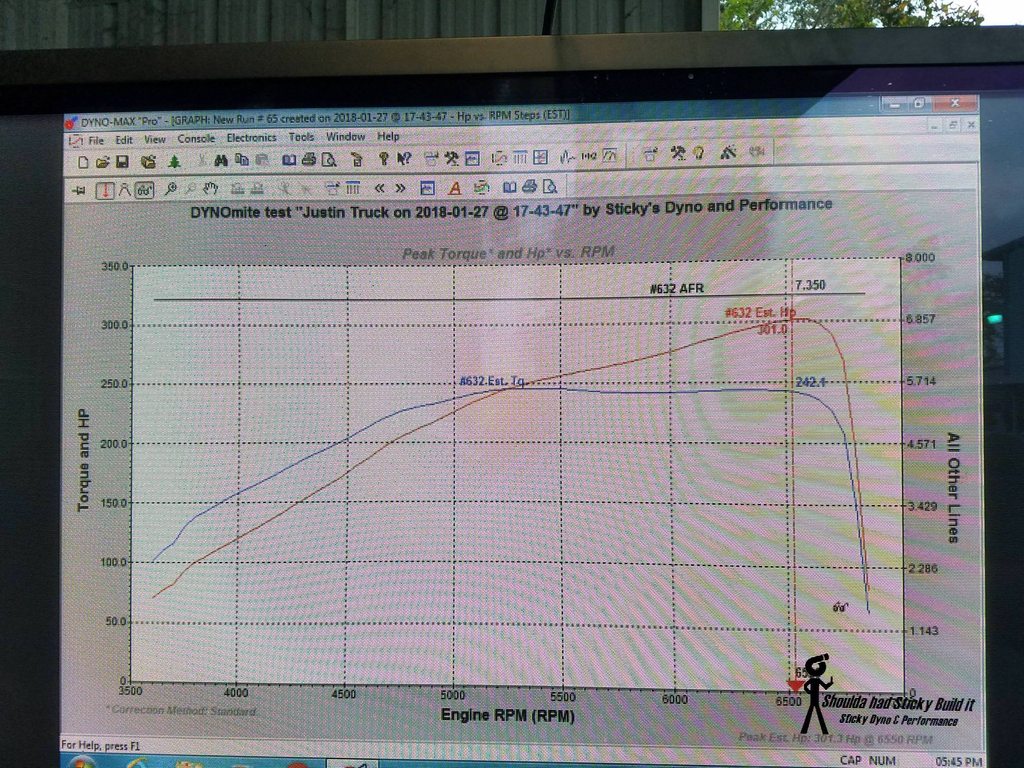

Default Dyno success, 301 whp stock block

Been a few years since I last had the car on the dyno. Pretty happy with the results!

GT2860RS at about 15 psi, BEGi log manifold + separated gases stainless DP, 2.75" to 3" straight pipe, MS3/MS3x, LC-2 wbo2, Toyota COP's, Koyo 37mm radiator, ACT stage 1 clutch kit w/ Prolite flywheel, turbosmart kompact bov, 550cc ev14 injectors from BEGi, DIY intake from siliconeintakes.com, DIYautotune EBC solenoid, closed loop boost control.

Had the turbo setup on for about 3 years or so now, still on the stock engine, trans, diff. Replaced the driveshaft once because it was squeaking from the u-joints. Currently have 175k ish miles, and is my primary vehicle. Could ask for slightly quicker spool, but I think it is the way it is due to the larger .86 turbine housing I have on this potato.

Will post a video in the comments when pops uploads it.

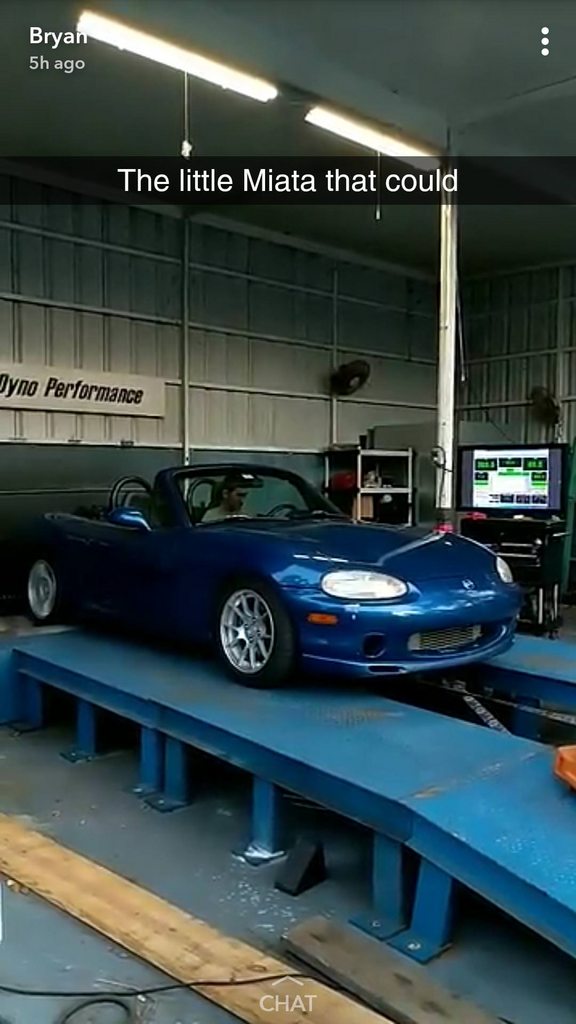

note: it was a dyno day at a local speed shop, hence the goofy file name.

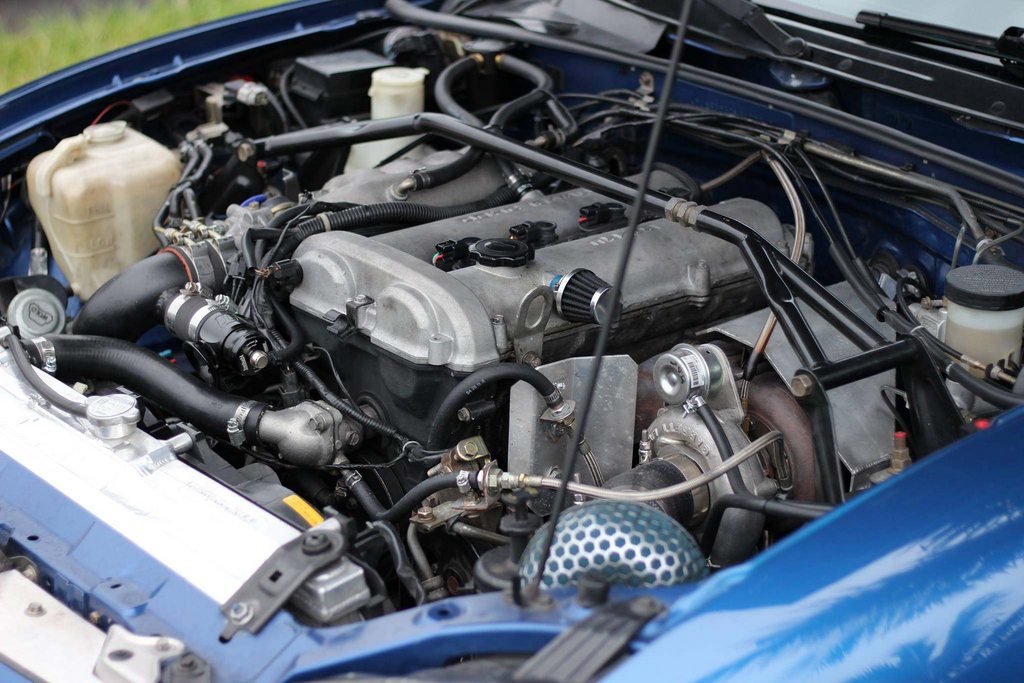

(last hi res engine bay pic, prior to Toyota COP's)

Last edited by Mech5700; 02-06-2018 at 07:45 AM.
Mech5700 is offline
Old 02-05-2018, 08:48 PM
  #2
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 3,074
Total Cats: 159
Default

Not bad, and a nice looking car too.
miata2fast is offline
Old 02-05-2018, 08:50 PM
  #3
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

Why thank you! Passenger side is the good side... drivers side clear coat is toast :(
Mech5700 is offline
Old 02-05-2018, 09:41 PM
  #4
Elite Member
iTrader: (14)

Join Date: Sep 2010
Posts: 2,030
Total Cats: -111
Default

300whp/240tq for three years on the stock engine? whew. I'll be lucky if I don't blow up at 200whp.
thumpetto007 is offline
Old 02-05-2018, 09:54 PM
  #5
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

I was at about 260whp for a year or so, been tweaking things here and there to get where I am now. I think I just got lucky with this motor... I even have a fully built, forged internals, ARP everything engine with 0 miles on it on a stand in my garage but hesitate to swap it over due to the lack of troubles this engine has given me... I had doubts my stock engine was going to last long so I started building a replacement. Several thousand dollars later, it still sits on standby.
Mech5700 is offline
Old 02-05-2018, 10:27 PM
  #6
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default


skip to 2:15
Mech5700 is offline
Old 02-06-2018, 01:56 AM
  #7
Junior Member

Join Date: Dec 2013
Location: San Jose, CA
Posts: 60
Total Cats: 10
Default

I have a similar setup but gt2871 e85 pushing 18psi. Excited to get it on a dyno, this setup has been on the car for 4 years before I jumped into it. I also have a forged block on the side, but this one still runs good. Glad to see those #s from your car.
iDizzle is offline
Old 02-06-2018, 07:43 AM
  #8
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

Heck yeah! I suspect you would be 330+ easy...
Mech5700 is offline
Old 02-06-2018, 08:12 AM
  #9
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Knoxville, TN
Posts: 2,908
Total Cats: 173
Default

Great numbers man, congrats. Beautiful car too.
pdexta is offline
Old 02-06-2018, 08:58 AM
  #10
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

Originally Posted by pdexta View Post
Great numbers man, congrats. Beautiful car too.
Thanks! Just wondering tho, you run huge injectors, rods, e85, etc, what holds you back from cranking up the boost? I kinda figured when I get my built motor in I was gonna run 20+ psi with some bigger injectors... almost makes me second guess the making of that 2nd motor I have, like is it worth it at this point?
Mech5700 is offline
Old 02-06-2018, 09:12 AM
  #11
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Knoxville, TN
Posts: 2,908
Total Cats: 173
Default

Originally Posted by Mech5700 View Post
Thanks! Just wondering tho, you run huge injectors, rods, e85, etc, what holds you back from cranking up the boost? I kinda figured when I get my built motor in I was gonna run 20+ psi with some bigger injectors... almost makes me second guess the making of that 2nd motor I have, like is it worth it at this point?
I did that on my last miata and killed my 6 speed (it Virtualdyno logged 376whp). I really feel like low 300's is the sweet spot in a street miata; drivetrain is pretty reliable, traction is pretty good, and still quick enough to get out of the way. Going much beyond that reliability starts to fade and traction issues start getting scary.

I do have set up a 3rd boost setting on my EBC that I've been tuning in for a dyno day in a few weeks. I don't really plan to use it much, but definitely planning a 20psi glory dyno run.
pdexta is offline
Old 02-06-2018, 09:17 AM
  #12
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

That is going to be awesome... please let me know how that one goes!

I've been seeing some 6 speeds pop up in the 550-$600 range here and there. If I find one locally, I may jump on it just to have...
Mech5700 is offline
Old 02-06-2018, 12:22 PM
  #13
Design Engineer
iTrader: (1)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 3,509
Total Cats: 468
Default

Please share MSQ.

Also, what was the the duty cycle on those 550's at 6600RPM?
DNMakinson is online now
Old 02-06-2018, 12:41 PM
  #14
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

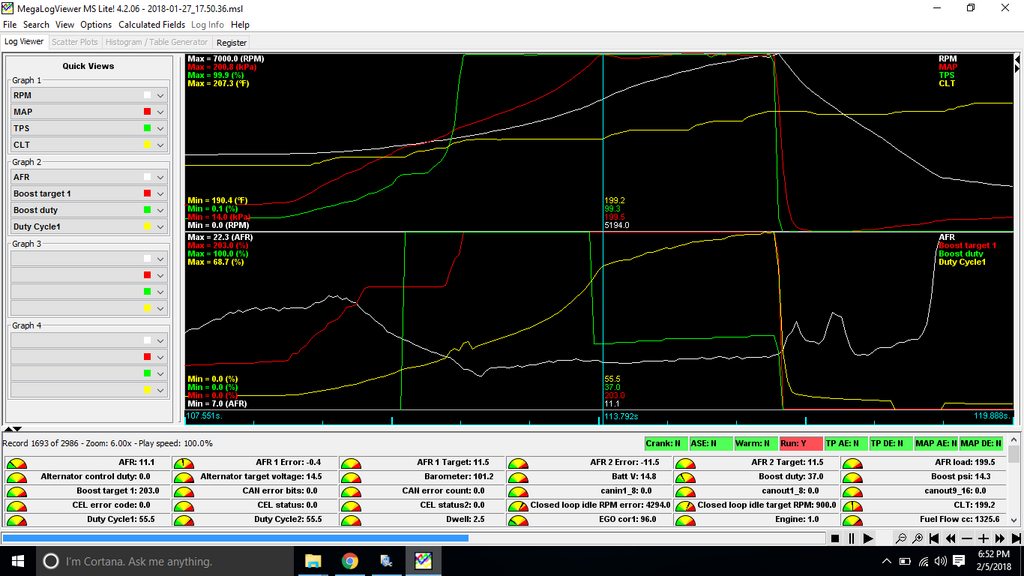

I can check when I get home. I have duty cycle on the bottom portion of the log, yellow line. Shows 68.7% max.
Mech5700 is offline
Old 02-07-2018, 06:17 PM
  #15
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

Originally Posted by DNMakinson View Post
Please share MSQ.

Also, what was the the duty cycle on those 550's at 6600RPM?
Here's the log from each pull and my MSQ. AT 6609 RPM Duty Cycle1 is 65.8%
Attached Files
File Type: msl
2018-01-27_17.50.36.msl (1.64 MB, 41 views)
File Type: msq
CurrentTune.msq (274.5 KB, 58 views)
File Type: msl
2018-01-27_17.54.25.msl (1.19 MB, 35 views)
Mech5700 is offline
Old 02-07-2018, 08:30 PM
  #16
Senior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 1,195
Total Cats: 145
Default

Originally Posted by Mech5700 View Post
That is going to be awesome... please let me know how that one goes!

I've been seeing some 6 speeds pop up in the 550-$600 range here and there. If I find one locally, I may jump on it just to have...
I have a non abused 6spd for sale from a stock 1999 10AE Miata that i bought to flip with 113k miles. its still in the 10AE car, but i can pull it for you if you want to buy it.
price: $700
borka is offline
Old 02-07-2018, 09:06 PM
  #17
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

That's really tempting... think you're gonna have it for bit or are you in a rush to sell it?
Mech5700 is offline
Old 02-07-2018, 09:23 PM
  #18
Senior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 1,195
Total Cats: 145
Default

Originally Posted by Mech5700 View Post
That's really tempting... think you're gonna have it for bit or are you in a rush to sell it?
not in a rush, im slowly fixing it up so i can sell it. but i am pulling the 6spd and 3.9 torsen and installing 5spd and open diff instead.
this will probably take another 2-4 weeks until i swap this stuff.

I also have a nice oem black hardtop, $1k. (its in the classifieds)
borka is offline
Old 02-10-2018, 12:05 PM
  #19
Design Engineer
iTrader: (1)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 3,509
Total Cats: 468
Default

Originally Posted by Mech5700 View Post
Here's the log from each pull and my MSQ. AT 6609 RPM Duty Cycle1 is 65.8%
I cannot get any of these to download.
DNMakinson is online now
Old 02-10-2018, 02:50 PM
  #20
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 472
Total Cats: 12
Default

Is it showing this:


The webpage at https://www.miataturbo.net/attachmen...7_17.50.36.msl might be temporarily down or it may have moved permanently to a new web address.

ERR_INVALID_RESPONSE

?

Not sure whats going on there but i'll try again.
Attached Files
File Type: msl
2018-01-27_17.50.36.msl (1.64 MB, 31 views)
File Type: msl
2018-01-27_17.54.25.msl (1.19 MB, 41 views)
File Type: msq
CurrentTune.msq (274.5 KB, 113 views)
