Default EBC install - length of vac line

Hi everyone

I'm about to install my PIT BCU+ EBC. Now I have a question about the vacuum line.

As the 1,6l NB has very few va ports on the intakte manifold, I have to adapt the EBC vac line on one port together with the Greddy MAP sensor and the sensor of my electronic boost gauge. And because I want to install the EBC controller on the drivers side the lentgh of the vac line will be approx. 6.5 feet (2m) long.

Is this a problem? In which order should the 3 device be tapped into that vac line?

Thanks for your help!

Greets
Zaphod is offline   Reply With Quote
Old 03-06-2008, 08:20 AM   #2
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

There should be a nipple or something on the turbo compressor houseing, use that for the wastegate source.
cardriverx is offline   Reply With Quote
Old 03-06-2008, 09:00 AM   #3
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

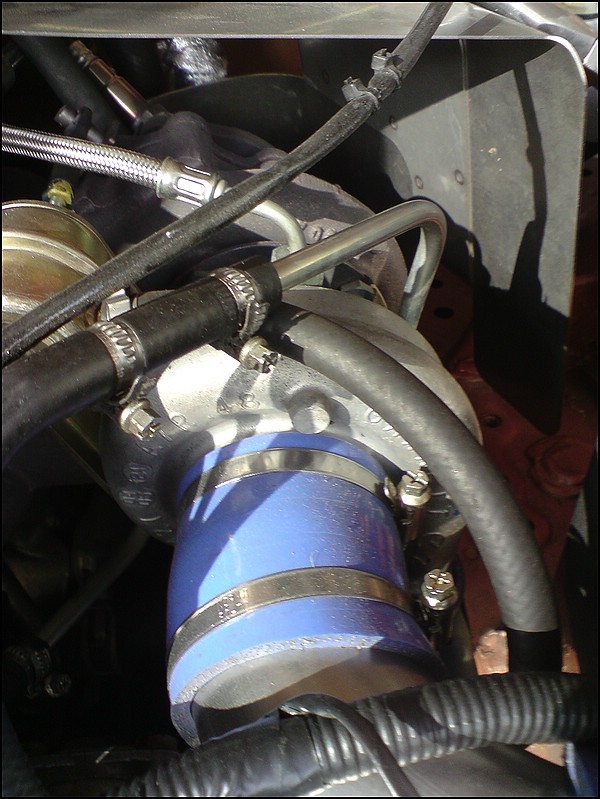

I just checked - at my turbo compressor housing there is just a metal "bump" where I suppose should be the vac source nipple. Other than that there is just the wastegate connection line. It's a Garrett T25.

Zaphod is offline   Reply With Quote
Old 03-06-2008, 10:48 AM   #4
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

I would guess that sharing a stock-sized vacuum port for your map sensor, boost gauge, and wastegate line is probably a bad idea. You could install some more vacuum nipples for really cheap. All you'll need is a drill bit and tap.
jasonrobo02 is offline   Reply With Quote
Old 03-06-2008, 11:16 AM   #5
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by Zaphod View Post
I just checked - at my turbo compressor housing there is just a metal "bump" where I suppose should be the vac source nipple. Other than that there is just the wastegate connection line. It's a Garrett T25.
Thats where the EBC goes, inline the wastegate vac line.
cardriverx is offline   Reply With Quote
Old 03-06-2008, 11:38 AM   #6
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Yeah, I know that the solenoid for the EBC goes there, I am talking about the vac. line for the controller unit of the BCU+ this one needs a map reading to be able to controll the solenoid.

Greets
Zaphod is offline   Reply With Quote
Old 03-06-2008, 12:05 PM   #7
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

^ oooooh. Yea you want that at the manifold. It should probably see both vac and boost. Length of the line wont affect it.
Saml01 is offline   Reply With Quote
Old 03-06-2008, 12:22 PM   #8
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Thanks Sam. And the number of devices plugged into that line - any problem?

(BCU+ handbook says you could use the line to the fuel pressure regulator.) Maybe I will use that one?!)

Greets
Zaphod is offline   Reply With Quote
Old 03-06-2008, 12:34 PM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Doesnt matter what you use as long as it has vacuum and boost signal. If its easier for you, you can always get a distribution block and get it from the brake booster.

Personally I wouldnt Tee off one line to many times, in my mind its a reliability issue. Id try to T off another if you can. The FPR signal sounds fine as well.
Saml01 is offline   Reply With Quote
Old 03-06-2008, 02:26 PM   #10
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Thanks once more!

Zaphod is offline   Reply With Quote
Old 03-09-2008, 07:01 AM   #11
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Just one more question about the vac lines. There is one line at the bottom of the throttle body which routes directly in the number one intake tube(runner?). Could I use this one for the BOV?

Thanks again!
Zaphod is offline   Reply With Quote
Old 03-09-2008, 02:42 PM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You can use any port you want. If the port has a line on it now you should T off of it though.
