Default Egr?

Can I delete the EGR on my 00 without any terrible effects? I am going turbo and that would make things easier. I suppose that would cause a check engine light, but is there any way around that? I will be making my own JGS manifold, and tuning with e-manage just to give a little background.
coastertrav is offline   Reply With Quote
Old 01-26-2008, 08:45 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You just remove the tube and block it off at the intake manifold. It won't cause any problems, most likely won't even cause a CEL. On my car the tube is cut in half, pinched shut, and brazed closed. Came that way but it's easier than making a new blockoff plate.
cjernigan is offline   Reply With Quote
Old 01-26-2008, 11:29 AM   #3
Senior Member
Thread Starter

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

sweet, thanks.
coastertrav is offline   Reply With Quote
Old 01-26-2008, 01:11 PM   #4
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Omaha, NE
Posts: 619
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
You just remove the tube and block it off at the intake manifold. It won't cause any problems, most likely won't even cause a CEL. On my car the tube is cut in half, pinched shut, and brazed closed. Came that way but it's easier than making a new blockoff plate.
So do you leave the tube connected at both ends, but just put a plate on the intake side to block it off? The benefit is you don't get the nasty exhaust gasses in the intake, but are there any downsides to this?
posidon42 is offline   Reply With Quote
Old 01-26-2008, 05:57 PM   #5
Junior Member

Join Date: Nov 2007
Posts: 98
Total Cats: 0
Default

mind selling your egr tube??? =]
emmi is offline   Reply With Quote
Old 01-26-2008, 07:49 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by posidon42 View Post
So do you leave the tube connected at both ends, but just put a plate on the intake side to block it off? The benefit is you don't get the nasty exhaust gasses in the intake, but are there any downsides to this?
I left it connected on the intake side, the HKS manifold i'm using right now doesn't have an EGR port. The BEGI manifold i'll be using does have the port but i'm plugging the port.
Are you guys all interested in block off plates?
cjernigan is offline   Reply With Quote
Old 01-26-2008, 09:39 PM   #7
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I guess the point to the blockoff plate is to leave it looking functional for an inspection?
ZX-Tex is offline   Reply With Quote
Old 01-26-2008, 09:53 PM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by ZX-Tex View Post
I guess the point to the blockoff plate is to leave it looking functional for an inspection?
The point to the blockoff plate is to not destroy the egr tube which can be sold for cash monies or swapped back on for inspection, or to just remove the EGR tube instead of crimping it up. The plate just gets rid of clutter and for most it's easier to bolt something on then to have to "fab" a solution.
cjernigan is offline   Reply With Quote
Old 01-26-2008, 11:22 PM   #9
Newb

Join Date: Jan 2008
Posts: 2
Total Cats: 0
Default

Cjernagin,U shouldn't give out illegal advise like take it off then put back on when it needs inspection...Its the law!!! LOL
fast is offline   Reply With Quote
Old 01-27-2008, 12:12 AM   #10
Junior Member

Join Date: Nov 2007
Posts: 98
Total Cats: 0
Default

Quote:
Originally Posted by fast View Post
Cjernagin,U shouldn't give out illegal advise like take it off then put back on when it needs inspection...Its the law!!! LOL
hahahaha, i know a couple turbo miata guys that have gotten pulled over and ref'ed for the illegal mods so they take them off for inspection, then put them back on after they pass hahaha

im running w/ plug on my EGR tube but it did give me a check engine light (insuffecient flow) ((01 NB)) even though i do want to run w/ my egr connected certain things kinda killed that *manifold*
emmi is offline   Reply With Quote
Old 01-27-2008, 12:20 AM   #11
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Omaha, NE
Posts: 619
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Are you guys all interested in block off plates?
It shouldn't be too complicated to make a block off plate. What should I make it out of? I am not sure aluminum will cope with the heat from the turbo. I think I have some coated steel from homedepot in the garage I could make something with.
posidon42 is offline   Reply With Quote
Old 01-27-2008, 12:31 AM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Anything that will bolt down with some rtv and won't leak. Thick enough that it doesn't flex much. Aluminum on the intake would be just fine.
cjernigan is offline   Reply With Quote
Old 01-27-2008, 01:50 AM   #13
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Omaha, NE
Posts: 619
Total Cats: 0
Default

hrm... might have to do this when I take the intake off to clean it and do a little bit of porting. My summer projects are starting to pile up
posidon42 is offline   Reply With Quote
Old 02-13-2008, 06:21 PM   #14
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

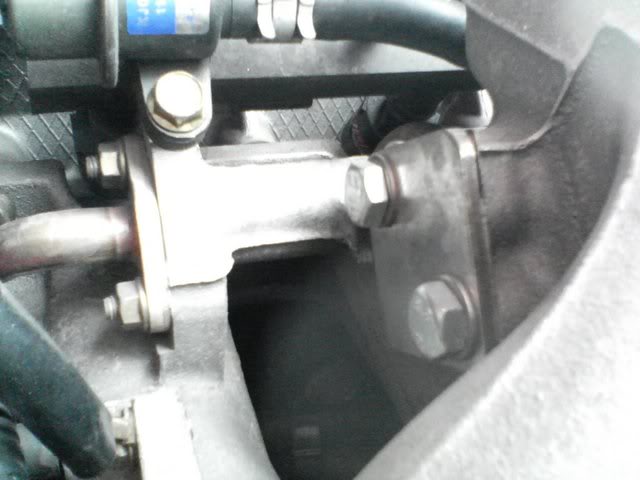

To resurrect a thread, my current setup has the valve blocked off, but the tube remains in place.
Name:  EGR.jpg
Views: 3
Size:  33.9 KB

I need something to block off where the tube meets the intake manifold so that I can delete it completely. I was thinking of cutting the tube close to that flange and using some aluminum as mentioned earlier to put in between it and the manifold. Think that'll be ok? Or is there another method that would work better?
RotorNutFD3S is offline   Reply With Quote
