DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 12-13-2011, 06:23 PM   #21
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Quote:
Originally Posted by Savington View Post
With the leakdown tester hooked up, take the oil cap off and listen for air in the oil cap, through the intake, and out the tailpipe. At 30+% one/all of them will sound like a very, very leaky air compressor fitting.

Oil cap = rings
Exhaust = Exh. valves
Intake = Int. valves

If you hit the wrong TDC, the leakdown will be ~45%. If you get 45%, spin it over again and try again. Then go 1-3-4-2 from there.

Your numbers (assuming its rings) would probably produce blowby, yeah. It's time for a shortblock.
Tested again and listened. I can clearly hear air with the oil cap removed, and not at all from the intake (throttle open) or the exhaust. It is not loud, but clearly audible.

Anything else I should be testing before I start removing the engine?

I have never pulled an engine on a miata, and only once before in my life. Is the general consensus that I take the transmission out with it?

To complicate matters, this car is going to be returned to stock. I am trying to decide whether to pull the MS now or after I get the new engine started. Preferably, I would like to pull the MS and swap in stock injectors now. Opinions?


I guess me and boost were never meant to be
94mx5red is offline   Reply With Quote
Old 12-13-2011, 06:39 PM   #22
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

i kid

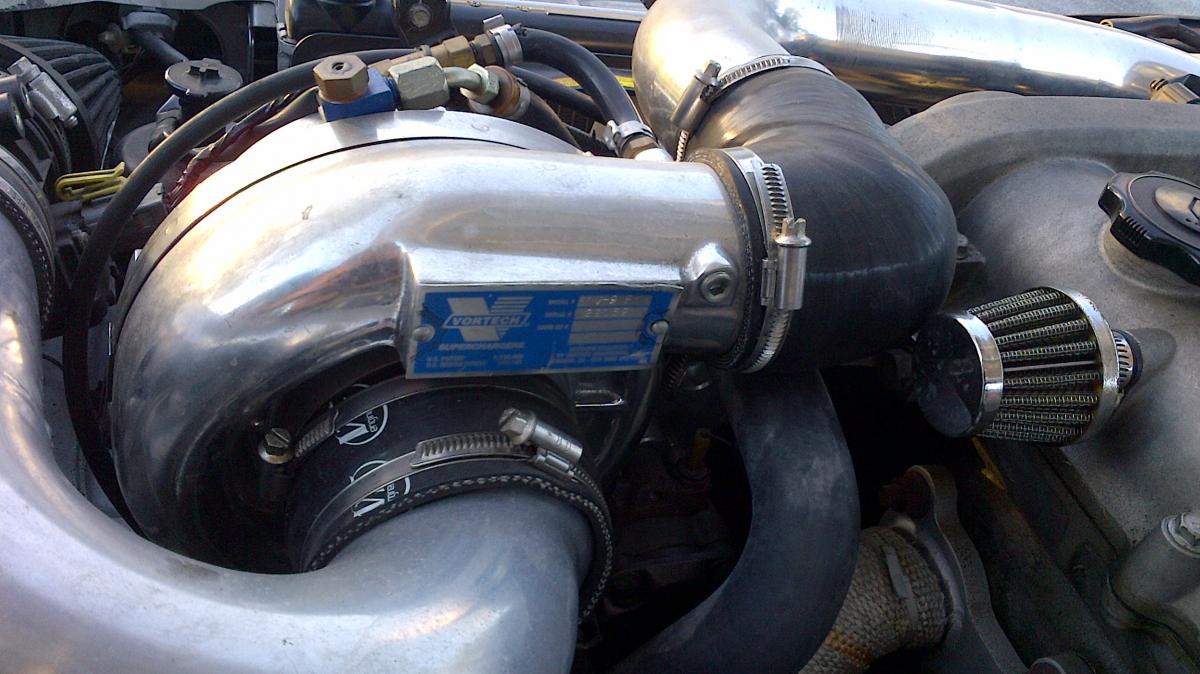

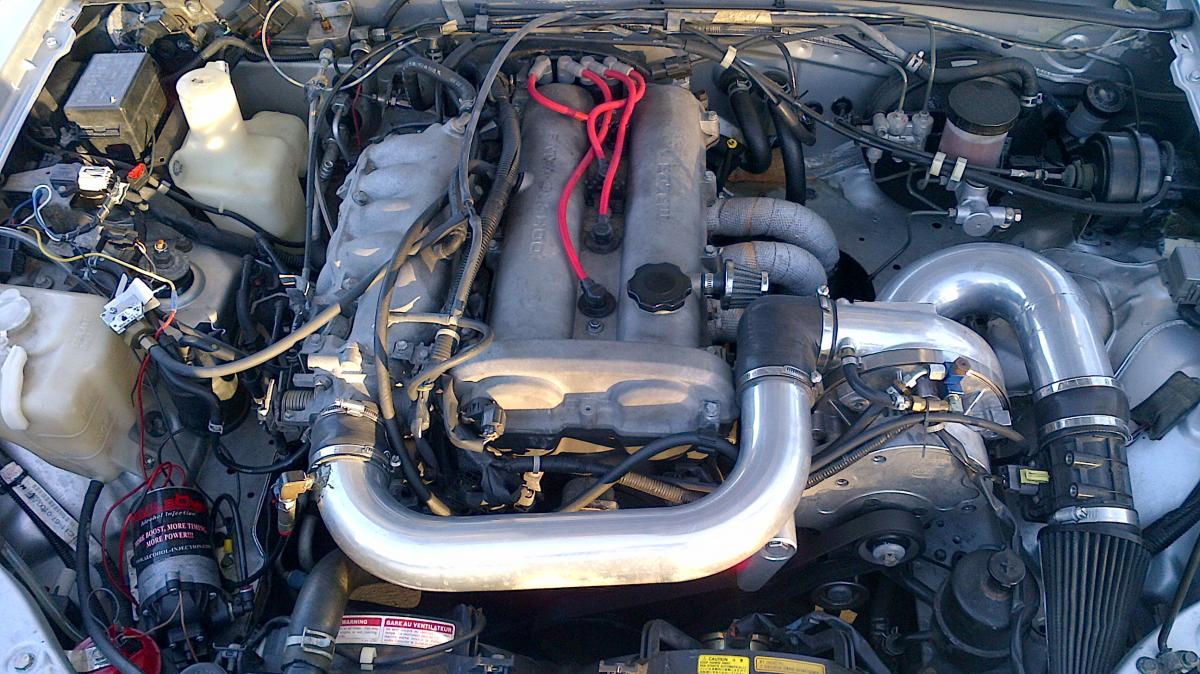

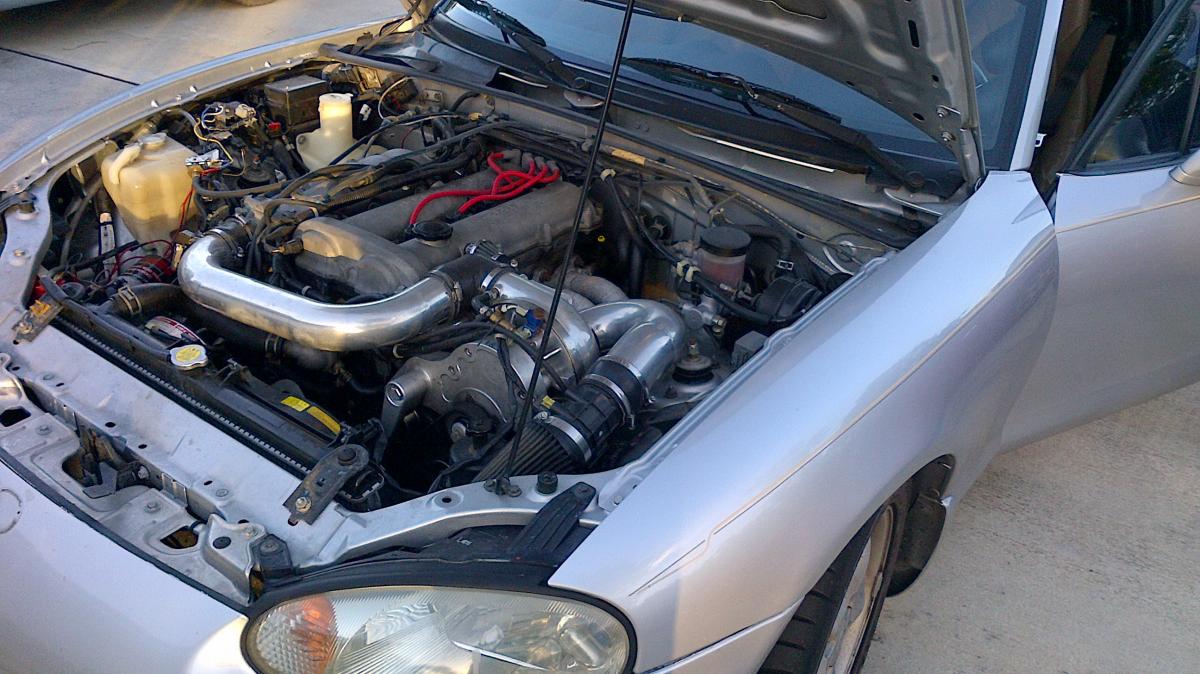

turbo and MS are replacing the supercharger on the 99.

Since I know this forum is a lover of vortech...
Attached Thumbnails
Excessive catchcan oil-img_00000012.jpg   Excessive catchcan oil-img_00000013.jpg   Excessive catchcan oil-img_00000014.jpg
94mx5red is offline   Reply With Quote
Old 12-13-2011, 09:26 PM   #23
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Quote:
Originally Posted by 94mx5red View Post
I have never pulled an engine on a miata, and only once before in my life. Is the general consensus that I take the transmission out with it?
To add, I will be doing this alone.
94mx5red is offline   Reply With Quote
Old 12-13-2011, 09:47 PM   #24
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 94mx5red View Post
To add, I will be doing this alone.
The first time I ever pulled a motor was alone and on my miata. If I can do it, you can too. Just disconnect everything and rip the ****** out. Pull tranny too.
Faeflora is offline   Reply With Quote
Old 01-21-2012, 01:32 PM   #25
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by savington View Post
with the leakdown tester hooked up, take the oil cap off and listen for air in the oil cap, through the intake, and out the tailpipe. At 30+% one/all of them will sound like a very, very leaky air compressor fitting.

Oil cap = rings
exhaust = exh. Valves
intake = int. Valves

if you hit the wrong tdc, the leakdown will be ~45%. If you get 45%, spin it over again and try again. Then go 1-3-4-2 from there.

Your numbers (assuming its rings) would probably produce blowby, yeah. It's time for a shortblock.
I found a leakdown tester and just tested all the cylinders

First I did compression test:

1# = 190 psi
2# = 190 psi
3# = 185 psi
4# = 190 psi

and then leakdown test:

1# = 4% leak
2# = 50% leak
3# = 11% leak
4# = 6% leak

cyl 2# didn't seem normal so I did it again and it was over 80% leak. I remove the exhaust manifold and could feel how air was escaping through

Ex.valve(s) stuck or..?
muoto is offline   Reply With Quote
Old 01-21-2012, 08:47 PM   #26
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

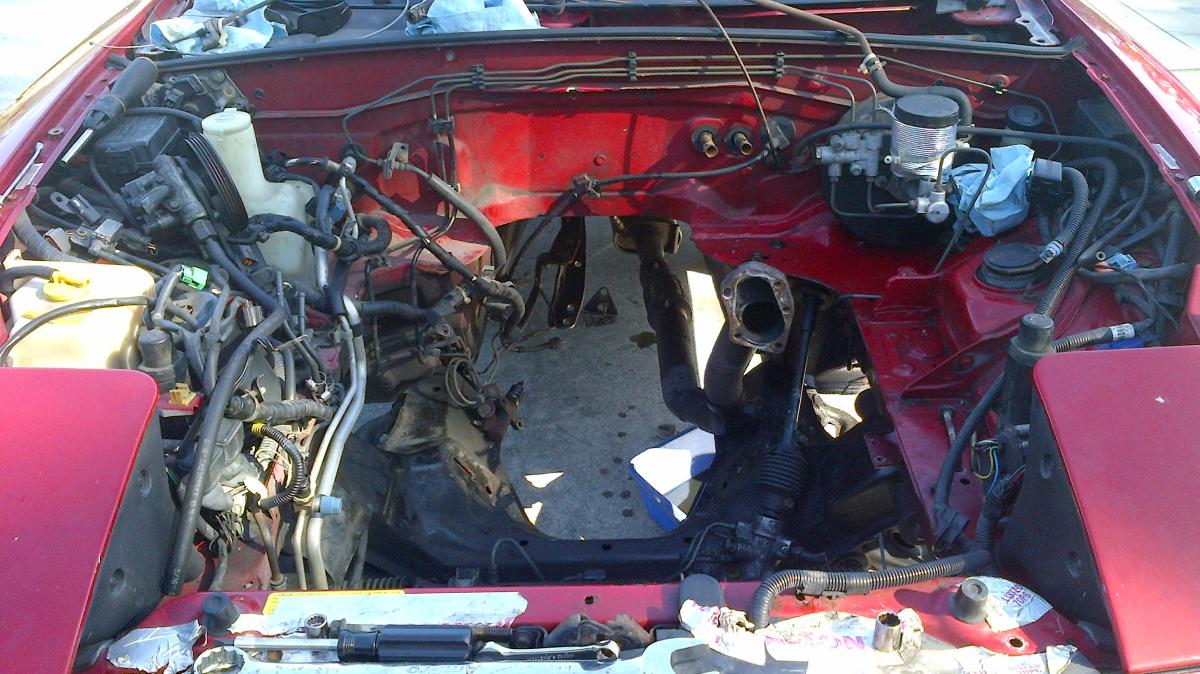

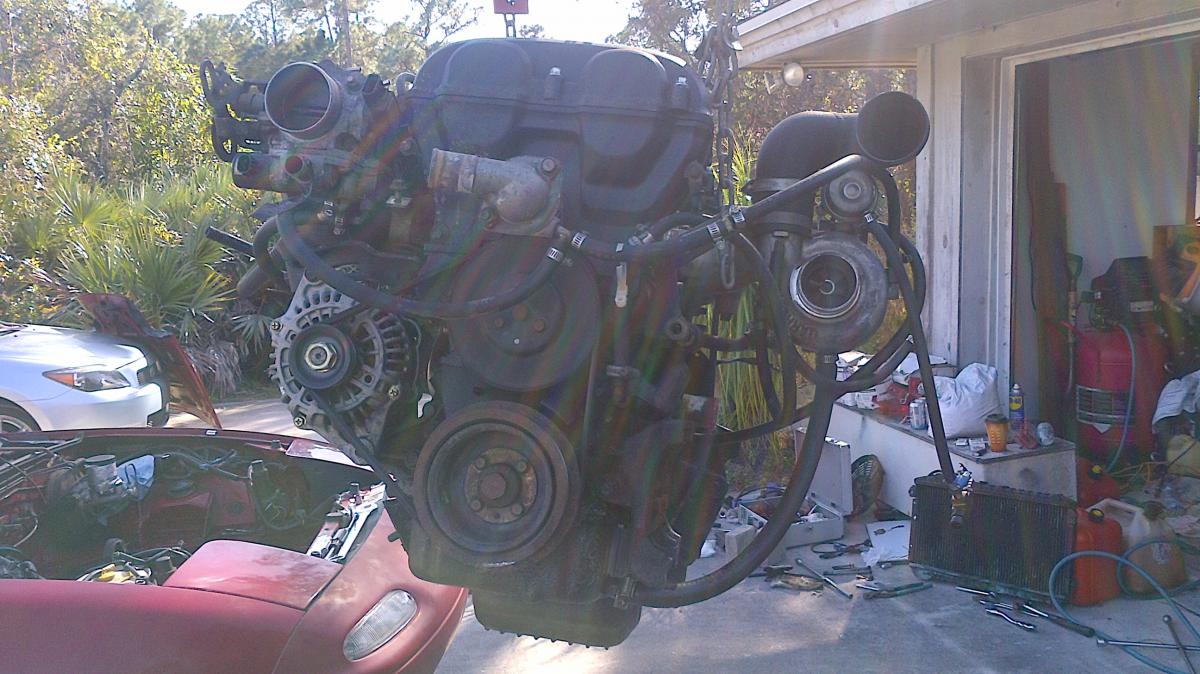

engine out

edit: ,thanks to carlos.
Attached Thumbnails
Excessive catchcan oil-img_00000074.jpg   Excessive catchcan oil-img_00000075.jpg
94mx5red is offline   Reply With Quote
Old 01-21-2012, 08:52 PM   #27
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Quote:
Originally Posted by muoto View Post
I found a leakdown tester and just tested all the cylinders

First I did compression test:

1# = 190 psi
2# = 190 psi
3# = 185 psi
4# = 190 psi

and then leakdown test:

1# = 4% leak
2# = 50% leak
3# = 11% leak
4# = 6% leak

cyl 2# didn't seem normal so I did it again and it was over 80% leak. I remove the exhaust manifold and could feel how air was escaping through

Ex.valve(s) stuck or..?
Bent valve or a major seat issue. The last motor I leaked at 75% turned up compression numbers in the ~100psi range and ran on 2, maybe 3 cylinders.
Savington is offline   Reply With Quote
Old 01-22-2012, 10:39 AM   #28
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

In for valve job.
hustler is offline   Reply With Quote
Old 01-22-2012, 02:18 PM   #29
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Bottom line:

Compression Test = Waste of Time

BTW, Fae discoverd that even if you don't disconnect everything, the car has an "auto-disconnect" feature as you rip the engine/tranny out. So, no worries.
hornetball is offline   Reply With Quote
Old 01-22-2012, 02:22 PM   #30
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by hornetball View Post
Bottom line:

Compression Test = Waste of Time

BTW, Fae discoverd that even if you don't disconnect everything, the car has an "auto-disconnect" feature as you rip the engine/tranny out. So, no worries.
Exactly.

Personally i think you should drill a hole in your oil cap and route your catch can back into you oil cap. Problem solved. Now bow dow. To your new master and get out there and run the biitch!!!
Faeflora is offline   Reply With Quote
Old 01-22-2012, 07:06 PM   #31
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

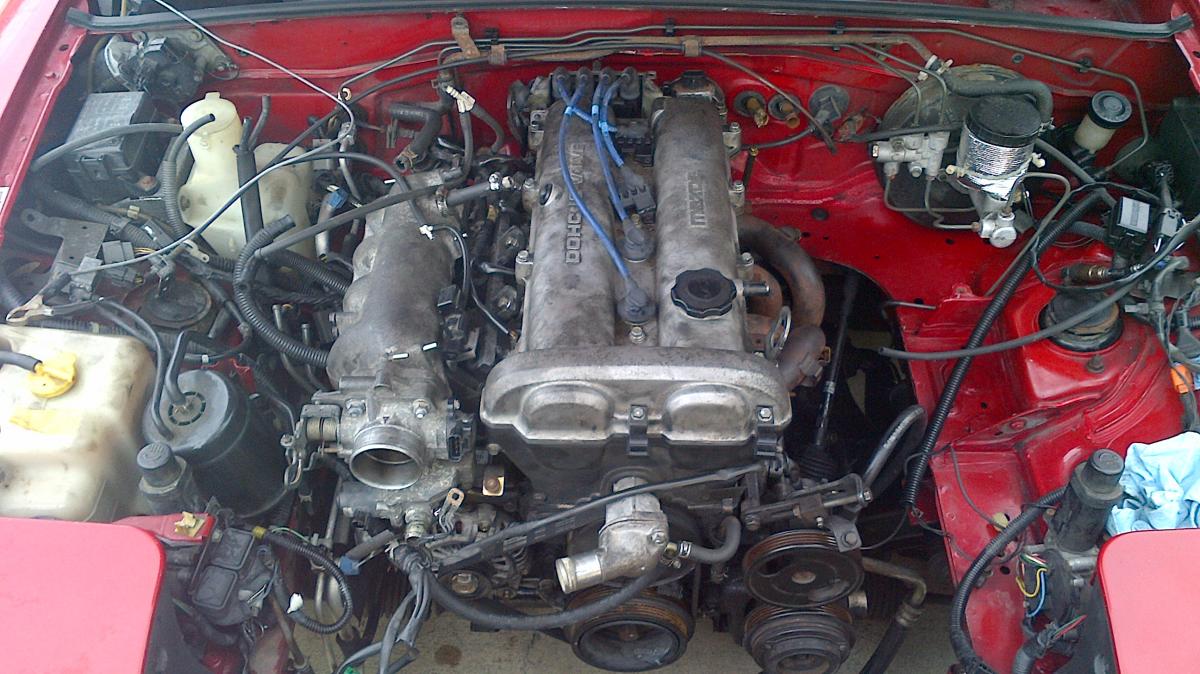

newer engine in.
Attached Thumbnails
Excessive catchcan oil-img_00000094.jpg
94mx5red is offline   Reply With Quote
Old 01-23-2012, 04:14 PM   #32
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Savington View Post
Bent valve or a major seat issue. The last motor I leaked at 75% turned up compression numbers in the ~100psi range and ran on 2, maybe 3 cylinders.

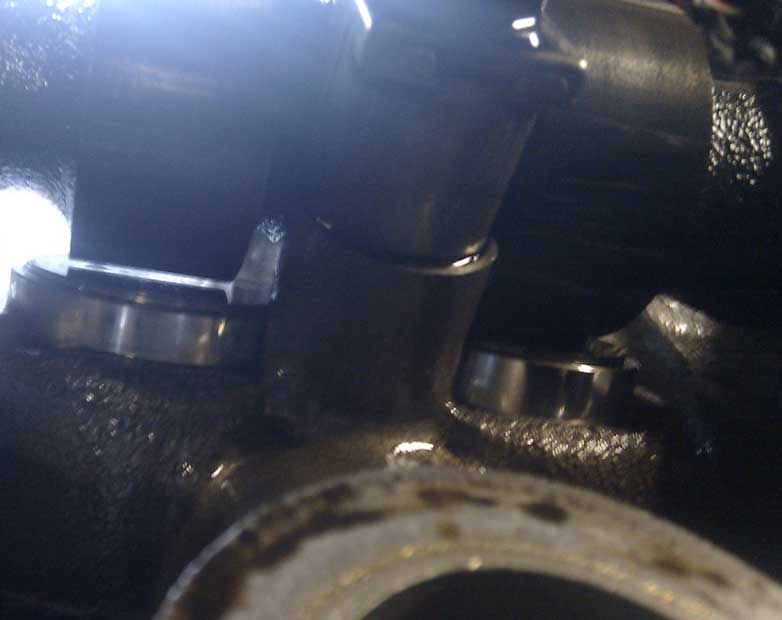

You were right.

Attached Thumbnails
Excessive catchcan oil-valvegap.jpg
muoto is offline   Reply With Quote
Old 01-23-2012, 08:33 PM   #33
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

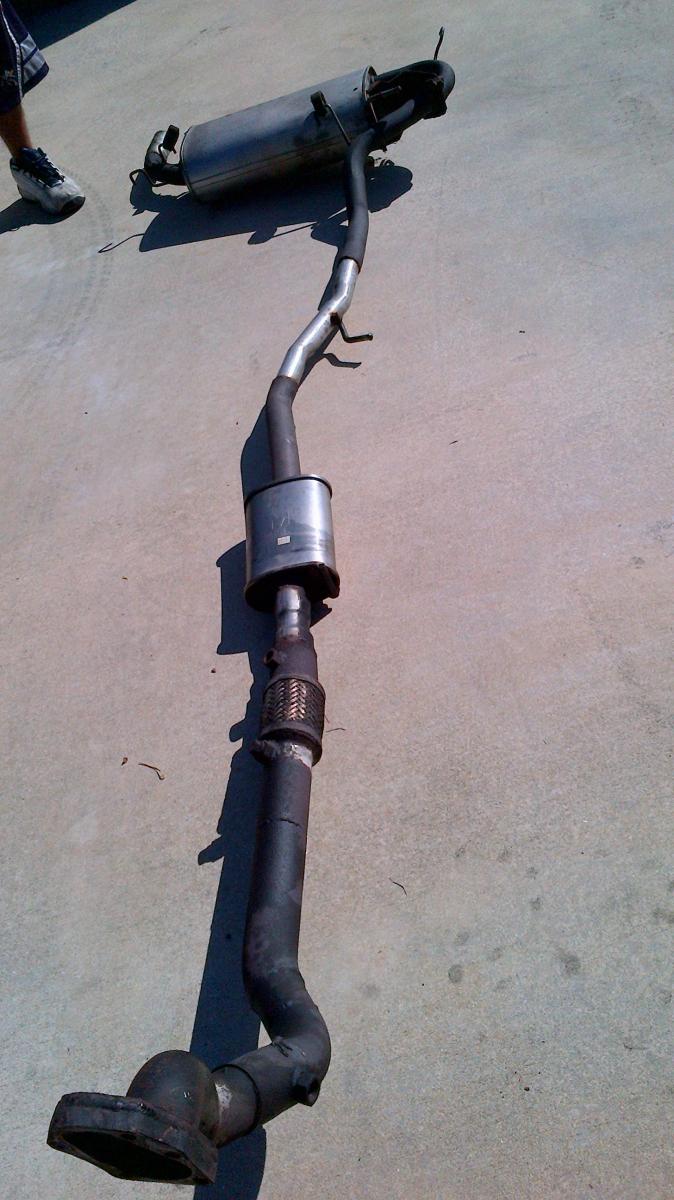

One piece exhaust ftw

I grew tired or the 3", and ended up with the stock exhaust from the 99. Spool suffered at least 1000rpm. Pretty sure I datalogged if there is interest. Having it quiet was nice.

The exhaust shop took a couple liberties I was not comfortable with, but I did not complain, as I did not think I would be in the situation I am in. Will likely cut the downpipe to mate with the 2.5" on the 99, rather than getting a new one.
Attached Thumbnails
Excessive catchcan oil-img_00000090.jpg
94mx5red is offline   Reply With Quote
Old 01-23-2012, 09:23 PM   #34
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

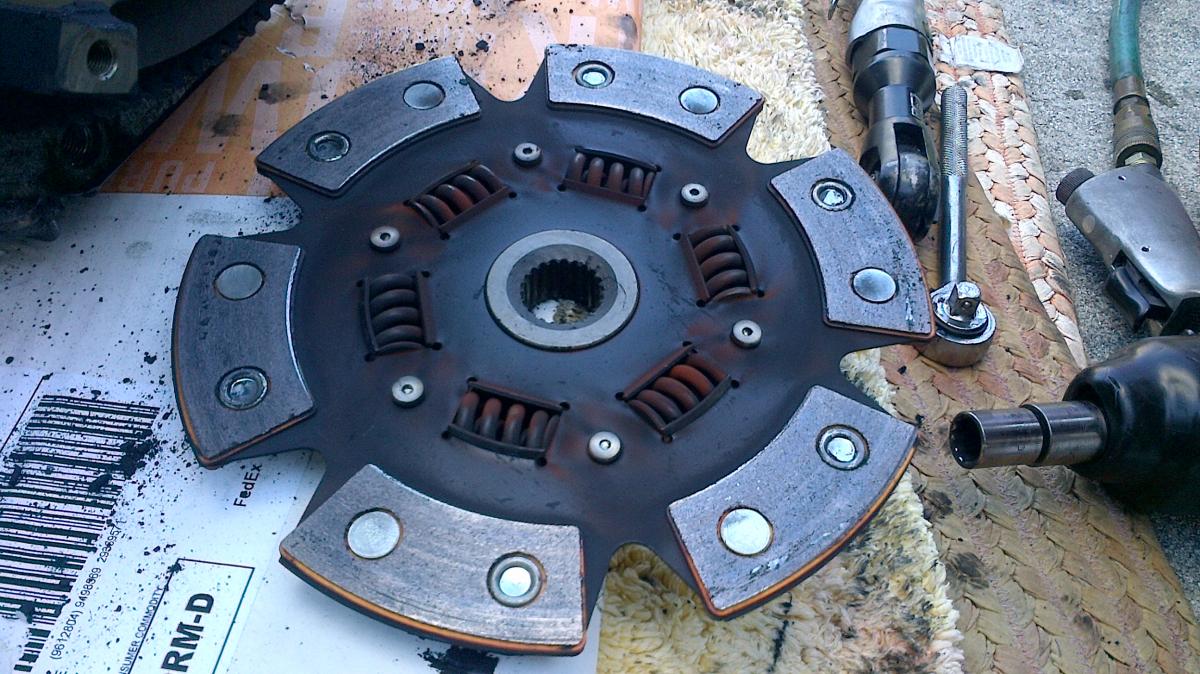

This is what my ebay f1 stage 3 clutch looks after 4 years and around 35k miles looks like. Practically down to the rivets.

I drove this daily and slipped first hard on a regular basis.
Attached Thumbnails
Excessive catchcan oil-img_00000082.jpg
94mx5red is offline   Reply With Quote
Old 01-24-2012, 04:01 PM   #35
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

In general about this HF tester - it is huge pile of junk as is and shows bad numbers.
For future use - first change the second gauge with a 100 psi one (i.e. from McMaster.com). Also cut the aluminum block and change the orifice size cause the one inside is nowhere in spec. Do a 0.040 in (1.0 mm ) orifice.
Then measure the leakdown with 100 psi at the inlet.

Quote:
Originally Posted by 94mx5red View Post
I kept out of boost and speed down to 75mph, and it still puked oil.


Harbor Freight was the only place I could find a leakdown tester unless I wanted to order online. This is the exact one that I got. Feels cheap.




I tried it last night, and quit when the mosquitoes got bad. This was my first attempt ever, and I think I screwed up. I did not put the car in gear after finding TDC.

Here is the method I used:
- disconnect battery
- pull plugs and wires
- find TDC for #1
- test
- went to TDC from cylinders in order 1 - 3- 4 - 2
- did not put car in gear

First round:
1: 63
3: 29 ; 30
4: 59 ; 70 ; 65
2: 20 ; 21

Second round:
1: 22 ; 34 ; 53 ; 100
3: 27 ; 34 ; 37
4: 26 ; 22
2: 39 ; 33 ; 24

Third round:
1: 40 ; 100 ; 37 ; 37
eaten alive


I am guessing that these may be mostly useless since I did not lock the engine from spinning.

I will try again on Saturday.
j_man is offline   Reply With Quote
Old 01-24-2012, 07:59 PM   #36
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Everything about it felt cheap.

If I remember correctly, the pressure was only around 20psi at testing.

Probably going in the trash.
94mx5red is offline   Reply With Quote
