Default External wastegate on Hks 1.8 manifold

Hello,
I am going to install a tial 38mm on my hks manifold.
As you can see from the photo the side that I am going to mount doesn't allow the wastegate to fit ideally.

Name:  DSC_0033.jpg
Views: 44
Size:  61.2 KB

So I came up with 2 solutions.

1. Drilling a smaller hole than 38mm (could this work or am I going to have boost controlling related problems?)

2. Make a flange like in the newb drawing below

Name:  DSC_0033flange.jpg
Views: 41
Size:  33.4 KB

Any other ideas or solutions are welcome!
gianic is offline   Reply With Quote
Old 12-06-2009, 12:49 PM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

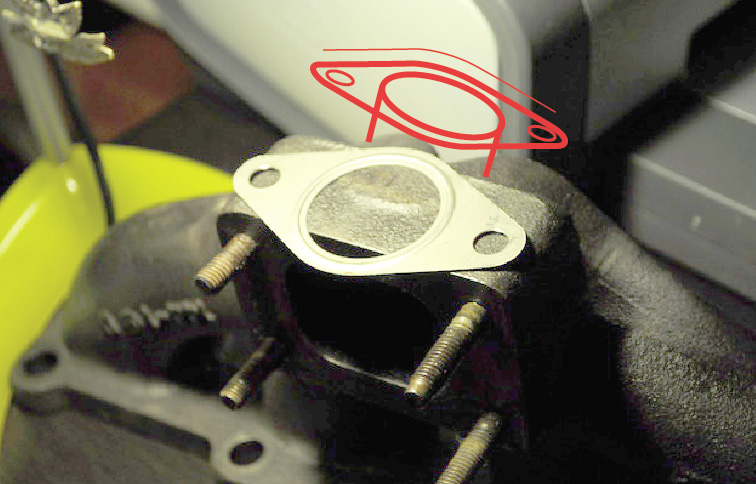

IIRC the HKS is a top mount which already puts the turbo up pretty high with minimal hood clearance- won't any kind of spacer cause problems? If those attributes are true, then you'd be better off putting the port opposite the flange opening (where the runners converge) using a short tube. The top mount should allow room for this position since that makes more space under the manifold.
Attached Thumbnails
External wastegate on Hks 1.8 manifold-hksextwg.jpg
m2cupcar is offline   Reply With Quote
Old 12-06-2009, 12:58 PM   #3
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

My only concern with this is the welding on the cast iron. Many welders here are trying to avoid it for some reason.
gianic is offline   Reply With Quote
Old 12-06-2009, 10:55 PM   #4
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Cant you just have a steel pipe of 2" maybe 5" or 6" long welded to the manifold and push it down to the bottom of the engine or to the front depending on how the turbo pipes run.

I would not go with such a modification to the manifold.
mazpr is offline   Reply With Quote
Old 12-06-2009, 11:05 PM   #5
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

Quote:
Originally Posted by gianic View Post
My only concern with this is the welding on the cast iron. Many welders here are trying to avoid it for some reason.
Your SOL..... get a better mani with a EWG bung already designed in it..... Best solution bar none..... less headache and probably less problems just my onther than that you could buy the cheap ebay spacer with one already in it...

http://cgi.ebay.com/ebaymotors/TURBO...Q5fAccessories
or
http://cgi.ebay.com/ebaymotors/t3-tu...#ht_500wt_1182
p51hellfire is offline   Reply With Quote
Old 12-06-2009, 11:11 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,164
Total Cats: 2,573
Default

except one is 400 bux and the other a t3
18psi is offline   Reply With Quote
Old 12-06-2009, 11:31 PM   #7
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
except one is 400 bux and the other a t3
They're just examples.. not actually solutions to his problems just ideas that he could look into that's all.
p51hellfire is offline   Reply With Quote
Old 12-06-2009, 11:35 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,164
Total Cats: 2,573
Default

I get it.

There's also the issue with hood clearance with a big *** spacer like that.
18psi is offline   Reply With Quote
Old 12-06-2009, 11:38 PM   #9
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

yea good point..... (refer to previous statement about mani)
p51hellfire is offline   Reply With Quote
Old 12-07-2009, 12:32 AM   #10
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Nothing wrong with welding cast iron as long as you do it right. Reason people here avoid it is because the mild/ss flows better and mild flanges are readily available. It CAN be done.
SKMetalworks is offline   Reply With Quote
Old 12-07-2009, 12:42 AM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by sbkcocker499 View Post
Nothing wrong with welding cast iron as long as you do it right. Reason people here avoid it is because the mild/ss flows better and mild flanges are readily available. It CAN be done.
Over the last 4-years of track action, I've seen numerous cast manifolds fail, especially cast iron with welding. Maybe its a failure in execution, but not something i would jack with if you EVER want to see the track. I wouldn't trust it on the street either, but if it fails on the street you're not out any track time/$$$.
hustler is offline   Reply With Quote
Old 12-07-2009, 12:47 AM   #12
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

I have the same HKS mani, and hood clearance is a huge issue. You can't really go up any higher, and the way the manifold is designed, there really isn't any place to put an external wastegate. It's pretty much new manifold if you don't want to run internal.

On that note, my HKS 1.8 manifold has been awesome.
dustinb is offline   Reply With Quote
Old 12-07-2009, 12:52 AM   #13
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
Over the last 4-years of track action, I've seen numerous cast manifolds fail, especially cast iron with welding. Maybe its a failure in execution, but not something i would jack with if you EVER want to see the track. I wouldn't trust it on the street either, but if it fails on the street you're not out any track time/$$$.

To properly weld cast iron you have to preheat 300* F weld and ping the weld in between passes. While finishing up with post heat treatment. To be honest its not worth the hassel. Thats why its fun to pick up some steel and build something bullet proof. No preheating bullshit just turn on the heat and go.
SKMetalworks is offline   Reply With Quote
Old 12-07-2009, 01:55 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,164
Total Cats: 2,573
Default

Quote:
Originally Posted by sbkcocker499 View Post
To properly weld cast iron you have to preheat 300* F weld and ping the weld in between passes. While finishing up with post heat treatment. To be honest its not worth the hassle. Thats why its fun to pick up some steel and build something bullet proof. No preheating bullshit just turn on the heat and go.
THIS

/thread
18psi is offline   Reply With Quote
Old 12-07-2009, 12:04 PM   #15
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Thanks for the response.
I started to think about it when I saw this, and thought... what the hell, I can be there too.



Drilling a smaller hole on the side would be a problem ?
gianic is offline   Reply With Quote
Old 12-07-2009, 01:20 PM   #16
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I wonder how long it will last until there's a crack between the wg and turbine ports... not long I bet.
m2cupcar is offline   Reply With Quote
Old 12-07-2009, 01:51 PM   #17
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

Quote:
Originally Posted by m2cupcar View Post
I wonder how long it will last until there's a crack between the wg and turbine ports... not long I bet.
+1 It will probably crack between the turbo and the wastegate.

If you decide to stick with cast iron manifolds, there is more room to drill a hole on the Flyin Miata manifold and the iron is thicker and stronger. It moves your turbo to a side mount instead of a top mount. Right there on top is a good location for the wastegate.

Flyin' Miata : Turbochargers : Parts and upgrades : 1994-05 FM turbo manifold


But I would recommend that you buy a good fabricated steel manifold that is designed for an external wastegate. It will flow better and make much more power. And it is beautiful.
This is ABSURDflow:





ABSURDflow - Available Products
sixshooter is offline   Reply With Quote
Old 12-07-2009, 02:02 PM   #18
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Quote:
Originally Posted by m2cupcar View Post
I wonder how long it will last until there's a crack between the wg and turbine ports... not long I bet.
Really? My FM3 has a similar setup and it's going strong. Plus it's i'm like the 4th or 5th person to have this manifold so it has probably somewhere north 200K of miles on it.
viperormiata is offline   Reply With Quote
Old 12-07-2009, 02:06 PM   #19
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Durability all depends on thickness of the cast iron at that section and also the composition of the cast iron upon casting... Choose wisely.
thagr81 us is offline   Reply With Quote
Old 12-07-2009, 02:57 PM   #20
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I think there's a big difference between cutting the hole in an existing casting and having the port engineered into the casting. Given the small amount of metal dividing the two ports, it will have to sustain a lot of stress from heat and load.

I'd be tempted to find a spare turbine housing and try to mod that for an external wg port. Or find one made for the purpose.


Found a modified turbine housing, albeit it's from the Gurney Toyota Eagle MKIII. It can work. These engines made 700hp from 2.1L with lots of boost running for hours and hours on end without failing.
