Old 06-26-2008, 05:14 PM   #21
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by musanovic View Post
my egr pipe has been disconnected for about 1 yr now and no engine code yet. why not just leave it there without connecting it?
Well, if I didn't have to go for emissions testing I would remove the EGR system alltogether since I'll be using megasquirt.

Since I have to use the stock ECU for E-testing, w/out the egr line hooked up, the EGR valve takes in fresh air (instead of exhaust gas) and makes the engine run lean.....I think.

I tried out the '99 EGR line, cut it up and fabed up the piece to connect to the manifold; looks like ****, hits the dip stick and I'm not putting that by my pretty downtube. I'm going for the '01 EGR tube and the fitting from BEGi.
fluke is offline   Reply With Quote
Old 06-26-2008, 08:26 PM   #22
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

I used an NB manifold on my NA so I know what you're going through. I cut up my stock '97 EGR tube and a stock '99 EGR tube and basically used the bend from each to custom fab a tube that fit.

In your situation I'd weld the bung on the manifold as close as you can to the flange and do the same. Hack up 2-3 tubes to make one that works for your application. The tube is surprisingly thick so it's easy to weld.
Arkmage is offline   Reply With Quote
Old 06-29-2008, 04:27 PM   #23
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Ok, just to finish off this thread for future DIYers:

I ended up using the '99 bung and ferrule from BEGi. By the way, Stephanie and Corky couldn't have been more helpful.

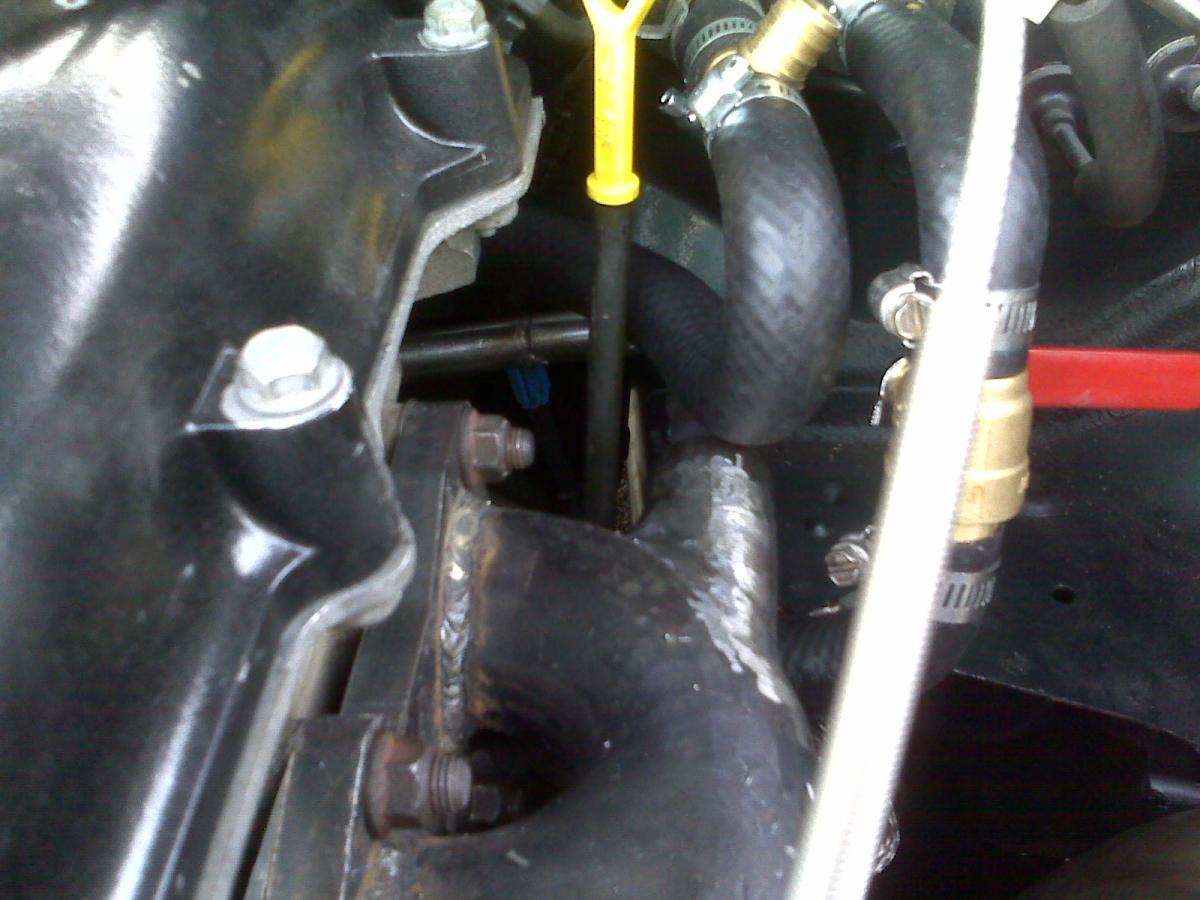

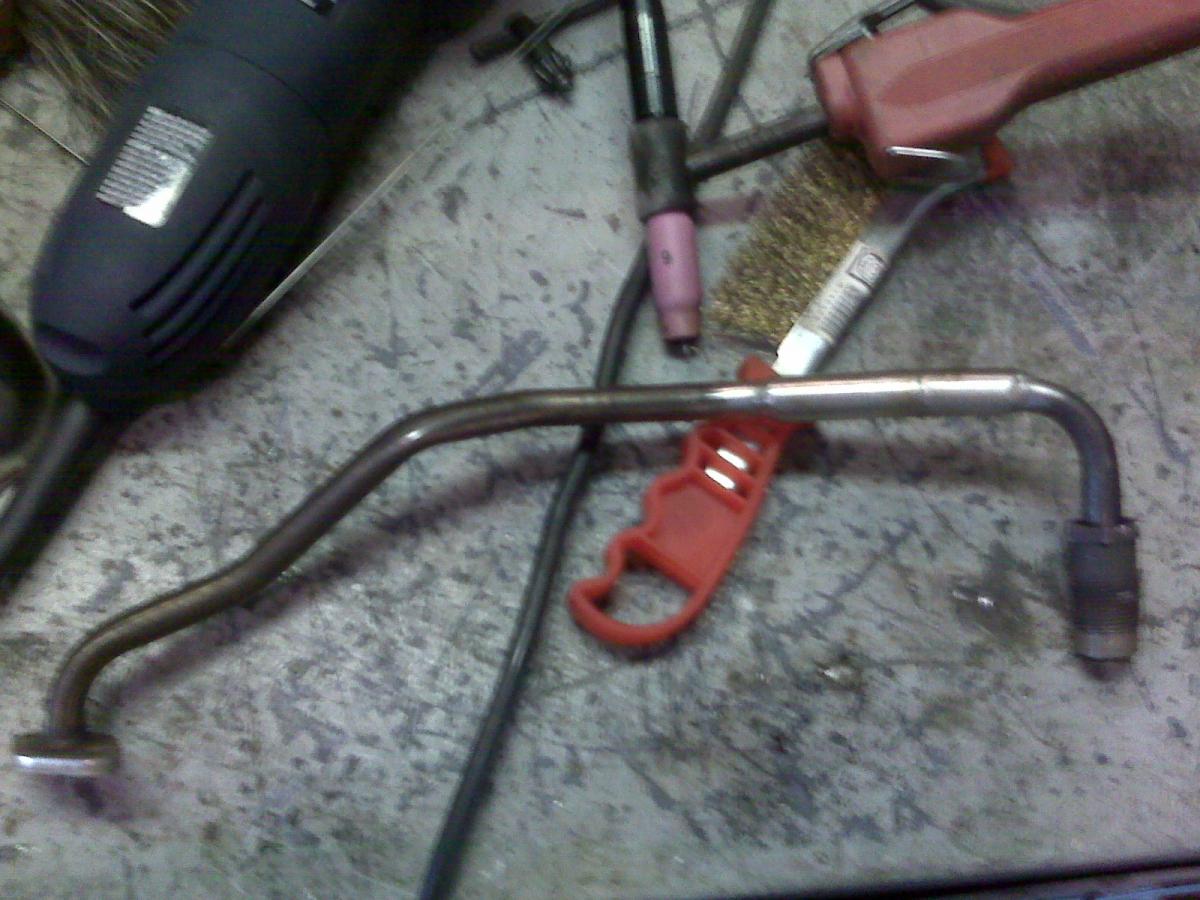

I extended the EGR tube ~ 1.5" and built up the manifold as I showed in the mechanical drawing on the first page.

Thanks for everyone's help!
Attached Thumbnails
Fabricating an EGR fitting on a 99 turbo manifold-img00224.jpg   Fabricating an EGR fitting on a 99 turbo manifold-img00226.jpg
fluke is offline   Reply With Quote
Old 06-30-2008, 12:08 AM   #24
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks good, nice to have a tig torch in house to complete projects like this.
cjernigan is offline   Reply With Quote
Old 06-30-2008, 09:59 AM   #25
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Good job. That's probably what I will do as well. That way I don't have to sweat the location of the bung.
Stein is offline   Reply With Quote
Old 06-30-2008, 11:59 AM   #26
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Looks good, nice to have a tig torch in house to complete projects like this.
Thanks, I'd be lost w/out my TIG.

One last note, I didn't cut a 1-1/4" hole in the runner, I welded the angular piece directly to the runner and filled in w/ a stick welder, then drilled the hole thru.
fluke is offline   Reply With Quote
