Old 02-08-2012, 06:34 AM   #21
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Removing it has been covered in length. 33mm freeze plug I think (could be wrong, search), and it's held in by two bolts, sealed with an o-ring.
curly is offline   Reply With Quote
Old 02-08-2012, 09:16 AM   #22
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by TorqueZombie View Post
So is it a horrible idea to not want the hot water from the turbo going into the motor? With the Begi spacer can I route it to not put hot water into the motor?
No, it is not a horrible idea. But, with the speed at which the water travels, mixes and combines(as long as your system is in good shape), most of the water in your system is already warm and the little bit of extra heat is quickly dispersed into the massive amount of cooler water from the radiator entering with it at the pump inlet.
olderguy is offline   Reply With Quote
Old 02-08-2012, 09:20 AM   #23
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

Quote:
Originally Posted by curly View Post
Removing it has been covered in length. 33mm freeze plug I think (could be wrong, search), and it's held in by two bolts, sealed with an o-ring.
i was told 30mm by planet miata
phillyb is offline   Reply With Quote
Old 02-08-2012, 11:49 AM   #24
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

also, do you have to use the freeze plug?
can't you just use a gasket and the block off plate?
phillyb is offline   Reply With Quote
Old 02-08-2012, 12:33 PM   #25
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by phillyb View Post
also, do you have to use the freeze plug?
can't you just use a gasket and the block off plate?
You could, but the block off plate will need to be thick enough so that it will not flex and will need to be perfectly flat on the head without the gasket added.
olderguy is offline   Reply With Quote
Old 02-08-2012, 12:40 PM   #26
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

it's the block off plate from begi...i'll go talk to the builder later.
i need some sort of plug for my oil pump as well anyway
phillyb is offline   Reply With Quote
Old 02-08-2012, 12:56 PM   #27
Junior Member

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

why not just get the freeze plug for a protege... then you dont need the plate
fastivab6tg25mr is offline   Reply With Quote
Old 02-08-2012, 01:12 PM   #28
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

have a pn?
i need to order something else from mazda as well...might as well get them both
phillyb is offline   Reply With Quote
Old 02-09-2012, 01:51 AM   #29
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

The freeze plug is thirty cents from o'rileys.
curly is offline   Reply With Quote
Old 06-03-2014, 12:00 PM   #30
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

I'm planning on installing the M-tuned coolant reroute and deleting the front water neck by fitting a freeze plug and block off plate in its place. I'm also deleting the coolant hoses that go from the oil filter to the stock throttle body and from the stock throttle to the front water neck because I'm running ITBs that have no coolant provisions.

Instead of trying to splice a bunch of Mazda hoses together to accomplish this, I would prefer to get a custom length of rubber coolant hose so that it is continuous from the oil filter cooler outlet to the mixing manifold inlet. Can anybody verify what size hose (I.D.) I should use? Is it 8mm all the way?
freedomgli is offline   Reply With Quote
Old 06-03-2014, 02:51 PM   #31
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I believe I used 5/16 hose the whole way.
Leafy is online now   Reply With Quote
Old 06-03-2014, 03:16 PM   #32
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

Thanks Leafy. I guess the trick is to route it in such a way that it doesn't contact the alternator, water pump, A/C or timing belt(s) and pulley(s).
freedomgli is offline   Reply With Quote
Old 07-24-2014, 06:08 PM   #33
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

And if I wanted to delete the small diameter coolant hoses that run from the back of the head to the oil/water heat exchanger sandwich plate and to the water pump inlet/ mixing manifold, is that OK? Or are those small lines necessary to promote faster warmup with the M-tuned coolant reroute thermostat location? Just trying to eliminate potential failure points and need to decide whether I should plug those holes now with the engine out or just run the small coolant hoses and hope they don't fail on me.
freedomgli is offline   Reply With Quote
Old 07-24-2014, 07:09 PM   #34
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

You can delete them. I always do. Pics in my build threads.

The M-tuned thermostat should have a small bleed hole in it that ensures it is seeing fresh coolant temperature (i.e., no stagnant/cold coolant). During initial warmup, most coolant takes the path through the heater core and into the mixing manifold on the exhaust side of the engine.
hornetball is offline   Reply With Quote
Old 07-24-2014, 09:30 PM   #35
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

Thanks man. So JB Weld and 1.6 rubber cap for the fitting on the back of the head and pipe fitting on the mixing manifold. Do you recall offhand if that was 1/8 NPT? Looks too small to be 1/4 NPT but what do I know.

Also, did you remove the stock oil/water cooler or did you leave it and simply add another sandwich adapter for your air/oil cooler?
freedomgli is offline   Reply With Quote
Old 07-25-2014, 01:59 AM   #36
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by freedomgli View Post
Thanks man. So JB Weld and 1.6 rubber cap for the fitting on the back of the head and pipe fitting on the mixing manifold. Do you recall offhand if that was 1/8 NPT? Looks too small to be 1/4 NPT but what do I know.

Also, did you remove the stock oil/water cooler or did you leave it and simply add another sandwich adapter for your air/oil cooler?
The standard sandwich adapters (Mocal makes it, I think?) don't fit without the stock oil/water cooler, because the outlet fittings want to be in the same space as some of the ridges on the block. It's light, just use it as a spacer.

--Ian
codrus is offline   Reply With Quote
Old 07-25-2014, 01:14 PM   #37
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

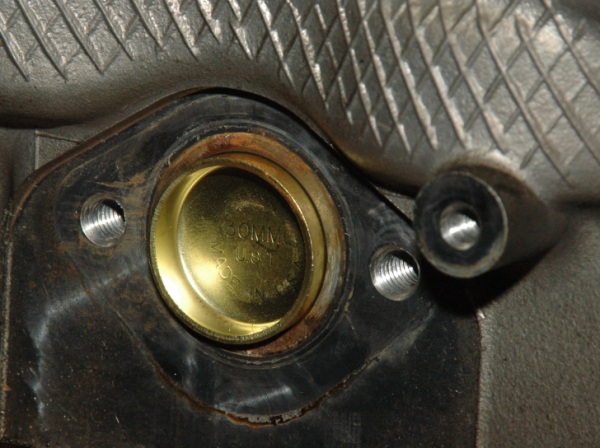

Trackspeed has a nice clean kit for $20

Trackspeed Engineering



Attached Thumbnails
Front waterneck removal question (water lines)-coolantfreezeplug.jpg
Landrew is offline   Reply With Quote
Old 07-25-2014, 06:46 PM   #38
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by freedomgli View Post
Thanks man. So JB Weld and 1.6 rubber cap for the fitting on the back of the head and pipe fitting on the mixing manifold. Do you recall offhand if that was 1/8 NPT? Looks too small to be 1/4 NPT but what do I know.

Also, did you remove the stock oil/water cooler or did you leave it and simply add another sandwich adapter for your air/oil cooler?
I JB Welded a hex set screw into the water fitting on the back of the head and then capped. The mixing manifold plug was indeed 1/8NPT.

I removed the stock oil/water cooler, but you can leave it in place as a spacer like a previous poster mentioned. If you do remove it, then you'll either need to source another spacer (you could use a sensor port sandwich adapter as a spacer) or get the shorter threaded tube from the 1.6 and then figure out how to avoid the block webbing. The cheap thermostatic adapters with the bimetal coils instead of wax-plug pistons actually work pretty well for this because they are a much thicker. Thermostatic adapters with fittings that face outward at a 45 degree angle (Greddy) also help avoid the webs.

Most retain the oil/water cooler and use the well-proven Mocal thermostatic adapter. You can't go wrong with that. I cheaped out with a Haynes and haven't had any problems. YMMV. Look for "thermostatic sandwich adapter" on Amazon and there will be a lot of options. Miata oil filter thread is 20mm.
hornetball is offline   Reply With Quote
Old 08-04-2014, 04:03 PM   #39
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

Here's what I did.

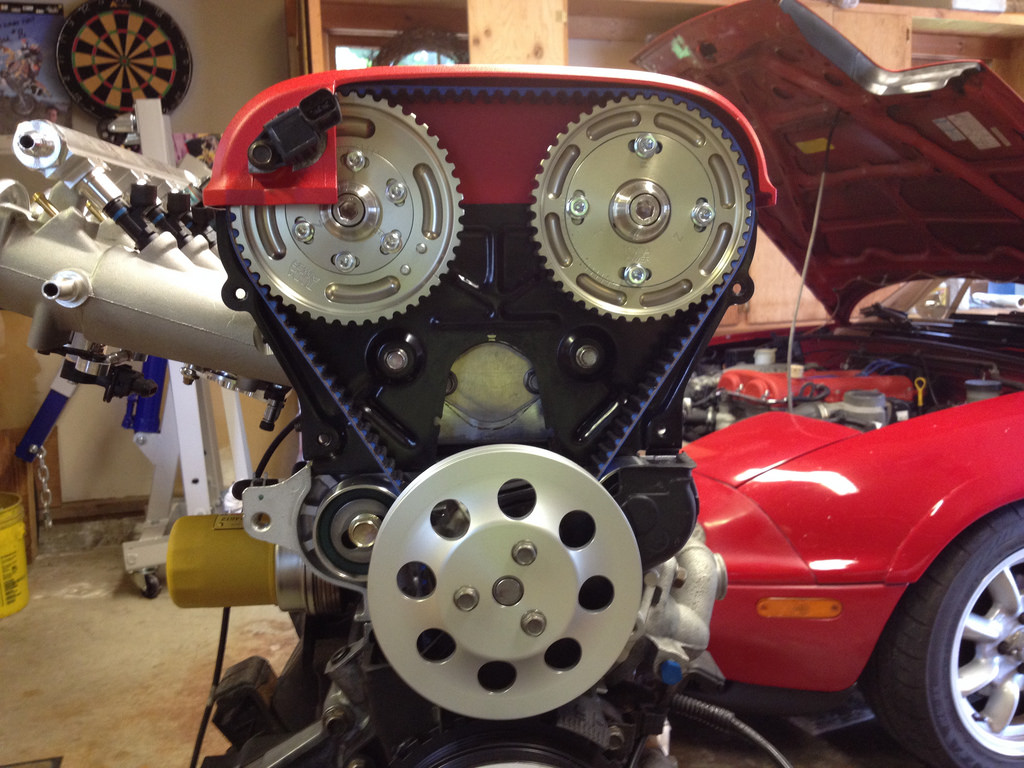

Front thermostat housing removed, Dorman freeze plug installed, Trackspeed Engineering front coolant block off plate installed with stock bolts shortened and blue (medium strength) Loctite.

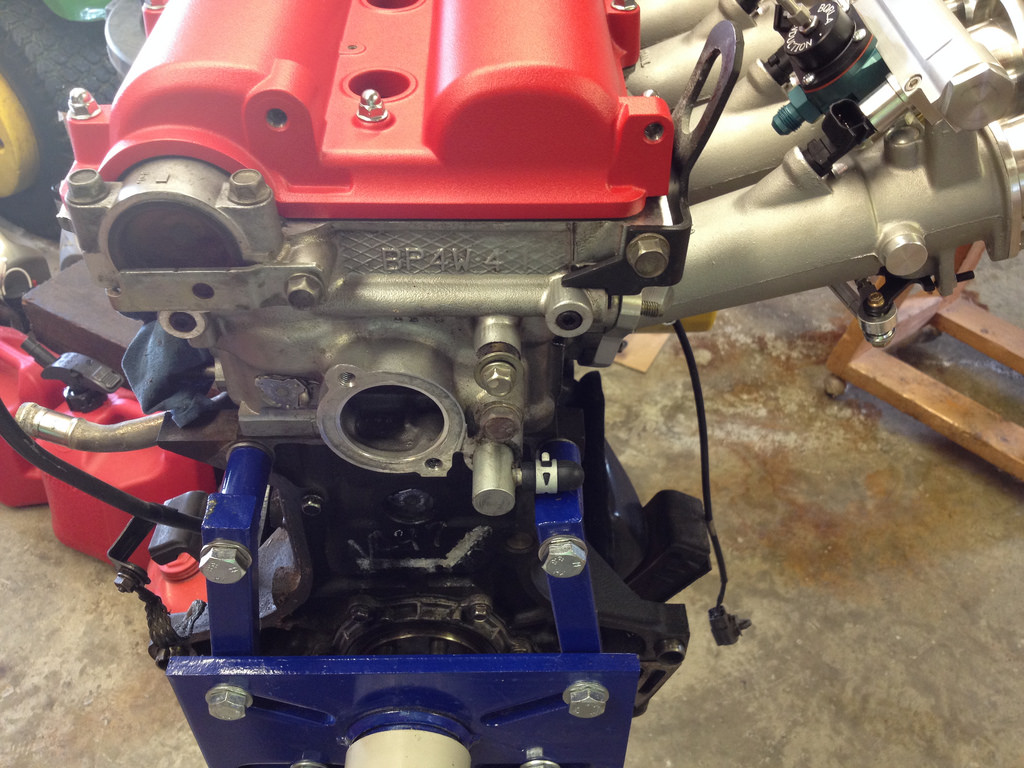

Water outlet for small oil cooler lines plugged with 1/4-20 set screw and JB Weld. This was a bit tricky as I didn't let the JB Weld set up enough before inserting the set screw, which meant any JB Weld that I packed in afterwards wanted to run out the hole. So when the first batch set up I rotated the engine on the stand 90 so the fitting was pointing straight up, I mixed up another batch and filled the rest of the hole. Covered with rubber plug (Mazda p/n FEA7-13-104) for belts and suspenders approach.

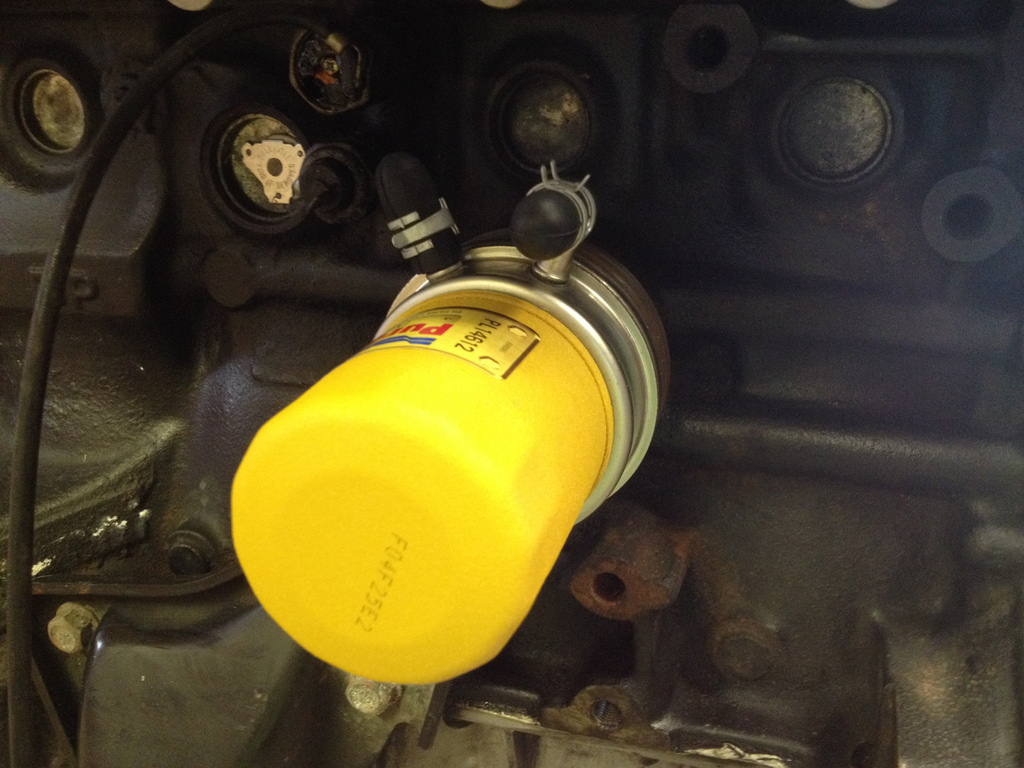

Stock oil cooler lines deleted. Capped holes with rubber plugs (p/n FEA7-13-104) to keep foreign debris out of the stock oil cooler in case I ever want to go back. Overkill but very tidy.

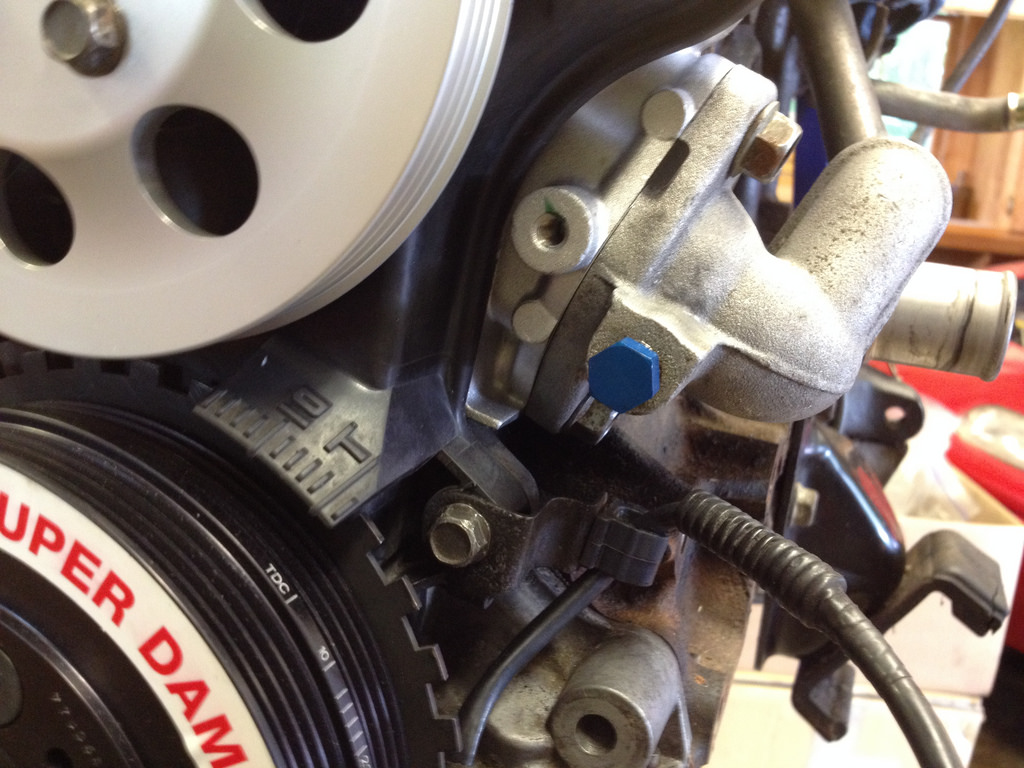

Removed elbow in mixing manifold with vise grip pliers. Drilled and tapped for 1/8NPT plug. I used the same Earl's aluminum plug as my fuel pressure gauge adapter. Coated plug with Permatex Aviation Form a Gasket No. 3 since that is what Jamestown Distributors recommends for all NPT fittings.

How to Properly seal Fuel Fittings and Fuel Lines
Attached Thumbnails
Front waterneck removal question (water lines)-14828295365_041f865594_b.jpg   Front waterneck removal question (water lines)-14825930474_4ba44db200_b.jpg   Front waterneck removal question (water lines)-14825929364_3556f886c9_b.jpg   Front waterneck removal question (water lines)-14827923432_2421589045_b.jpg
freedomgli is offline   Reply With Quote
Old 08-04-2014, 05:38 PM   #40
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Nice and clean. Cool intake manifold.
