Default Which is the fuel feed line?

I'm running the BEGi AFPR and just installed my new 190hp fuel pump as well as tee'd in a new fuel pressure gauge.

The thing is, it reads 0psi at idle or if I rev it. Can't read it under load because it's mounted in the engine bay and sadly I don't have a dyno at my disposal.

A/F gauge reads 14.7 under normal driving and around 12.0 under full boost, so it seems my fuel pressure is safe.

My dad thinks I tee'd the AFPR into the fuel return line instead of the fuel feed line which would explain the 0psi and the Haynes manuel says the forward fuel line is fuel return, however my instructions that came with the AFPR from FM indicates the forwardmost fuel line is the one to tee into.

Can anyone offer some insight into this?

Thanks in advance,
SamS
SamS is offline   Reply With Quote
Old 08-04-2006, 05:39 PM   #2
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

I the forward fuel line is your fuel feed line. Maybe your pressure guage is bad.
Stripes is offline   Reply With Quote
Old 08-04-2006, 05:49 PM   #3
Senior Member
Thread Starter
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

This is the second gauge i've bought. Both work on my air compressor.
SamS is offline   Reply With Quote
Old 08-04-2006, 05:58 PM   #4
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

If your car starts and runs, you have pressure in your fuel line. Can you post pics?

Another way to check is to look at your fuel rail. The fuel feed line is the forward most line.
Stripes is offline   Reply With Quote
Old 08-04-2006, 06:03 PM   #5
Senior Member
Thread Starter
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

Yeah the cars sruns perfectly. I can post pics later tonight.

I mainly need to settle this dispute with my dad.
SamS is offline   Reply With Quote
Old 08-05-2006, 01:20 PM   #6
Senior Member
Thread Starter
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

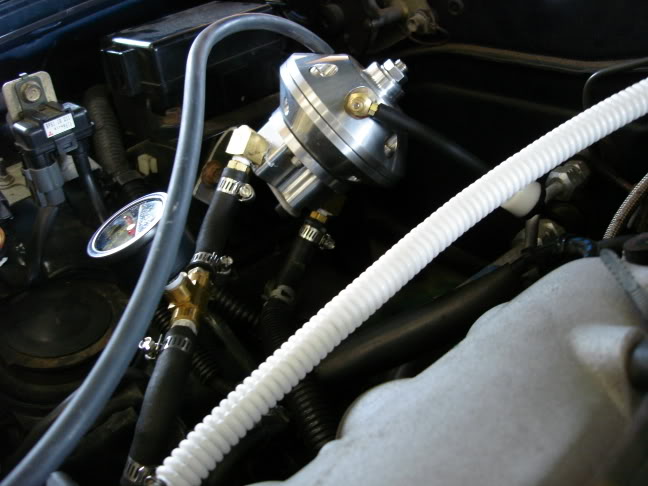

Name:  DSC00351.jpg
Views: 132
Size:  50.2 KB

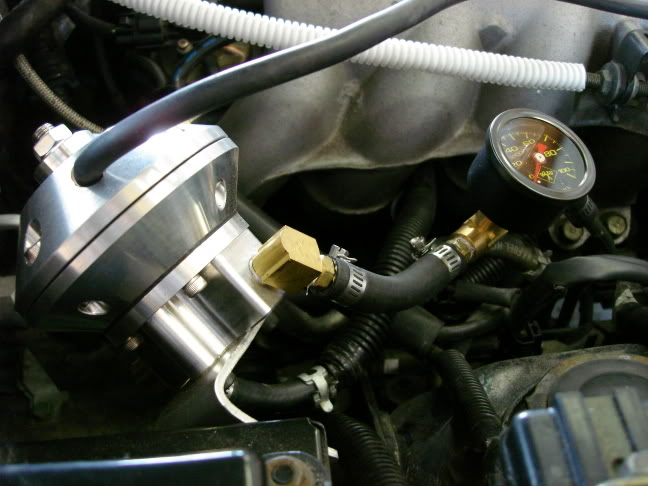

Name:  DSC00350.jpg
Views: 139
Size:  53.5 KB

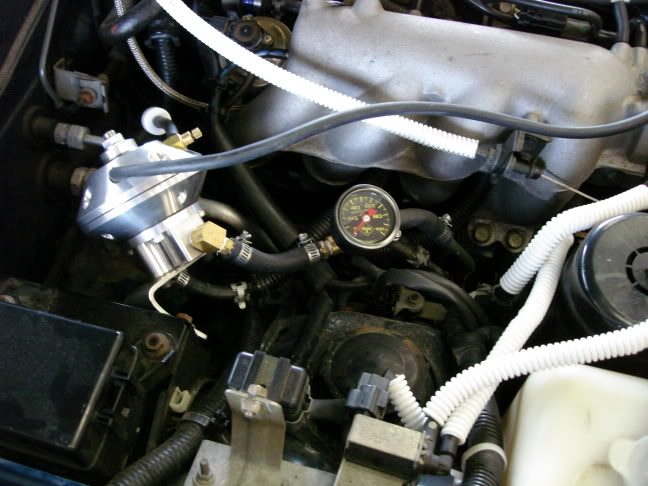

Name:  DSC00348.jpg
Views: 158
Size:  61.5 KB
SamS is offline   Reply With Quote
Old 08-05-2006, 05:45 PM   #7
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

Wouldn't you want it in the return line? The regulator opens when you reach a certain pressure on the fuel rail (or am I insane) and then sends any extra pressure back to the tank. If you put it on the feed line it will keep a certain pressure between the pump and the AFPR and bleed any extra to your injectors. AFAIK, your stock FPR is between the fuel rail and the return to the tank.

It's been a while since I have played with AFPR so I may be off base.
rmcelwee is offline   Reply With Quote
Old 08-05-2006, 05:50 PM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

you are correct Ron put the gauge on the feed line. your current setup is measuring your return pressure wich doesnt help at a ll the feed pressure is important though.
magnamx-5 is offline   Reply With Quote
Old 08-05-2006, 06:39 PM   #9
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

Quote:
Originally Posted by magnamx-5
you are correct Ron put the gauge on the feed line. your current setup is measuring your return pressure wich doesnt help at a ll the feed pressure is important though.
Actually, it looks like he put it in the return line after the AFPR. That is why he is reading 0 PSI (it is just return pressure which should not be high after it bleeds off from the AFPR). So, he needs to move his gauge to the feed (so it reads the correct feed pressure) and leave his AFPR where it is (since it is working correctly).
rmcelwee is offline   Reply With Quote
Old 08-05-2006, 10:42 PM   #10
Senior Member
Thread Starter
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

If my AFPR is in the feed line to the fuel rail, shouldn't my gauge be reading the pressure that is getting to the injectors a few inches away? Or am I mising some big point one of you has made?

Isn't fuel pressure on the feed line to the stock FPR going to remain fairly constant, or does it change with different input from the motor?

Are you saying I should put the gauge between the stock FPR and the AFPR?
SamS is offline   Reply With Quote
Old 08-05-2006, 11:05 PM   #11
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

If my AFPR is in the feed line to the fuel rail, shouldn't my gauge be reading the pressure that is getting to the injectors a few inches away? Or am I mising some big point one of you has made?

Isn't fuel pressure on the feed line to the stock FPR going to remain fairly constant, or does it change with different input from the motor?

Are you saying I should put the gauge between the stock FPR and the AFPR?

Currently, your AFPR is in the return line along with the gauge. Your AFPR is working correctly because it is in the right place. Your gauge is not doing what you want because it is in the right place. You should be:

fuel pump, feed line, gauge, fuel rail, FPR, return line, AFPR, tank


Isn't fuel pressure on the feed line to the stock FPR going to remain fairly constant, or does it change with different input from the motor?


The fuel pressure to the feed line to the stock FPR is going to remain constant UNTIL you added the AFPR. It has, in a sence, removed your FPR from the equation due to its higher pressure that changes with input from the vacuum/PSI tubing. Imagine a 6" exhaust pipe, lots of flow (i.e. low pressure) going into a 0.0005" exhaust pipe (very high pressure). The low pressure (FPR) has little effect on the higher pressure (AFPR) pipe.

My explaination may be confusing but if you follow the flow path that I detailed above (only requiring you to move your pressure gauge) you should be fine.

See my webpage (defunct sebring miata mirror) for info on how much pressure you need:
http://www.lightweightmiata.com/sebr...ta/page38.html
rmcelwee is offline   Reply With Quote
Old 08-05-2006, 11:46 PM   #12
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

that is exactly what i said why did you assum i meant put hte fpr on the feed line i told him it was no good to put the gauge on the return.
magnamx-5 is offline   Reply With Quote
Old 08-06-2006, 02:01 AM   #13
Senior Member
Thread Starter
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

Alright, I think I understand now, guys. I'll move the gauge in the morning.

Thanks for all the help!

SamS
SamS is offline   Reply With Quote
Old 08-06-2006, 06:34 AM   #14
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

Quote:
Originally Posted by magnamx-5
that is exactly what i said why did you assum i meant put hte fpr on the feed line i told him it was no good to put the gauge on the return.

you are correct Ron put the gauge on the feed line.


"Ron put the gauge on the feed line" is not the same as "Ron, put the gauge on the feed line". Sorry, I just misread what you were trying to say. That tends to happen after a 12 hour shift at work.

("I see that Ron has put the gauge on the feed line" vs "Ron should move the gauge to the feed line")
rmcelwee is offline   Reply With Quote
Old 08-06-2006, 01:04 PM   #15
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

no prob :gay:
magnamx-5 is offline   Reply With Quote
Old 08-06-2006, 01:34 PM   #16
Junior Member

Join Date: Jun 2006
Location: Austin, Texas
Posts: 257
Total Cats: 0
Default

You can rev the car from under the hood and look at the FPG. Do you see the throttle cable going to the throttle body?

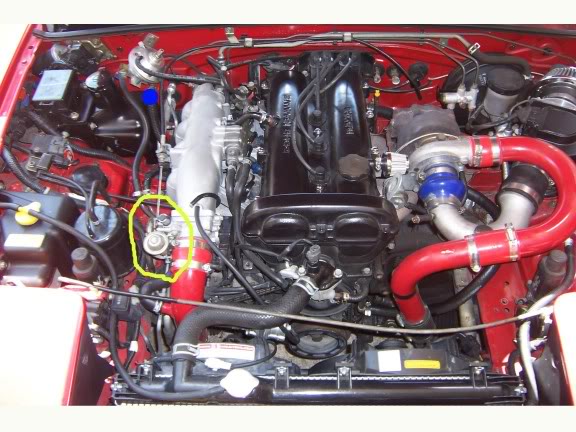

Name:  100_22447.jpg
Views: 130
Size:  66.1 KB
The yellow circle is what you need to pull to rev the car from under the hood. The blue dot is where my FPG is now.
TurboMiatKid is offline   Reply With Quote
Old 08-06-2006, 07:56 PM   #17
Senior Member
Thread Starter
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

yeah, I'm aware of the throttle cable being attached to the throttle body.

I was just saying I couldn't rev it under load because the car would have to be moving or on a dyno.

SamS
SamS is offline   Reply With Quote
Old 08-11-2006, 04:52 PM   #18
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

The AFPR (FMU) installs in the fuel return line. If it is installed in the fuel feed line, it will shut off fuel to the injectors.

The gauge is reading 0 (at idle) because the it has not received a boost signal to kick on. You need to add 4 feet of hose between the line and the gauge. Route the gauge to the windshield, stick it under the windshield wiper and read it under boost.

The gauge needs to install between the pump and the fuel rail to read the fuel pressure at idle and under boost.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 08-11-2006, 11:58 PM   #19
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

You guys are everywhere. Is Corky here to?
magnamx-5 is offline   Reply With Quote
Old 08-12-2006, 03:46 PM   #20
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Not yet.....
