Old 12-23-2011, 08:34 AM   #1
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default Garret T2x Flange interchangability?

Gday,

Just found the dxf files for gt2860 and 2871, i do not have software which can view these and make measurements to I just wanted to know if the outlet and inlet flanges on the exhaust housing were the same, and were the same as a T25.

Source http://www.turbohelps.com

I have an S13 T25 which Id like some flanges for.

Thankyou,
Dann
nitrodann is offline   Reply With Quote
Old 12-23-2011, 08:56 AM   #2
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Im at work now, Ill see if I can download and dimension some stuff for y ou
240_to_miata is offline   Reply With Quote
Old 12-23-2011, 09:15 AM   #3
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default



I will do the other one now. Sorry its so messy, trying to do it quick while no one is around, lol.

What do you want to see for the other one? I was just going to give you a few center to center dims from holes so you can easily measure. wont be something you could use to make the part.
Attached Thumbnails

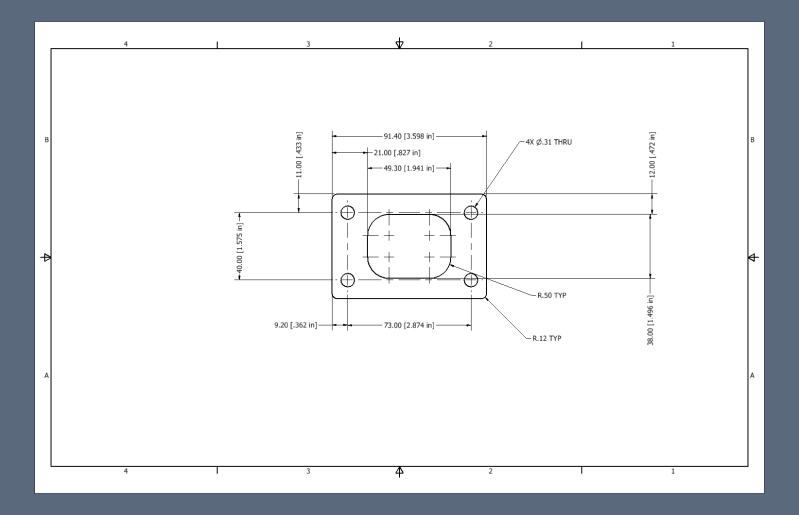

Garret T2x Flange interchangability?-t2turboflange.jpg
240_to_miata is offline   Reply With Quote
Old 12-23-2011, 09:16 AM   #4
Junior Member

Join Date: Jan 2009
Location: Floyds Knobs, IN
Posts: 92
Total Cats: 3
Default

If you do to the Garrett website they have drawings for all the turbos in .pdf form.

www.turbobygarrett.com
C. Ludwig is offline   Reply With Quote
Old 12-23-2011, 09:24 AM   #5
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

^^ damn you. Oh well this is keeping me from doing actual work.



let me know if you need anything else. I randomly gave you center to centers. hopefully you can measure enough.
Attached Thumbnails

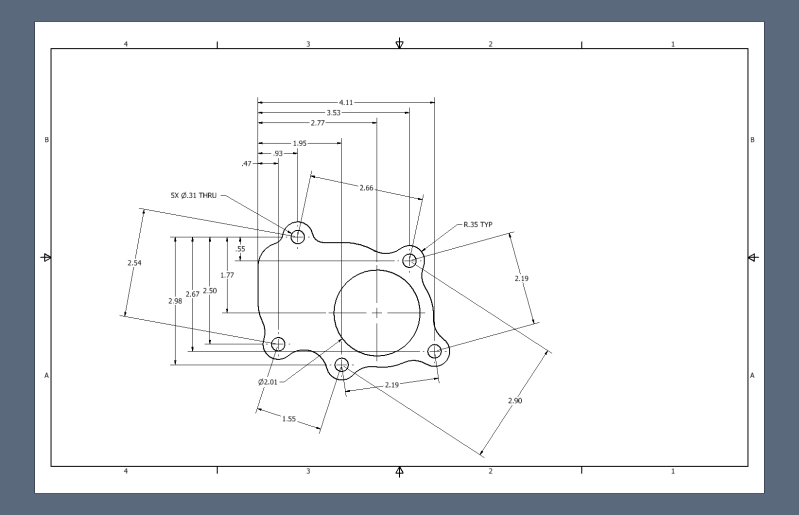

Garret T2x Flange interchangability?-t2exhaustflange.jpg
240_to_miata is offline   Reply With Quote
Old 12-24-2011, 05:10 AM   #6
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

My god, that is sweet.

I have no idea how you can get those measurements into a pc program, trying to learn google sketchup... havent done any cad stuff since highschool.

Thanks heaps.

Dann
nitrodann is offline   Reply With Quote
Old 12-24-2011, 11:20 AM   #7
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

DXF is an AutoCad format. I have both autocad and Inventor at work but I refuse to work in Autocad. I pulled the files into inventor and then detailed them in that program.

I am slightly embarrassed about how I detailed the last part, but I know you wanted it as a reference only. Oh and the first part is missing a dimension for the total height of the part, sry.

EDIT: I also forgot to give you mm & inches in the second part, sry.
240_to_miata is offline   Reply With Quote
Old 12-25-2011, 01:29 AM   #8
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Nah its great thanks. Im not sure I can get autocad for free, nor am I sure that the learning curves on autocad or solidworks etc would be worth it for what I want to be able to do.

Learning sketchup for the fun of it now.

id like to be able to get flanges laser/water cut for me etc.

Dann
nitrodann is offline   Reply With Quote
Old 12-30-2011, 01:04 AM   #9
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default


weird
Attached Thumbnails

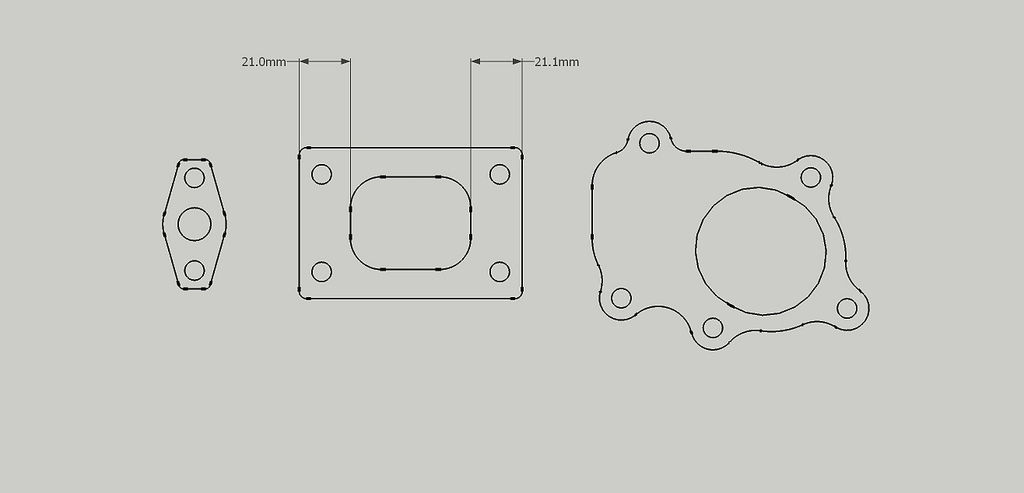

Garret T2x Flange interchangability?-6598473975_7fa3c8264f_b.jpg
Golferluke is offline   Reply With Quote
