Default HELP Clocking A 14b Turbo

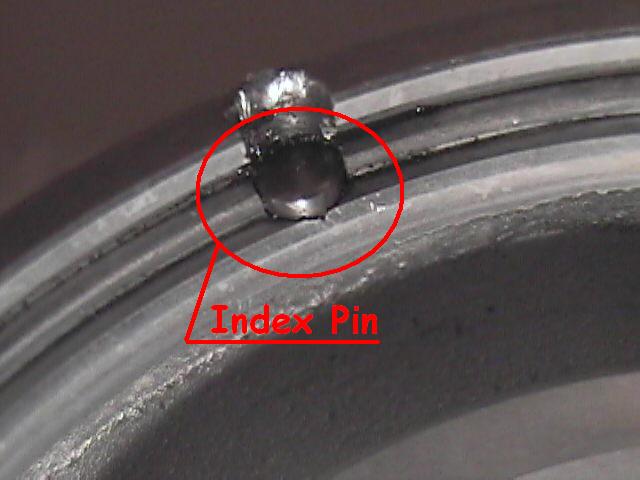

I was clocking my 14b today and I came across a Index pin on the compressor housing. I was just wondering how everone else got this out, did you drill it, sand it, pull it???? I'm just a little scaired because it right where the compressor seal goes and one little nick or screw up would mess up the whole thing. Anyway, here is a picture of what I'm talking about. Thanks for the help.
~Jason
Attached Thumbnails
HELP Clocking A 14b Turbo-dvc00020.jpg
getsidewaysd1 is offline   Reply With Quote
Old 09-04-2006, 02:53 PM   #2
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

From what I've read, most say trim/grind it. There seems to be no consensus though. I'm trying to think who uses clocked 14b turbos. The TT Stealth/VR4 guys?

Anyway, best I could do, hope this helps:

http://www.jakelatham.com/1gDSM/proj...bo/index.shtml
UofACATS is offline   Reply With Quote
Old 09-04-2006, 03:17 PM   #3
Senior Member
Thread Starter

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Hell ya. Thanks dude, that helped a million. Took 2 minutes to do. Thanks again.
getsidewaysd1 is offline   Reply With Quote
Old 09-04-2006, 03:22 PM   #4
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Good to hear.
UofACATS is offline   Reply With Quote
Old 09-07-2006, 11:26 PM   #5
Senior Member
iTrader: (6)

nester's Avatar

Join Date: Sep 2005
Location: Houston, TX
Posts: 812
Total Cats: 0
Default

They should just pop out with screwdriver. Same pins my 16g had. There's also a pin on the exhaust side.
