Default help: What turbo is this??

Got it on Craigslist following a link I found on this forum.
It's part of a FM kit from way back when, it's small and has sleeve bearings.
I need to rebuild it but for that, I need to know what it is fist so I can get the
correct parts.
The turbo works, I get about 9PSI (that's what the wastegate seemt to be set to) but makes a nasty screetching noise under boost.
I took it apart, the turbine side anyway (I need to go buy snap ring pliers to take the compressor side appart) and there's a bit of play in the shaft.

Gunter
Attached Thumbnails

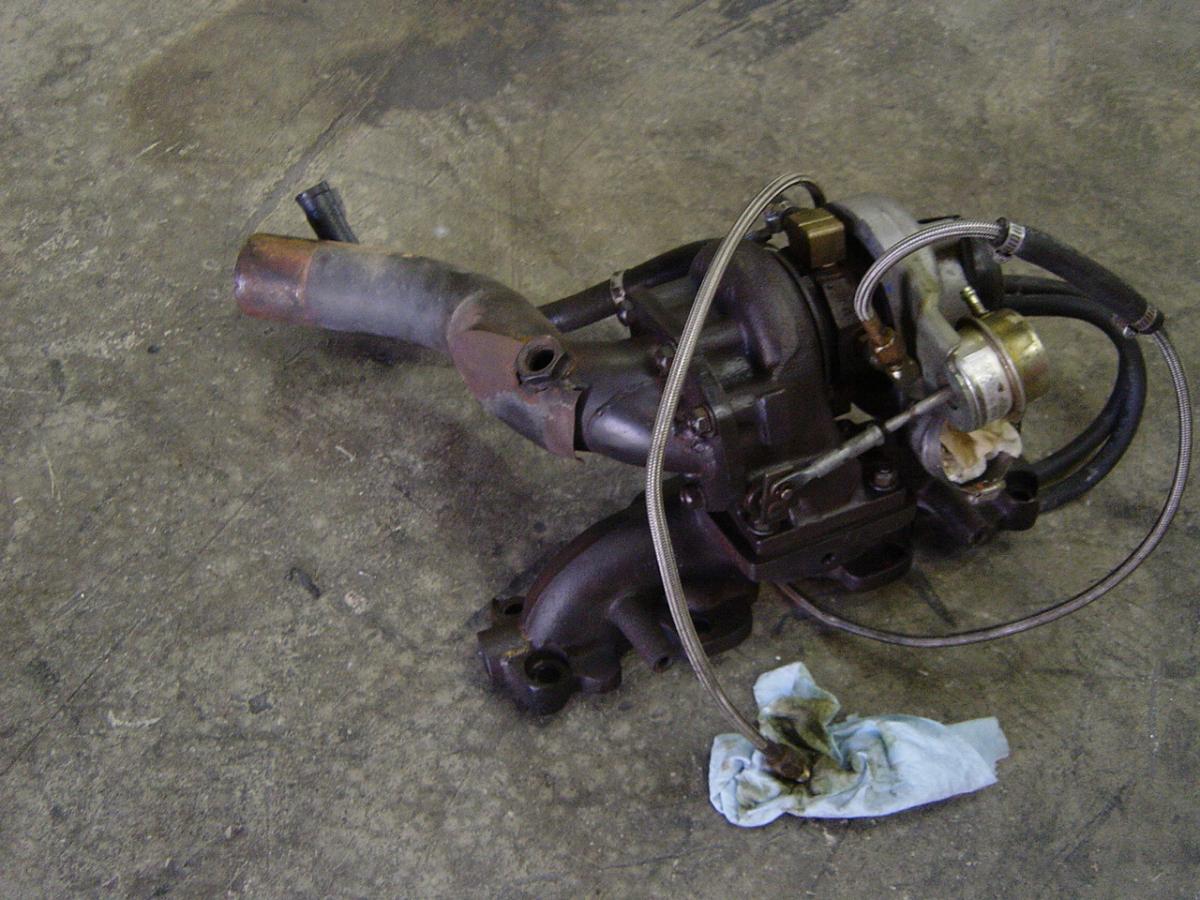

help: What turbo is this??-fmturbo.jpg
guzerone is offline   Reply With Quote
Old 11-07-2010, 06:19 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,579
Default

that's about the least informative angle you can possibly snap.

My guess its a 2554. Maybe 2560 but you really will have to take better pics or get the part# off it
18psi is offline   Reply With Quote
Old 11-07-2010, 06:50 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Seattle Area
Posts: 74
Total Cats: 0
Default

More pics...
Attached Thumbnails

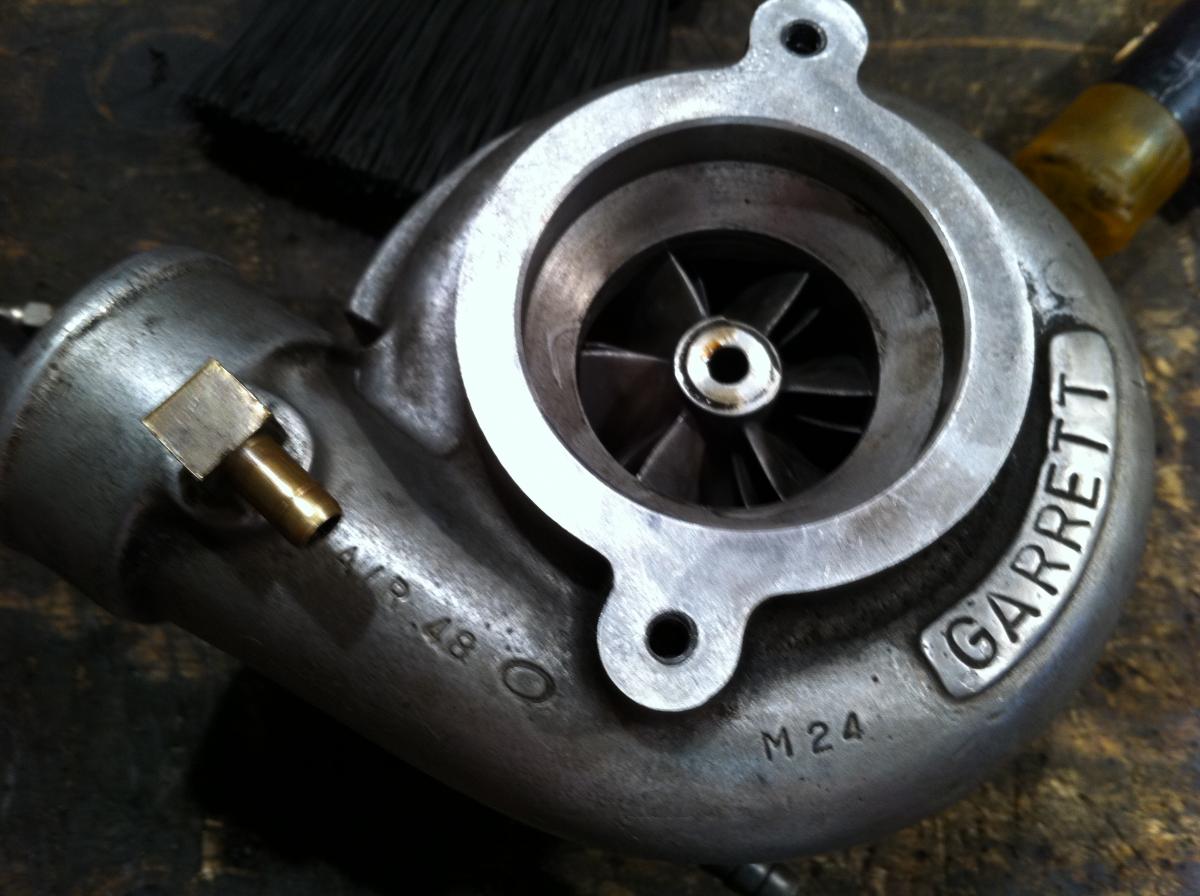

help: What turbo is this??-turbo1.jpg
guzerone is offline   Reply With Quote
Old 11-07-2010, 06:54 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Seattle Area
Posts: 74
Total Cats: 0
Default

and 2 more pics
Attached Thumbnails

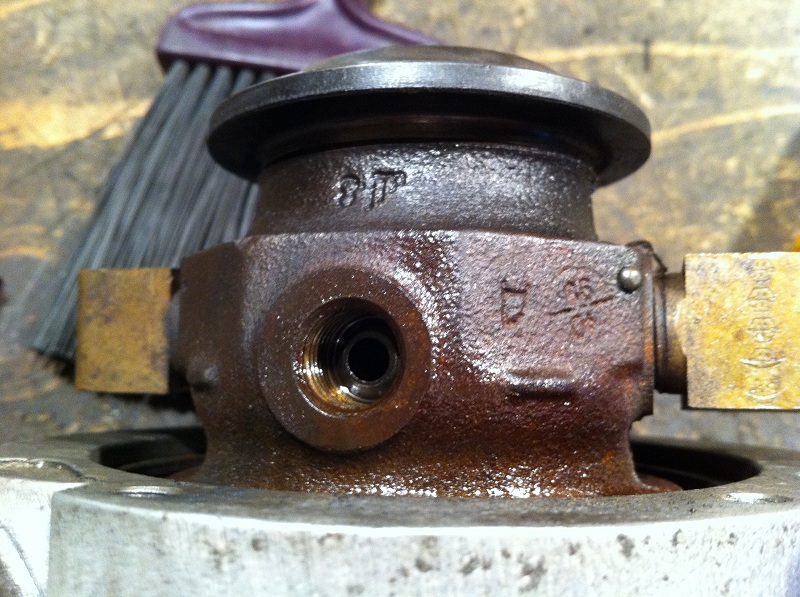

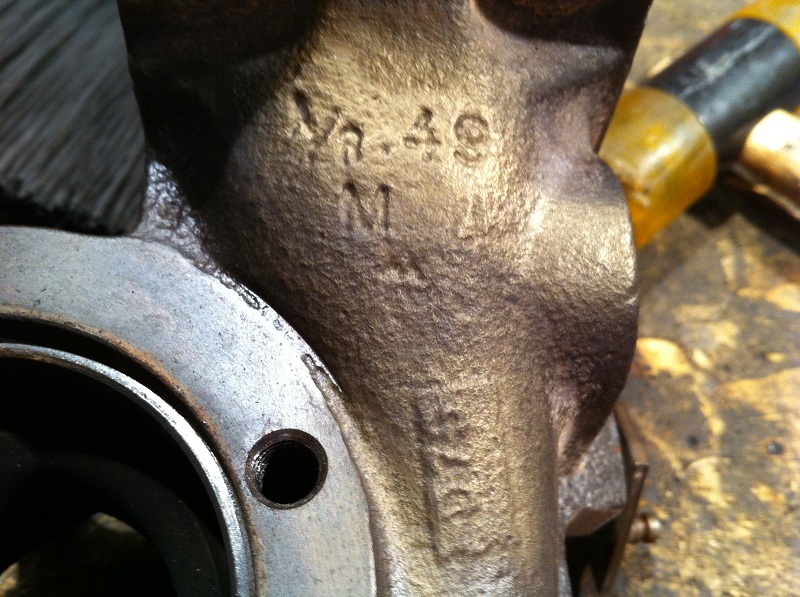

help: What turbo is this??-turbo2.jpg   help: What turbo is this??-turbo3.jpg
guzerone is offline   Reply With Quote
Old 11-07-2010, 06:55 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Seattle Area
Posts: 74
Total Cats: 0
Default

The compressor wheel is 53mm
guzerone is offline   Reply With Quote
Old 11-14-2010, 10:30 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Seattle Area
Posts: 74
Total Cats: 0
Default

Correction, the turbine wheel is 53mm, the compressor wheel is 60mm.
That would make it a 2560.

How much boost can 2560 deliver?

It made a nasty screeching noise under boost, so I got a rebuild kit and rebuilt it.
(what a PITA to get the lower rear nut back onto the manifold stud...).

It still makes quite a bit of noise, not so bad under boost but once get off the throttle
it sounds nasty. Almost sounds like the stamped sheet metal disk behind the turbine
is making contact with the turbine wheel (the rebuild kit didn't come with a new one).

Since it still makes noise, I checked the oil flow, I got about a pint of oil after 20 sec
of idling, is that enough?

Gunter
guzerone is offline   Reply With Quote
Old 05-20-2011, 02:29 AM   #7
Junior Member

Join Date: Mar 2011
Location: Louisville ky
Posts: 479
Total Cats: -110
Default

Is this the Turbo I bought off you. Did u ever figure this out?
