Default Here's What I've Been Up To

Other than sorting out the supsension, this is how far I've made it in the past couple weeks. Now I'm about to take a week long break to go to the shore with my girl...... The pics below show a decent summary of my progress.

:Here's what I have to get done:
-Mount and hook up Vortech fuel riser
- Hook up innovate wideband (deleted boost guage off of original, got it done today!)
-Plumb A.F.M. and air filter to turbo inlet
-Heat shield to isolate master cylinder, A.F.M. and filter from the turbo fireball
-A little more heat shielding on the turbo lines
-D.P. back 2.5" exhaust, reemed cat, summit turbo muffler
-Turn signal intakes

-Start the ****, see if she holds 6psi, determine if I have to throw in my 1.8 injectors, click the A.F.M. spring or get an o2 clamp or all of the above.

I was wondering if you guys could help me out with two questions....

1.) My vortech was bought off of a buddy who had it on a supercharged mustang, and then let it sit for a few months before I bought it. Should I worry about cleaning the thing out? If so what is the best way to clean it? Disassemble or just run carb cleaner through it?

2.) Should I do a black mesh grill the main opening in the front bumper and my T.S.I.'s? Anyone have pictures of their grill's???? (Miata grills please!! I don't want to see a close up of Juvenile or Ja Rule!!!)



Catch you guys later! I'm living at work for two days and then heading to the beach!!!!!!!!!!!!!!!!!!

Anthony
Attached Thumbnails

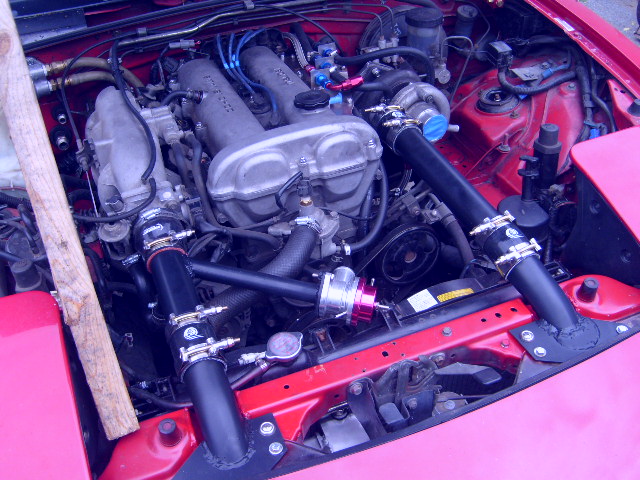

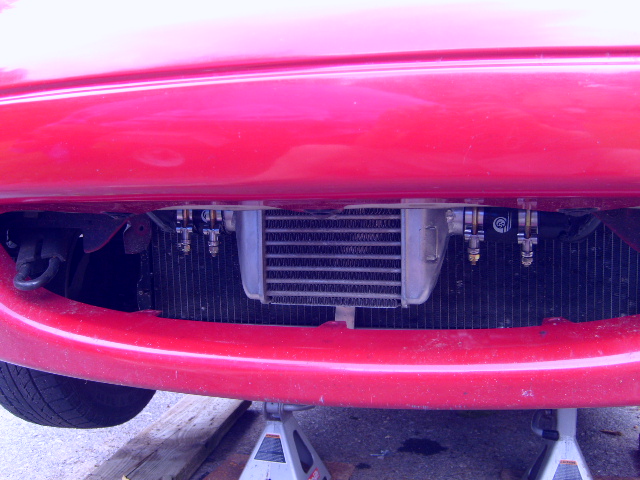

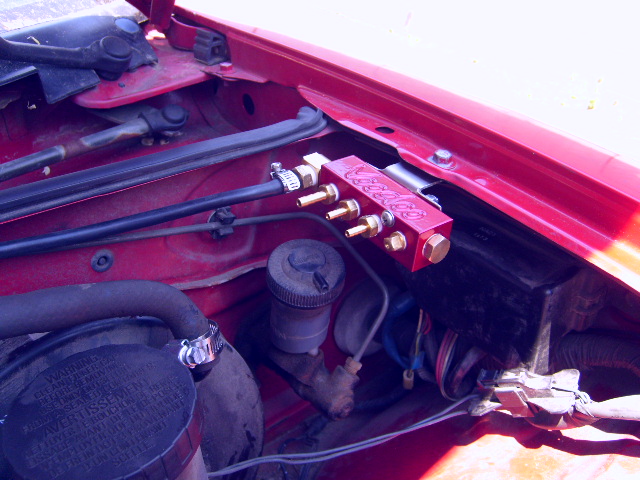

Here's What I've Been Up To-piping-2.jpg   Here's What I've Been Up To-i.c.-hooked-up-2.jpg   Here's What I've Been Up To-vac-mani.-w-main-supply-hooked-up.jpg

Last edited by s10383; 06-16-2007 at 12:44 AM.
s10383 is offline   Reply With Quote
Old 06-14-2007, 12:47 PM   #2
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I'm diggin the tdr style over the top pipes. I would clean out the vortech just to know that it is clean before I put it on, and I think grills look like *******.
neogenesis2004 is offline   Reply With Quote
Old 06-14-2007, 12:57 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2007
Posts: 93
Total Cats: 0
Default

Yeah, I want to clean it to be safe, but I'm wondering if there is anything touchy to watch out for when dissasembling the vortech.....
s10383 is offline   Reply With Quote
Old 06-14-2007, 01:10 PM   #4
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

I like the over-the-top IC setup. Did you have to lower the radiator at all?
Atlanta93LE is offline   Reply With Quote
Old 06-14-2007, 01:21 PM   #5
Junior Member
Thread Starter

Join Date: Mar 2007
Posts: 93
Total Cats: 0
Default

Thanks ATL,
Yeah I definitely had to lower the radiator, about 2.5"
I have a crapload of pictures. Give me your email if you want to check them out....
s10383 is offline   Reply With Quote
Old 06-14-2007, 02:49 PM   #6
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

If it'd been done a month ago, I'd be all over more pictures. I did something similar, but not as elegant
Atlanta93LE is offline   Reply With Quote
Old 06-14-2007, 03:00 PM   #7
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

There is certain places mesh belongs, in your grill is not one of them.
Newbsauce is offline   Reply With Quote
Old 06-14-2007, 03:34 PM   #8
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by Newbsauce View Post
There is certain places mesh belongs, in your grill is not one of them.
That reminds me... gotta redo the porch screen door. Bah.
Splitime is offline   Reply With Quote
Old 06-14-2007, 09:11 PM   #9
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

I'm diggin the over the top IC piping, any chance you can put more pics on what and how you did it? Did you notch the hood too?

As for the Vortech, it probably has a 12:1 disc in it, meaning it's gonna run rich at low boost for you. It's not hard to take apart at all, there's nothing to really mess up. The paperwork that came with mine did say NOT to disassemble the lower part of it (with the fuel barbs), but I took it apart anyway, and it still works. Just be sure that you don't *** the rubber diaphragm and that it properly seals.
iWeasel410 is offline   Reply With Quote
Old 06-14-2007, 09:25 PM   #10
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

Quote:
Originally Posted by s10383 View Post
Anyone have pictures of their grill's????
Anthony

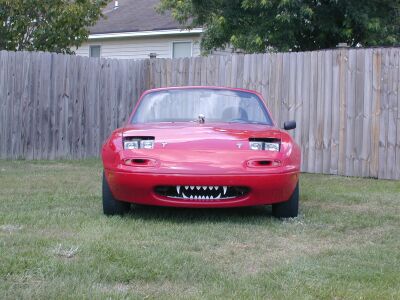

Here's my grill <G>
Attached Thumbnails
Here's What I've Been Up To-mainpage01.jpg
rmcelwee is offline   Reply With Quote
Old 06-14-2007, 10:59 PM   #11
Junior Member
iTrader: (1)

Join Date: May 2006
Location: Athens, GA
Posts: 247
Total Cats: 0
Default

definitely more pictures of the IC pipes. It looks like you notched the front support to make room for the pipes?
GTS Miata is offline   Reply With Quote
Old 06-15-2007, 12:04 AM   #12
Junior Member
Thread Starter

Join Date: Mar 2007
Posts: 93
Total Cats: 0
Default

Haha.....I guess grilles in the mouth are kind of taboo around here huh?

lol....I kinda want to get something in there to protect/hide the i.c. a tad bit....i might just have to make a bar style piece to fit in there..... or try mesh first...

I'm a little more familiar with miata.net and know that they have a pic upload limit. Do we have one over here too? If so...I gotta find a site to host some pics. Got any recs. for a good free spot to do that....cardomain? myspace?.....I dunno

If I can get a decent spot to host the pics...I will try to get some up between being hungover and drinking while down at the shore. I have a crapload of pics so...



ATLANTA......post some pics of your over the tops if you get a chance...i'm curious to see your setup
s10383 is offline   Reply With Quote
Old 06-15-2007, 12:55 AM   #13
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

I've been using a free photobucket account for about 3 years and have been happy with it.
SamS is offline   Reply With Quote
Old 06-15-2007, 01:32 AM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

+1 for photobucket.

Don't grills tend to cause overheating as well. The faster you go the more and more grills act like a solid wall. If you want stealth, then lightly paint the IC flat black, it's been documented on here. Otherwise your IC and radiator will not operate as well as they should.
cjernigan is offline   Reply With Quote
Old 06-15-2007, 02:01 AM   #15
Junior Member

Join Date: May 2007
Location: FRESNO, CA
Posts: 110
Total Cats: 0
Default

not a big fan of grills...but flat black paint is #1 in the sleeper world...im digging the pipes two......i just finished my diy turbo on my 1.8 na, running the same vortec fmu too...i definitely need to get an o2 clamp though!!!
o.e.boost is offline   Reply With Quote
Old 06-15-2007, 09:22 AM   #16
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by cjernigan View Post
Don't grills tend to cause overheating as well. The faster you go the more and more grills act like a solid wall.
You're absolutely right. The tighter the mesh, the more pronounced the wall effect.

s10383: I just got the car boosting last night/this morning, so I'll get some pictures of my over-the-top setup posted on the forum somewhere soon.
Atlanta93LE is offline   Reply With Quote
Old 06-15-2007, 09:52 AM   #17
Junior Member
Thread Starter

Join Date: Mar 2007
Posts: 93
Total Cats: 0
Default

Hmmmm .........that's a good point about meshy crap acting like a wall at speed. Never took that into account. I guess the mouth will stay open, but I'm still no too crazy about leaving the TSI's wide open...guess I'll just have to see how it looks.
I will definitely get some pics up on photobucket within the next few days....
s10383 is offline   Reply With Quote
Old 06-15-2007, 11:05 AM   #18
Junior Member
iTrader: (7)

Join Date: Mar 2007
Location: Texas Panhandle
Posts: 213
Total Cats: 0
Default

If you are worried about it getting beat up you could make something like what racing beat designed for the 06-07.




Pegasus sells SS wire mesh...

http://www.pegasusautoracing.com/gro...GroupID=SCREEN

If racers are buying it from Pegasus then I am sure it doesn't affect cooling to much. I would think the coarse mesh would block a lot of rocks but still allow flow.
jsisco is offline   Reply With Quote
Old 06-15-2007, 12:02 PM   #19
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

Over the top intercooler pipes- yay
Tiny postage stamp IC- nay
beerslurpy is offline   Reply With Quote
Old 06-15-2007, 12:52 PM   #20
Junior Member
Thread Starter

Join Date: Mar 2007
Posts: 93
Total Cats: 0
Default

Quote:
Originally Posted by beerslurpy View Post
Over the top intercooler pipes- yay
Tiny postage stamp IC- nay


It's all about total surface area my friend. The core is about 11"x10" and 6" deep. "10x6" = 60 sq in for each layer and there are about 10 layers in it.
So we got 600sq in. with each layer having 2 sides to the atmosphere so that would be 1200sq in. Go check up in braineack's faq which outlines surface area for I.C.'s and see where 1200 sq in is going to get me. Big I.C.'s look cool and thats about it. They're also nice for blocking a shitload of air from the radiator.
s10383 is offline   Reply With Quote
