Default HKS manifold custom downpipe ?

Hey whats up im wondering if the guys that are running the hks manifold have any insite as to how to run the downpipe or if you guys have any pictures cause the problem im having is that the down pipe will hit the heater hoses. theres not a whole lot of room to make it work
mrolo74 is offline   Reply With Quote
Old 02-28-2008, 11:49 AM   #2
Junior Member
iTrader: (6)

Join Date: Oct 2007
Location: So Cal
Posts: 331
Total Cats: 0
Default

I think you are going to have to do a reroute of your lines, I had to reroute mine to dodge the manifold and DP.
99NBMia is offline   Reply With Quote
Old 02-28-2008, 11:59 AM   #3
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

Years ago I had a thread that had pictures of my hks/downpipe build. I don't think it's available anymore. It's a straight forward design. 1 90 degree pipe, 2 45 pipes.

Here's a link with some pictures:


http://www.mx5projects.com/turbo-exhaust.asp

FYI, I don't maintain this site anymore, so some links and info will be outdated.

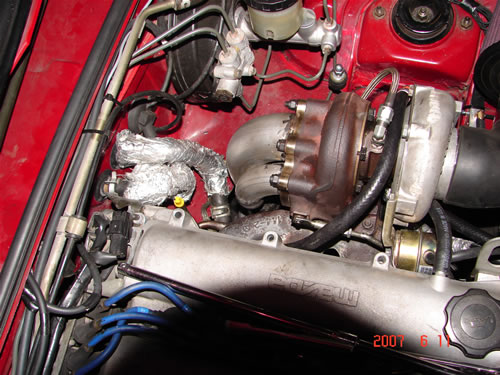

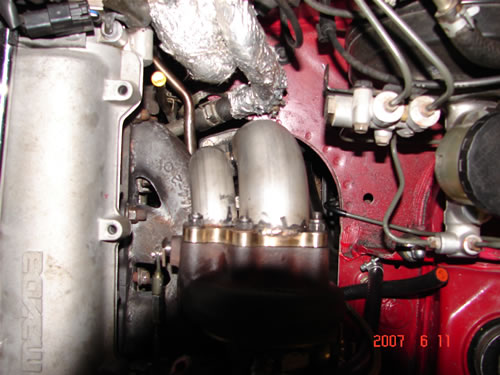

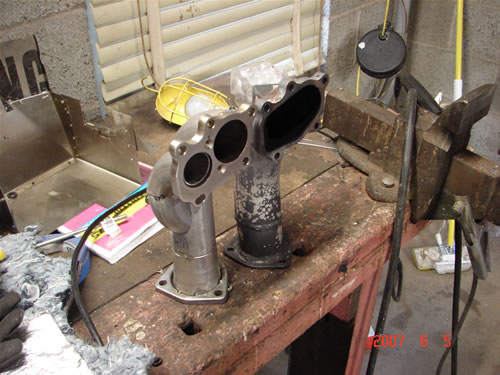

Also, attached are some pictures of my updated divorced downpipe.
Attached Thumbnails
HKS manifold custom downpipe ?-dsc01629.jpg   HKS manifold custom downpipe ?-dsc01942.jpg   HKS manifold custom downpipe ?-dsc01943.jpg
Stripes is offline   Reply With Quote
Old 02-28-2008, 12:24 PM   #4
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

this looks like a good opportunity to sell your old one
m2cupcar is offline   Reply With Quote
Old 02-28-2008, 12:35 PM   #5
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

nope, it's staying with me
Stripes is offline   Reply With Quote
Old 02-28-2008, 07:50 PM   #6
Junior Member

Join Date: May 2007
Location: San Diego
Posts: 383
Total Cats: 0
Default

Stripes, what is the size of that pipe? I was wondering if its possible to fit a 3" in there with the HKS manifold?
jobambo is offline   Reply With Quote
Old 02-28-2008, 07:58 PM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Yes it's possible.
http://www.cardomain.com/ride/575068/1
look there
cjernigan is offline   Reply With Quote
Old 02-28-2008, 08:42 PM   #8
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

One is 2.5 inches and the new design is 2.25 -> 2.5 inches.


Quote:
Originally Posted by jobambo View Post
Stripes, what is the size of that pipe? I was wondering if its possible to fit a 3" in there with the HKS manifold?
Stripes is offline   Reply With Quote
Old 02-29-2008, 11:56 AM   #9
Newb
Thread Starter

Join Date: Jun 2007
Location: Middletown, CT
Posts: 21
Total Cats: 0
Default

sweet you guys rock i guess hope is not lost after all. any way ill try and get some pics of my build progress.
mrolo74 is offline   Reply With Quote
Old 02-29-2008, 12:01 PM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Quote:
Originally Posted by Stripes View Post
nope, it's staying with me
or build another and sell it
m2cupcar is offline   Reply With Quote
Old 01-23-2009, 02:54 PM   #11
Newb

Join Date: Jan 2009
Location: South Chicago
Posts: 2
Total Cats: 0
Default hi

Hi
I also have plenty of problems looking for a downpipe that will fit the manifold set up.. do you know if this idea will work for a 2001 miata?? do you make these ??
mistermiatapl is offline   Reply With Quote
Old 01-24-2009, 10:38 AM   #12
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

cough...cough...excuse me, I have not posted in a while

As far as I know, there are no downpipes available for the HKS manifold.This is a straight up DIY build. I almost made a production run of my downpipe last year, but I decided there was not a market for this product.

I'm sure you can copy my setup for a 2001 miata. I've seen a couple of HKS DIY builds for 2000+ miatas. I have plenty of room for this design in my 95, just make sure to make some sort of heat shield for your heater hose and master brake cylinder.

Good luck.




Quote:
Originally Posted by mistermiatapl View Post
Hi
I also have plenty of problems looking for a downpipe that will fit the manifold set up.. do you know if this idea will work for a 2001 miata?? do you make these ??
Stripes is offline   Reply With Quote
Old 01-24-2009, 01:09 PM   #13
Newb

Join Date: Jan 2009
Location: South Chicago
Posts: 2
Total Cats: 0
Default hi

thanks for the reply .. i will see if i can take it into my buddies shop cuz i dont no how to weld
mistermiatapl is offline   Reply With Quote
