DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 06-22-2010, 12:07 AM   #21
Junior Member
iTrader: (1)

Join Date: Mar 2008
Posts: 55
Total Cats: 0
Default

I just finished my hx30 miata build, I hit 18psi at 3800rpms. awesome turbo, at 18psi it really comes to life. I have done alot of research on the hx30 and hx35. A hx30 is maxed out right around 24psi. After that it is just blowing hot air. The hx35 runs out of breath at 32psi. I'm now looking to a 30%meth/70%water injected set up sprayed at the tb. should help with the egt's and intake air temp. I most likely set the boost up to 20psi and be done with her. goal of 320hp
fc3s690 is offline   Reply With Quote
Old 06-22-2010, 12:09 AM   #22
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by fc3s690 View Post
I just finished my hx30 miata build, I hit 18psi at 3800rpms. awesome turbo, at 18psi it really comes to life. I have done alot of research on the hx30 and hx35. A hx30 is maxed out right around 24psi. After that it is just blowing hot air. The hx35 runs out of breath at 32psi. I'm now looking to a 30%meth/70%water injected set up sprayed at the tb. should help with the egt's and intake air temp. I most likely set the boost up to 20psi and be done with her. goal of 320hp
1.6/1.8? build specs? pix?
na8psi is offline   Reply With Quote
Old 06-22-2010, 12:11 AM   #23
Junior Member
iTrader: (1)

Join Date: Mar 2008
Posts: 55
Total Cats: 0
Default

fc3s690 is offline   Reply With Quote
Old 06-23-2010, 11:02 PM   #24
Junior Member

Join Date: Dec 2009
Posts: 65
Total Cats: 0
Default

Great turbos..... I had one on my 92 9000, 400whpish.... it was fun... but my car didnt come alive until 65MPH in 2nd gear..... I couldn't use the power legally at all:(

My tuner is running a super 40 on his NG900 Vert, he makes 718bhp.... good stuff...


But for a miata, I think a rapid spooling turbo would be way more fun
Aero91 is offline   Reply With Quote
Old 06-24-2010, 01:57 AM   #25
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by DrewLGT View Post
im looking at them on ebay, what's with all the electronic stuff on them?
Some of them are VNTs, or variable nozzle, which is usually electronically controlled but can be converted to work with an internal-wastegate type of actuator.

Here's a link to a "results" thread on DSMTuners regarding Holsets. It has the same info copied in the first post of this thread, as well as links to the other Holset threads on Tuners, if you are looking for a good 10 hours of reading lol.
matthewdesigns is offline   Reply With Quote
Old 01-10-2013, 10:38 PM   #26
Newb

Join Date: Sep 2009
Posts: 24
Total Cats: -48
Default

I know this is an old thread but I don't have enough posts to pm anybody about my question. I've got a b6 miata and I plan on running a twin scroll hx35( I know it's a little big). The question I have is would I need to run an oil restrictor if I am using a -3an oil feed line? I also plan on running a BE high flow oil pump with billet gears.
12arotarymiata is offline   Reply With Quote
Old 01-11-2013, 01:46 AM   #27
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

With a -3AN line you should not need a restrictor.
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-11-2013, 02:00 AM   #28
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

I'm not planning on running one on mine.
viperormiata is offline   Reply With Quote
Old 01-11-2013, 10:02 AM   #29
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by 12arotarymiata View Post
I know this is an old thread but I don't have enough posts to pm anybody about my question. I've got a b6 miata and I plan on running a twin scroll hx35( I know it's a little big). The question I have is would I need to run an oil restrictor if I am using a -3an oil feed line? I also plan on running a BE high flow oil pump with billet gears.
Are you going to be making a twin scroll manifold to go with it? I know absurd flow lists/shows as having one designed and I have one cad'ed up for a 1.8, but it "should" work if I just changed it to work on the 1.6 flange. But mine would be a complete bitch to weld up, because nest-o-snakes to try to get equal length runners with the correct cylinder pairing.
Leafy is offline   Reply With Quote
Old 01-11-2013, 12:43 PM   #30
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

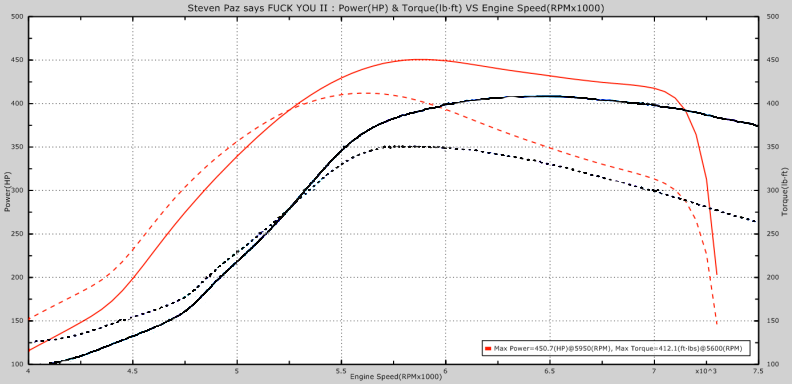

WHen using a twin scroll Holset, you want to use a twin scroll manifold:

https://www.miataturbo.net/insert-bs...parison-68430/

Full_Tilt_Boogie is offline   Reply With Quote
Old 01-11-2013, 11:03 PM   #31
Newb

Join Date: Sep 2009
Posts: 24
Total Cats: -48
Default

i have just completed my twin scroll manifold. i plan on test fitting it tomorrow. i have the correct cylinders paired 1,4 2,3 but the runners arent equal length. im hoping the hx35 will be fully spooled by 4500. id upload pics but idk how
12arotarymiata is offline   Reply With Quote
Old 01-12-2013, 02:56 AM   #32
I'm Miserable!
iTrader: (13)

Join Date: Oct 2012
Posts: 255
Total Cats: 0
Default

The holset does not come in a Twin scroll.

What you refer to is a "divided housing."

Holsets are a great cheap buy but when it comes to a proper (not ebay kits) rebuild be ready to fork your Benjamin's over.
DoapParts is offline   Reply With Quote
Old 01-12-2013, 11:55 AM   #33
Newb
iTrader: (1)

Join Date: Jun 2010
Posts: 38
Total Cats: 1
Default

so what's the problem with the eBay rebuild kit?
Boosted Escort is offline   Reply With Quote
Old 01-12-2013, 01:17 PM   #34
I'm Miserable!
iTrader: (13)

Join Date: Oct 2012
Posts: 255
Total Cats: 0
Default

They don't put them on the same tolerances as the original. Like a bandaid on a sugical wound.
DoapParts is offline   Reply With Quote
Old 01-14-2013, 07:04 PM   #35
Newb

Join Date: Sep 2009
Posts: 24
Total Cats: -48

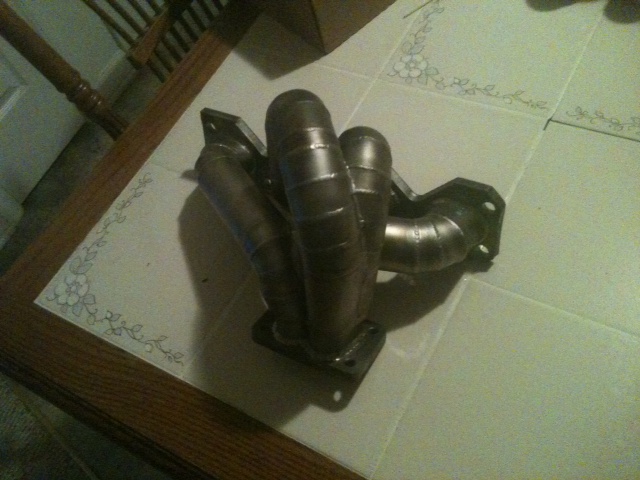

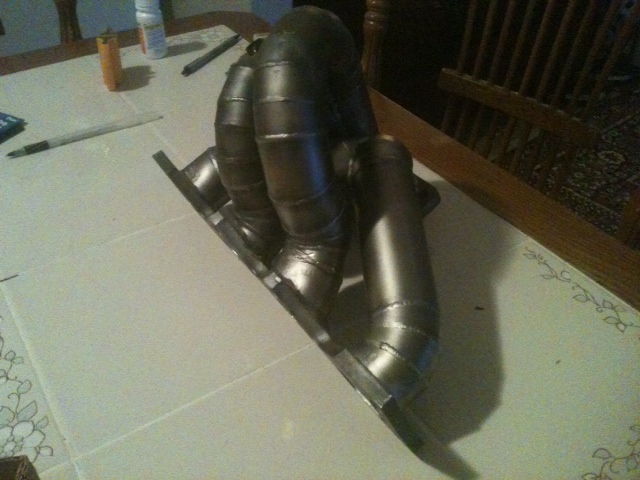

Default trying to post images of my twin scroll mani

[IMG][/IMG]

Attached Thumbnails
Holset Turbos?-rc1pmv.jpg   Holset Turbos?-2qs89oy.jpg
12arotarymiata is offline   Reply With Quote
