Default How does this look?

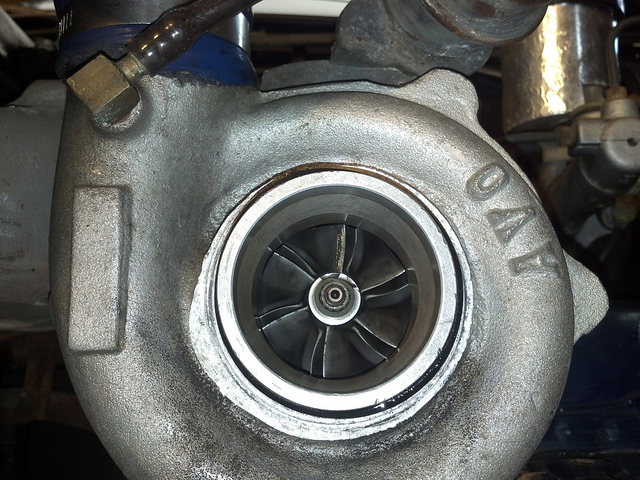

Just took off all my piping/couplers and this is what she looks like, haven't really inspected it since I bought the car. I tugged on it forwards and backwards as well as side to side to test for shaft play. It moved a smidge from side to side.

Thoughts? Everything has been running good from my knowledge, just wondering if I need to be worrying, it's definitely got some miles on it.

Attached Thumbnails
How does this look?-6974934233_438fc40b71_z.jpg
_spyder is offline   Reply With Quote
Old 03-12-2012, 01:07 AM   #2
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Looks like a turbo. Not much to tell other than the lack of oil all over and the blades are not chewed up. Looks good.
Miater is offline   Reply With Quote
Old 03-12-2012, 01:11 AM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by Miater View Post
Looks like a turbo. Not much to tell other than the lack of oil all over and the blades are not chewed up. Looks good.
Just was wondering about the top blade and if you look closely, the center axle has two chips on it.

Anyways, thanks!
_spyder is offline   Reply With Quote
Old 03-12-2012, 01:28 AM   #4
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Are those chips out of the shaft or machined marks? The builders remove material in order to balance it. Sometimes it looks like it has broken.
Miater is offline   Reply With Quote
Old 03-12-2012, 01:29 AM   #5
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Look closely, those should be dug out with a tool of some kind, Those are created while balancing. The top blade should have some paint on it.
triple88a is offline   Reply With Quote
Old 03-12-2012, 01:54 AM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

From what I've read axial play (in/out) if it just has a little bit, but you don't really want any radial (side/side) movement. That research was verified when I rebuilt my turbo recently, as pre-rebuild had both, post-rebuild only had a little axial. But if it's not showing any signs of needing a rebuild, I wouldn't bother.
