Default how does my oil return look?

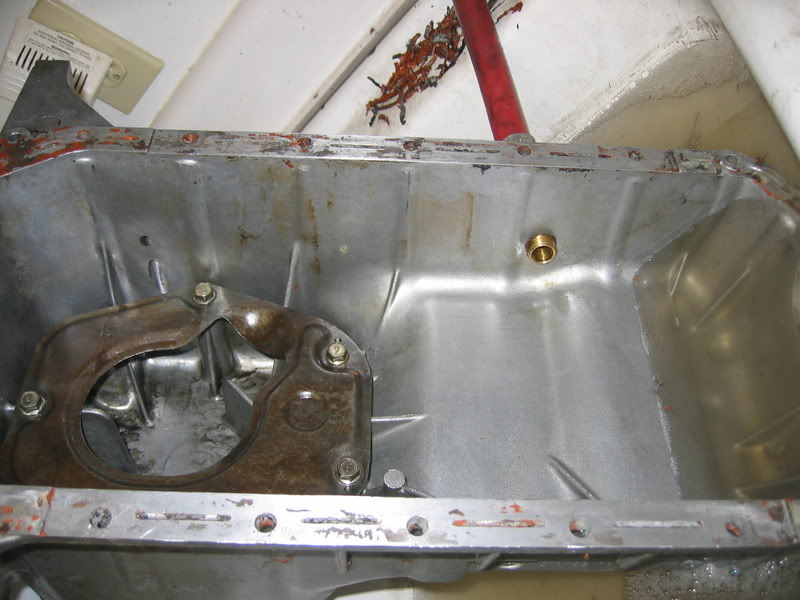

before I put the oilpan on my new engine, I want to double check with you guys about my turbo oil return line. I am already going to have to modify it somehow as it will rub the oil pickup tube as is. I was thinking of moving it up and toward the rear of the engine a bit to get more clearance from the steering rack (depowered) and to add headroom for avoiding oil buildup in the drain line. Oh and I do not have AC or PS in the way either.

Name:  oilreturn.jpg
Views: 66
Size:  71.3 KB

thanks,
Ryan
akaryrye is offline   Reply With Quote
Old 12-09-2006, 03:07 PM   #2
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

When the oilpan is full, where is the top of the oil. I'm pretty sure the consensus was that you wanted to have the drail point above the level of oil in the pan so the oil "waterfalls" out of the drain. You might have it to low, ie... your drain might be underwater. Again, I'm not sure, but I think you want it higher... don't forget to JB weld it if your tap wasn't perfect.
samnavy is offline   Reply With Quote
Old 12-09-2006, 03:19 PM   #3
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Yes. I put mine about 1/8" from the block flange. I'd plug that hole and move it up, and over between the two flange bolt holes. Priority is keeping it high.
m2cupcar is online now   Reply With Quote
Old 12-09-2006, 03:51 PM   #4
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

already on it, just got back from OSH with some brass plugs and a few extra fittings to play with.
akaryrye is offline   Reply With Quote
Old 12-09-2006, 04:05 PM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Don't use any 90* fittings, they put a large bottleneck in your drain and you want all the flow you can get.
cjernigan is offline   Reply With Quote
Old 12-09-2006, 04:26 PM   #6
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Here is my relocated return line. For now the new hole will be plugged the same as the original, but wont be jbwelded on like the first one is. I used a 45* fitting and it seems like a logical thing to do because it will direct the line right at the turbo. Yes I took the picture upside down since the engine is upside down on the stand right now.

Name:  oilreturn001.jpg
Views: 55
Size:  86.9 KB
akaryrye is offline   Reply With Quote
Old 12-09-2006, 04:41 PM   #7
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,251
Total Cats: 7
Default

Craziest garage ceiling evar...
SamS is offline   Reply With Quote
Old 12-09-2006, 05:34 PM   #8
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

That picture is messing with my brain!
RusMan is offline   Reply With Quote
Old 12-09-2006, 05:37 PM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

that is about where i have mine installed. you could use the other port for a temparature sensor bung. dunno how effective it would be there htough.
magnamx-5 is offline   Reply With Quote
Old 12-09-2006, 11:05 PM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Looks good. I'd go ahead and drill/tap a hole for a temp sender in the deep part of the sump now and plug it so you can use it later.
m2cupcar is online now   Reply With Quote
Old 12-30-2006, 05:23 PM   #11
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Ya, so i have a little bit to add to this story. Engine installed, running great .... but i developed a major oil leak that covered the drivers side with oil. So after some looking around and being frustrated, yup its leaking because my plug (in the place of the drain line fittings in the pic above) fell out. Took me a while to figure out what was happening but im happy its nothing else. Im just surprised about how much oil I still have left.
akaryrye is offline   Reply With Quote
Old 12-30-2006, 06:56 PM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

fell out? unscrewed and fell out?
m2cupcar is online now   Reply With Quote
Old 12-30-2006, 07:53 PM   #13
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

yup, new plug for 50 cents fixed it right up, but i lost a quart before i got to that point.
akaryrye is offline   Reply With Quote
Old 12-30-2006, 10:10 PM   #14
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

ouch maybe you could locktite or jb weld the plug into place.
magnamx-5 is offline   Reply With Quote
Old 12-30-2006, 11:50 PM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

or safety wire :gay:
m2cupcar is online now   Reply With Quote
