Default How much pipe (length) for a custom exhaust?

Looking to build my own - how much pipe did others who have buy, and how many bends?
Uncle Arthur is offline   Reply With Quote
Old 04-03-2007, 02:37 AM   #2
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

I cut a whole and made it exit through the drivers side. Had to buy very little piping and I got my bends done by a local pipe bending shop. I think I got 4 feet and it turned out to be way too much.
boostinsteve is offline   Reply With Quote
Old 04-03-2007, 02:48 AM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I haven't done my own, I saw one guy who had built his own use 2 90*s, one at the muffler going back and the other coming out the muffler going out the back.
cjernigan is offline   Reply With Quote
Old 04-03-2007, 03:32 AM   #4
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

I made my DP and full exhaust using 2 U-bends and 1 4' straight pipe along with a Summit Racing Turbo muffler. The U-bends were from JC Whitney so they had quite long legs.
iWeasel410 is offline   Reply With Quote
Old 04-03-2007, 11:20 AM   #5
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

lets see... turbo back following the stock system looks like:

90° for the outlet (smaller diam + reducer)
90° for the bottom of the downpipe
15° for a kink at the tranny
6-8" of straight from there to the cat
18 inches of straight for the cat
6-8" of straight from there to the kink
another 15° for another kink half way back
6-8" of straight from the kink to the resonator
18 inches of straight for the resonator
a few more straight inches to the diff
about 45° and 8" for the kinks at the diff
90° to exit the diff space
180° U to turn around to go into the muffler
whatever you use for the muffler
and a 90° to exit the muffler
a shiny chrome tip the size of a grapefruit.

I think I used 3x 3" U bends, a 2-1/4 90° for the turbine outlet, a 2-1/4 to 3" reducer, a 3" 90° for the muffler outlet, a 3" cat, 3" "bullet race" resonator, 3" magnaflow muffler, and 3 feet of straight pipe (give or take). plus the tip. there's enough straight on the U bends to fill in the rest of the straight space but extra straight pipe is cheap and easier because it's not squashed from bending.
y8s is offline   Reply With Quote
Old 08-18-2007, 02:54 PM   #6
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

well i just ordered a 3" catalytic converter, 3" dynomax bullet for a resonator, Summit Turbo muffler, and a mandrel u bend from summit. I will probably just take it to a shop and have them weld it up for me. My current exhaust is 2.5" with just a cat and a glasspack and gets a bit annoying sometimes so im hoping for a little quieter as well as betta flows and maybe better boost control as well. I aint trippin off the flows.

oh i forgot to mention that I am still running a stock size cat which has got to be killing the flow.

Last edited by akaryrye; 08-18-2007 at 04:44 PM.
akaryrye is offline   Reply With Quote
Old 08-18-2007, 03:29 PM   #7
Junior Member
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

I'll have some 3" SS pipe for sale - I bought 18' for my exhaust... you know I didn't want to end up not having enough. OVERKILL
Dhaark is offline   Reply With Quote
Old 08-18-2007, 04:09 PM   #8
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

www.muscleexhaust.com has great prices on Magnaflow stuff which is usually very quiet.
Kelly is offline   Reply With Quote
Old 08-18-2007, 04:15 PM   #9
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

I like to lay a lot of pipe.
Philip is offline   Reply With Quote
Old 08-18-2007, 10:59 PM   #10
Junior Member

Join Date: Oct 2006
Posts: 257
Total Cats: 0
Default

^ me too.

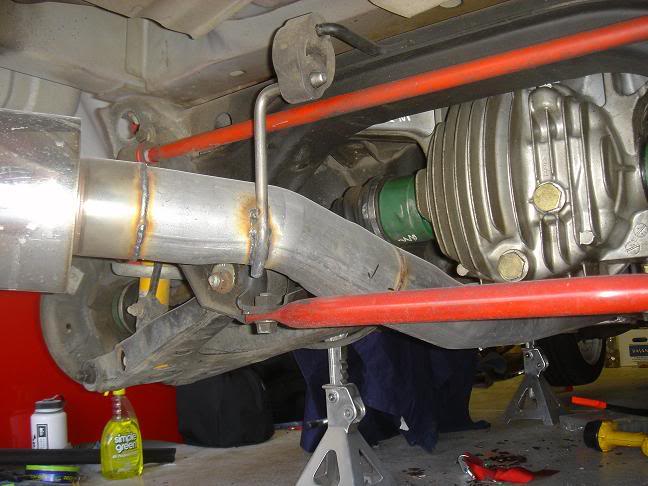

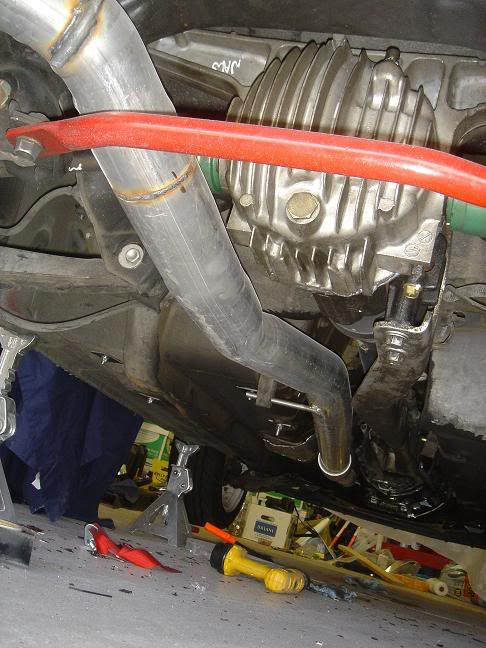

oh wait, heres my 3" exhaust. never measured it, but maybe this will give u some reference.

Name:  DSC02740.jpg
Views: 28
Size:  61.4 KB

Name:  DSC02738.jpg
Views: 29
Size:  53.5 KB

mated to the turbo tony dp. lol
Name:  DSC_4412.jpg
Views: 28
Size:  73.1 KB
shinobix is offline   Reply With Quote
Old 08-18-2007, 11:53 PM   #11
Senior Member

Join Date: May 2006
Posts: 884
Total Cats: 0
Default

Quote:
Originally Posted by Wideopentuning View Post
www.muscleexhaust.com has great prices on Magnaflow stuff which is usually very quiet.
I'm running a Magnaflow exhaust on a full 2.5" turbo back exhaust, a 2.5" freeflow cat, and nothing else. On full throttle it actually sounds like stock... with pubes. At cruise it sounds no louder or quieter than a peashooter stock exhaust. At idle it just has a burly, lumpy sound.

Also, I bought a 5' section of straight, 3 or 4 90's, and I think a couple of 45's. All those gave me enough pipe and some leftover.
firedog25 is offline   Reply With Quote
Old 08-19-2007, 02:32 AM   #12
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Considering the car has been boosted and running for a few months now, the how much pipe for an exhaust is (for me) a mute point.....

However for interest sake, a mate of mine who does good steel work put this little system together for me.....

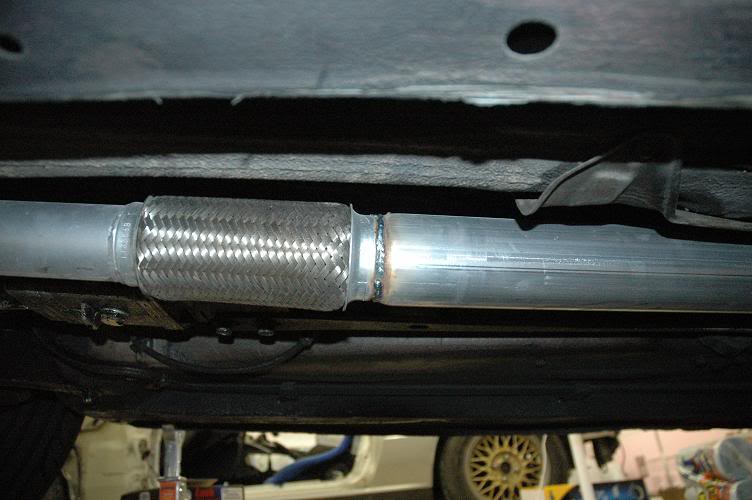

Name:  DSCF2229.jpg
Views: 29
Size:  45.5 KB


It's sitting very low in this pic, and has (long) since been reworked to sit higher, and the join has been brought back to right before the 90 deg bend into the muffler.
Uncle Arthur is offline   Reply With Quote
Old 08-19-2007, 04:03 AM   #13
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

Hawt. I liek ur welds.
beerslurpy is offline   Reply With Quote
Old 08-19-2007, 07:32 AM   #14
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Thanks for the pictures guys, i am sure they will help quite a bit.
akaryrye is offline   Reply With Quote
Old 08-20-2007, 03:35 AM   #15
Junior Member

Join Date: May 2007
Location: FRESNO, CA
Posts: 110
Total Cats: 0
Default

what turbo muffler from summit do you recommend?...does any body know if the turbo muffler sounds good?
o.e.boost is offline   Reply With Quote
Old 08-20-2007, 03:42 AM   #16
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Another good question, IMHO; how much did everyone spend on said exhausts?

I'm debating whether to go custom or buy an Enthuza.
kotomile is offline   Reply With Quote
Old 08-20-2007, 05:30 AM   #17
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

You can usually do a nice stainless system that uses Magnaflow(I always use a cat, big *** reso and a muffler) stuff and v bands for around $400-$600.
Kelly is offline   Reply With Quote
Old 08-20-2007, 09:27 AM   #18
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

For my 3" exhausts:

Vibrant pieces: One 5' chunk of pipe, one metalcore cat, one J-bend.

Add Magnaflow muffler size to taste.
TurboTim is offline   Reply With Quote
Old 08-20-2007, 09:40 AM   #19
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

J-bend = 180* U bend? Or is it different?

Did you have to bend the 5' length at all or just run it from the cat to half the J-bend, into muffler, and then use the rest of the J-bend to route from muffler to exit?
kotomile is offline   Reply With Quote
Old 08-20-2007, 10:55 AM   #20
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

those estimates sound about right.

though if you want to save some coin, you dont need stainless pipe beyond the dp. it's nice, but aluminized will last a long time.


I recommend the magnaflow universal stainless (polished or brushed) in 4x9" by as long as you can fit. I have the 5x11x22 and it's real nice. and long.
y8s is offline   Reply With Quote
