Old 01-27-2009, 04:17 PM   #21
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Zaphod View Post
I have something quite similar in my NB (but dont have the pipe running there)

Have a look here:
http://www.cardomain.com/ride/238335/8



For the right height you could just use a flat bar (don't know how to describe better in english) with the lenght of the width of your hood and use that as a level between the left and right fender. Maybe the lower part of the fender at the engine bay... (understandable?)

Greets
Nice! yeah, that's not a bad idea on the height part. Your english is fine by the way! Thanks for the pic, that's basically what I was thinking and that definitely looks nice.
patsmx5 is offline   Reply With Quote
Old 01-27-2009, 07:54 PM   #22
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

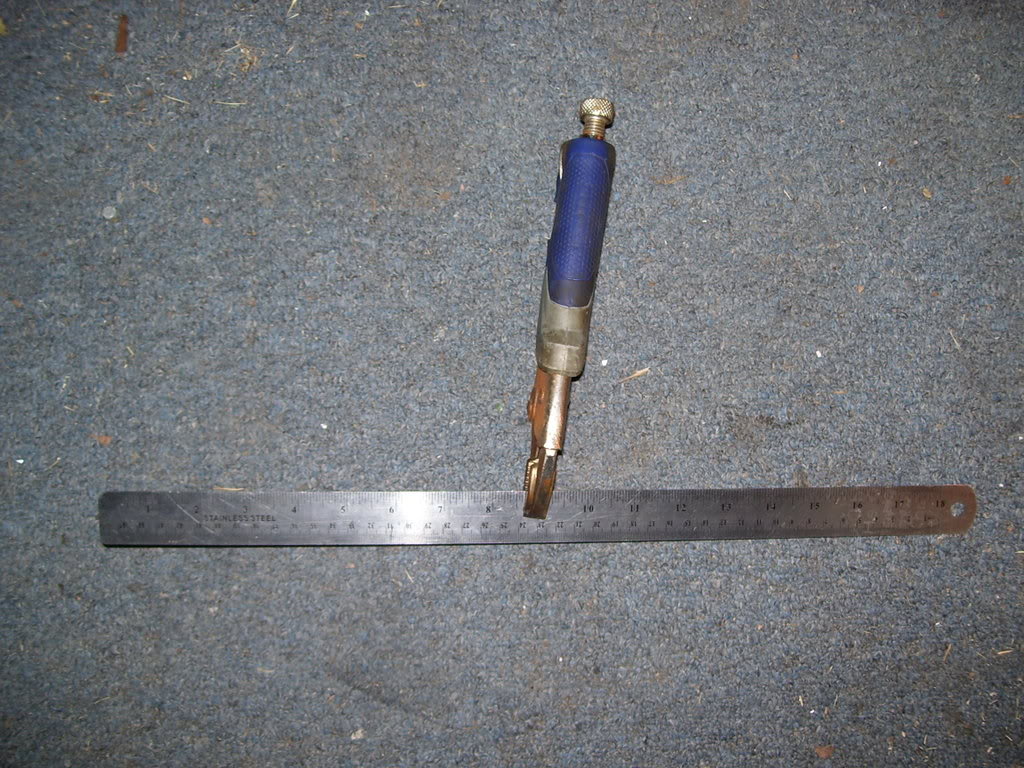

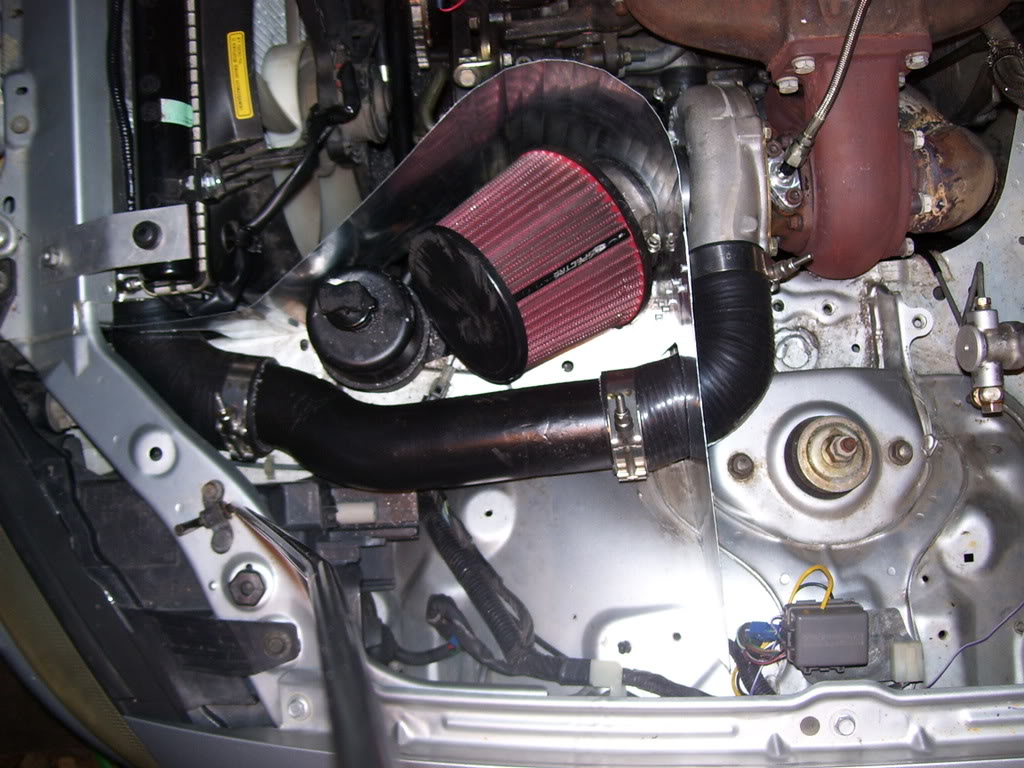

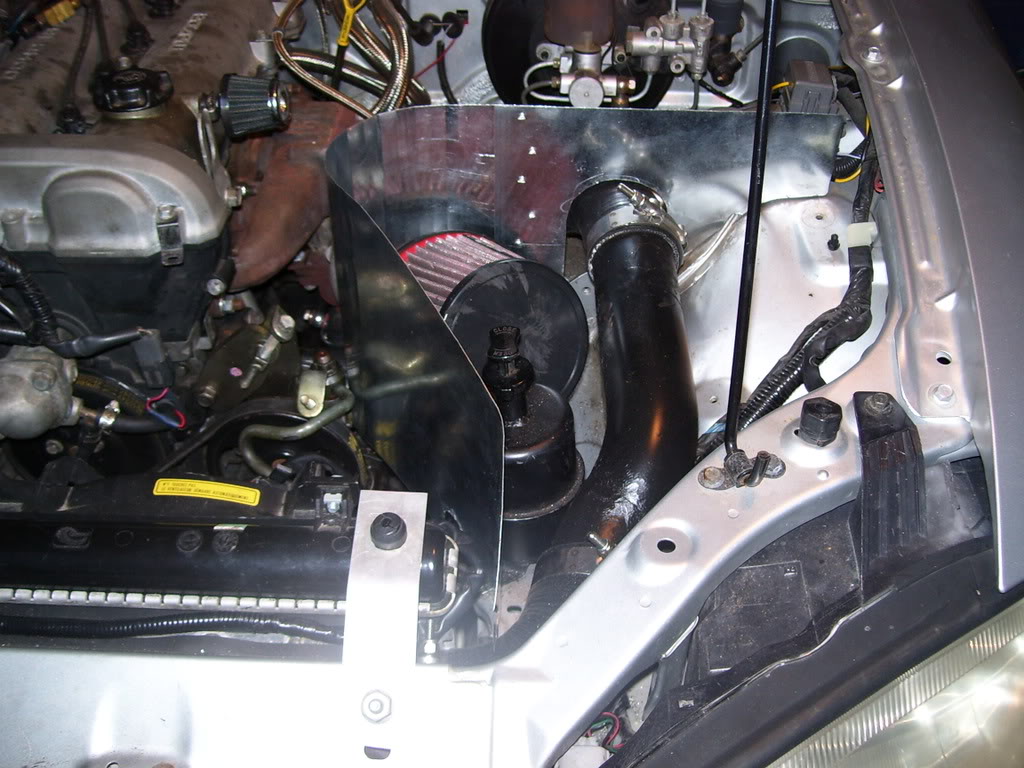

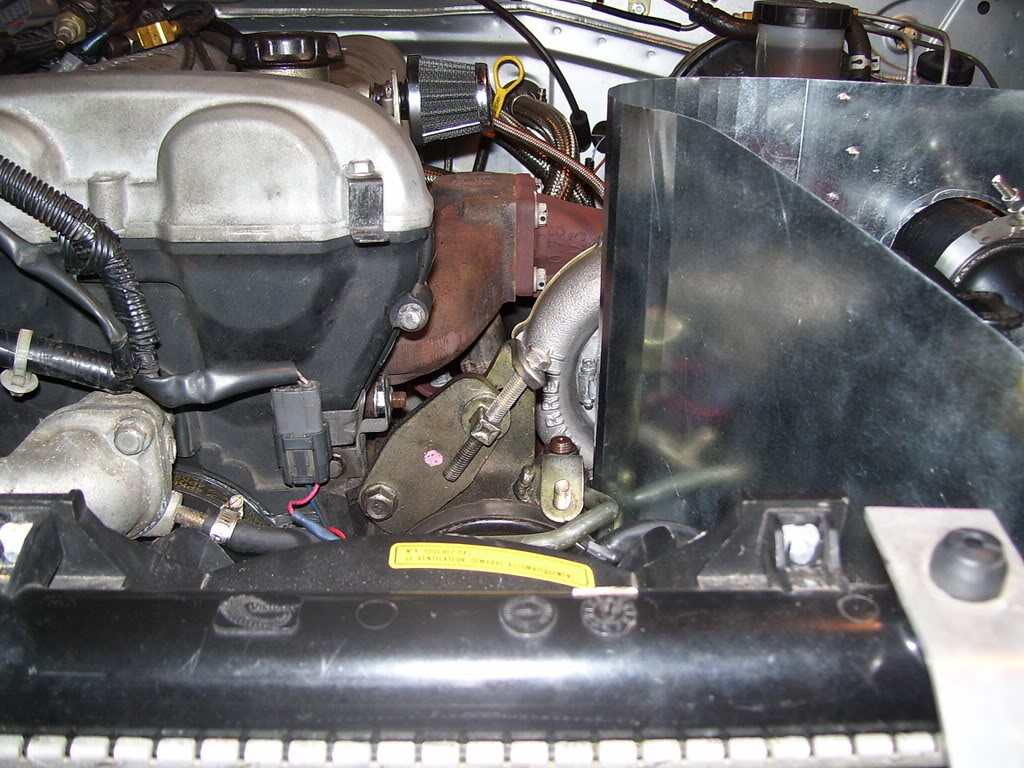

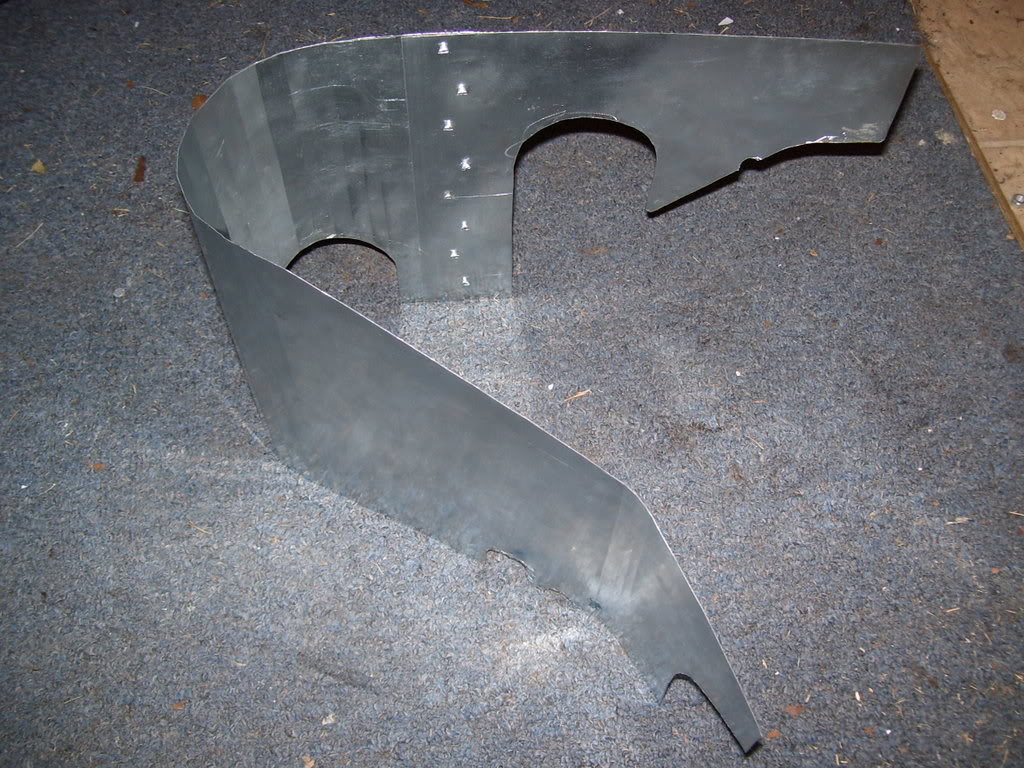

Made some progress. No tools FTL. Pinched a ruler with a pair of vise grips and used that to push on the metal to act like a brake to bend it. Not ideal, but it worked. Taking my time as I'm not sure how I'm gonna finish it out.

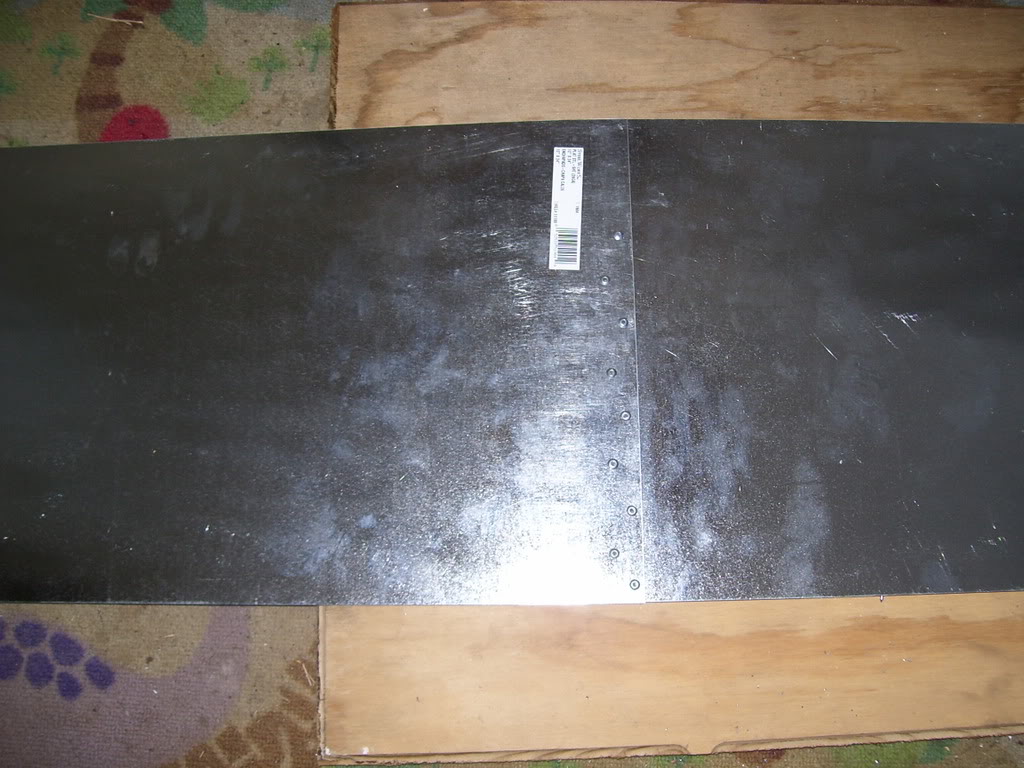

Name:  100_2229.jpg
Views: 9
Size:  132.4 KB

Name:  100_2249.jpg
Views: 9
Size:  194.7 KB

Name:  100_2248.jpg
Views: 9
Size:  181.6 KB

Name:  100_2230.jpg
Views: 9
Size:  144.6 KB

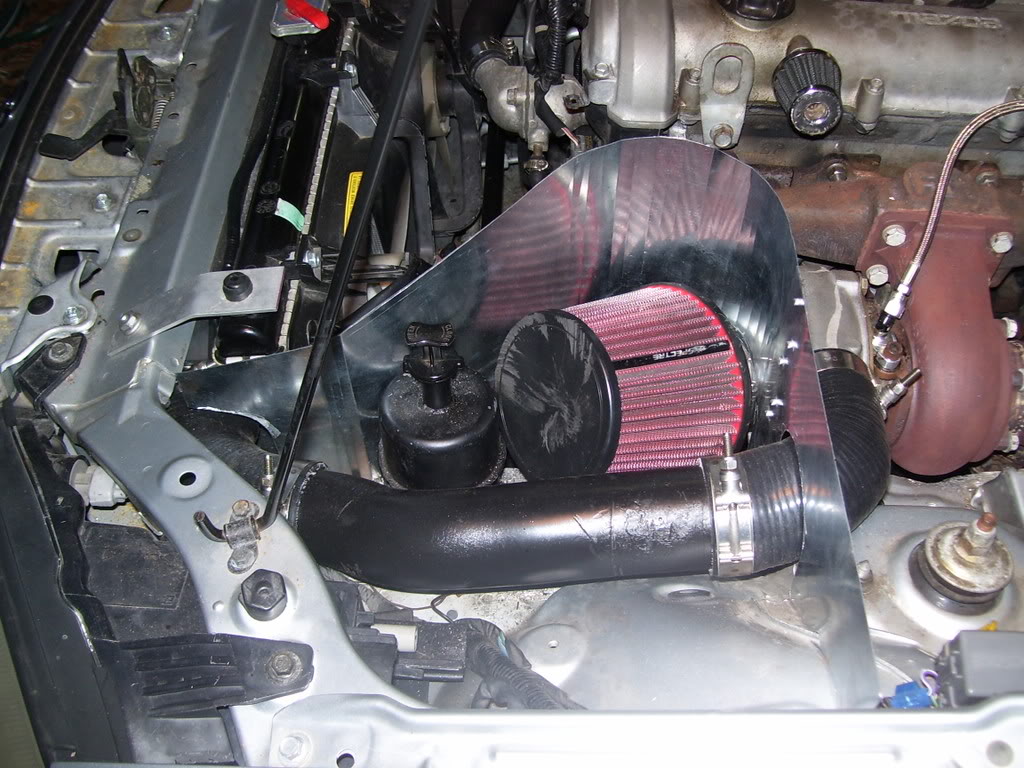

Name:  100_2236.jpg
Views: 9
Size:  161.6 KB

Name:  100_2238.jpg
Views: 9
Size:  155.4 KB

Name:  100_2242.jpg
Views: 9
Size:  144.8 KB

Name:  100_2243.jpg
Views: 9
Size:  164.5 KB

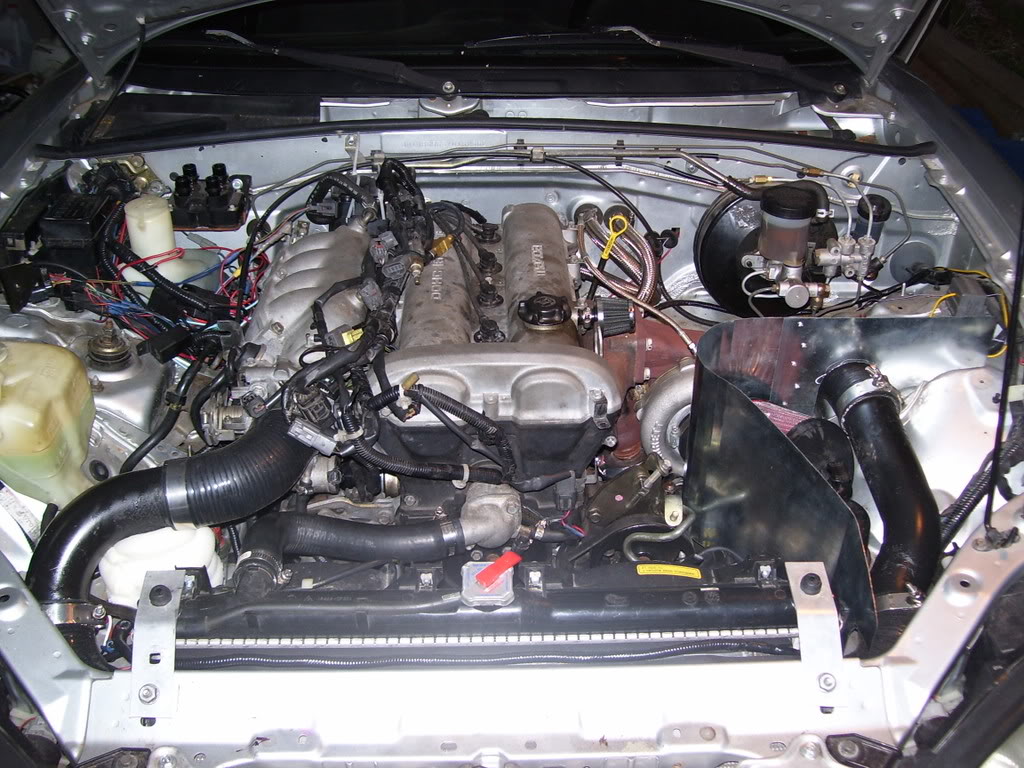

Name:  100_2233.jpg
Views: 9
Size:  178.3 KB


I'm thinking I'm gonna make some "L" brackets that riven to the box and then lay against the charge pipe. Then just loosely snug up a hose clamp around the pipe and bracket to fasten it. That way the box moves with the pipe when the motor torques. Nothing set it stone yet though. It just isn't working out to be able to easily bolt this thing down using the factory given bolts inside the boxed area.
patsmx5 is offline   Reply With Quote
Old 01-31-2009, 07:36 PM   #23
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Name:  100_2251.jpg
Views: 9
Size:  214.5 KB

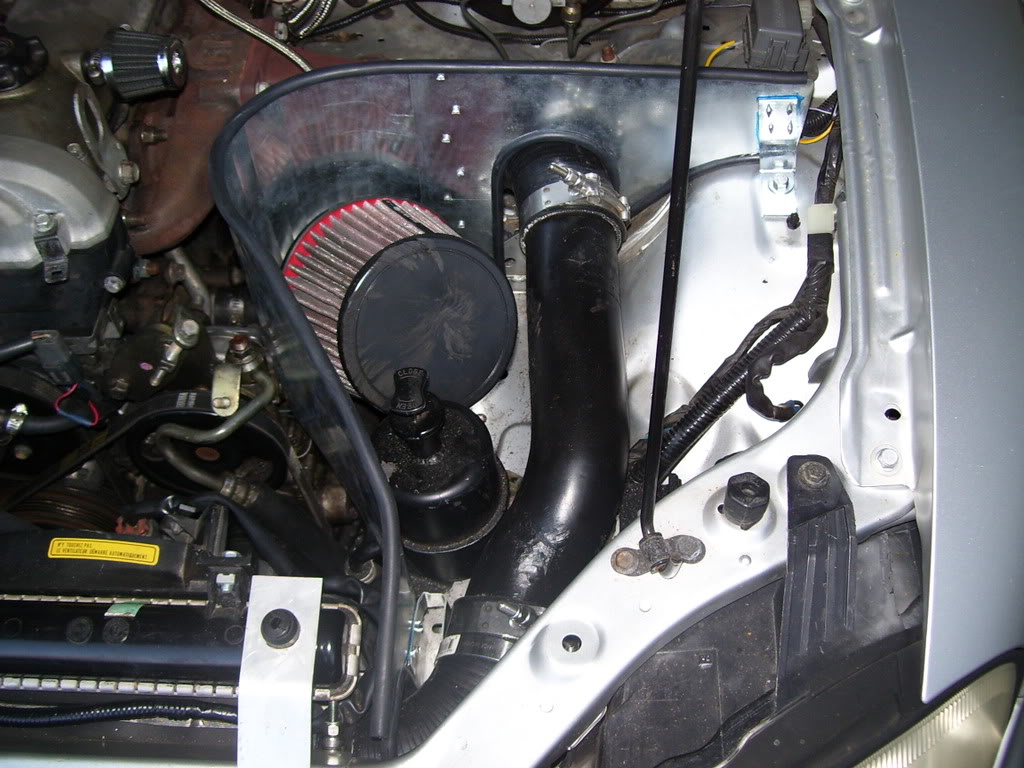

Name:  100_2252.jpg
Views: 9
Size:  142.9 KB

Name:  100_2254.jpg
Views: 9
Size:  160.8 KB

Name:  100_2257.jpg
Views: 9
Size:  157.6 KB

Name:  100_2256.jpg
Views: 9
Size:  140.4 KB

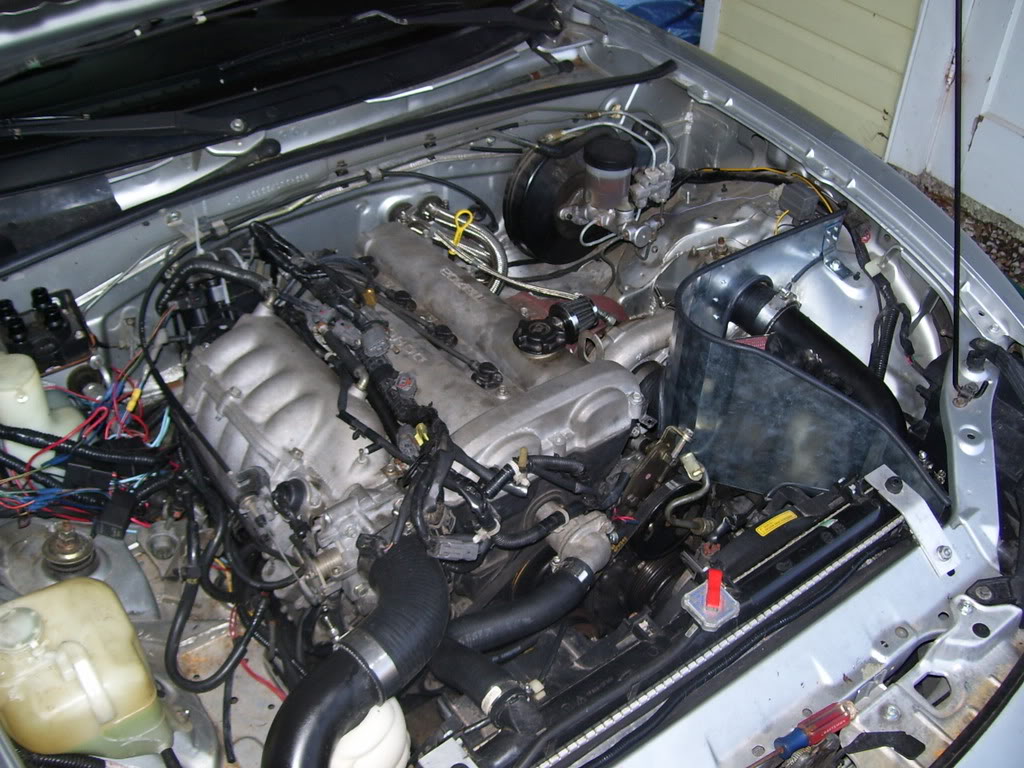

Name:  100_2258.jpg
Views: 9
Size:  165.6 KB

Name:  100_2259.jpg
Views: 9
Size:  183.5 KB

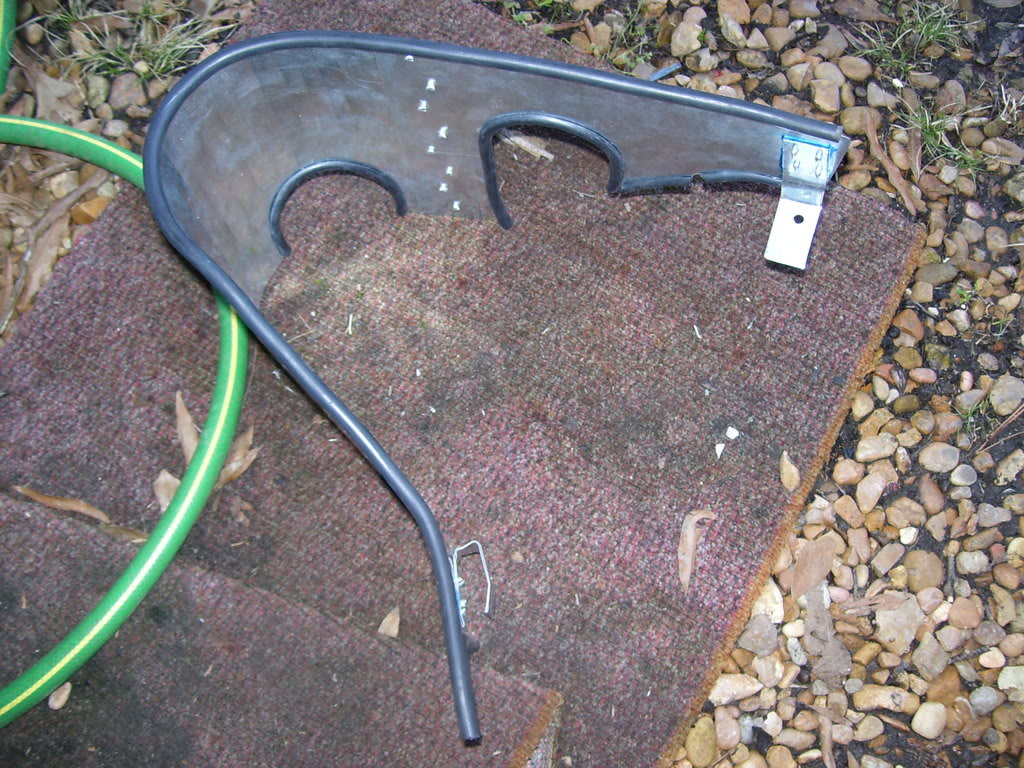

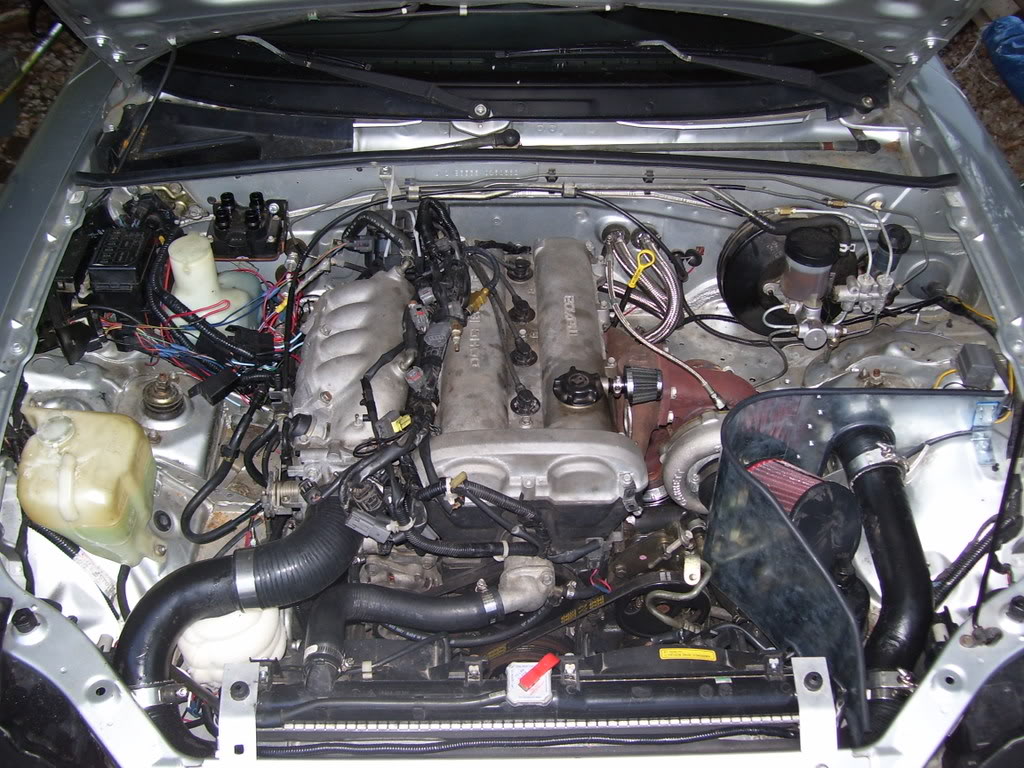

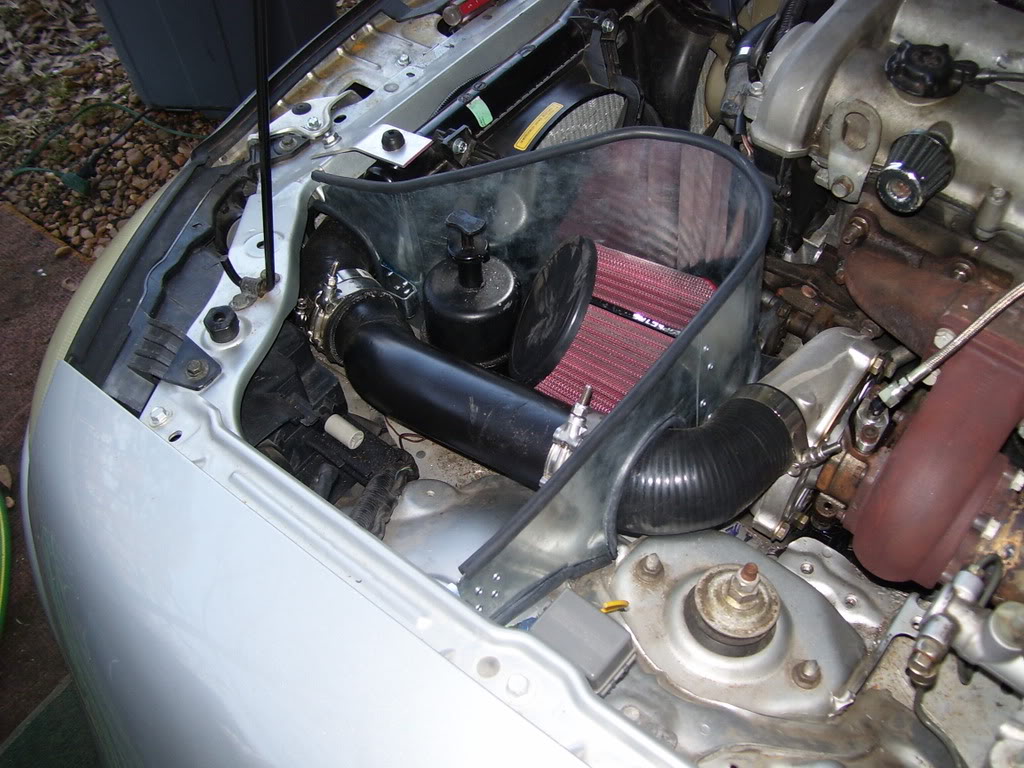

It's installed now. Still loud, but maybe the turbo's getting cooler air than before. Haven't installed any foam yet. The shield's actually not done. I've still gotta build a couple pieces to completely seal the box up. Needs a piece below the air filter to make a "floor" so it can't pull hot air from there and also needs one that seals it up under the charge pipe where it enters the box. After that, I'll probably fill it with foam. Then, I dunno. Maybe build a lid over it, maybe not. Also unsure if I should paint it silver to match the car or black. I'm thinking silver to match.
patsmx5 is offline   Reply With Quote
Old 01-31-2009, 08:10 PM   #24
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

Nice work so far!
boileralum is offline   Reply With Quote
Old 02-02-2009, 10:10 PM   #25
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

kotomile is offline   Reply With Quote
