Default IHI Turbo Identity Unknown

I got a free turbo from a friend today. It's an IHI, roughly equivalent to a t25 (supposedly). It looks tiny for the application (1.8L). I'm trying to find maps for it before bothering to make a manifold and I can't even ID the turbo.

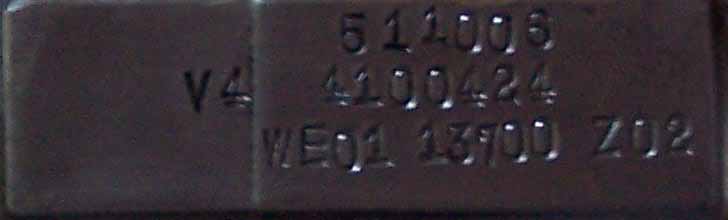

Attached is a pic of the serial tag, if anyone knows how to ID it or where I can find the maps I'd appreciate the help.

Thanks,
Arkmage.
Attached Thumbnails
IHI Turbo Identity Unknown-turbo_serial_number.jpg
Arkmage is offline   Reply With Quote
Old 08-04-2006, 06:00 PM   #2
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

A T25 size turbo is alittle small for a 1.8 Not saying it wouldn't work for a low boost system but I would go with a T3ish size. I know if I had to do my turbo all over again I'd be using a T3.
dc2696 is offline   Reply With Quote
Old 08-06-2006, 02:41 AM   #3
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

a pic of the whole turbo would be better with something next to it for scale.
4sfed5 is offline   Reply With Quote
Old 08-10-2006, 12:44 AM   #4
Elite Member
Thread Starter
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Update:
I found the info one it and it's WAY too small. It would run out of stream at about 5K rpm. It was apparently built for a 1.5-1.8L diesel (which only spins to 3500 rpm), the EGT rating is high enough for gasoline but it just won't flow enough volume to do the job. Now... that said. It should work pretty sweet on a 1.0L geo metro
Arkmage is offline   Reply With Quote
Old 08-10-2006, 01:39 AM   #5
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Get a second and go twin
jayc72 is offline   Reply With Quote
Old 08-10-2006, 11:50 AM   #6
Elite Member
Thread Starter
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

No thanks. I'm still learning turbos and tuning... I want to keep this as simple as possible (with the exception of the MSNS).
