Old 07-05-2012, 01:45 PM   #201
I'm Miserable!

Join Date: Nov 2011
Posts: 44
Total Cats: -12
Thumbs up

I just stumbled upon this thread and love it. Props to you Ryan for bringing a much wanted product to the Miata world. It seems as if I may be a customer in the future for my build. I will contact you via email or your website so we can discuss what my options and goals are with my '99 NB.

I was hoping to use ARTech for an intake manifold as I will be utilizing his exhaust manifold and dp but he has been so swamped with work his intake manifold developement has taken a back seat.

Anyway once again thanks for all your hard work.

Gregg

Last edited by texasmr2; 07-05-2012 at 02:23 PM.
texasmr2 is offline   Reply With Quote
Old 11-14-2014, 05:51 PM   #202
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default Bringing it back from the dead

Hi all, its been a log time since I've had anything to post but I had a recent manifold build I thought I would share.

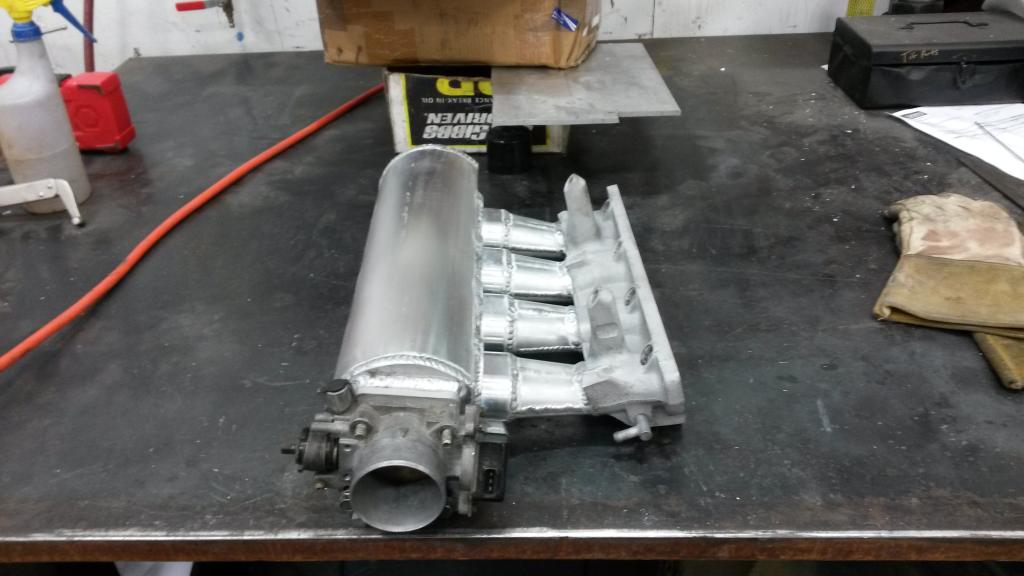

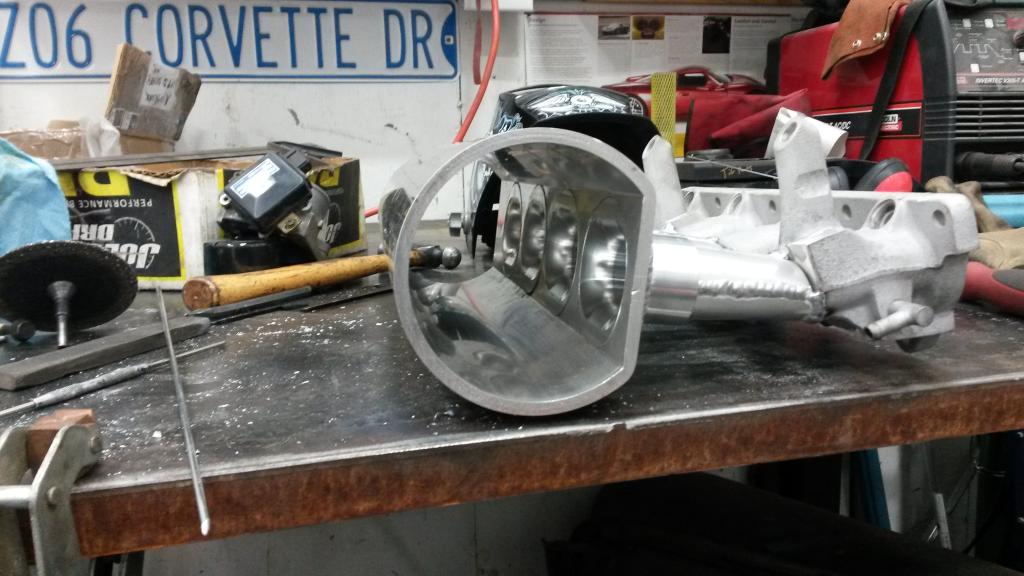

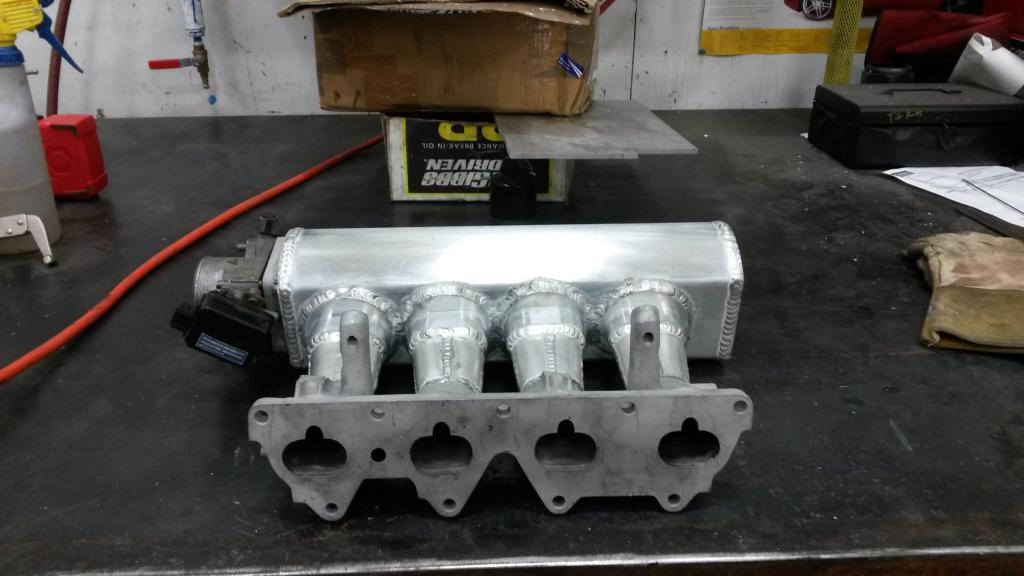

1.6 manifold with stock throttle body, velocity stacks and tapered runners.





Attached Thumbnails
Intake manifold build-20141106_162040_zpscncgoyvb.jpg   Intake manifold build-20141108_152139_zpsnjctovkf.jpg   Intake manifold build-20141108_152155_zps8e8jjwpi.jpg
Gotpsi? is offline   Reply With Quote
Old 11-18-2014, 10:11 AM   #203
Junior Member

Join Date: Oct 2012
Posts: 138
Total Cats: 4
Default

Do you hae any dyno results of your intake manifolds on a Miata 1.8, NA or FI, which you can share?

Also, please PM me pricing on a "typical" intake manifold for a NB2 1.8L VVT engine? I will be using at least a Skunk2 TB, but could switch to a different one if needed (MS3X ECU).

Thanks
noname4me is offline   Reply With Quote
Old 11-18-2014, 02:42 PM   #204
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

There was a dyno comparison done by another member on here a couple of years ago, I'll see if I can dig it up, it may be buried in this thread somewhere. I can certainly tell you or you can ask anyone on here that has used one of my manifolds that it broadens your powerband dramatically, especially with larger turbos and cams.
Gotpsi? is offline   Reply With Quote
Old 11-18-2014, 03:13 PM   #205
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Nice work. You still in the Bay Area at all?
EO2K is offline   Reply With Quote
Old 11-18-2014, 05:06 PM   #206
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Every time someone makes a pimpy intake manifold and puts the velocity stacks on the floor of the plenum I die a little.
Leafy is offline   Reply With Quote
Old 11-19-2014, 09:32 AM   #207
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Quote:
Originally Posted by Leafy View Post
Every time someone makes a pimpy intake manifold and puts the velocity stacks on the floor of the plenum I die a little.
Every time someone fails to read the whole thread I die a little.
Gotpsi? is offline   Reply With Quote
Old 11-19-2014, 09:48 AM   #208
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Quote:
Originally Posted by EO2K View Post
Nice work. You still in the Bay Area at all?
I still have my shop in the bay area, but I'm in Texas most of the time these days. I've been setting up a new shop in the temple area and Ive been working on a piggyback flex fuel system that will work with stock or aftermarket systems. I'll start a thread about soon.
Gotpsi? is offline   Reply With Quote
Old 11-19-2014, 09:57 AM   #209
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Gotpsi? View Post
Every time someone fails to read the whole thread I die a little.
No I did read the thread and it showed you are perfectly capable of making a manifold that uses velocity stacks properly, which makes your use of the floor mounted velocity stacks even worse.
Leafy is offline   Reply With Quote
Old 11-19-2014, 10:10 AM   #210
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Quote:
Originally Posted by Leafy View Post
No I did read the thread and it showed you are perfectly capable of making a manifold that uses velocity stacks properly, which makes your use of the floor mounted velocity stacks even worse.
They are made to order. not one is the same as another. This one also is using a stock 1.6 throttle body. I believe this is the first one I've done with a throttle body the same size as one velocity stack.
Gotpsi? is offline   Reply With Quote
Old 11-22-2014, 02:23 PM   #211
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

I really want to get a proper turbo intake once I do cams, I want a bigger tbody but don't want to lose the street-ability of my tbody+IAC setup...
Der_Idiot is offline   Reply With Quote
Old 11-22-2014, 03:25 PM   #212
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Der_Idiot View Post
I really want to get a proper turbo intake once I do cams, I want a bigger tbody but don't want to lose the street-ability of my tbody+IAC setup...
You can do a remote mounted idle valve. I use a 97 IAC that TurboTim made a block off plate for and have it mounted off to the side. I use it in a mustang throttle body. I will try to snap some pictures later today.
shuiend is offline   Reply With Quote
Old 11-22-2014, 03:47 PM   #213
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

That would be appreciated!
Der_Idiot is offline   Reply With Quote
Old 11-25-2014, 03:41 PM   #214
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

If you could give me the part number for that I am valve that would be great I would love to recommend them. Most people don't use anything because they are usually on a track only race car that doesn't have any accessories. But for a street car that could be handy.
Gotpsi? is offline   Reply With Quote
Old 11-25-2014, 03:43 PM   #215
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Sorry I have not gotten pictures yet. Has been raining out the past few days and that car is not in the garage. Hopefully I get a sunny day soon and can snap pictures.

I believe that it is just a stock 97 IAC that was unbolted from the throttle body.
shuiend is offline   Reply With Quote
Old 11-25-2014, 06:26 PM   #216
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I've heard of a Volvo I actually that is external as well but never figured out which one.
Gotpsi? is offline   Reply With Quote
