Hi Everyone,

Just wanted to post some pics of my completed turbo build and also thank everyone for posting some great info. on this site, definitely was a huge help in getting this completed, so thanks everyone
I've been around the car scene for a few years(don't want to put a date on myself)but this was my first attempt with boost, so definitely had to start from scratch on this one. There was alot of headaches with it that involved a blown headgasket, and tearing the block completely down to replace stuck oil control rings, but other than that, I think it went fairly smooth.
The goal was to put a reliable turbo kit together for around $1000 and run about 7-8psi of boost. I can't believe what some companies are charging for turbo kits for these cars, when you can do it yourself for a hell of alot less.
Anyways, I'm glad that I did it, cause the car is an absolute blast to drive!!

Here's a few pics of my ride. It's an 1995 M-Edition with 85k miles.

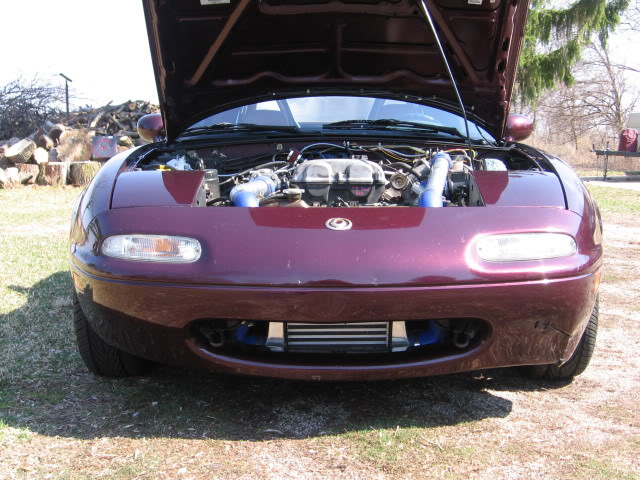

Name:  Miata001.jpg
Views: 31
Size:  104.0 KB

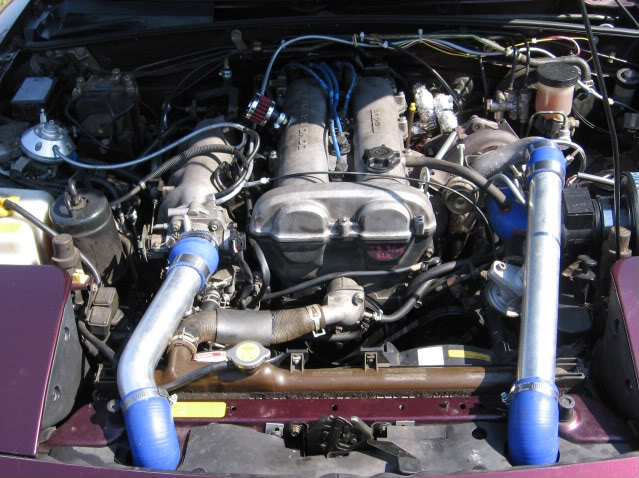

Name:  Miata002.jpg
Views: 20
Size:  83.5 KB

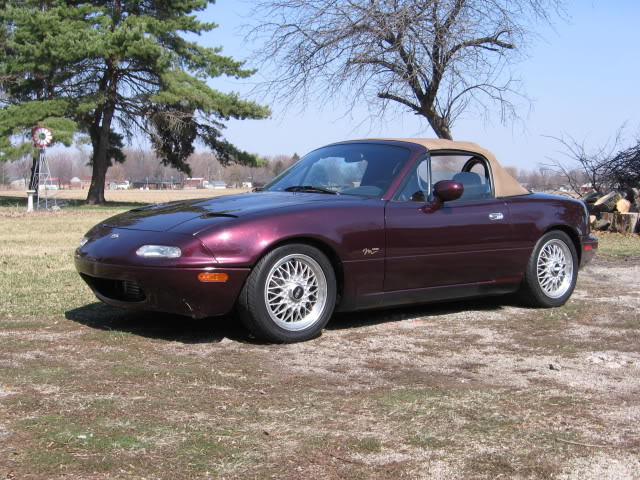

Name:  Miata003.jpg
Views: 19
Size:  83.5 KB

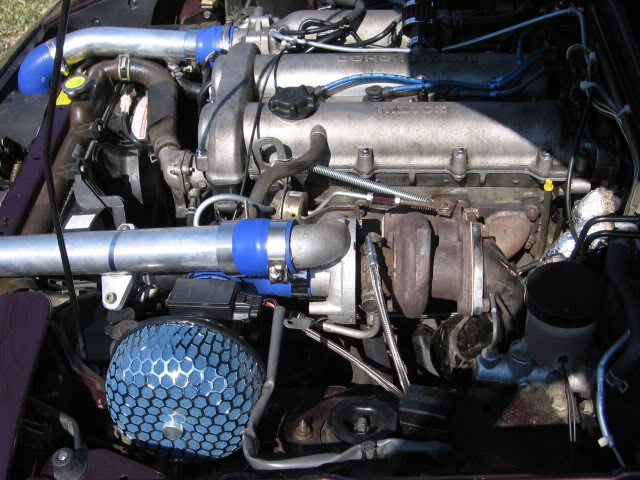

Name:  Miata004.jpg
Views: 108
Size:  78.3 KB

Here are the main components of my kit:
-Homemade TIG welded manifold using Schedule 10 SS pipe fittings
-2g dsm T-25 turbo
-E-bay FMIC kit
-E-bay 2.5" SS downpipe
-1g dsm BOV
-Olderguy O2 clamp
-MSD ignition timing retard box
-can't remember the name FMU
-VDO boost gauge
-Innovative WB

Obviously, with a budget build I wasn't planning on making huge HP #'s, but just wanted something more and to make what I think is a pretty slow sports car alittle more fun to drive. Getting waxed by SUV's and sedans just doesn't cut it.
Also, for anyone contemplating doing this to their car, I say go for it. Just do alittle research ahead of time and it can be tough at times but also a great learning experience.
Thanks again!

Last edited by rxrotorless7; 03-18-2009 at 12:56 PM.
rxrotorless7 is offline   Reply With Quote
Old 03-18-2009, 12:33 PM   #2
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Can't see the pics on my end (my issue, not yours) but the description is pretty close to what I did, other than adding my ECU. Welcome to the forum!
Stein is offline   Reply With Quote
Old 03-18-2009, 12:37 PM   #3
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,247
Total Cats: 291
Default

I can't see the pics either... and I want too. Sounds like a good build. Welcome.
m2cupcar is offline   Reply With Quote
Old 03-18-2009, 12:48 PM   #4
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

no pics either
disturbedfan121 is offline   Reply With Quote
Old 03-18-2009, 12:59 PM   #5
Newb
Thread Starter

Join Date: Sep 2008
Posts: 20
Total Cats: 0
Default

Sorry about that, I was using an old Geocities site for my pics.
Should work now, thanks!
rxrotorless7 is offline   Reply With Quote
Old 03-18-2009, 01:09 PM   #6
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

What diameter IC pipes did you use? Looks like 2 inches to me.

Did you have to chop up the hood to let it close?
Saml01 is offline   Reply With Quote
Old 03-18-2009, 02:12 PM   #7
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,697
Total Cats: 1,563
Default

That's an attractive color in the sunlight. And that's a simple, straightforward build. At those power levels, it should provide you with many years of enjoyment.

Unless, of course, you decide to go to the next level.

Now you get to enjoy it!

Edit: It looks lowered. Did you change the suspension?
sixshooter is online now   Reply With Quote
Old 03-18-2009, 03:13 PM   #8
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

did you have to cut the hood?
budget racer is offline   Reply With Quote
Old 03-18-2009, 03:13 PM   #9
Newb
Thread Starter

Join Date: Sep 2008
Posts: 20
Total Cats: 0
Default

Quote:
What diameter IC pipes did you use? Looks like 2 inches to me. Did you have to chop up the hood to let it close?
Yep, 2inch IC pipes.
I did have to hack into the the hood alittle bit right where the 90deg. bends are going down to the intercooler. I didn't have to remove too much material and the hood seems structually sound.

Quote:
Edit: It looks lowered. Did you change the suspension?
Yeah, I did alittle suspension work. I'm trying out that rediculously cheap e-bay coilover kit and it actually works pretty good for the street. Also, I installed Koni str.t struts all the way around. Tire Rack has a pretty good deal on those right now if anyones interested.
rxrotorless7 is offline   Reply With Quote
Old 03-18-2009, 04:52 PM   #10
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Can you post a pic of the cut up hood? I am changing my setup to an over-the-rad with an evo intercooler and would like to see how much you're butchering to get it to fit.
The_Pipefather is offline   Reply With Quote
Old 03-18-2009, 05:03 PM   #11
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

pipefather.......i am wrapping up my "over the radiator" install in the next few days. when i am complete i am going to do a quick write-up on it.

:hint: You'll see that the butchering is not necessary.
budget racer is offline   Reply With Quote
Old 03-18-2009, 05:51 PM   #12
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

sure you can tilt the radiator on the lower bracket right....but its good, do the writeup I'm curious. What intercooler are you using >?
The_Pipefather is offline   Reply With Quote
Old 03-18-2009, 05:59 PM   #13
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

just the puny MSM IC (but an upgrade to a larger IC should be easy at this point)......i have a good pic of what modification is required of the lower bracket.
budget racer is offline   Reply With Quote
Old 03-18-2009, 06:09 PM   #14
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by budget racer View Post
pipefather.......i am wrapping up my "over the radiator" install in the next few days. when i am complete i am going to do a quick write-up on it.

:hint: You'll see that the butchering is not necessary.
Did you chop into the radiator support?
Saml01 is offline   Reply With Quote
Old 03-18-2009, 09:16 PM   #15
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

sorry sam......we've highjacked his thread enough. i'll start a new one.
budget racer is offline   Reply With Quote
Old 03-18-2009, 09:27 PM   #16
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks great man, good job. I'm sure it's a riot. The best part is knowing you built it yourself.
cjernigan is offline   Reply With Quote
Old 03-18-2009, 10:24 PM   #17
Junior Member
iTrader: (6)

Join Date: Mar 2009
Location: down south tx
Posts: 115
Total Cats: -1
Default

i like that set up..
1.8-m is offline   Reply With Quote
Old 03-18-2009, 10:33 PM   #18
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Looks good!

You might throw some shielding between the hotness and the BMC reservoir.
kotomile is offline   Reply With Quote
Old 03-19-2009, 12:05 PM   #19
Newb
Thread Starter

Join Date: Sep 2008
Posts: 20
Total Cats: 0
Default

Quote:
Can you post a pic of the cut up hood?
Here's a couple pics of my hack work on the hood, I just hit it with some spray paint I had laying around to prevent rusting. Its a tight fit, I would think if you went bigger than 2" IC piping, you'd have to cut into the rad. support.



Thanks all for the comments!
