Old 02-24-2007, 10:01 PM   #1
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default Let the bling begin

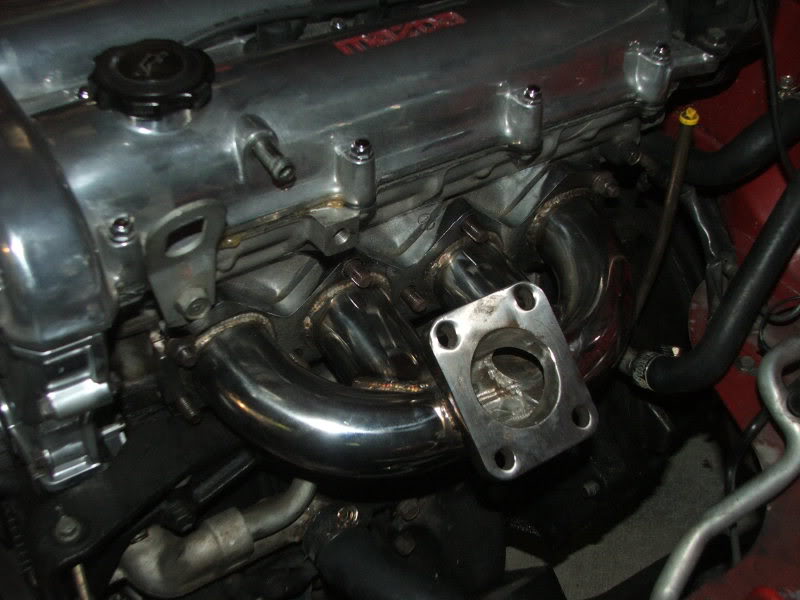

Name:  DSCF1936.jpg
Views: 1
Size:  60.9 KB

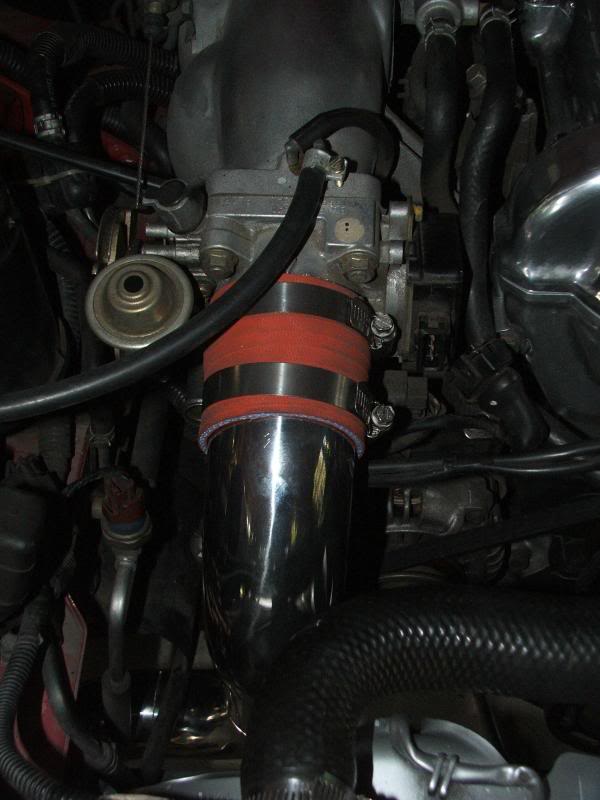

Name:  DSCF1937.jpg
Views: 1
Size:  51.2 KB

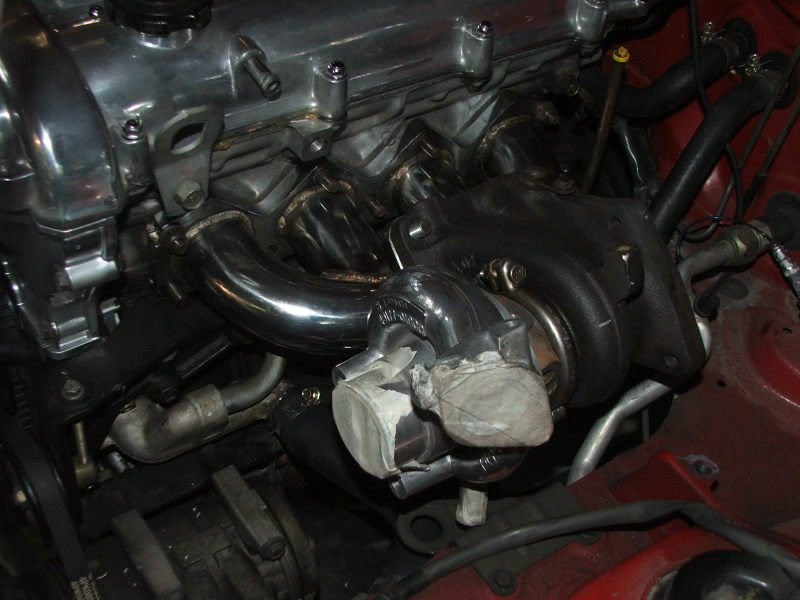

Name:  DSCF1938.jpg
Views: 1
Size:  66.1 KB

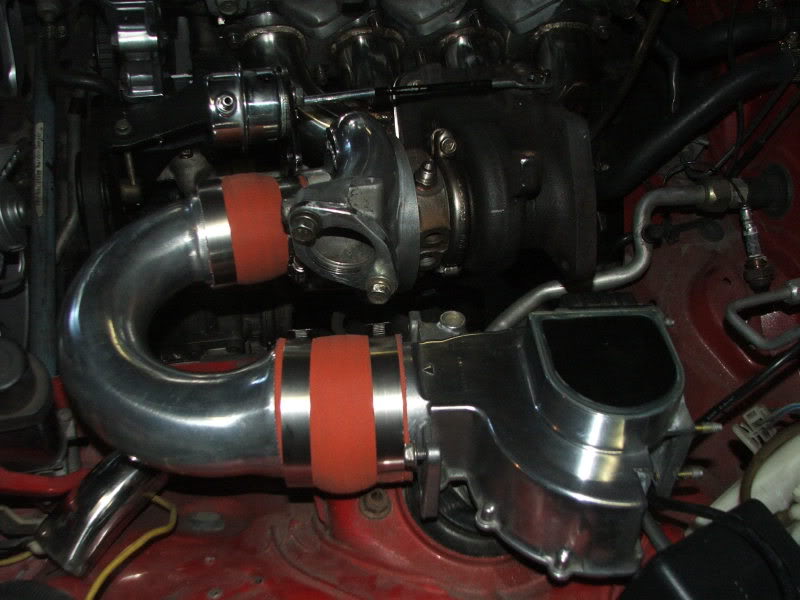

Name:  DSCF1942.jpg
Views: 1
Size:  62.0 KB

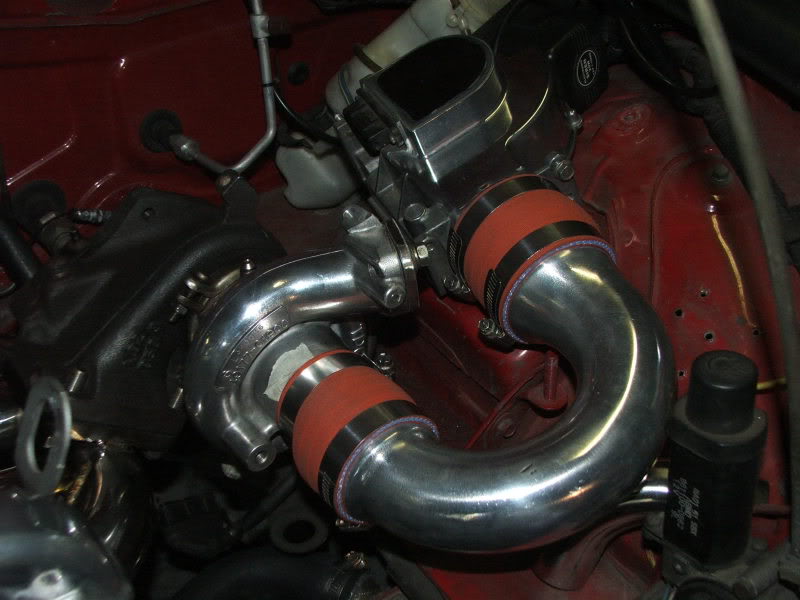

Name:  DSCF1940.jpg
Views: 1
Size:  60.0 KB

More to come .......
Uncle Arthur is offline   Reply With Quote
Old 02-24-2007, 10:23 PM   #2
Senior Member

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

sexy, great job
RicanmiataRacer is offline   Reply With Quote
Old 02-24-2007, 11:48 PM   #3
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Look really nice but I hope your good at welding......
getsidewaysd1 is offline   Reply With Quote
Old 02-25-2007, 06:47 AM   #4
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by getsidewaysd1 View Post
Look really nice but I hope your good at welding......
I suck at welding but my mate who's a welder is good at it

gotta love mate's rates
Uncle Arthur is offline   Reply With Quote
Old 02-25-2007, 12:06 PM   #5
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

that manifold is going to crack...just so you know.
F20turbo is offline   Reply With Quote
Old 02-25-2007, 12:19 PM   #6
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

damn how you gonna get the compressed air to the TB needs some clocking and a custom wG holder.
magnamx-5 is offline   Reply With Quote
Old 02-25-2007, 03:28 PM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

that is the megan manifold right? what type of turbo are you using?
mazda/nissan is offline   Reply With Quote
Old 02-25-2007, 04:46 PM   #8
Junior Member

Join Date: Feb 2007
Location: Winona, MN
Posts: 198
Total Cats: 0
Default

i used the megan manifold for my SR20DET and if you weld little tabs on the runners and one from turbo flange to the manifold flange you should be safe. or just wrap it in DYI wrap sould help from major temp changes.
LOOINEY is offline   Reply With Quote
Old 02-25-2007, 05:06 PM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

From the pics it looks like the compressor outlet is blocked by.. is that a polished greddy intake pipe? Good start, the Greddy pipe is way small and you'll want something bigger soon.
kotomile is offline   Reply With Quote
Old 02-25-2007, 05:57 PM   #10
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Andyfloyd - can you tell me where it's gonna crack and how to avoid it? Although taken that I'll be fitting a SS bracket from the bolt hole on the top of the turbine housing to the block to assist in bearing the weight.

I don't know what a Megan manifold is (although I dated a girl named Megan many years ago - she had a nice manifold) - anyway the turbo is a TDO4 15? G

I realise it looks from that photo that I'm gonna have troubles routing the intake pipe from the compressor - the perspective is a bit wrong but the custom pipe has been fabricated and goes over that u-bend, through the guard and curves under to meet the IC. You'll all see it next week.
Uncle Arthur is offline   Reply With Quote
Old 02-25-2007, 08:00 PM   #11
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Uncle Arthur View Post
I don't know what a Megan manifold is although I dated a girl named Megan many years ago - she had a nice manifold -
Were they bolt-ons?





Quote:
Originally Posted by Uncle Arthur View Post
I realise it looks from that photo that I'm gonna have troubles routing the intake pipe from the compressor - the perspective is a bit wrong but the custom pipe has been fabricated and goes over that u-bend, through the guard and curves under to meet the IC. You'll all see it next week.
I'm not sure if you mean the pipe from the compressor outlet to your I/C. Probably. Have you clocked your turbo? It seems you would have many routing options.
UofACATS is offline   Reply With Quote
Old 02-25-2007, 08:06 PM   #12
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by UofACATS View Post
Were they bolt-ons?
Yes

Quote:
Originally Posted by UofACATS View Post
I'm not sure if you mean the pipe from the compressor outlet to your I/C. Probably. Have you clocked your turbo? It seems you would have many routing options.
Yes - it's been clocked - but all will become clear
Uncle Arthur is offline   Reply With Quote
Old 02-26-2007, 03:17 AM   #13
Junior Member

Join Date: Jan 2005
Location: United Kingdom
Posts: 255
Total Cats: 0
Default

looking good dude!
tabs604 is offline   Reply With Quote
Old 02-26-2007, 03:31 AM   #14
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

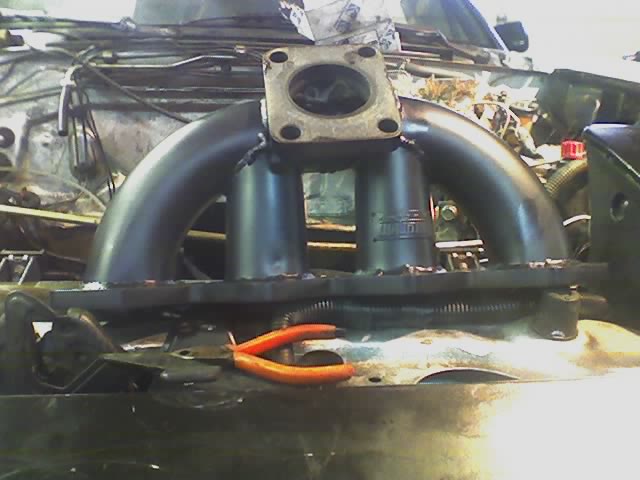

accept for not having a name plat that is the magan racing manifold or a carbon copy, here is mine in black ceramic caot note everything is the same
Attached Thumbnails
Let the bling begin-01-15-07_1505.jpg
magnamx-5 is offline   Reply With Quote
Old 02-26-2007, 08:10 AM   #15
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by magnamx-5 View Post
accept for not having a name plat that is the magan racing manifold or a carbon copy, here is mine in black ceramic caot note everything is the same
Yep - looks the same
Uncle Arthur is offline   Reply With Quote
Old 02-26-2007, 01:22 PM   #16
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Quote:
Originally Posted by Uncle Arthur View Post
Anyway the turbo is a TDO4 15?G
I can tell you one thing for shure, thats no TDO4-15G. It looks more like a
14b. No offence or anything, but if you dont know what kind of manifold or turbo you have, you might want to do some more research before you start throwing random **** on your car.
getsidewaysd1 is offline   Reply With Quote
Old 02-26-2007, 01:33 PM   #17
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by getsidewaysd1 View Post
I can tell you one thing for shure, thats no TDO4-15G. It looks more like a
14b. No offence or anything, but if you dont know what kind of manifold or turbo you have, you might want to do some more research before you start throwing random **** on your car.
he has a point common Arthur show us some real specs the fact that it has coolant ports and bolts to the megan style manifold speacks to being a standard dsm and not a 15g.
magnamx-5 is offline   Reply With Quote
Old 02-26-2007, 10:58 PM   #18
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by getsidewaysd1 View Post
I can tell you one thing for shure, thats no TDO4-15G. It looks more like a
14b. No offence or anything, but if you dont know what kind of manifold or turbo you have, you might want to do some more research before you start throwing random **** on your car.
No offence taken. Any of you guys remember a forum member by the name of Astroyboysoup? Well - he was here for a long time doing lots of research, and sourced the various bits. I'm working off what he told me they are. He decided not to fit the kit he'd assembled and I decided to buy it (via another Aus focussed MX5 forum). For $1800 AUD for turbo, manifold, 1.8 injectors, EMB, harnesses & spare stock ECU, BOV, FMIC, and dumppipe who's quibbling?????

Counting the extra stuff I've done since the intention to turbo I'm under $3.5K AUD including upgraded radiator, mazdaspeed LSD, upgraded clutch, turbo rebuild, fabrication and install of custom IC pipework in SS.

At the end of the day - the parts list isn't random, and I'm not real fussed if it's a TD04 15G or a 13G 14B or a whatever. I'm advised by the previous owner of what he was setting out to achieve, and I'm pretty much following his plans.
Uncle Arthur is offline   Reply With Quote
