Default Modifying NB stock cast manifold for turbo?

Hey,

I am curious if anyone has turned a stock NB cast header into a turbo manifold. The manifold with a pre cat looks like it might be too much hassle to bother with but the non precat manifold looks quite interesting and is angled far enough back it looks like it should clear the a/c though the turbo might end up being low enough that it interferes with the radiator hose. Thoughts?

EDIT: Actually the precat version might work out better as I am guessing the exit into the cat is round it might be possible to weld an elbow to the outlet and fit a turbo flange and then just cut off the extra precat flange material. It could be a very straight forward option for v band entry exhaust housings.

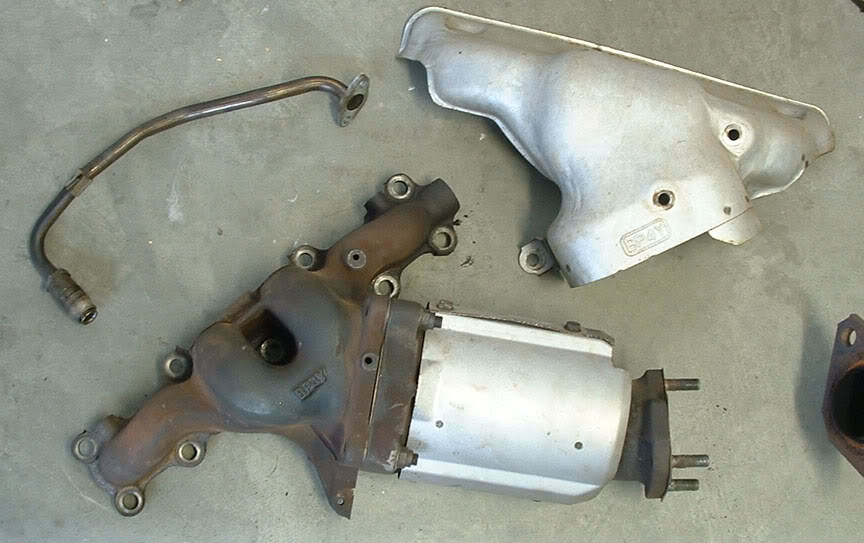

Manifold with precat:

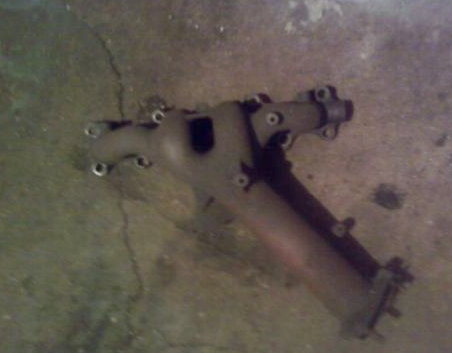

Manifold without precat:
Attached Thumbnails
Modifying NB stock cast manifold for turbo?-boatanchor.jpg   Modifying NB stock cast manifold for turbo?-f_r5g5lit6m_42c744f.png

Last edited by Orphan; 05-03-2014 at 07:03 AM.
Orphan is offline   Reply With Quote
Old 05-04-2014, 01:01 AM   #2
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default

It is possible but no one has done it because it would be a headache and require as much or more work than making a new log manifold from scratch. It would also be much harder to weld and much more prone to cracking. It would also put the turbo in an awkward location.

Someone has done it with the stainless welded header. It still doesn't make a lot of sense unless you live in a third world country where labor is free and resources are scarce.
3rdCarMX5 is offline   Reply With Quote
Old 05-04-2014, 01:19 AM   #3
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

You're wasting your time thinking about this. With the numerous manifolds on the market that have taken into consideration all of the logistics of turbo placement, you're posting eggplant.
Doppelgänger is offline   Reply With Quote
Old 05-04-2014, 01:20 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Don't forget the steering rod that it would put the turbo right into.

There really is not point to re-invent the wheel here. Either buy pre-made or get some weld els and make one.

These things for miata's are so easy and so cheap now, that it just blows my mind that people STILL want to figure out way to make it easier and cheaper.
18psi is offline   Reply With Quote
Old 05-04-2014, 01:24 AM   #5
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I suspect QCB will be here shortly...
Doppelgänger is offline   Reply With Quote
Old 05-04-2014, 05:50 AM   #6
Newb
Thread Starter

Join Date: May 2011
Posts: 9
Total Cats: 0
Default

Fair enough. I guess if it was reasonably easy others would have probably done it before.
Quote:
Originally Posted by 18psi View Post
Don't forget the steering rod that it would put the turbo right into.

There really is not point to re-invent the wheel here. Either buy pre-made or get some weld els and make one.

These things for miata's are so easy and so cheap now, that it just blows my mind that people STILL want to figure out way to make it easier and cheaper.
RHD so the steering rod isn't an issue. I am a novice at welding and fabrication so I was curious. I guess I shall just get some more practice in with cutting and fitting bends until I can put together an ok basic manifold. Regarding collectors out of a T2 or circular flanges (like on the TD04, 14b, 16g etc) would one be more straight forward for a novice to make? Using a T2 might be more straightforward overall as it would be possible to use an off the shelf turbo elbow/dump pipe. Matching the exhaust side of the turbo looks like more of a challenge than the turbo flange.

Last edited by Orphan; 05-04-2014 at 06:51 AM.
Orphan is offline   Reply With Quote
Old 05-05-2014, 10:36 AM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

y8s is offline   Reply With Quote
Old 05-05-2014, 07:48 PM   #8
Newb
Thread Starter

Join Date: May 2011
Posts: 9
Total Cats: 0
Default

:P Ok, ok. Bad idea.
