Default My "Little Project"

So, I finally have some spare time to write everything out.

This is what I plan on doing to the car (things w/ a + sign next it I already have at my house, the rest is getting ordered in mid-June):

ENGINE
+Wiseco pistons (.040 over, 8.6:1),
+ETD racing H-beam rods,
+Racetronix 900cc Injectors replaced the Precision Turbo 780cc Injectors,
Precision Turbo SC-50s Turbo,
+21x9x3 intercooler,
TiAL 38mm or 44mm W/G,
TiAL 50mm BOV,
+MS-I v3.0,
+Innovate WBO2,
+COP's,
+3" ss exhaust,
Equal length runner exhaust manifold,
+Custom intake manifold
+w/75mm throttle body,
+Custom dual feed Fuel Rail,
+aeromotive a1000 FPR, got replaced by FueLab FPR,
+Walbro 255lph hp fuel pump,
+TII LSD differential,
+TII Transmission,
+Clutchnet 6-puck solid hub clutch,
+Clutchnet 3x red PP,
+ACT flywheel - prolite 9.3lbs, Stock FTW,
+KOYO 55mm radiator.

Suspension / Chassis
"extended" HDHCDD roll bar or if I find an insurance company that will insure a car w/ a roll cage than I'll go w/ a roll cage,
+Stance coilovers,
some diff. sway bars (have not decided yet),
FM Butterfly brace,
+FM adjustable bushings,
+PartsGroup.com depowered steering rack,


Brakes / Wheels
Willwood 11" f/r (miata roadster) - over winter,
Sportmax 002 16x8 (if I can find them in a 5lug version),

Exterior / Interior
Corbeau Forza buckets - over winter,
+OEM side skirts and mudflaps,
+power everything (was non-power before),

(I'm probably forgetting many things, I'll most likely be adding more)

Here are the photos of the car from day 1 'til today:

I bought my car in July '06, drove it around until March 15, '07.

This is how my car looked like when I just got it:
DSC00197.jpg?t=1180385743

A month or two later I got rearended:
DSC00513.jpg?t=1180385790
DSC00514.jpg?t=1180385832
DSC00516.jpg?t=1180385863

On March 15th I put it on jack's:
DSC01191.jpg?t=1180384939

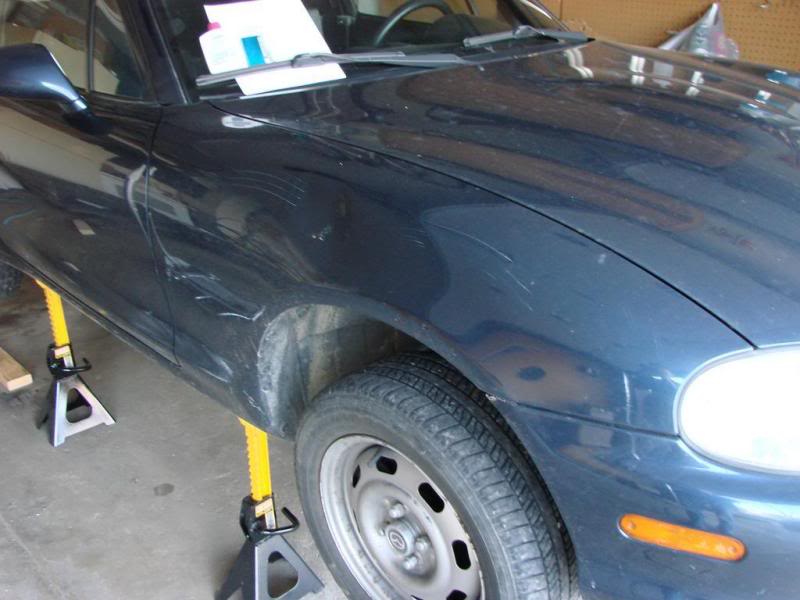

Someone kicked the right front fender...
Name:  DSC01194.jpg
Views: 3
Size:  57.7 KB
...and my dad backed into the left front fender:
Name:  DSC01195.jpg
Views: 2
Size:  66.3 KB

After I put the car on jacstands I took out the differential and sold it to "miataspeed1point6" (the one on top/left is the stock miata diff and the other one is a T2 LSD that I bought from a friend):
DSC01203.jpg?t=1180386586

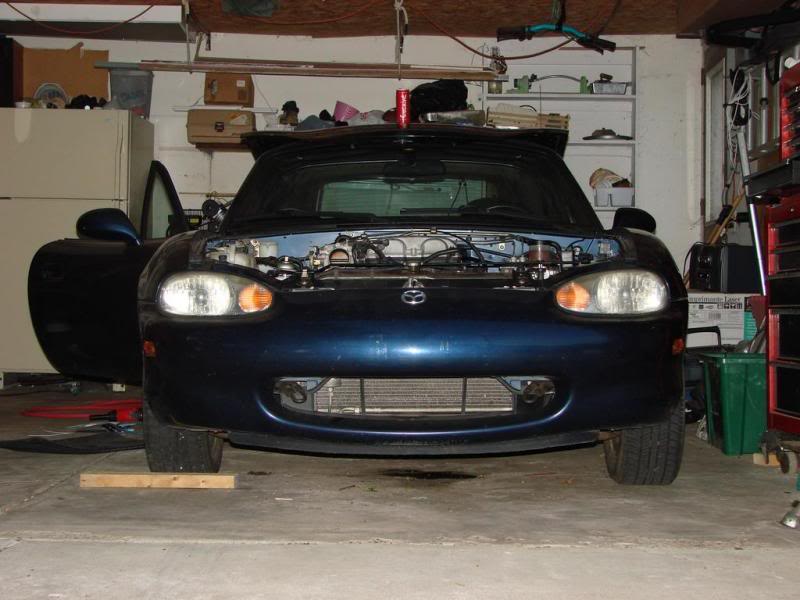

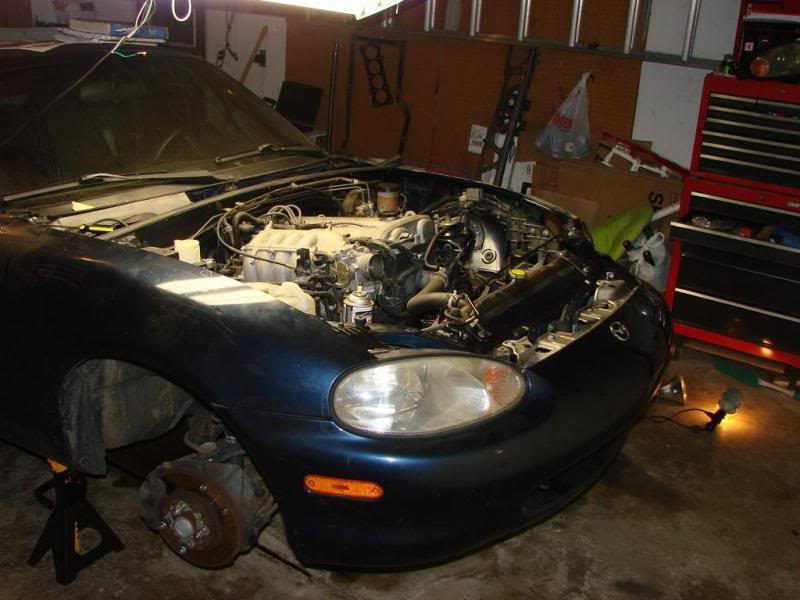

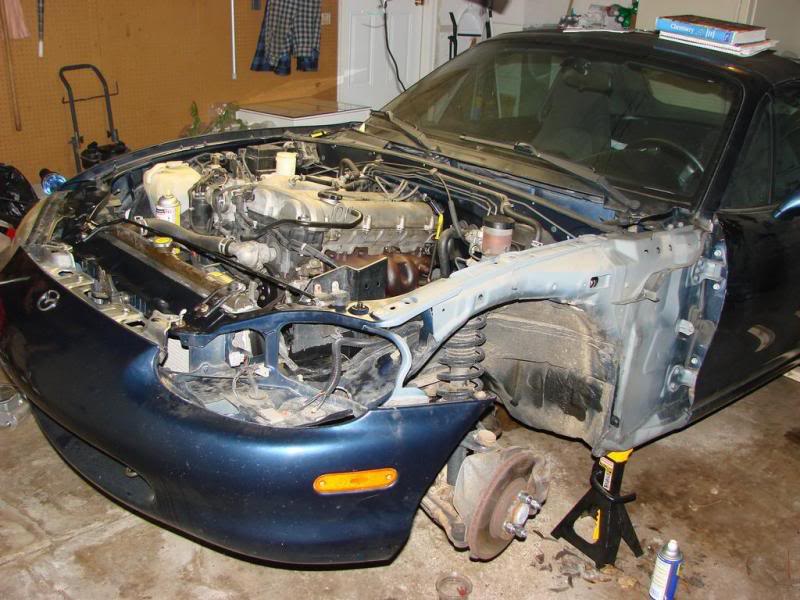

I took the fenders, front bumper and hood off:
Name:  DSC01225.jpg
Views: 2
Size:  64.0 KB

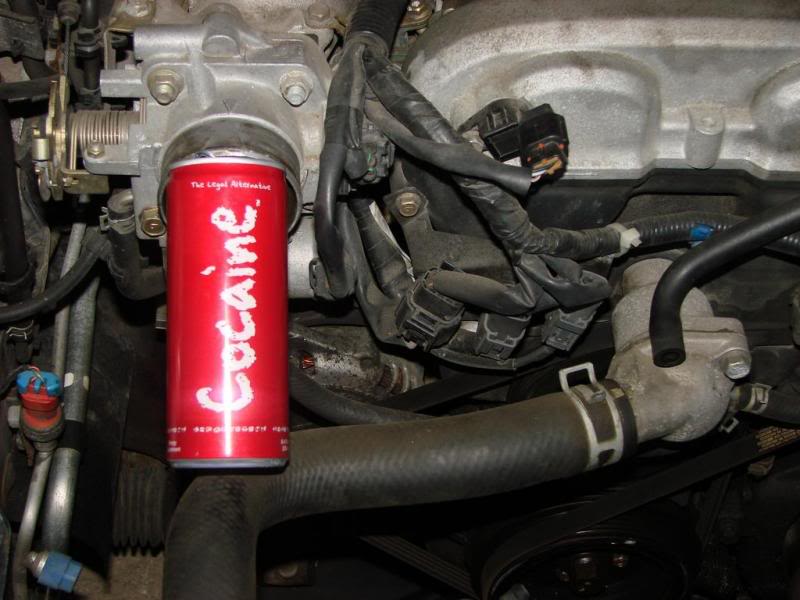

Name:  DSC01226.jpg
Views: 2
Size:  64.8 KB Name:  DSC01229.jpg
Views: 2
Size:  61.1 KB
Name:  DSC01230.jpg
Views: 2
Size:  86.1 KB

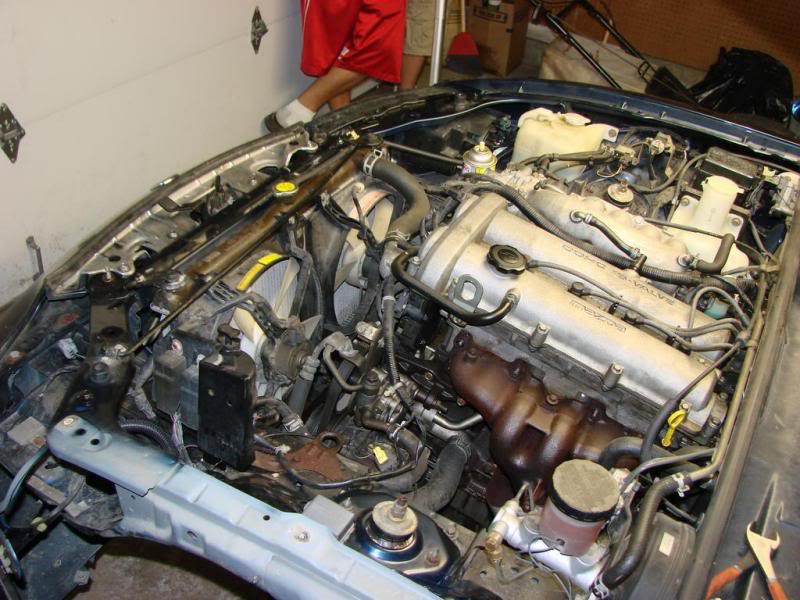

Name:  DSC01231.jpg
Views: 2
Size:  88.9 KB

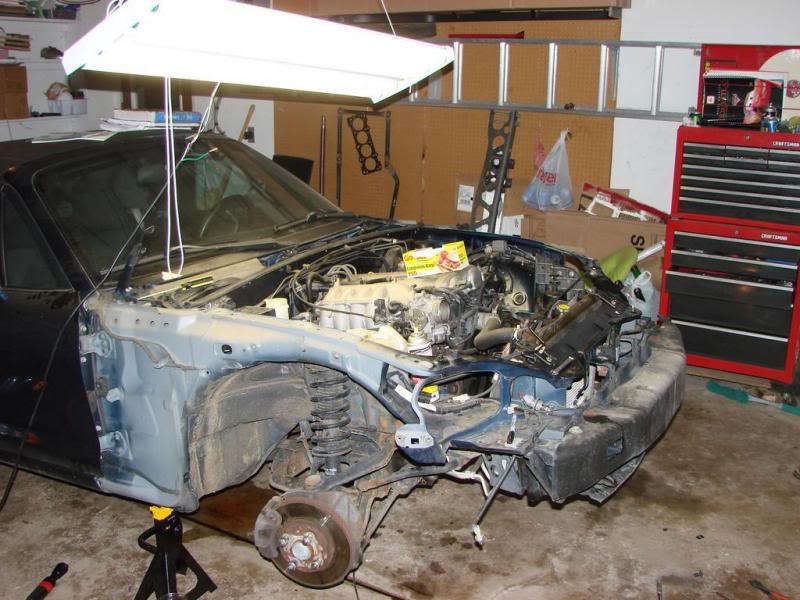

Name:  DSC01232.jpg
Views: 2
Size:  84.1 KB

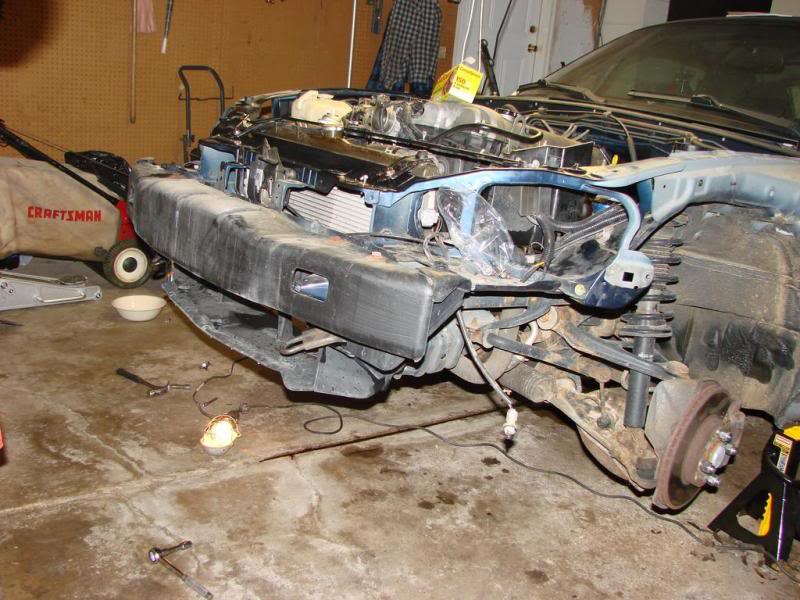

Name:  DSC01234.jpg
Views: 2
Size:  91.6 KB
Name:  DSC01235.jpg
Views: 2
Size:  79.8 KB

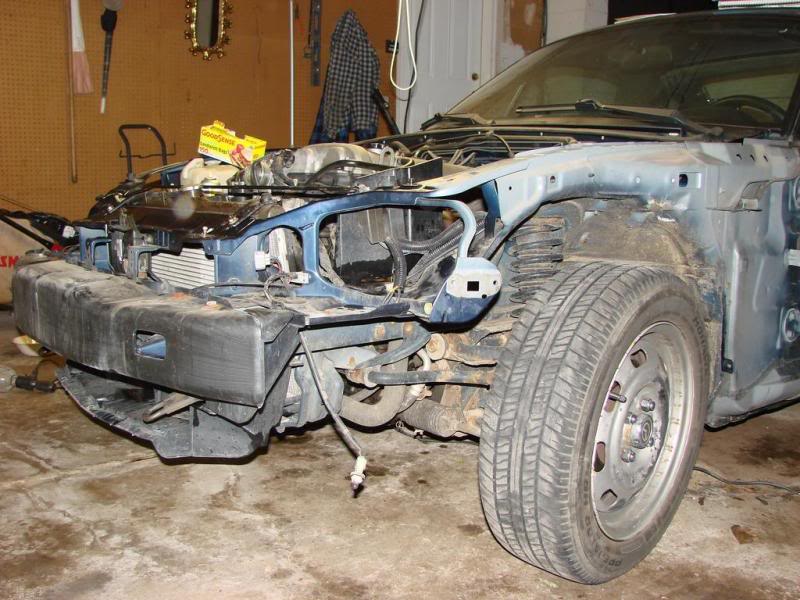

Name:  DSC01237.jpg
Views: 2
Size:  90.1 KB

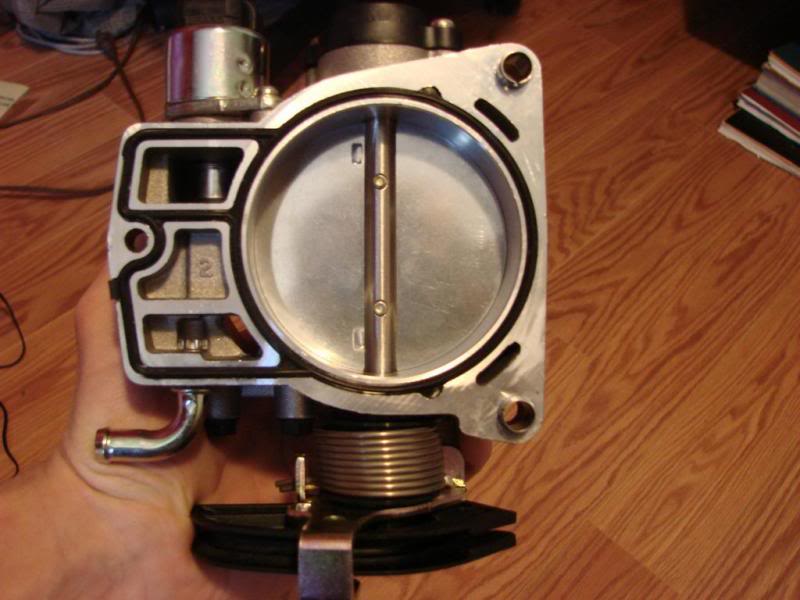

I bought a "TINY" throttle body for the custom intake manifold I will be making:
Name:  DSC01189.jpg
Views: 2
Size:  59.2 KB

I also have a question to all of you, Should I keep the "Twillight Blue Mica" or paint it White or "Galaxy Grey Mica" - as on the Mazda 3?

I'll be updating it as often as I get something new finished.

Last edited by Dhaark; 09-17-2007 at 11:46 PM.
Dhaark is offline   Reply With Quote
Old 05-28-2007, 06:43 PM   #2
Junior Member

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

Not sure but I think I have read that if you have a stand alone ECU like MS you don't need an FPR.
akthor is offline   Reply With Quote
Old 05-28-2007, 06:46 PM   #3
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

he is using it in a ploy to keep the 255 from over powering his fuel system he already has a return less fuel system anyway
magnamx-5 is offline   Reply With Quote
Old 05-28-2007, 06:47 PM   #4
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

The MS will be a complete stand alone - the stock ECU will be removed completely. But I think thaat you still need a FPR to actually regulate the fuel pressure.
Dhaark is offline   Reply With Quote
Old 05-28-2007, 06:49 PM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
he is using it in a ploy to keep the 255 from over powering his fuel system he already has a return less fuel system anyway
The fuel system will be completely new. I won't be using any of the old fuel lines that are on the car right now.
Dhaark is offline   Reply With Quote
Old 05-28-2007, 06:53 PM   #6
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

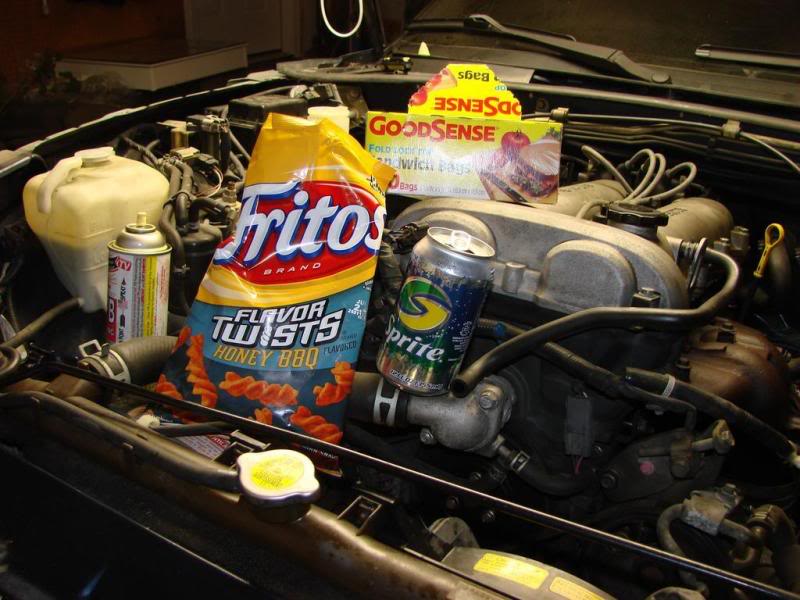

WTF is with all the snacks and **** in the engine bay?

The TII is a pretty involved swap, good luck.
jayc72 is offline   Reply With Quote
Old 05-28-2007, 06:57 PM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

Quote:
Originally Posted by jayc72 View Post
WTF is with all the snacks and **** in the engine bay?

The TII is a pretty involved swap, good luck.

My brother was helping out and he left everything on the engine like that.
The bags were actually used to put the bolts and nuts in and label where they go. Cocaine (the energy drink) helped out a little to not fall asleep.
Dhaark is offline   Reply With Quote
Old 05-28-2007, 07:02 PM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Ok. Yess you do very good planning.
magnamx-5 is offline   Reply With Quote
Old 05-28-2007, 07:23 PM   #9
Junior Member
iTrader: (1)

Join Date: Feb 2007
Posts: 143
Total Cats: 0
Thumbs up

This is a cool thread. I look forward to update. I'm a big fan of before and after journals
ST2udent is offline   Reply With Quote
Old 05-28-2007, 09:08 PM   #10
Senior Member
iTrader: (3)

Join Date: Apr 2006
Location: Northern Michigan
Posts: 898
Total Cats: 0
Default

This car will be a serious beast. My vote is for the "grey".
rotaryjunky is offline   Reply With Quote
Old 05-28-2007, 09:36 PM   #11
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

I was thinking about the white, idk how hard it would be to paint miata with galaxy grey myself.
Dhaark is offline   Reply With Quote
Old 05-28-2007, 10:43 PM   #12
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

your car's a damned magnet....
Al Hounos is offline   Reply With Quote
Old 05-28-2007, 10:52 PM   #13
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

So, whadda ya gonna do with it... other than scare passengers and deflate the ego's of Ferrari owners? I don't see why 350whp is out of the question. Tires? Are we thinking about rolled fender lips...?
samnavy is offline   Reply With Quote
Old 05-28-2007, 11:04 PM   #14
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

The plan is: 450whp on race gas and ~400whp on pump, maybe even the 450 will be on pump. idk yet. But i want to run around 15psi on the street at all times and be able to switch to 20psi still on pump gas if needed and about 25psi on race gas
Dhaark is offline   Reply With Quote
Old 05-28-2007, 11:18 PM   #15
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

Quote:
Originally Posted by Al Hounos View Post
your car's a damned magnet....
I know. Other cars hate my car and tend to bump it often - the first day someone backed into me on my way back from cinci and cracked the drivers taillight.
Dhaark is offline   Reply With Quote
Old 05-28-2007, 11:38 PM   #16
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

For that much hp a mustang TB or other might serve you better than OEM size wich would probably be a restriction past 350 or so whp. GL
magnamx-5 is offline   Reply With Quote
Old 05-29-2007, 12:09 AM   #17
Junior Member

Join Date: Nov 2005
Location: PA/DC
Posts: 468
Total Cats: 0
Default

Quote:
Originally Posted by rotaryjunky View Post
This car will be a serious beast. My vote is for the "grey".

+1 Goodluck!
Snowsurfer03 is offline   Reply With Quote
Old 05-29-2007, 12:17 AM   #18
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
For that much hp a mustang TB or other might serve you better than OEM size wich would probably be a restriction past 350 or so whp. GL
As I listed above: my "tiny" TB is a 75mm one but i might get a 50mm mustang one instead.
Dhaark is offline   Reply With Quote
Old 05-29-2007, 03:06 AM   #19
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

Very sick setup dude! Should be an interesting build.

Why do you need sportmaxes in 5lug though? Doing the whole rx7 rear end stuff with the diff?
RusMan is offline   Reply With Quote
Old 05-29-2007, 03:35 PM   #20
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

Quote:
Originally Posted by RusMan View Post
Very sick setup dude! Should be an interesting build.

Why do you need sportmaxes in 5lug though? Doing the whole rx7 rear end stuff with the diff?
I'm looking for 5lug sportmax 002's because I have to replace the hubs on the miata to the ones from the tII Rx-7 and i like those wheels - cheap, wide enough for my needs and look good.

My friend is trying to get my car painted for $200 - I have to prepare it for painting (remove all rust, bondo the whole car, all that crap) and they will just spray it for me. We'll see how this goes.

I hope to get most of the stuff done by mid July.
