Old 05-16-2009, 09:52 PM   #21
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by spoolin2bars View Post
awesome! looks good. i wish my piping was routed differently so i could do that too. fyi, i cut lots of alum. sheet for all the little projects on my cars. i tried 6 different methods and nothing worked as good as my buddy's band saw at his work. well, i can't always use that so i had to get something for my garage, but didn't want to spend the $$$ on a band saw. my last hope before spending 399.99 on a band saw was a regular old jigsaw from sears. i was able to find 1 pack of alum. cutting blades and took it home to try it. that jigsaw cut through the aluminum sheet like the proverbial ''hot knife through butter'' total cost - $45.00.
I'll pick up some blades for my jigsaw and try that next time. I cant imagine, though, that it'll be easy keeping the thin sheet of alum. steady while hitting it with the jig saw.

What about putting the saw upside down in my vice? That is something I think i'm going to have to try. I really do not want to dremel this **** out again.
wayne_curr is offline   Reply With Quote
Old 05-16-2009, 11:26 PM   #22
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

Quote:
Originally Posted by TheBandit View Post
I love the skewer trick. Very clever! Heat shield looks nice too.
-Michael
+1 brilliant
icantthink4155 is offline   Reply With Quote
Old 01-28-2010, 09:35 PM   #23
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

This tread is not that old so I have to say that I have the FM air box but I made an air filter out of uni foam and a pencil holder!
turotufas is offline   Reply With Quote
Old 01-28-2010, 09:45 PM   #24
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

looks good

I love the old cardboard chopstick/skewer trick
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-28-2010, 10:07 PM   #25
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

looks good, I would of probably used pop rivets instead of jb weld but Im sure your method will probably work.
slutz4 is offline   Reply With Quote
Old 01-28-2010, 10:33 PM   #26
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Great job! A bracer board clamped across an uncut side will help hold the
Al while you cut with the Jigsaw,get a fine tooth blade and go slow.A spraybottle of water mixed with 1 teaspoon each of oil and soap will help cool and Lube blade,make it cut smoother ,faster and last longer.
(g)
Reverend Greg is offline   Reply With Quote
Old 01-28-2010, 10:52 PM   #27
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

I love it when you do that right thurrr wayne currrr lolz good job man. Lovin the diy skillz
leatherface24 is offline   Reply With Quote
Old 01-29-2010, 12:28 AM   #28
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

lol instead of doing that i just built a box around the turbo


I used sheet metal scissors and then just bent the edges to round it off.
triple88a is offline   Reply With Quote
Old 01-29-2010, 01:28 AM   #29
Junior Member

Join Date: Jan 2010
Location: Eastside Muff~Palmdale,CA
Posts: 93
Total Cats: 0
Default

i plan on doing this-nice skewer trick!
Eadohcturbo is offline   Reply With Quote
Old 01-29-2010, 02:21 PM   #30
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by slutz4 View Post
looks good, I would of probably used pop rivets instead of jb weld but Im sure your method will probably work.
haha, very funny you mentioned that! The JB weld lasted about 2 days. Now it is riveted.

Thanks for the tips RG. I'll remember that next time.

The shield isn't currently in my car. I need more 2.5" pipe to redo my turbo inlet to make the shield fit with my new low mount manifold.
wayne_curr is offline   Reply With Quote
Old 01-31-2010, 10:42 PM   #31
Senior Member
iTrader: (16)

Join Date: Jul 2009
Location: salem ark
Posts: 563
Total Cats: -1
Default

looks good any clue on the temp differnce
browning is offline   Reply With Quote
Old 04-24-2013, 03:57 PM   #32
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: College Station/Bryan
Posts: 57
Total Cats: 6
Default

im bringing this back from the dead because i have been thinking about how to match the contour of the hood and this is just genius thanks for posting.
t2couger is offline   Reply With Quote
Old 04-24-2013, 05:29 PM   #33
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I just tried this with my turbo heat shield and I couldn't secure the cardboard well enough for the hood to press on the skewers and not just deform the cardboard base. I gave up, made it big, and cut it to fit.
curly is offline   Reply With Quote
Old 04-24-2013, 05:32 PM   #34
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: College Station/Bryan
Posts: 57
Total Cats: 6
Default

Quote:
Originally Posted by curly View Post
I just tried this with my turbo heat shield and I couldn't secure the cardboard well enough for the hood to press on the skewers and not just deform the cardboard base. I gave up, made it big, and cut it to fit.
i was thinking of cutting the card board large then using a but load of tooth picks going to try when i get home will post pics if successful.
t2couger is offline   Reply With Quote
Old 04-30-2013, 12:21 PM   #35
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: College Station/Bryan
Posts: 57
Total Cats: 6
Default

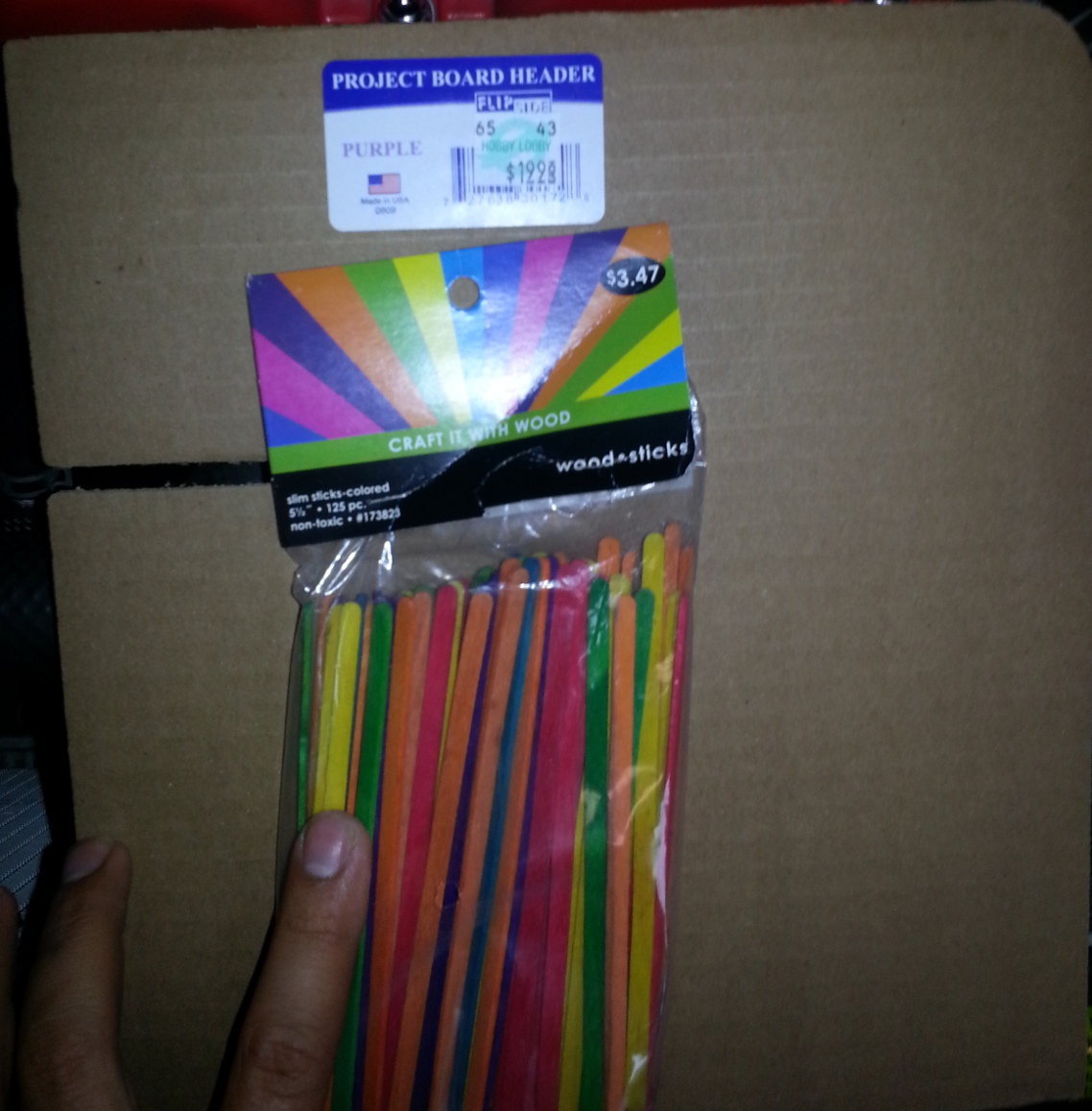

Update. Hobby lobby shopping list.
Project board header 1.99$ They also have plain cardboard that is the same size for 3X the price and it does not have the purple backing (not pictured here) that seems to add some rigidity to the cardboard.
Stick things 3.47$ I cut these in 1/2 so there was less resistance when in the cardboard and you do not need the full length.
My new DIY cold air box/intake heat shield.-20130430_082204.jpg
My new DIY cold air box/intake heat shield.-20130429_195130.jpg
My new DIY cold air box/intake heat shield.-20130430_082052.jpg
should be done with this in a day or 2 with some more pics.
t2couger is offline   Reply With Quote
Old 05-04-2013, 04:34 AM   #36
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

hers my full length airbox....makes a HUGE difference in intake air temps measured with my K type thermocouple device...
http://www.cardomain.com/ride/264041...a-mx-5/page-6/
4sfed5 is offline   Reply With Quote
