A couple of you wanted more pics of the intercooler piping, here ya go-

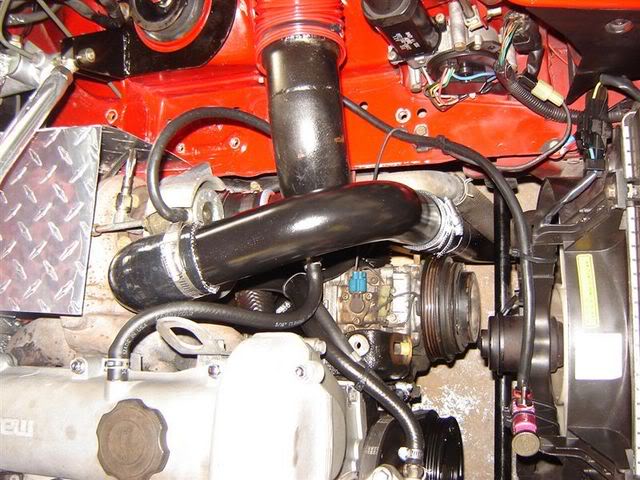

Name:  DSC04396.jpg
Views: 0
Size:  76.0 KB

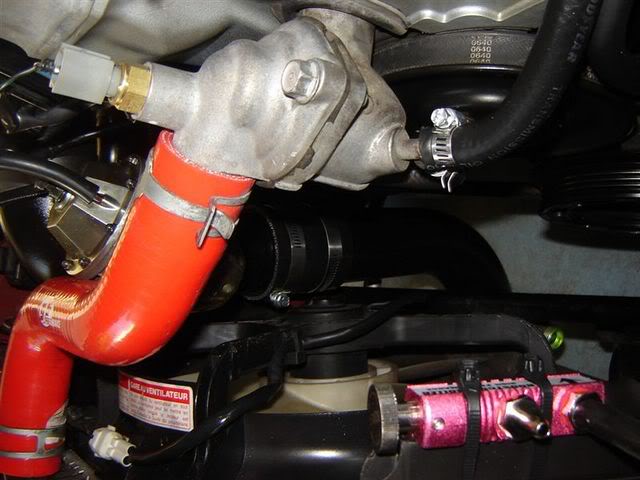

Name:  DSC04399.jpg
Views: 0
Size:  47.3 KB

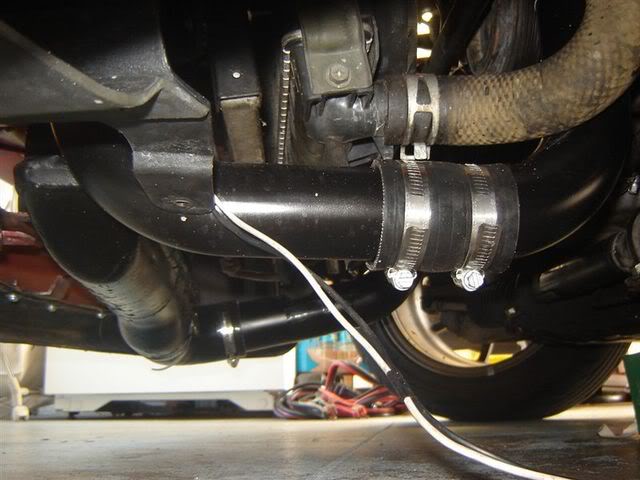

Name:  DSC04402.jpg
Views: 0
Size:  46.6 KB

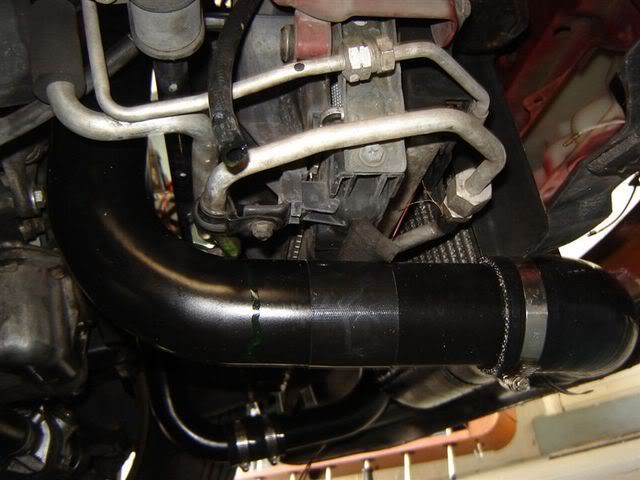

Name:  DSC04403.jpg
Views: 0
Size:  45.7 KB

The pass side needs some tewaking, It need to be a little higher.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-27-2007, 01:53 PM   #22
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

I noticed in the last picture you're dumping the coolant overflow tube straight down, then scrolled up and there isn't a coolant recovery tank. Any reason why?

otherwise looks good.
MiaTurbo is offline   Reply With Quote
Old 08-27-2007, 03:45 PM   #23
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by MiaTurbo View Post
I noticed in the last picture you're dumping the coolant overflow tube straight down, then scrolled up and there isn't a coolant recovery tank. Any reason why?

otherwise looks good.
Begi AFPR moved in, recovery tank moved out.
Saml01 is offline   Reply With Quote
Old 08-27-2007, 04:01 PM   #24
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by MiaTurbo View Post
I noticed in the last picture you're dumping the coolant overflow tube straight down, then scrolled up and there isn't a coolant recovery tank. Any reason why?

otherwise looks good.

Well for 1 its ugly. 2nd i was lookin to relocate it or get something nicer looking, but then I read either here or on m.net someone who did what I did and a year later never had any issues other than some drops on the floor from time to time.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-27-2007, 04:29 PM   #25
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
Well for 1 its ugly. 2nd i was lookin to relocate it or get something nicer looking, but then I read either here or on m.net someone who did what I did and a year later never had any issues other than some drops on the floor from time to time.
by not having a recovery/overflow tank you will constantly have to fill the radiator, and it's a good way to get air into your coolant system without.
MiaTurbo is offline   Reply With Quote
Old 08-27-2007, 08:59 PM   #26
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by MiaTurbo View Post
by not having a recovery/overflow tank you will constantly have to fill the radiator, and it's a good way to get air into your coolant system without.

Care to explain why.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-28-2007, 01:14 PM   #27
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

[QUOTE=samnavy;143837]Lev, there are two popular WB02's that we usually recommend. The first is from Innovate Motorsports called the LC1. It goes for under $200 but does not include a gauge. What it does include is a really nice software package that you load onto your laptop. Since you really only need to monitor WB02 readings during tuning, driving around with a laptop on the passenger seat for an afternoon isn't that big of a deal.

QUOTE]



Does the LC1 wideband need to be installed in the car at all times, or can you install it tune your car and then take it out to use in another car?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-28-2007, 01:19 PM   #28
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

^That's not uncommon. There's nothing wrong with borrowing one either instead of buying your own. It's kind of a pain in the *** to wire in just to borrow one and use it once though. You'll want some sort of piggyback or standalone in the future anyways, so it's makes sense just to buy one and make it a permanent install.... that way, anytime you make any change to your system (bigger injectors, another PSI of boost) it's all ready to go for tuning.

Also if you're going to do that, you need an extra bung on your downpipe cause the stock NB02 will still be used.

They are fairly particular to their power source and grounding connections. Ask in the MS forum for where/how guys like to run their install.
samnavy is offline   Reply With Quote
Old 08-28-2007, 01:19 PM   #29
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

MS needs full time wideband input in order for certain things to work right. You could put it in another car but you better make the wired connections with bullet connectors or something that you can easily unplug.
cjernigan is offline   Reply With Quote
Old 08-28-2007, 01:25 PM   #30
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post

Also if you're going to do that, you need an extra bung on your downpipe cause the stock NB02 will still be used.

.
When I installed my catback a few months back I had to put a plug in an O2 bung cause as you know my car only has 1 O2. Can I use that bung?

By MS I assume you mean Megasqirt section?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-28-2007, 01:41 PM   #31
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Yes, MS=Megasqirt.

If you intend to replace the NB02 with a WB02 and use the WB02 to feed the engine computer, then you only need one bung cause you're replacing the stock one. If you are going to install the LC1 alongside the stocker, then you need a spare bung. It doesn't matter where in the exhaust it is (you could stick it on the muffler) as long as it's not too close to the turbo... I think 6" is generally as close as you want it.
samnavy is offline   Reply With Quote
Old 08-28-2007, 11:48 PM   #32
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
Care to explain why.
Normally, as coolant get hot, it goes out the tube to the tank and the end is submerged in extra coolant in the tank. As the system gets cold, the coolant in the block/radiator contracts and sucks coolant back in from the tank. With no tank there, the system will suck back in air after it has purged coolant.
