Default Mystery Ebay Turbo ID

Sorry for another turbo identification thread but this one has me really confused. It is at a shop right now so any measurements will take a bit since I have to drive up there or ask them to measure.

Based on the original owner's build website here (under the "Turbo and Intake" link on the left) it looks like he installed a manifold/turbo/downpipe that was all sold to him as a T25. That is why I went ahead and bought the BEGi T25/T28 exhaust manifold without looking close enough at the orientation of the turbo flange...

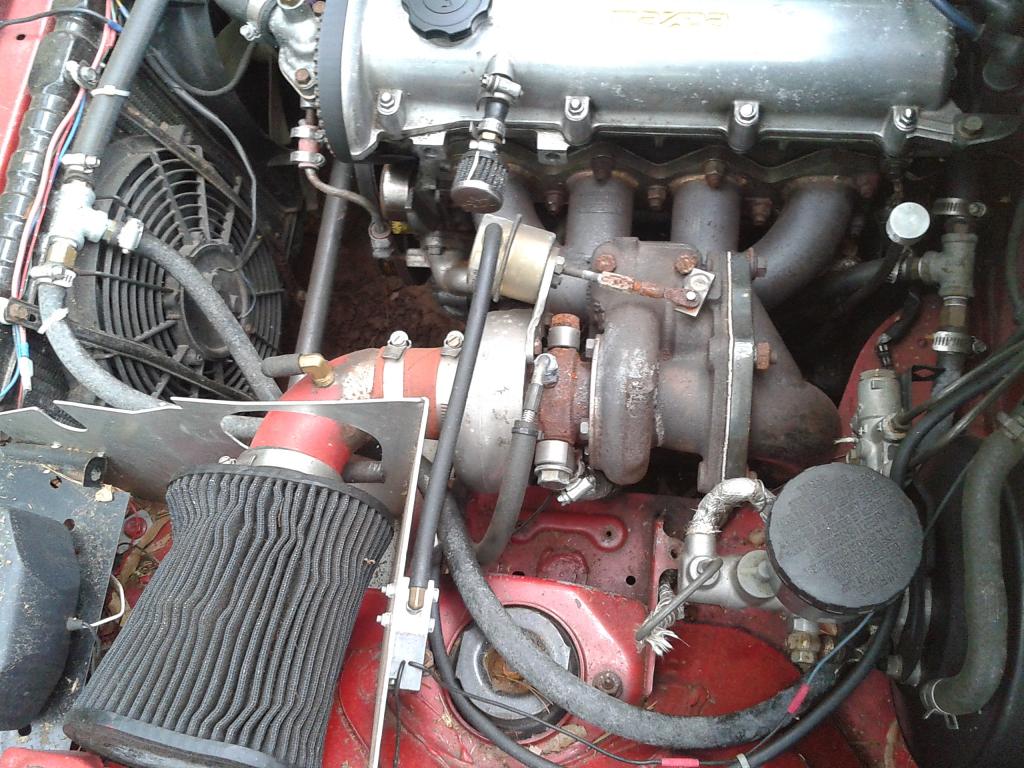

Here is the old setup with the mystery turbo bolted to the cheapo "SS" manifold. Notice the "thin side on top and long side parallel to the dp flang" arrangement of the manifold flange:

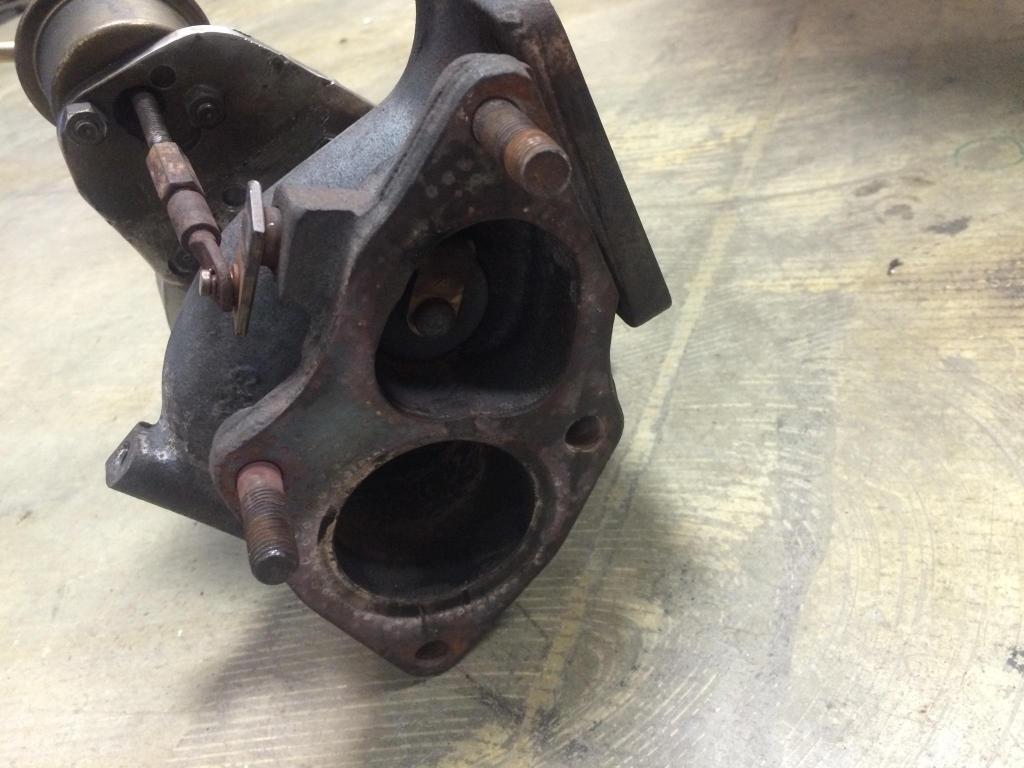

Here is a picture of the down-pipe flange with its 4-bolt configuration:



The closest picture I have found online that looks similar is from a second gen mitsubishi and is a T25. Look here.

The compressor for the mitsu T25's look completely different though since they have a J-shaped compressor outlet.

Any help would be appreciated!!

Edit: There are no ID tags anywhere on this turbo. This is probably a chinese knockoff and I can post pictures of my meet and greet thread if you want to see more pictures of the turbine and compressor stampings. One poster on that thread guessed it was some kind of T3 hybrid but the google search I do for those still gives me a "long-side perpendicular to the downpipe flange" arrangement that my turbo doesn't have.
Attached Thumbnails
Mystery Ebay Turbo ID-2013-06-25173939_zps11e5b21b.jpg   Mystery Ebay Turbo ID-img953734_zps38f8c39f.jpg

Last edited by ecc3189; 11-07-2014 at 04:42 PM. Reason: Added info
ecc3189 is offline   Reply With Quote
Old 11-07-2014, 04:43 PM   #2
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

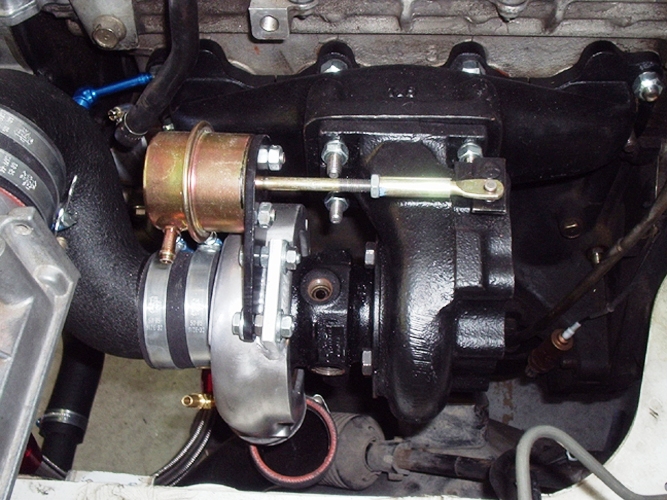

This is the manifold I bought and how the T25 turbo should look when bolted up:

Attached Thumbnails
Mystery Ebay Turbo ID-1.6_miata_turbo_manifold_1.jpg
ecc3189 is offline   Reply With Quote
Old 11-07-2014, 04:54 PM   #3
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

That turbo looks like a TD05-16g China copy. As far as I know there are no decent off the shelf Miata manifolds for it. You could make one https://www.miataturbo.net/diy-turbo...5/#post1173119
sturovo is offline   Reply With Quote
Old 11-07-2014, 04:56 PM   #4
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

Quote:
Originally Posted by sturovo View Post
That turbo looks like a TD05-16g China copy. As far as I know there are no decent off the shelf Miata manifolds for it. You could make one https://www.miataturbo.net/diy-turbo...5/#post1173119

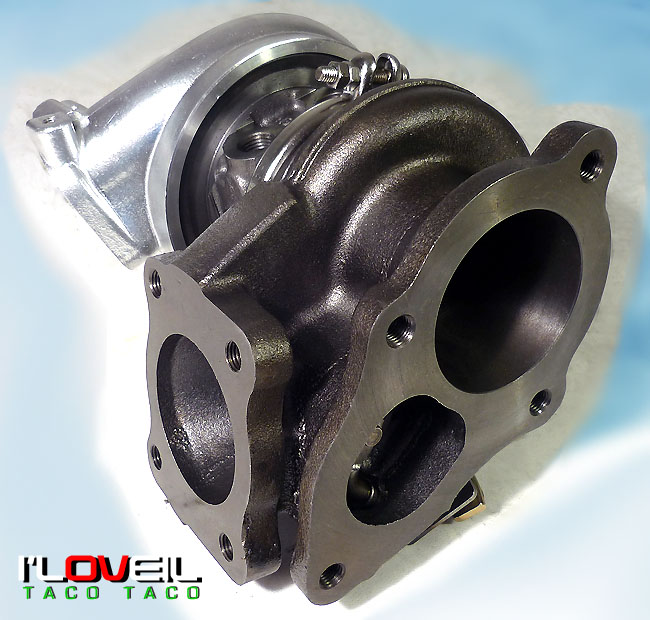

I found pictures of those too, but what threw me off was the rounded middle section of the flange:



Is that not on all of them?
Attached Thumbnails
Mystery Ebay Turbo ID-4-td05.jpg
ecc3189 is offline   Reply With Quote
Old 11-07-2014, 05:33 PM   #5
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Attached Thumbnails
Mystery Ebay Turbo ID-error.jpg
sturovo is offline   Reply With Quote
Old 11-07-2014, 05:47 PM   #6
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

It's an EFR
Mazdaspeeder is offline   Reply With Quote
Old 11-07-2014, 06:09 PM   #7
Junior Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

Quote:
Originally Posted by Mazdaspeeder View Post
It's an EFR
But it has garret stamped on the compressor?
ecc3189 is offline   Reply With Quote
Old 11-07-2014, 06:43 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default



Looks like the Alpha Omega TSE non-electronics kit
18psi is offline   Reply With Quote
Old 11-07-2014, 06:53 PM   #9
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by 18psi View Post


Looks like the Alpha Omega TSE non-electronics kit
Now with more Hydration!
concealer404 is offline   Reply With Quote
Old 11-08-2014, 08:47 AM   #10
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Flows 14% more than competing turbos. That's a cool story bro.
