Old 10-04-2013, 01:45 PM   #1
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default NEED HELP MS,GREDDY KIT,METH WONT RUN

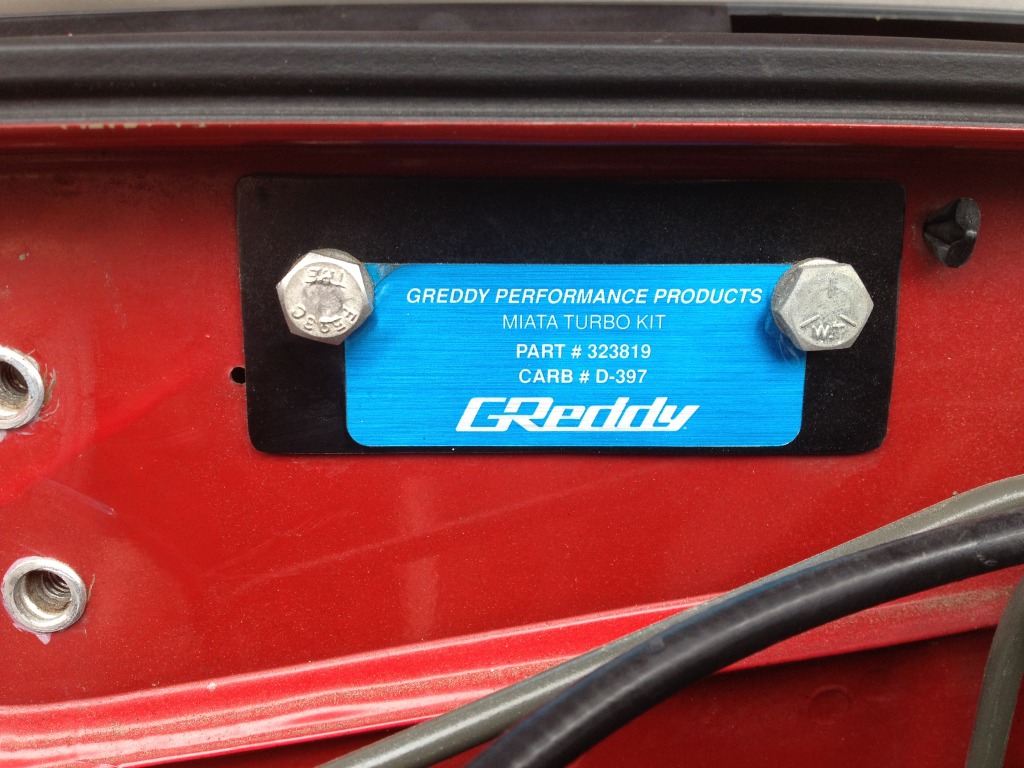

Hi guys im new here. I cannont get my 1992 miata to run. I purchased it not running and i just wanted to share a few pics.... I also wanted to say it has perfect compression and leak down results across the board. When i bought the car the harness was beyond a nightmare.... Since then i have removed every harness on the car, Completely installed a uncut un hacked harness.... Now heres some pics below..... of all the stuff the previous owner did and im still clueless about...

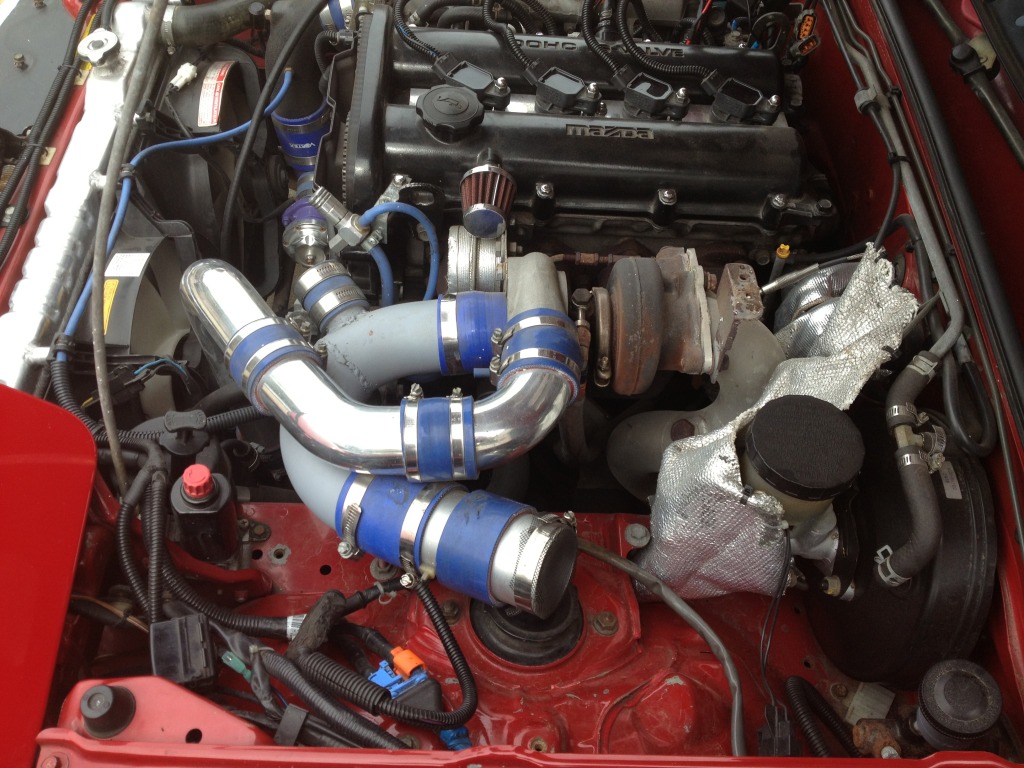

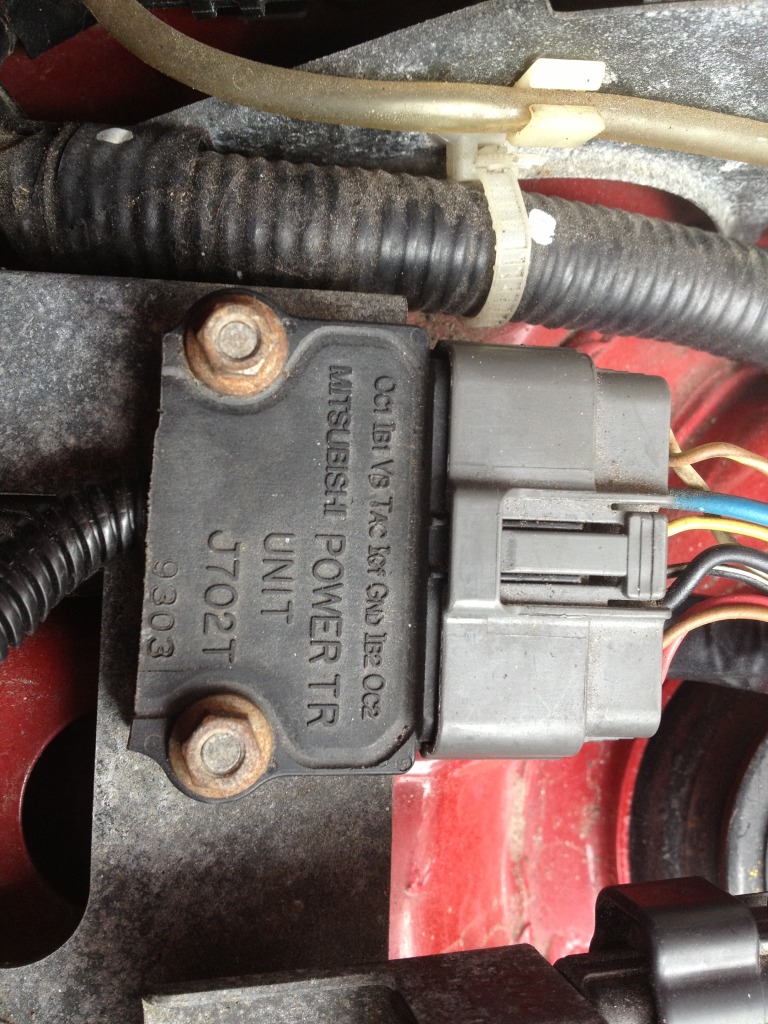

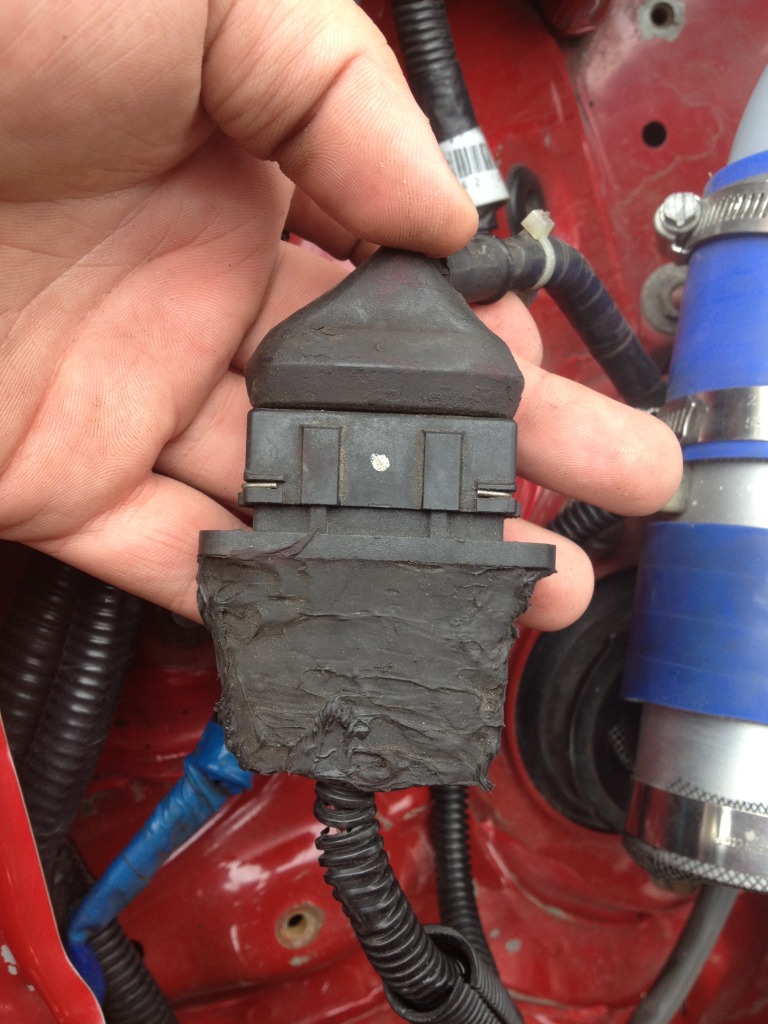

Attached Thumbnails
NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps856b68ad.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps7d43aa3b.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps1f4dca82.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps9e7fb011.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zpsb519208a.jpg

NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zpsa6fbd33a.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zpse27f193c.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps28cbdc20.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps238d99c6.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps0e0e7848.jpg

NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps9343f032.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps843d7929.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zpsdaccc7b0.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps0a1d00c5.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps142d1fc9.jpg

NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zpsf2a72aa0.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps3bb34697.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zpsa207934a.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps8afe9ca5.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-null_zps8c28e8fc.jpg

slammedkouki is offline   Reply With Quote
Old 10-04-2013, 01:57 PM   #2
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

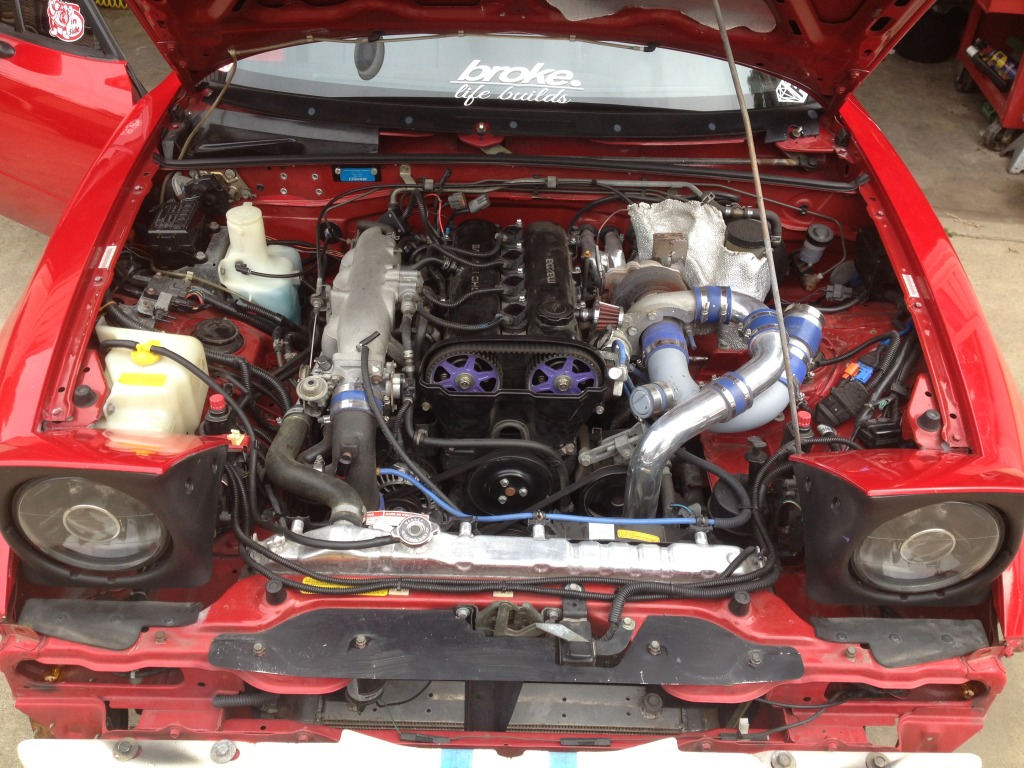

NOTE: all pictures above are the day i got the car before i swapped harnesses etc.... Im just looking for any informtion regaurding what i actually have here.... FROM the research i have done... I know it has COPS, I know the black box contains resistors in it for the COPS. I also know it has a 36-1 Crank trigger wheel, It has a CAS DELETE, It has AIT SENSOR IN FMIC, It has DEVILS OWN STAGE 2 DCV meth kit. THE TPS LOOKS REALLY WEIRD AS WELL
slammedkouki is offline   Reply With Quote
Old 10-04-2013, 03:17 PM   #3
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Looks like you have a standalone ECU. Did you try connecting up to it to see what might be going on there?
Harv is offline   Reply With Quote
Old 10-04-2013, 03:24 PM   #4
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Attached Thumbnails
NEED HELP MS,GREDDY KIT,METH WONT RUN-megasquirt_help.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-megasquirt_help1.jpg
concealer404 is offline   Reply With Quote
Old 10-04-2013, 03:28 PM   #5
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by Harv View Post
Looks like you have a standalone ECU. Did you try connecting up to it to see what might be going on there?
It has a megasquirt with tons of options.... I had a member on here label everything for me and im awaiting its arrival as we speak so i can reinstall and see what happens with the new harness..
slammedkouki is offline   Reply With Quote
Old 10-04-2013, 03:31 PM   #6
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

So that's a "No?"


But in the meantime, you're wondering why your 92 Miata won't run on stock ECU without a VAF, with COPs, and probably with bigger injectors, right?
concealer404 is offline   Reply With Quote
Old 10-04-2013, 03:34 PM   #7
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Quote:
Originally Posted by slammedkouki View Post
It has a megasquirt with tons of options.... I had a member on here label everything for me and im awaiting its arrival as we speak so i can reinstall and see what happens with the new harness..
As concealer404 noted all that stuff you have (or don't have) on the thing means it won't work with the stock ECU.
Harv is offline   Reply With Quote
Old 10-04-2013, 04:22 PM   #8
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Honest advice?

I wouldn't even know where to start on this one. The best thing would be to make it as stock as possible as follows:

1. Restore OEM harness (you already did that, right?)
2. Restore OEM ECU
3. Restore OEM AFM
4. Restore OEM Fuel Injectors
5. Restore OEM CAS
6. Restore OEM Coil Pack with Igniter

With the above, it should at least start and idle. If it does, then you can start remodding the car in a logical order. My order would be:
1. Switch to MS. Get it running.
2. Delete AFM. Get it running.
3. Upgrade injectors. Get it running.
4. Upgrade to COPs. Get it running.
5. Upgrade to Crank Trigger Wheel. Get it running.
etc.

Bottom line, start from a known-known and add the new bits one step at a time.
hornetball is offline   Reply With Quote
Old 10-04-2013, 05:32 PM   #9
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by concealer404 View Post
So that's a "No?"


But in the meantime, you're wondering why your 92 Miata won't run on stock ECU without a VAF, with COPs, and probably with bigger injectors, right?
I have connected it to a laptop. it came with laptop and 3 tunes. The tune for no meth, and 10 lbs of boost was on it..... Its set up properly i went through and made sure all the settings were right..... I Cracked open the MS to look and make sure she wasnt fried.... she wasnt so thats good. Then I replaced all the wiring from front to back. I replaced everything wiring wise in my 1992 mx-5 with 1990 mx-5 harness and now i have extra plugs with nothing to plug into them...... I was told the harness was a 1992 harness but was lied to. So now i have all new 1990 harness for mx-5 1.6 MT etc..... any idea if this can still work guys?
slammedkouki is offline   Reply With Quote
Old 10-04-2013, 05:33 PM   #10
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
Honest advice?

I wouldn't even know where to start on this one. The best thing would be to make it as stock as possible as follows:

1. Restore OEM harness (you already did that, right?)
2. Restore OEM ECU
3. Restore OEM AFM
4. Restore OEM Fuel Injectors
5. Restore OEM CAS
6. Restore OEM Coil Pack with Igniter

With the above, it should at least start and idle. If it does, then you can start remodding the car in a logical order. My order would be:
1. Switch to MS. Get it running.
2. Delete AFM. Get it running.
3. Upgrade injectors. Get it running.
4. Upgrade to COPs. Get it running.
5. Upgrade to Crank Trigger Wheel. Get it running.
etc.

Bottom line, start from a known-known and add the new bits one step at a time.
This is honnestly what i should do. I feel like its gonna take a big chunk of change to do so... :( The Car ran 3 weeks ago I just dont understand...
slammedkouki is offline   Reply With Quote
Old 10-04-2013, 06:00 PM   #11
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Have you done any real troubleshooting? Cranking logs?
concealer404 is offline   Reply With Quote
Old 10-04-2013, 07:00 PM   #12
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by slammedkouki View Post
The Car ran 3 weeks ago I just dont understand...
I thought you said you purchased it not running?
hornetball is offline   Reply With Quote
Old 10-04-2013, 07:55 PM   #13
Junior Member
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

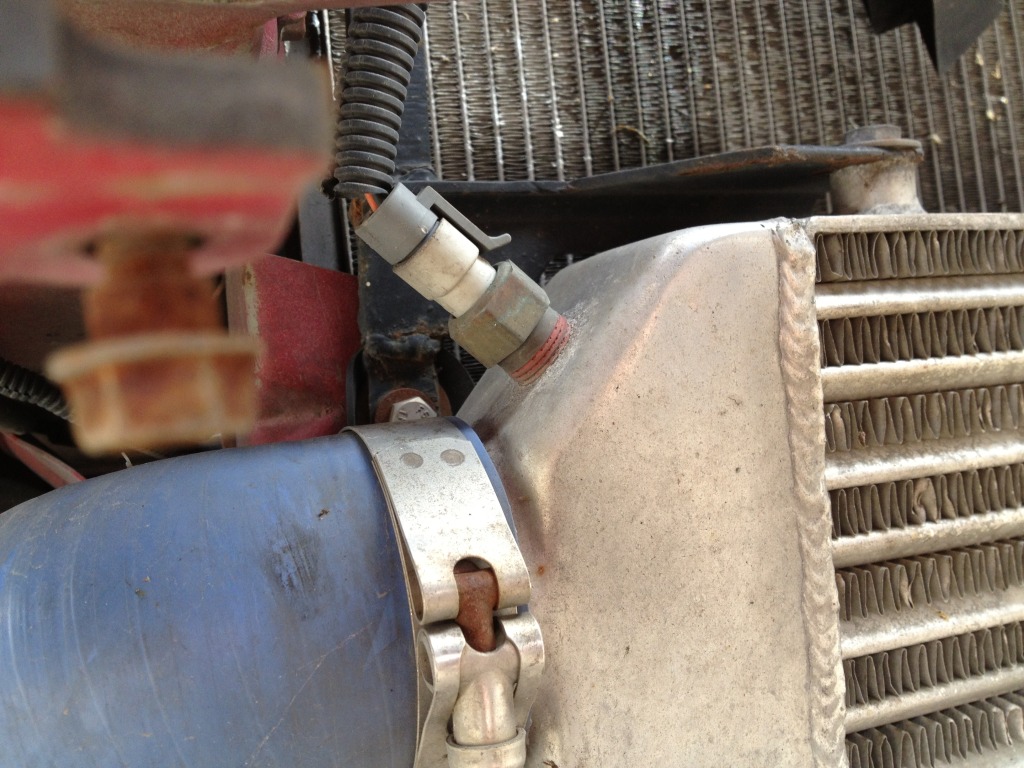

Is ok to run your iat sensor in your intercooler?
Thursday is offline   Reply With Quote
Old 10-04-2013, 08:02 PM   #14
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Absolutely. In fact, it's encouraged.
Onyxyth is offline   Reply With Quote
Old 10-04-2013, 09:02 PM   #15
Junior Member
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

I can't tell if your being serious lol.
Thursday is offline   Reply With Quote
Old 10-04-2013, 09:58 PM   #16
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by concealer404 View Post
Have you done any real troubleshooting? Cranking logs?
See i am very new to standalones, and megasquirt in general.... I dont even know about how to do one.
slammedkouki is offline   Reply With Quote
Old 10-04-2013, 10:00 PM   #17
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
I thought you said you purchased it not running?
I purchased it off a local. I have seen the car running and driving before. He sent a video of it when it was acting up.... It wouldnt rev past 3k rpms with led me to belive some sort of map/maf sensor problem.... But the next day when he tried to start it after he stopped driving it due to the 3k rpm problem it wouldnt start again. So i bought it for 4,000.00
slammedkouki is offline   Reply With Quote
Old 10-04-2013, 10:15 PM   #18
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

MORE PICS...

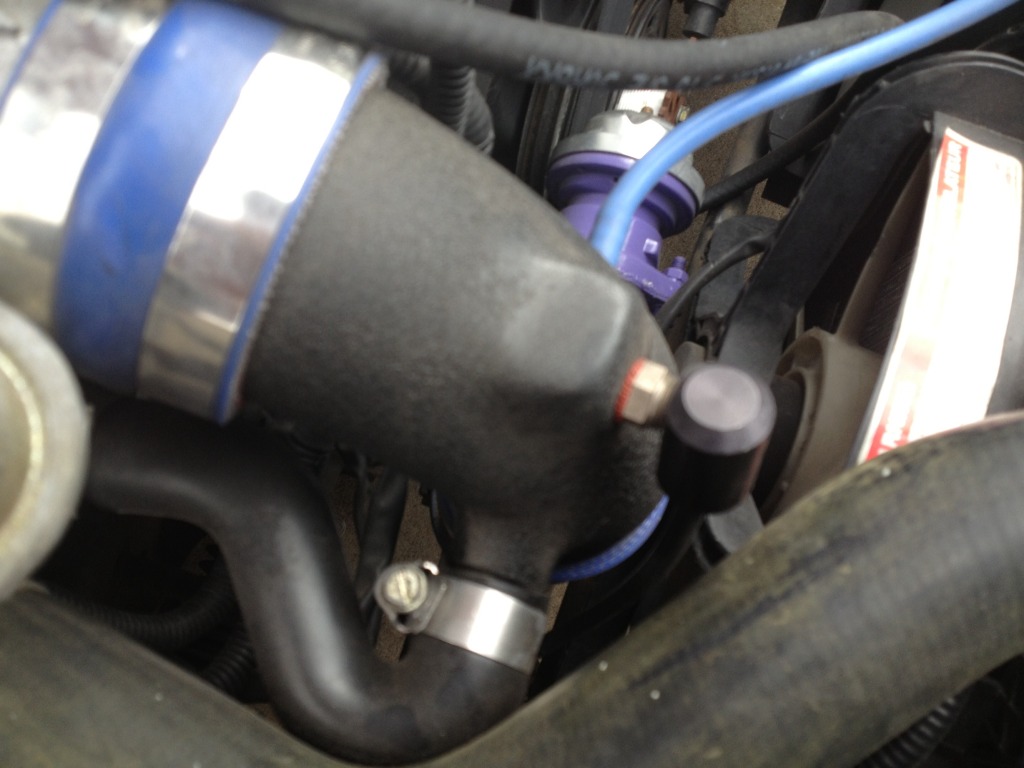

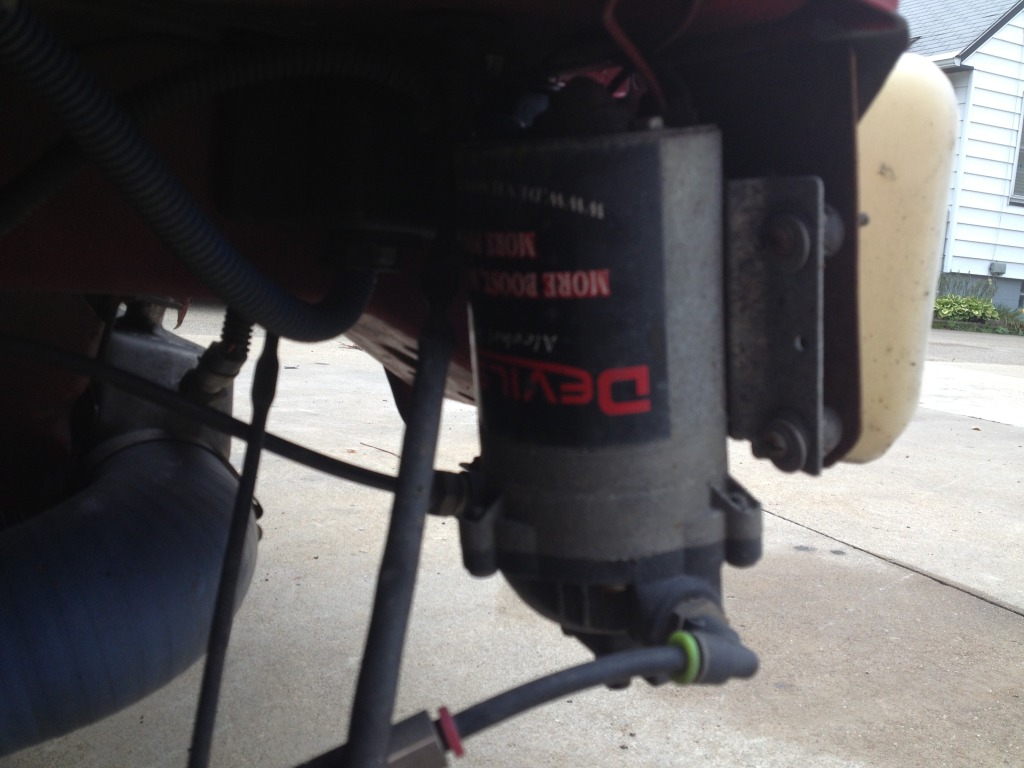

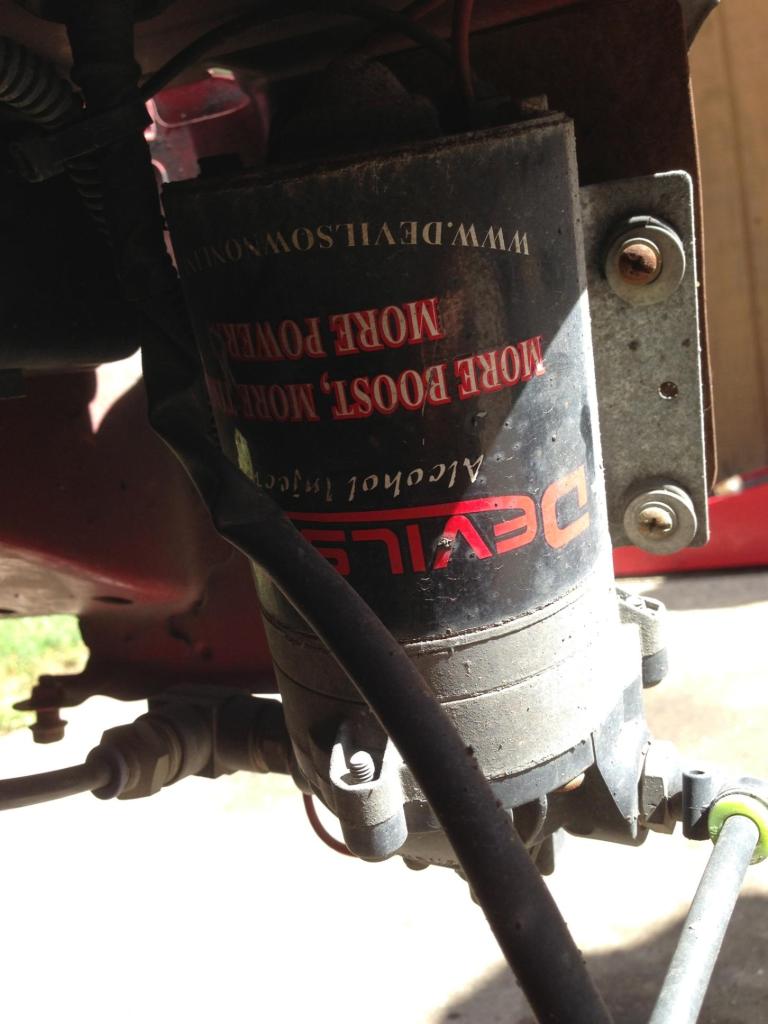

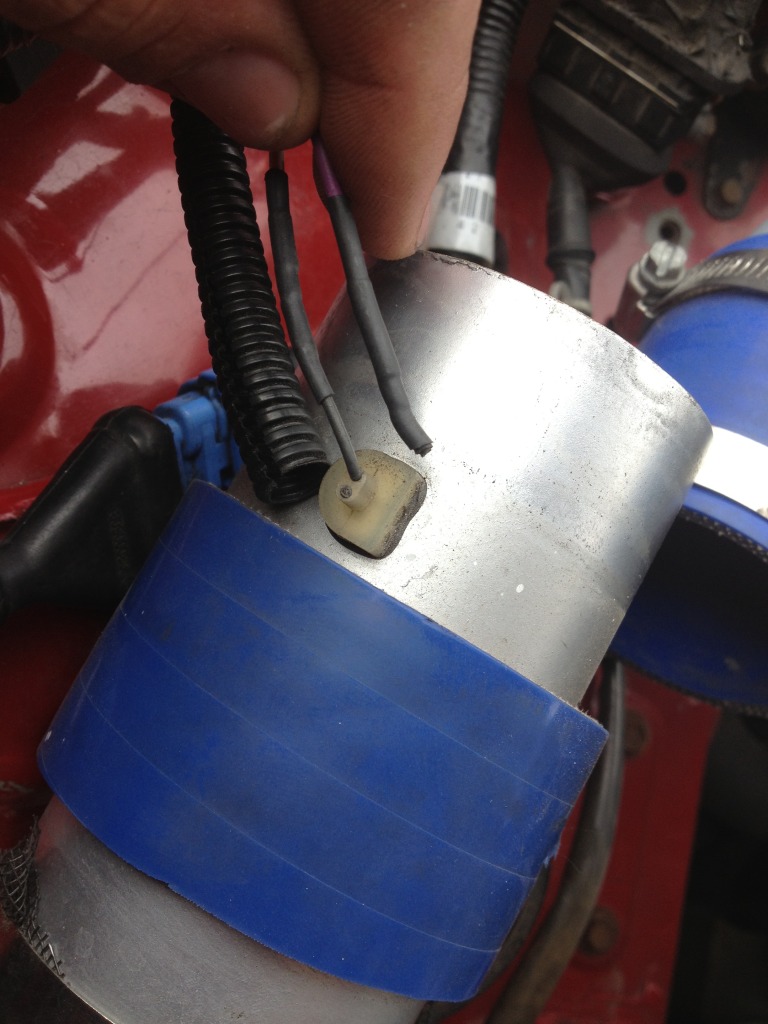

METH INJECTION ON COLD PIPE.

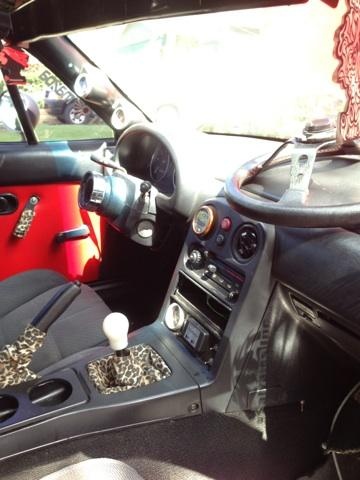

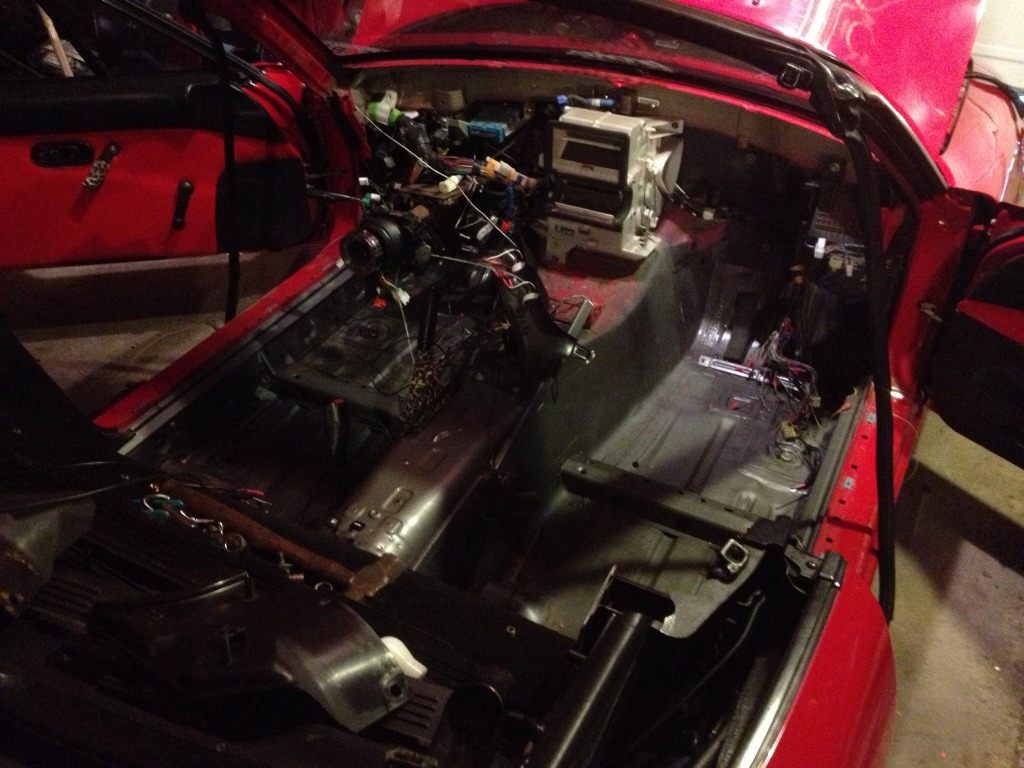

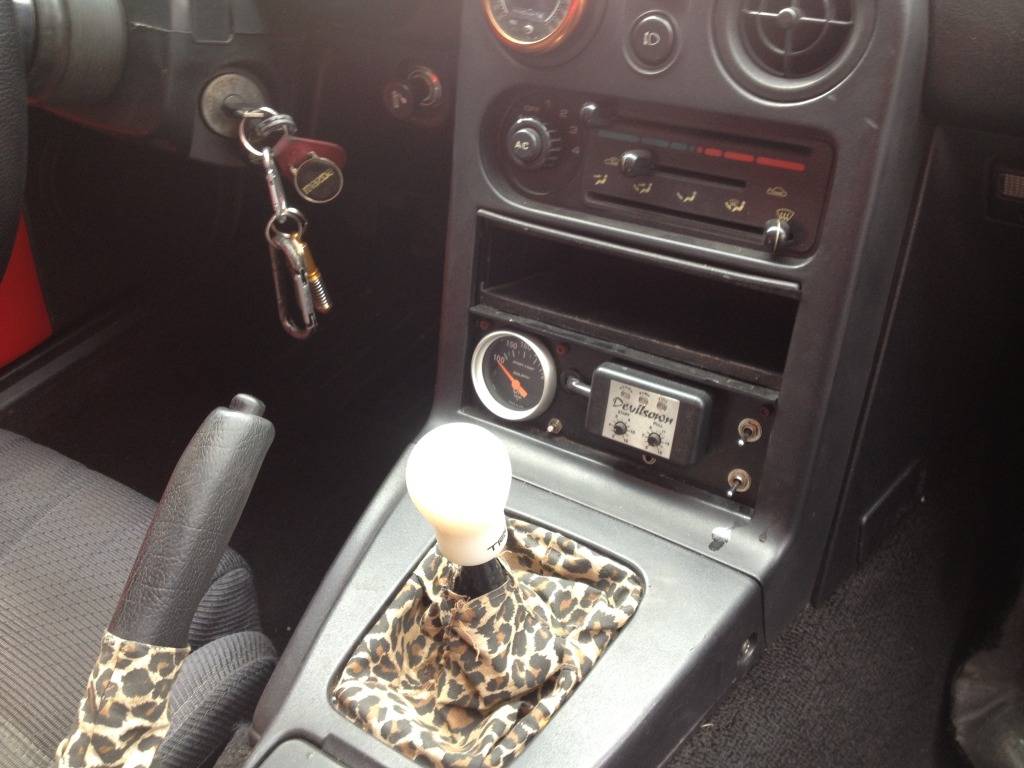

INTERIOR SHOT

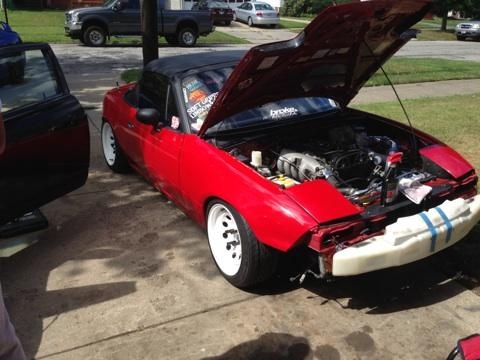

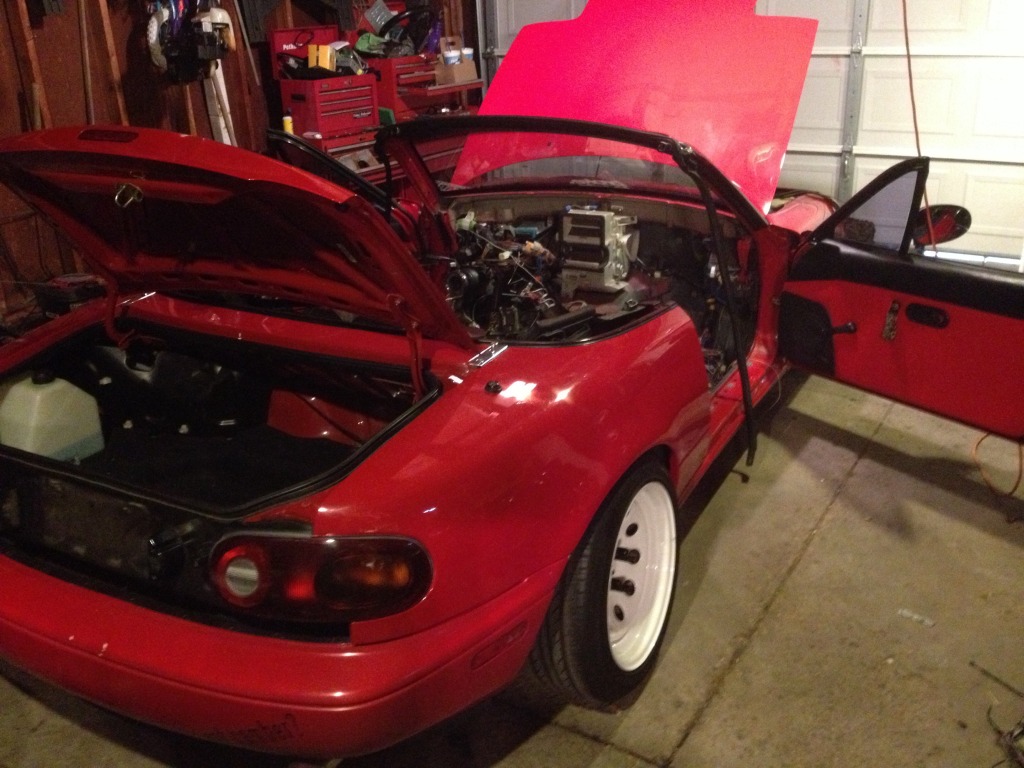

EXTERIOR SHOT

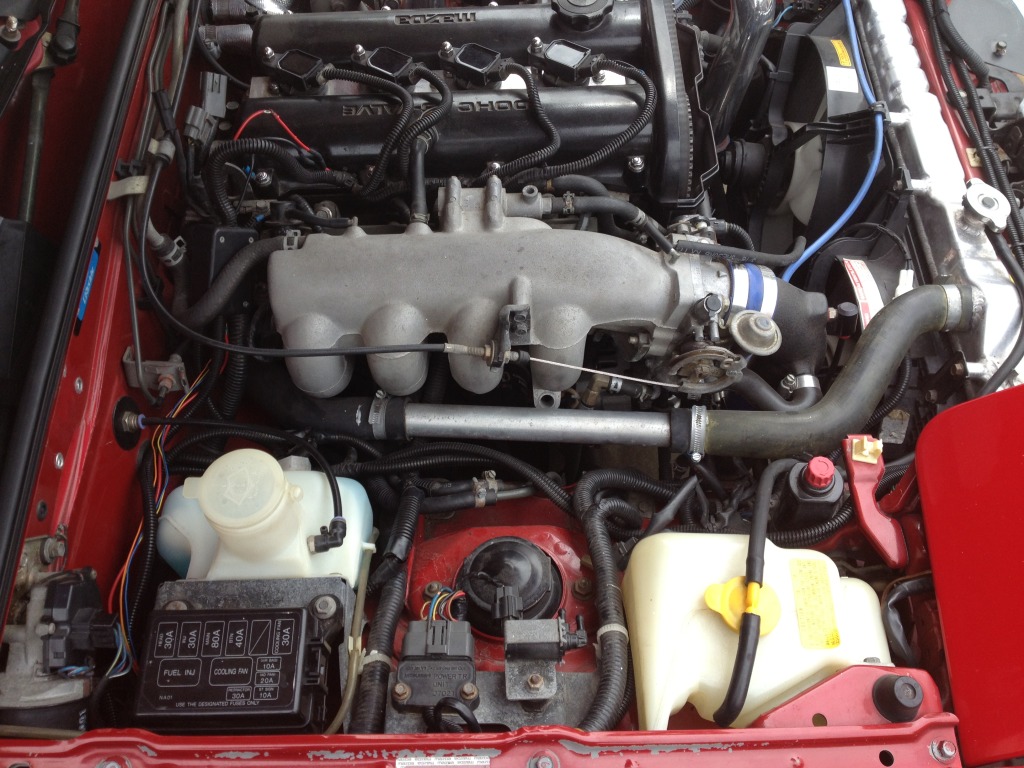

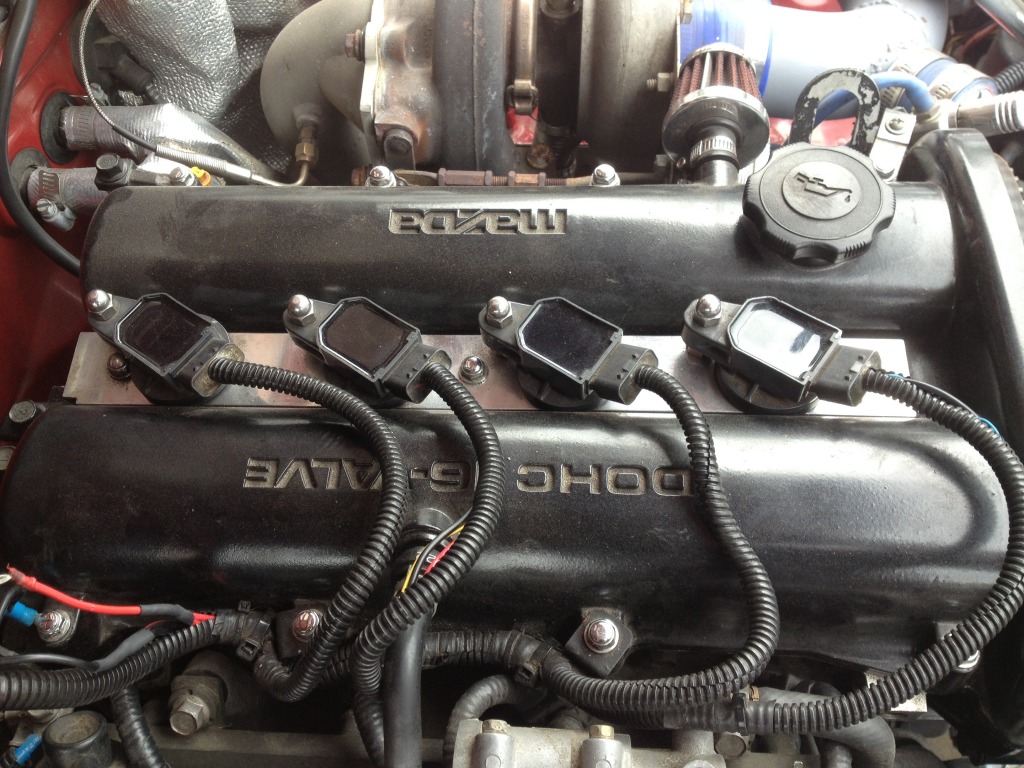

COPS


CAM ANGLE SENSOR DELETE AND COOLANT REROUTE

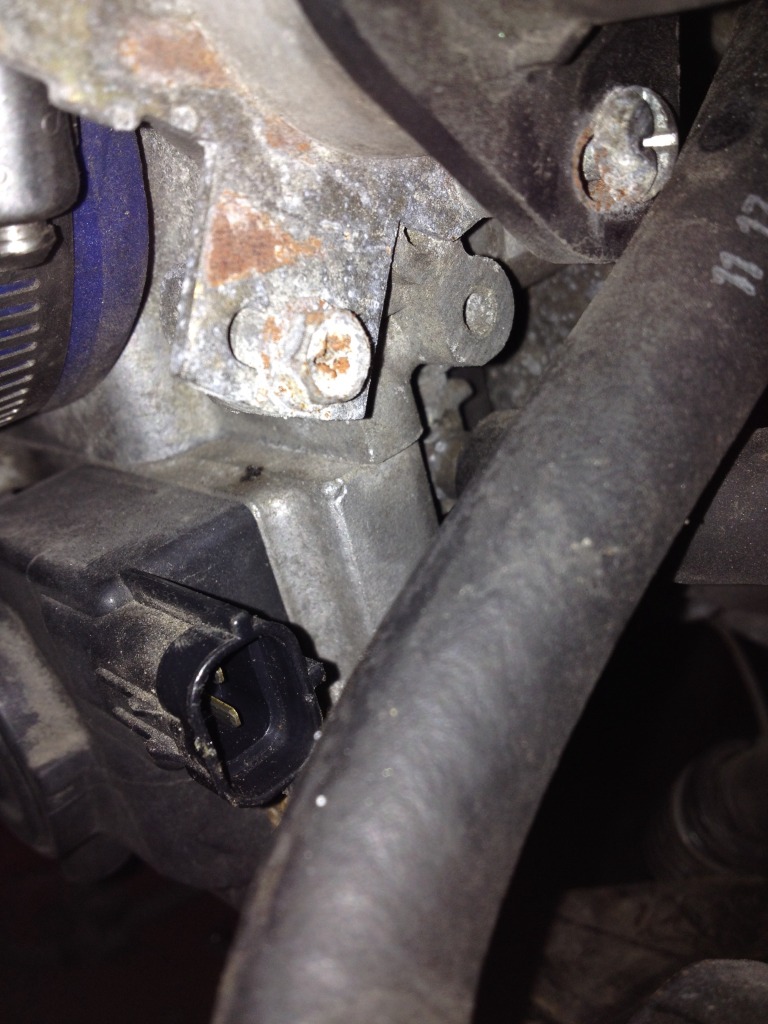

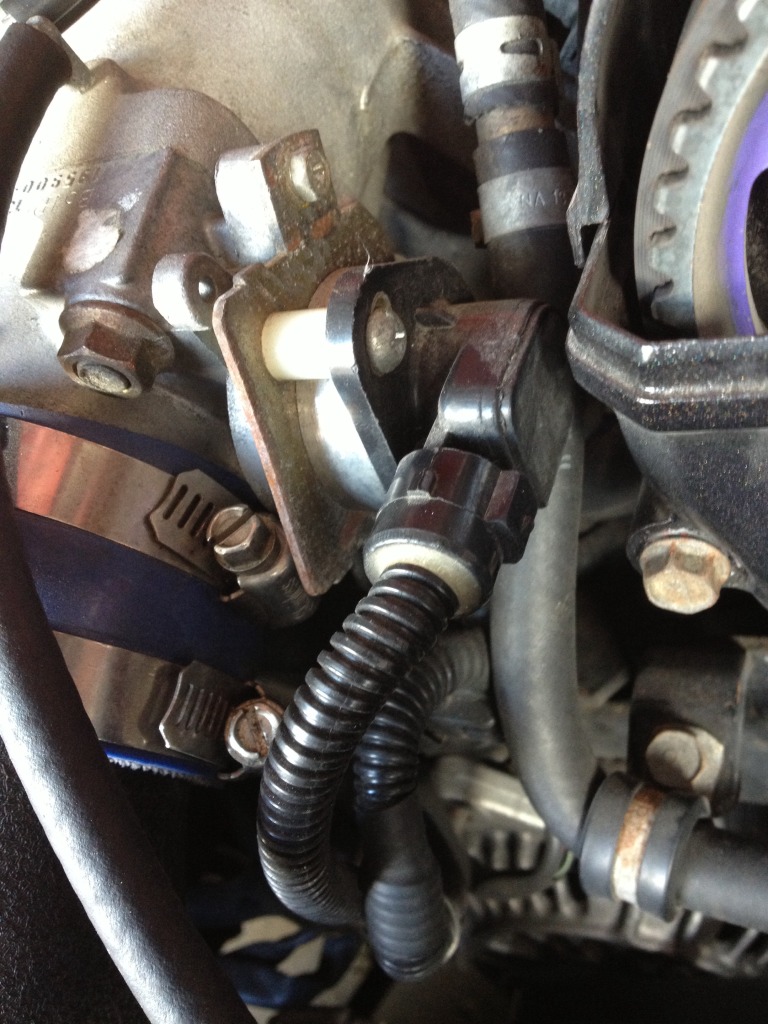

CORRECT ME IF IM WRONG BUT I BELIVE THS IS A E30 TPS?!?!?!

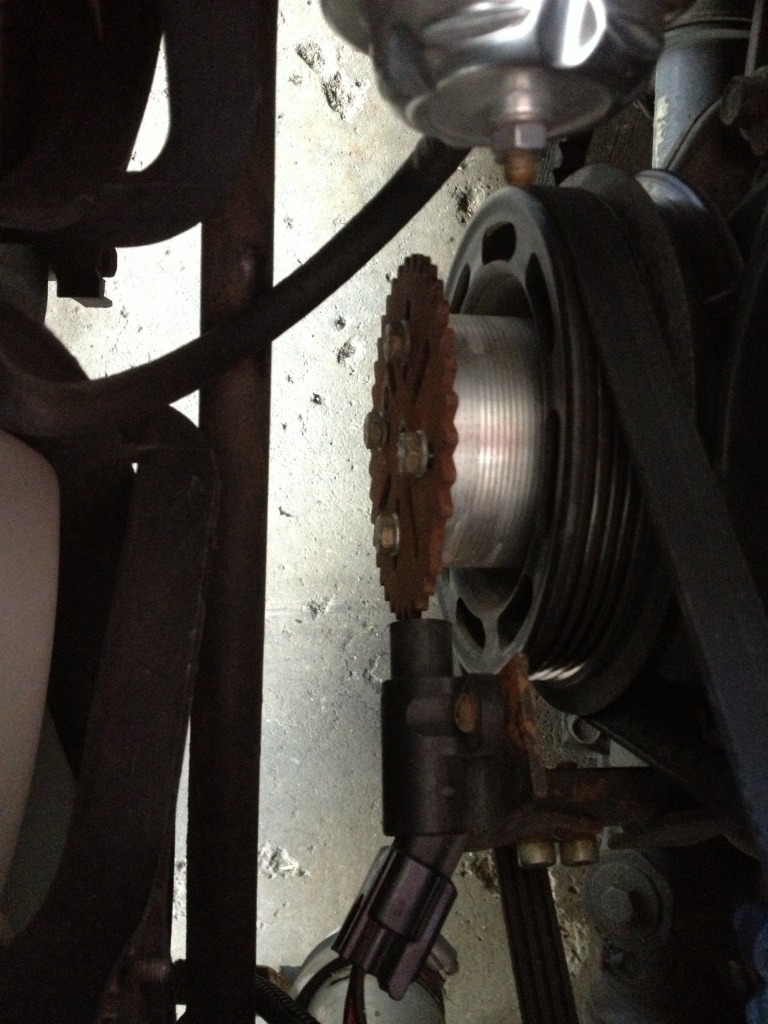

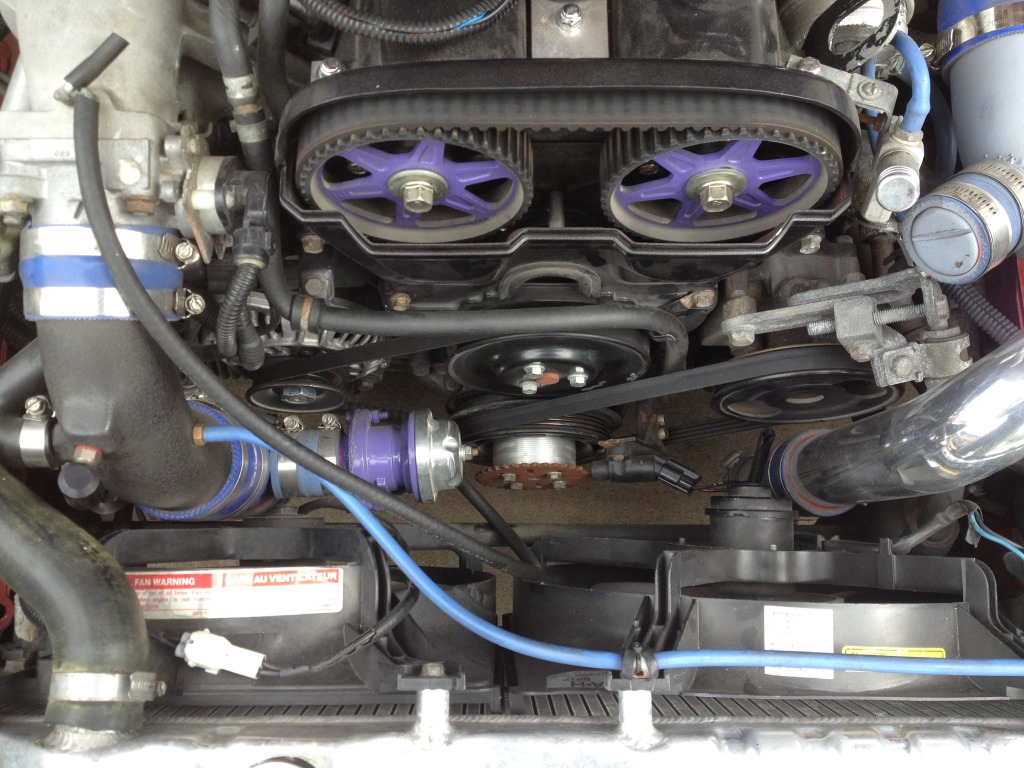

CRANK TRIGGER WHEEL AND HALL SENSOR


I belive this is the stock IACV

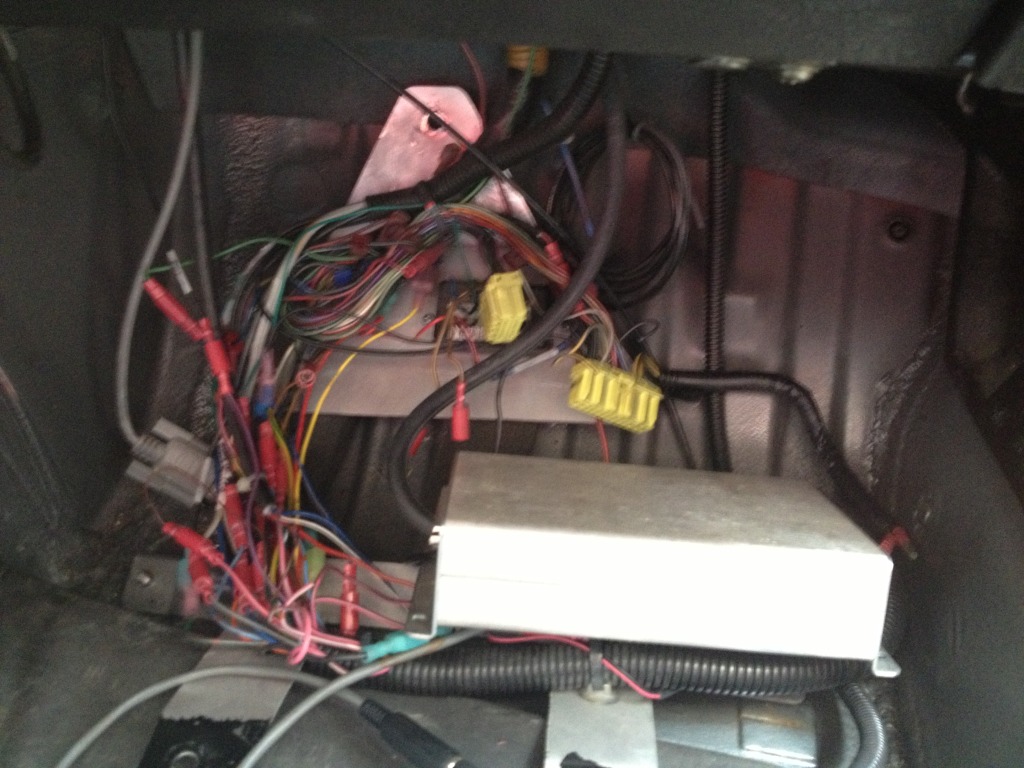

HARNESS TEARDOWN

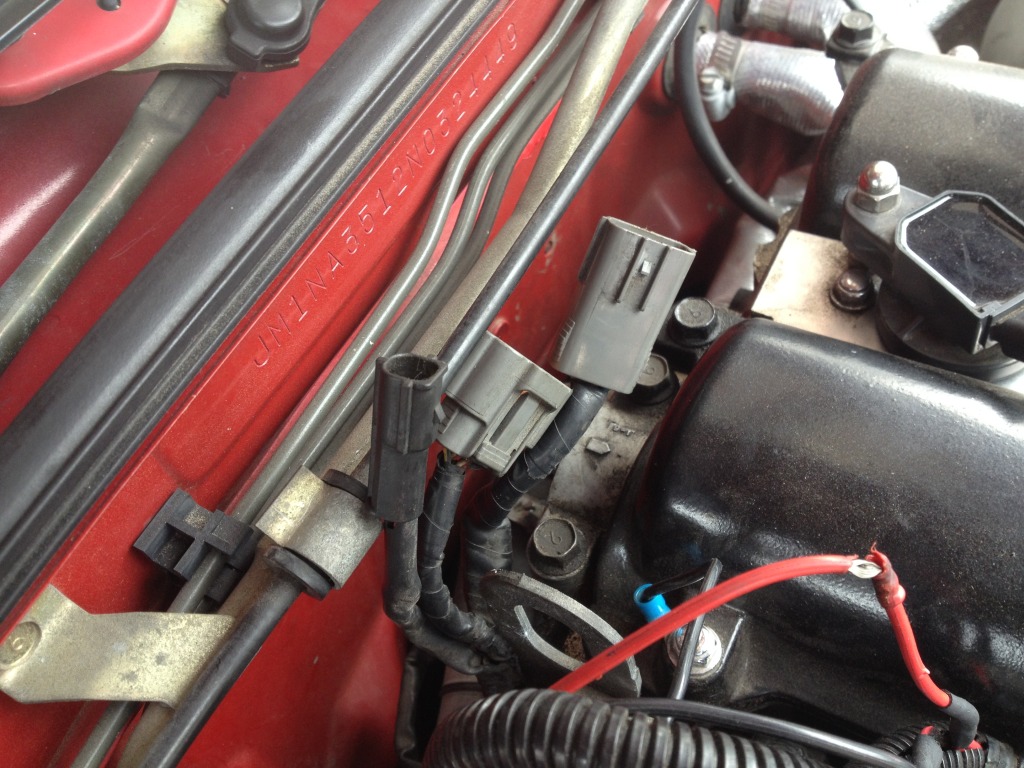

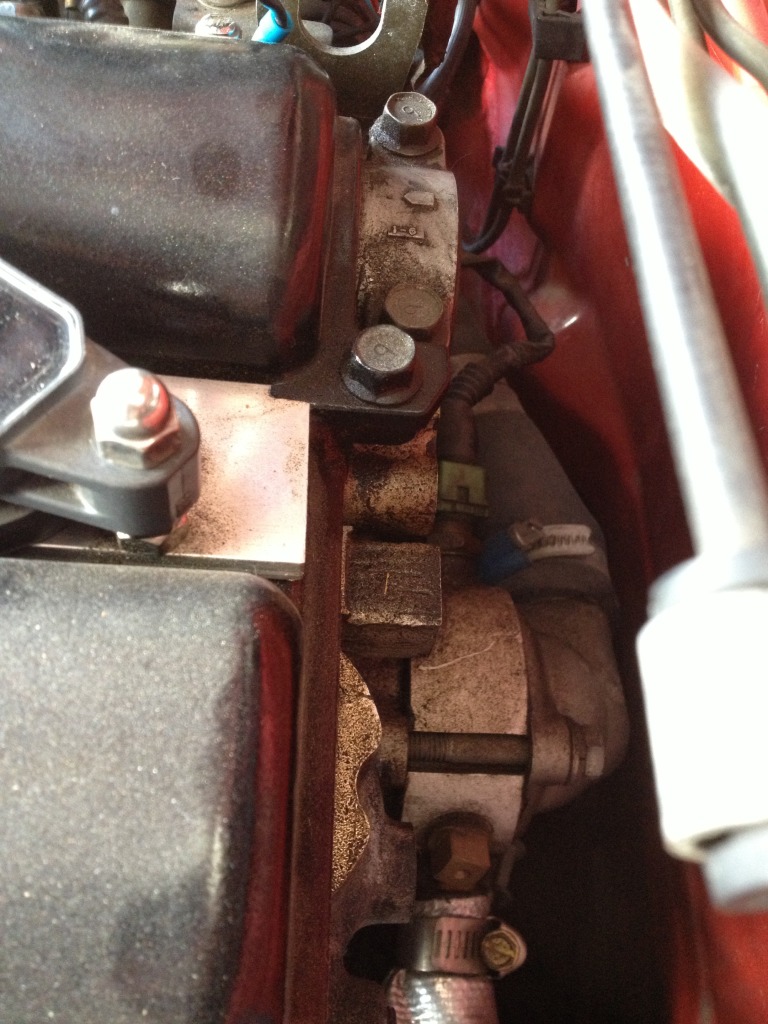

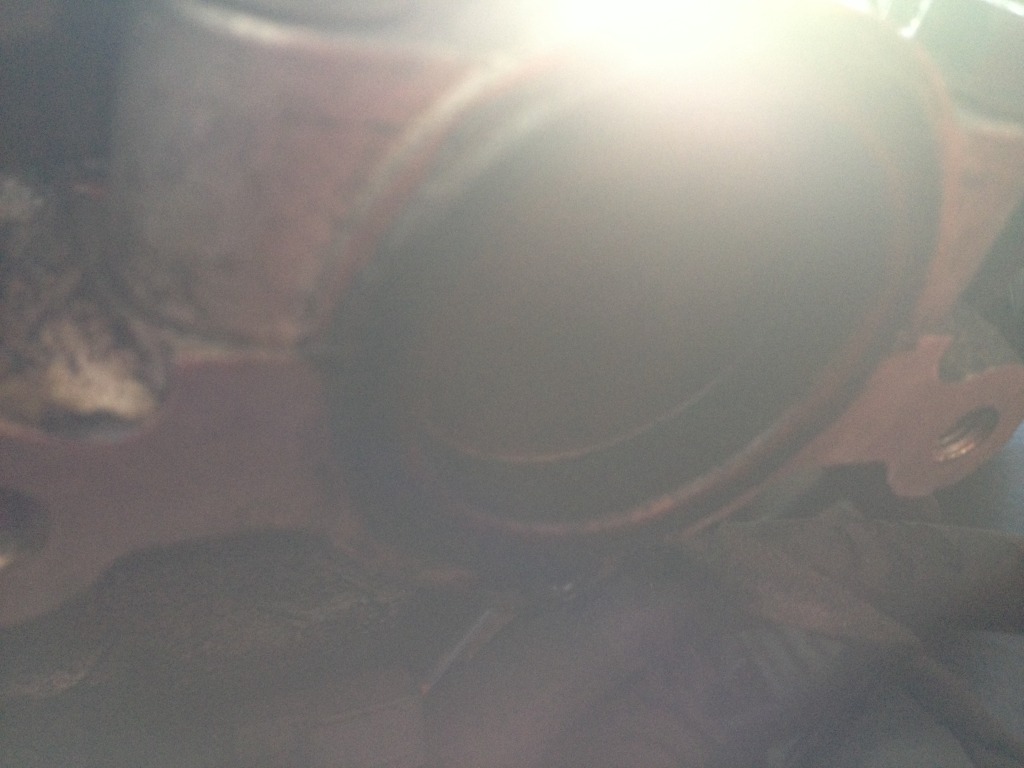

THE FREEZE PLUG THAT IS NOW IN PLACE OF THE STOCK CAM ANGLE SENSOR

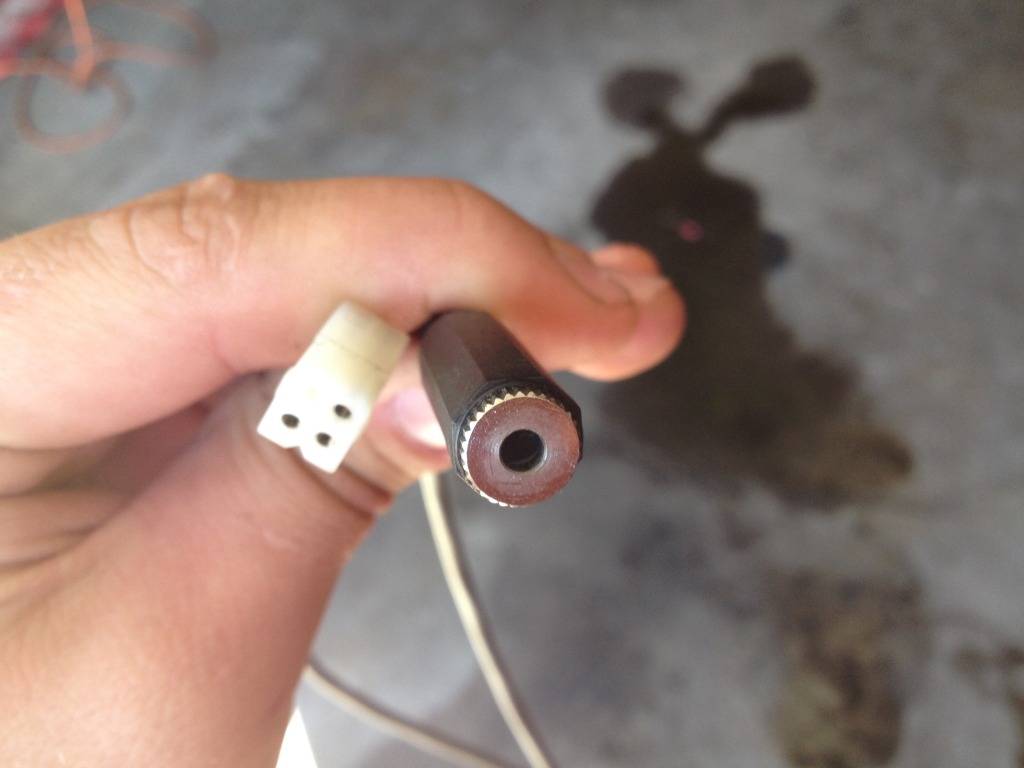

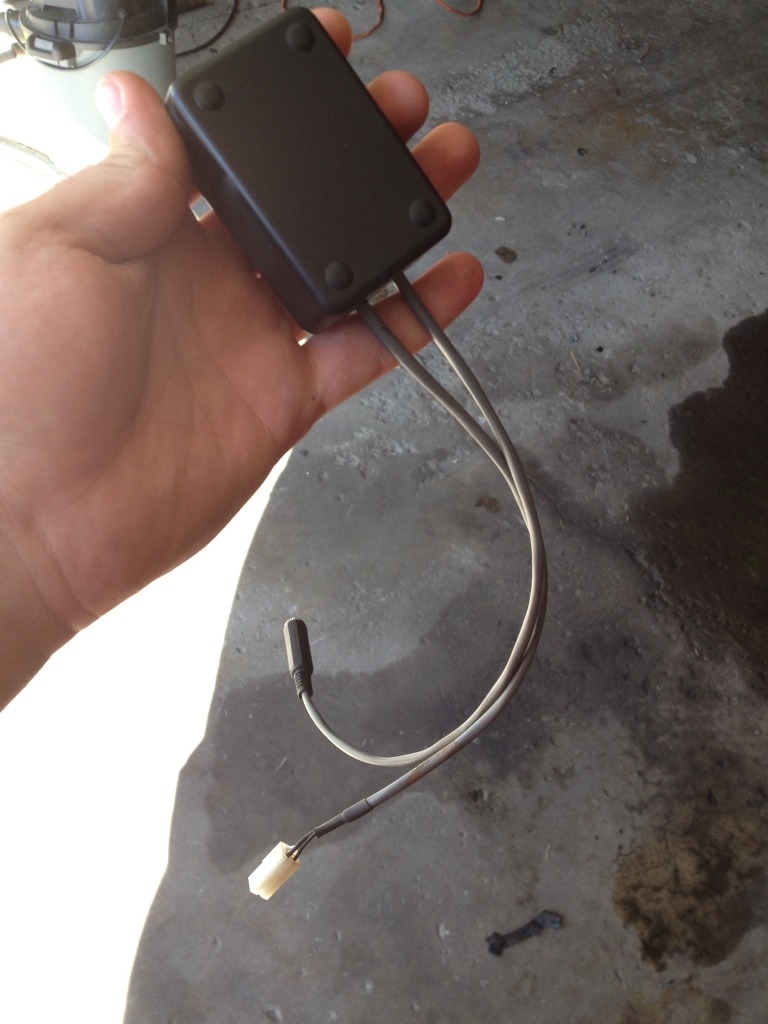

THIS UNIT HOOKS UP FROM MY HALL SENSOR AND CRANK TRIGGER WHEEL TO MY MS




MORE HARNESS TEARDOWN

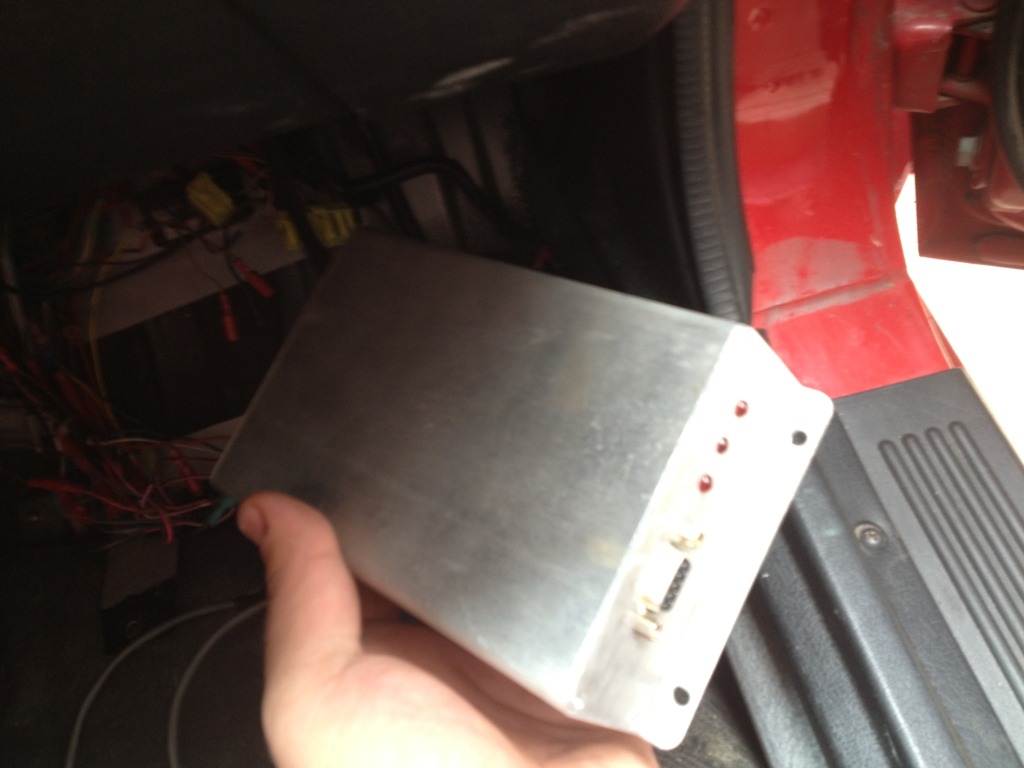

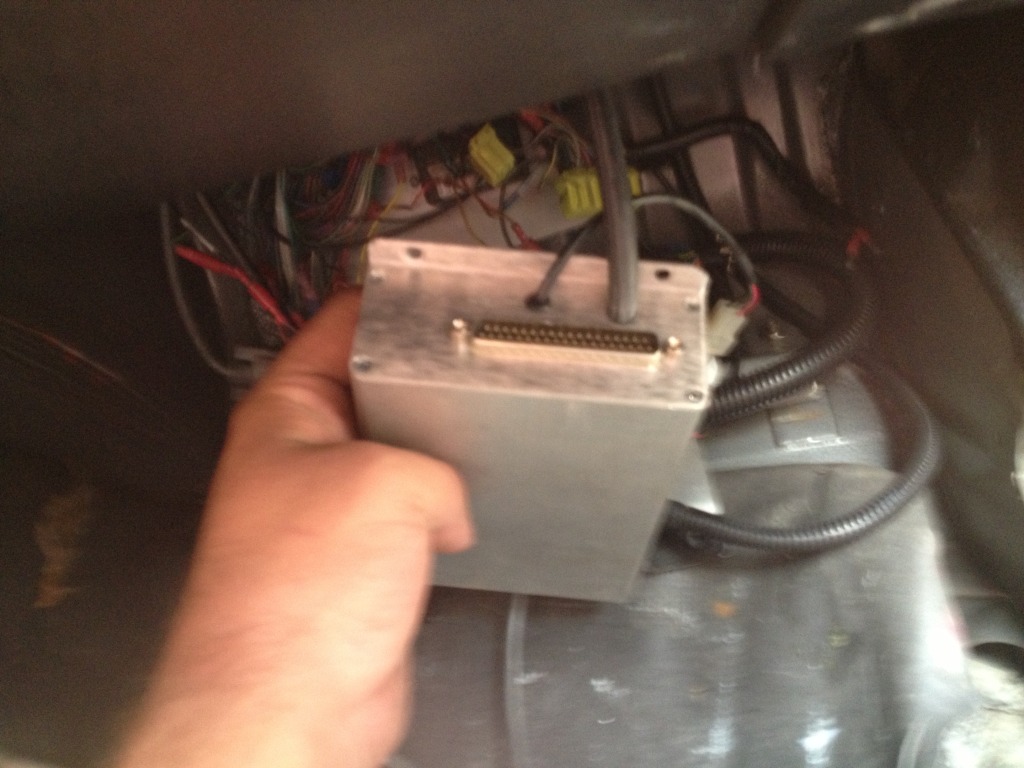

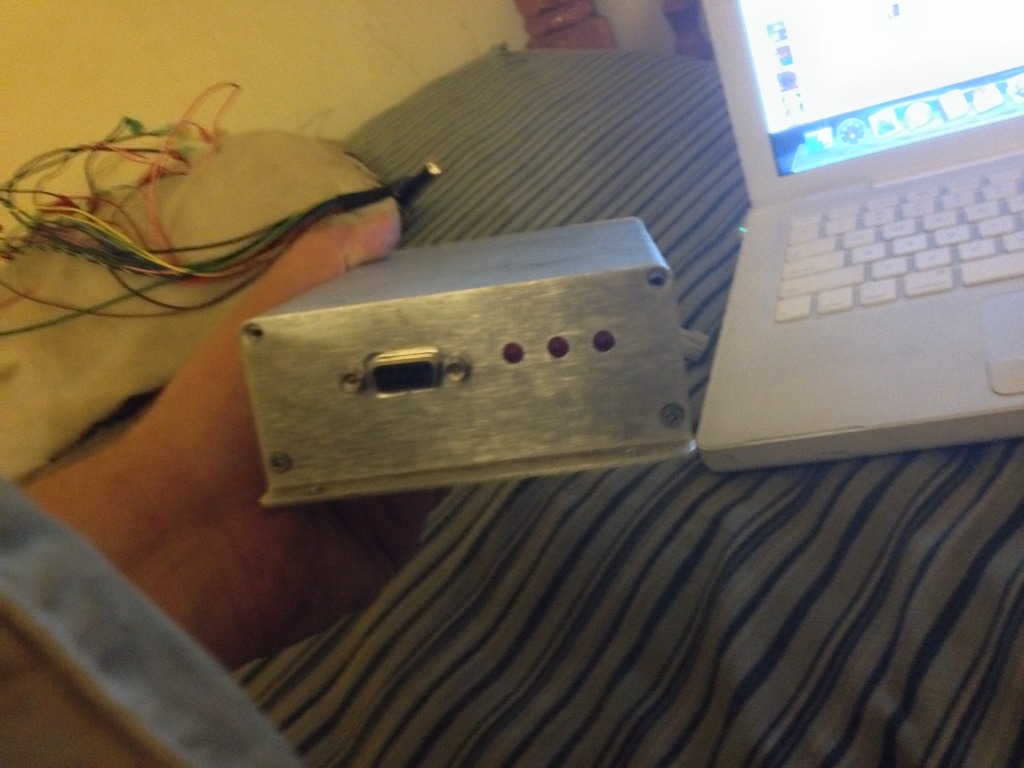

MY MS

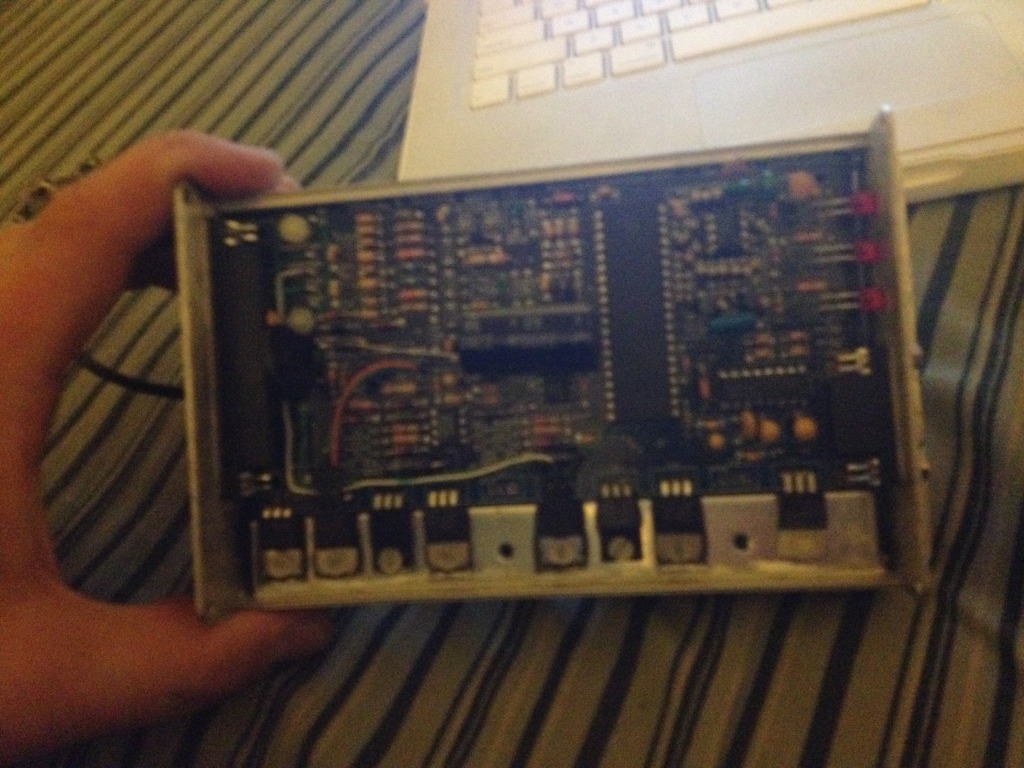

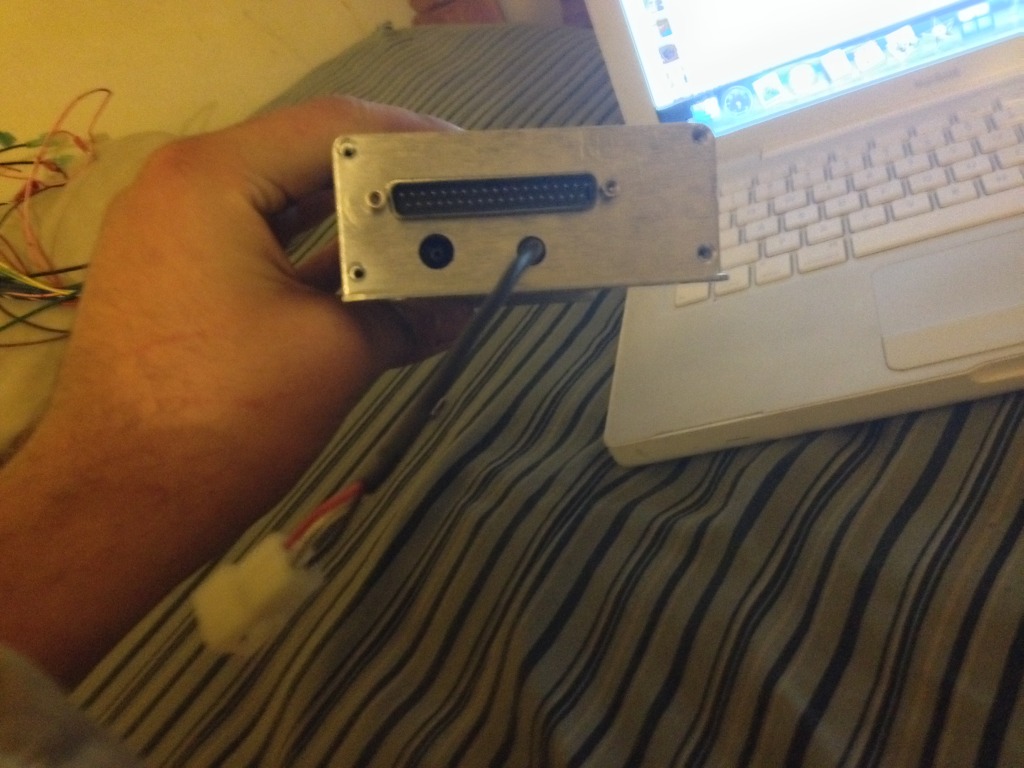

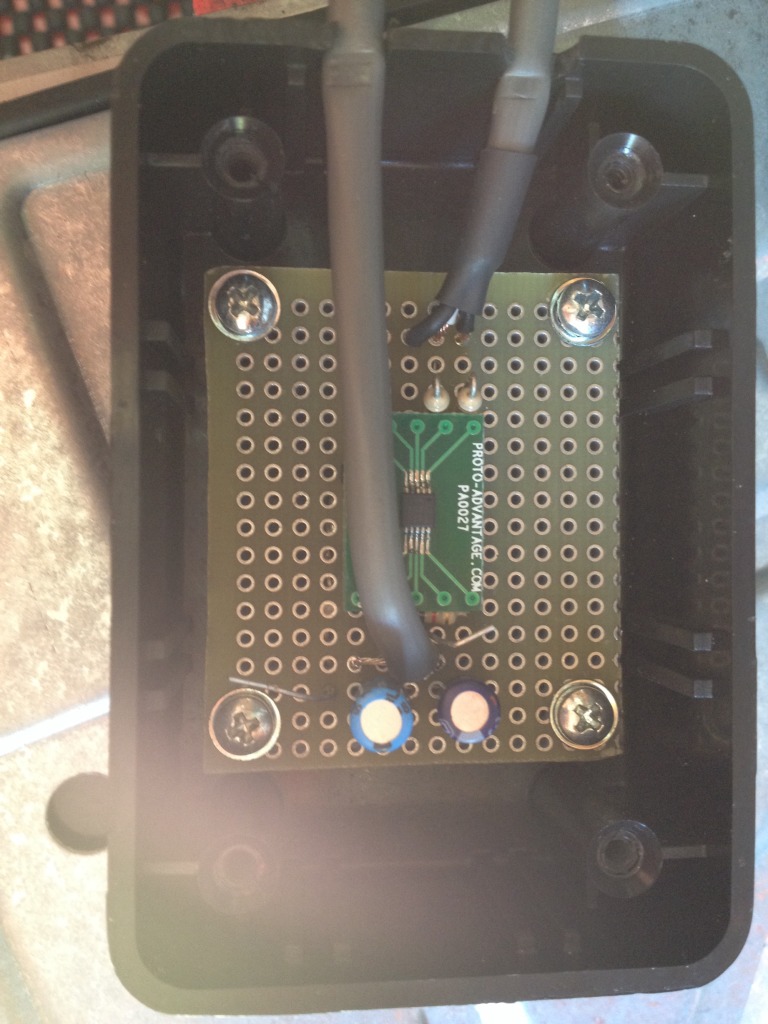

THIS IS THE INSIDE OF THE BOX THAT CONNECTS THE CRANK TRIGGER WHEEL AND HALL SENSOR TO THE MS

ANY POSIBLE HELP,INFO,INPUT,SUGGESTIONS,ETC are so greatly appriciated guys..... Im really trying to get this monster running again. THANKS IN ADVANCE
Attached Thumbnails
NEED HELP MS,GREDDY KIT,METH WONT RUN-49152c0f-278a-402e-a034-364d28bb4dc8-2106-000001d88f8103f2_zps9eba8532.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-31c29920-178a-4761-9c53-bce477a0ffc6-2106-000001d8a8d449ed_zpsdd07201f.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-3323acca-697b-454f-8c74-080c3b4bba80-2106-000001d8c4d00c48_zpsaf0cf8a0.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-977026f3-f78b-4256-bd54-33ec4cad2134-2106-000001d8dc7a0d0a_zpsacae7989.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-ad506170-f523-4803-aeb7-84967cc9a1df-2106-000001d8e5441ff0_zps9b222e9b.jpg

NEED HELP MS,GREDDY KIT,METH WONT RUN-8082c196-2625-4415-958f-fc9e1eca12e1-2106-000001d8f7a1167b_zps9ba754eb.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-37b51277-962e-48ca-9092-bf9215507128-2106-000001d9310b22a1_zpsb01966dd.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-8a77c1a5-1b6c-425c-80dc-1378022ef245-2106-000001d94fa7d815_zps03db0e2e.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-0b48d687-86db-49f8-87a3-6d3b05ee5813-2106-000001d95e4bfa85_zpsd65be0cc.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-495106b7-2208-4e2f-9fa1-b69d57869a75-2106-000001d96a6ac499_zps4a2a6972.jpg

NEED HELP MS,GREDDY KIT,METH WONT RUN-02f596ef-f71d-478f-8cc1-cb32a250c7b9-2106-000001d97b0b29b3_zps61f4c3e7.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-a4a6f9da-89b3-442d-86fd-4218ff3fee6f-2106-000001d98b6dbac7_zps156bb55c.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-10347339-c41d-48a2-9a8c-2e0639d1266c-2106-000001d9a0695d78_zps7bd929b1.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-4980a9fb-52f8-4847-a4c1-02087ba040bc-2106-000001d9abaf744b_zps9d7cf939.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-8aa528b4-a277-4c33-bf39-884df0e8c427-2106-000001d9c1721c9e_zps87433a29.jpg

NEED HELP MS,GREDDY KIT,METH WONT RUN-e19cfc4f-19ef-44b5-a6d2-d4e9d972271c-2106-000001d9d40ae15d_zpsa1e5626f.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-ea17152c-f46b-4a9c-a2ae-dd90afac00c8-2106-000001d9e27752cf_zps8e088e1f.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-7d364dfa-e526-453a-9b53-81d18cae3d22-2106-000001d9ebf9c763_zps3d3166a2.jpg   NEED HELP MS,GREDDY KIT,METH WONT RUN-0a3667d1-f1f5-4c4a-ba65-6c6e0345fd67-2106-000001d9fedb831f_zps1d3fce69.jpg
slammedkouki is offline   Reply With Quote
Old 10-04-2013, 10:17 PM   #19
Newb
Thread Starter

Join Date: Sep 2013
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by Thursday View Post
I can't tell if your being serious lol.
He is being serious. Im new to miatas and megasquirt.... However this is the absolute best reading you can possibly get for AIT.
slammedkouki is offline   Reply With Quote
Old 10-05-2013, 12:27 PM   #20
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

The local you bought it from . . . did he build it? Or does he know who did?

The only way to shortcut this is to get the person who knows the car to help you . . . and you will be remoding the OEM harness to add back all the custom features.

Either that, or you need to get back to stock and remod incrementally.

No matter what you do, make sure you do a quality job when remoding and create a wiring diagram for yourself and the next guy describing everything that's been done. Even if you keep the car, you'll appreciate having that wiring diagram in a couple of years when you need to fix something.

BTW, it looks like it was built by someone who knew what they were doing. If you can just find that someone . . . .
hornetball is offline   Reply With Quote
