Default New 1.8 manifold design

I finished it today, it needs some tweeking though. I would love to hear your thoughts about the design before fabricating. The distances betweens the 2 flanges are based on my hks so it will be a bolt on.
I used 3mm thickness tubes and 10mm thickness flange.
It is ps and a/c friendly also.

If someone has a bp exhaust flange with detailed dimensions he would make me very happy.








gianic is offline   Reply With Quote
Old 02-20-2010, 04:07 PM   #2
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

nice whats the price??
miatamike203 is offline   Reply With Quote
Old 02-20-2010, 04:16 PM   #3
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

I dont believe he has fabbed one yet, Looks to me like a 3d rendering.
Tw34k is offline   Reply With Quote
Old 02-20-2010, 04:40 PM   #4
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

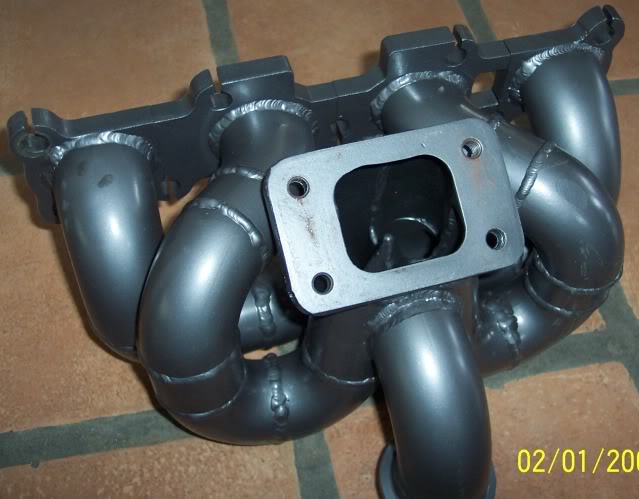

Looks very familiar.

Name:  100_1633.jpg
Views: 1
Size:  48.8 KB
JayL is offline   Reply With Quote
Old 02-20-2010, 05:24 PM   #5
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

^^^ Bingo. Thats what it was when I first saw this, I just didnt know where to look for it.
Pen2_the_penguin is offline   Reply With Quote
Old 02-20-2010, 06:46 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Nothing new about the ramhorn design: done many times before.

Looks nice though
18psi is offline   Reply With Quote
Old 02-20-2010, 11:41 PM   #7
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

I'm not going to reinvent the wheel, I just need some thoughts about the design and if we can make it better. For now I'm thinking larger headers. Right now each header is 37cm long.

JayL its true the manifold on your pic looks very much like mine,but yours is cooler because its real.
Thanks for the feedback.
gianic is offline   Reply With Quote
Old 02-21-2010, 09:42 AM   #8
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

So are the mounting stud 'slots' on the manifold flange suppossed to prevent warpage or cracking? Now I see more than those holes, you left cuts in the flange too. I'd have to assume for expansion... or a run-away band saw. I have no tig-talent so I'll have to pay one of you guys to fab one up on a T3 flange when I do the 1.8 swap.
GeneSplicer is offline   Reply With Quote
