DIY Turbo Discussion greddy on a 1.8? homebrew kit?

View Poll Results: BOV location
Cold side before TB 38 84.44%
Hot side near turbo 7 15.56%
Voters: 45. You may not vote on this poll

Reply



LinkBack Thread Tools
Old 03-21-2010, 09:33 PM   #21
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

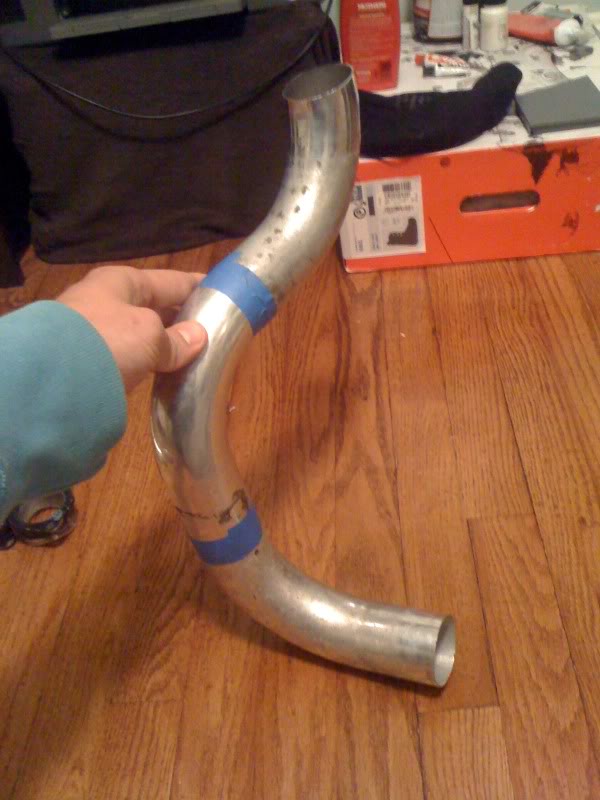

This is the hot side at the end of that there's a 180 deg pipe not pictured
Name:  cd6096b7.jpg
Views: 5
Size:  61.5 KB
miataspeed2005 is offline   Reply With Quote
Old 03-21-2010, 09:34 PM   #22
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

I don't think there is a clear advantage either way, but the valve ought to be at one end or the other.

If a recirc, after the IC lightens the heat load very slightly. But, the work to push thru the IC is also very slightly greater thus the turbo would lose rpm quicker. Damn little.

My preference is at the TB end and it is, as stated earlier, to keep air heading one direction, and the IC a tick less drained.

Note that modern OEM's are now building it into the compressor housing. I hope Porsche doesn't succum to that approach.

Corky
Corky Bell is offline   Reply With Quote
Old 03-21-2010, 09:35 PM   #23
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by 18psi View Post
as long as the compressor wheel is spinning it is moving air.
as long as the engine is on, the compressor wheel is spinning.

The only time I could POSSIBLY see the bov actually sucking in air is for that SPLIT SECOND when you stab the throttle and the car gulps in more air than is already moving through the system and the bov hasn't shut yet. We're talking less than a second worth of "sucking" time.
The compressor wheel is spinning, but youre totally neglecting that the engine is still drawing in air. What makes you think that the compressor is ALWAYS pushing more air than the engine is taking in?

But anyway, even if it is a rare occurrence, which I agree that it probably is, it still could happen, and if your BOV is 2 inches from the ground you could possibly suck something up.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-21-2010, 09:43 PM   #24
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

OP, that location looks great to me, I would put it anywhere in that reigon where its out of the way.

Edit: Hey how vague can I be I am refering to the coldside piping that you hit with the marker. One thing thats nice about that point is that you can do a piece of straight pipe there and thus have some real variability in the direction of the BOV, You can rotate the pipe to keep it out of the way and all.

Last edited by Sparetire; 03-21-2010 at 09:53 PM.
Sparetire is offline   Reply With Quote
Old 03-21-2010, 09:47 PM   #25
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
The compressor wheel is spinning, but youre totally neglecting that the engine is still drawing in air. What makes you think that the compressor is ALWAYS pushing more air than the engine is taking in?

But anyway, even if it is a rare occurrence, which I agree that it probably is, it still could happen, and if your BOV is 2 inches from the ground you could possibly suck something up.
not really. I've put my hand up to the bov on my car as well as many others while idling, and while revving, and while stabbing the throttle suddenly, each time it was exactly the same: at idle it was pushing out air, at slow revs it was pushing out air, at stabbing it would close super fast but before that it would be pushing out air. There was not one single time where I could get it to suck in air. And I TRIED to get it to do that.

That's just my experience though. Maybe some cars actually do suck in air through the bov. I don't know
18psi is offline   Reply With Quote
Old 03-21-2010, 09:49 PM   #26
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by Corky Bell View Post
I don't think there is a clear advantage either way, but the valve ought to be at one end or the other.

If a recirc, after the IC lightens the heat load very slightly. But, the work to push thru the IC is also very slightly greater thus the turbo would lose rpm quicker. Damn little.

My preference is at the TB end and it is, as stated earlier, to keep air heading one direction, and the IC a tick less drained.

Note that modern OEM's are now building it into the compressor housing. I hope Porsche doesn't succum to that approach.

Corky
I think the Lord thy God Has spoken and may it be so...Im putting mine about 3" away from the Throttle Body for the as above stated reasons.
(G)
Reverend Greg is offline   Reply With Quote
Old 03-21-2010, 10:09 PM   #27
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by Sparetire View Post
Under idle/light cruise conditions there is probably a bit of vacuum in the ic plumbing. Small, but a bit. How could the BOV then have air going out? That would be a major PITA for tuning with any MAF based EMS, as it would basically cause the car to run rich all the time.
lol, you said MAF based EMS.
dustinb is offline   Reply With Quote
Old 03-21-2010, 10:10 PM   #28
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by 18psi View Post
not really. I've put my hand up to the bov on my car as well as many others while idling, and while revving, and while stabbing the throttle suddenly, each time it was exactly the same: at idle it was pushing out air, at slow revs it was pushing out air, at stabbing it would close super fast but before that it would be pushing out air. There was not one single time where I could get it to suck in air. And I TRIED to get it to do that.

That's just my experience though. Maybe some cars actually do suck in air through the bov. I don't know
Mine's always letting out air unless there's positive pressure in the manifold to keep it closed.
dustinb is offline   Reply With Quote
Old 03-21-2010, 10:14 PM   #29
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

Mine used to let air out at idle untill I tighten the adjustable spring
miataspeed2005 is offline   Reply With Quote
Old 03-21-2010, 10:29 PM   #30
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

+1 on above - wherever it is easiest to place.
ZX-Tex is offline   Reply With Quote
Old 03-21-2010, 10:32 PM   #31
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Just make sure your not going to have clearance problems with your diverter and cooling fans/radiator. My old setup had the diverter pressed against the cooling fan, it was a major pita to install and uninstall.
astroboy is offline   Reply With Quote
Old 03-21-2010, 10:47 PM   #32
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Sparetire View Post
This.

Pressure is pressure. The time difference in reducing it at the TB or the compressor housing from a 'cold-side' to 'hot-side' placement is miniscule and insignificant unlkess you have such a large volume at such high density that the BOV is not large enough to really effectively release it. I doubt anybody here is anywhere near that point.

So put it out of the way. If it were me, with most of the setups I have seen, near the IC outlet would be a great bet.
I agree, but pressure is going to "stay" on one side of the intercooler longer, and I'd rather vent at the turbo-side of the piping because it dumps air more efficiently for the turbo and may help it free-wheel...but I think the advantage will be miniscule.

Anyone that tells you "compressor surge" off the throttle is a problem is a certified moron and you should not believe anything else they say.
hustler is offline   Reply With Quote
Old 03-21-2010, 10:53 PM   #33
Newb

Join Date: Jan 2010
Location: Jackson Ga.
Posts: 28
Total Cats: 0
Default

weld it to the intercooler, i didnt try it on my evo but some people i knew had the setup on their evos, ams did it on many of their cars. just a thought
dingo7 is offline   Reply With Quote
Old 03-21-2010, 11:28 PM   #34
Junior Member

Join Date: Dec 2009
Location: Shelbina, MO (North East)
Posts: 335
Total Cats: 0
Default

Pressure is pressure, but mass and velocity can co-exist in separate conditions under the same pressure. If boost is vented to atm near the TB then the turbo stays spooled and probably increases RPM. All air post compressor to BOV keeps it's velocity. Then when TB is opened the only air that has to start moving (still under pressure) is from the BOV to the TB, not compressor, IC, piping and TB. If this was not important why to we even bother with "tuned" intake manifolds?

My
rweatherford is offline   Reply With Quote
Old 03-22-2010, 12:16 AM   #35
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Quote:
Originally Posted by dingo7 View Post
weld it to the intercooler, i didnt try it on my evo but some people i knew had the setup on their evos, ams did it on many of their cars. just a thought
This isn't club fagster: we don't do **** to be "different".
Quote:
Originally Posted by rweatherford View Post
Pressure is pressure, but mass and velocity can co-exist in separate conditions under the same pressure. If boost is vented to atm near the TB then the turbo stays spooled and probably increases RPM. All air post compressor to BOV keeps it's velocity. Then when TB is opened the only air that has to start moving (still under pressure) is from the BOV to the TB, not compressor, IC, piping and TB. If this was not important why to we even bother with "tuned" intake manifolds?

My
Makes sense. So you're saying coldside bov placement is better, right?
18psi is offline   Reply With Quote
Old 03-22-2010, 12:40 AM   #36
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Seriously you guys are overthinking this one, and this is coming from an R&D Engineer who tends to overthink everything. Just place it where it is easiest.

I had my BOV on the hot side of the IC. Then when I switched to a Tial Q (big, like my *****) it would not fit on the hot side. So, I moved it to the cold side. All else was the same, and I did not notice a difference. Really, no big deal.

And welding it to the IC tank is not a bad idea if it is convenient. Why not? I considered it because it is a naturally good location clearance-wise for a v-mount setup when placed on the 'inside' of the V.
ZX-Tex is offline   Reply With Quote
Old 03-22-2010, 12:45 AM   #37
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

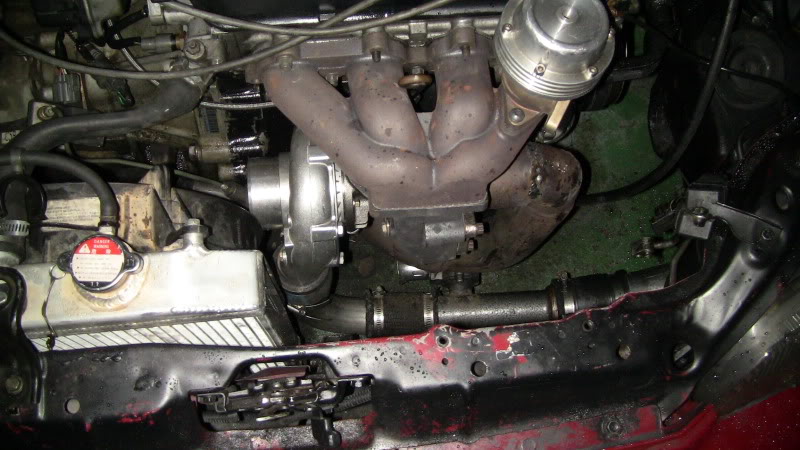

As long as it isnt like this, youre cool.

Name:  IMG_0343.jpg
Views: 5
Size:  96.5 KB
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-22-2010, 12:47 AM   #38
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

I think best location would be on the exhaust manifold
18psi is offline   Reply With Quote
Old 03-22-2010, 01:00 AM   #39
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

I think the best location would be in my butt
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-25-2010, 10:39 PM   #40
Newb

Join Date: Jan 2010
Location: Jackson Ga.
Posts: 28
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
This isn't club fagster: we don't do **** to be "different".
seems to me like thats not true b/c you have a person asking where he should place his bov. If yall didnt do **** to be "different" he would be putting the ******* valve where every other person places their valve. Come to think of it the thread wouldnt even be here.

The bov on the intercooler has a purpose. The only difference is there are not any miatas running 40-50psi.
dingo7 is offline   Reply With Quote
