So, just got done swapping in a 1.8 and installing a DIY turbo in 3 days. Would'nt have gotten anything done without the help of my friend who did all the work that involved skill! It's in and running but dumbed down, until I can install an intercooler and the IAT. My buddy back purged the Manifold and Downpipe(correct me if I'm wrong) and inside and out the welds turned out beautiful!

99' 1.8 and transmission
TDO5 16g EVO III turbo
Custom Downpipe and Manifold
FM Stage 1 Clutch w/ stock flywheel resurfaced!
6" diff still, waiting for the inevitable(Pm me with a good deal on a 1.8 thirdmember)
Used RC 550cc injectors (thanks to this forum)
COP's waiting to be installed.
MSPNP2
Attached Thumbnails

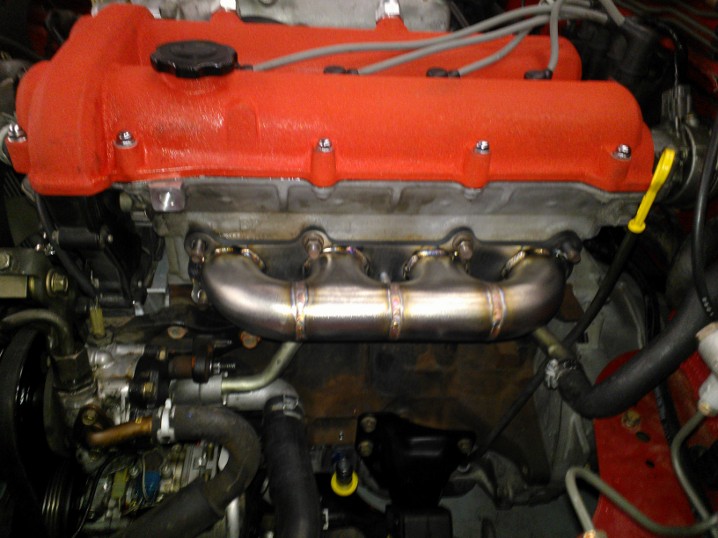

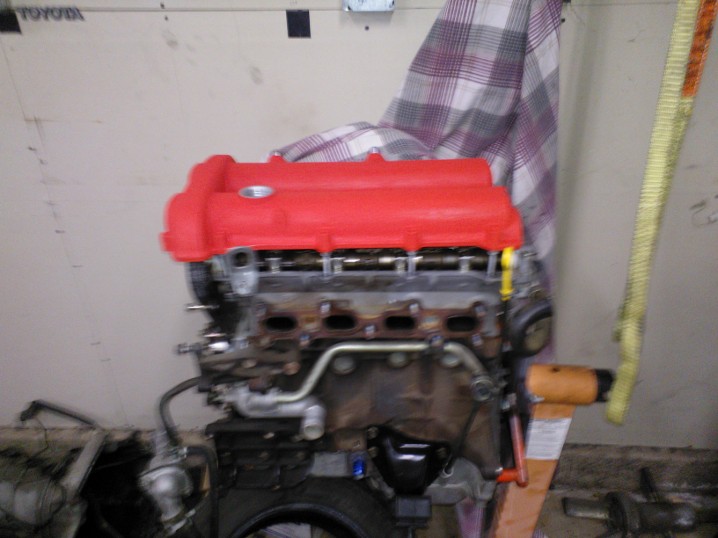

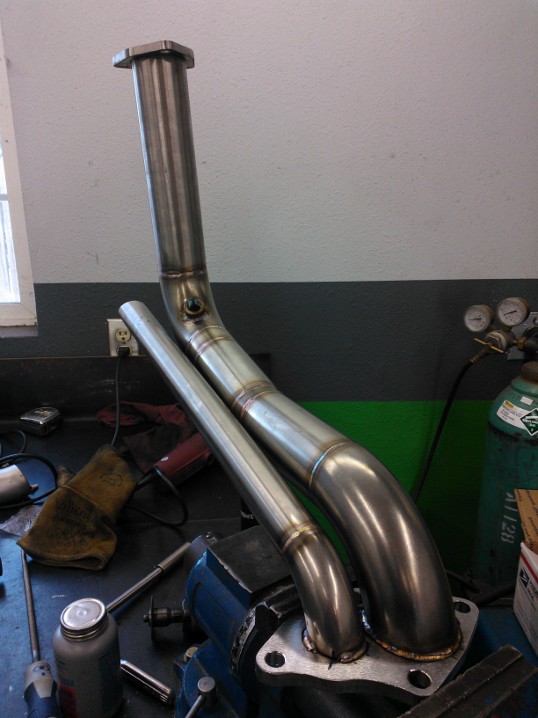

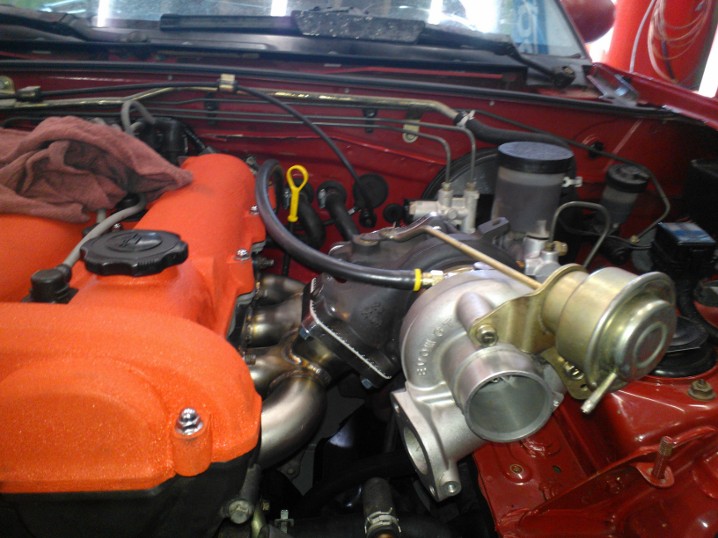

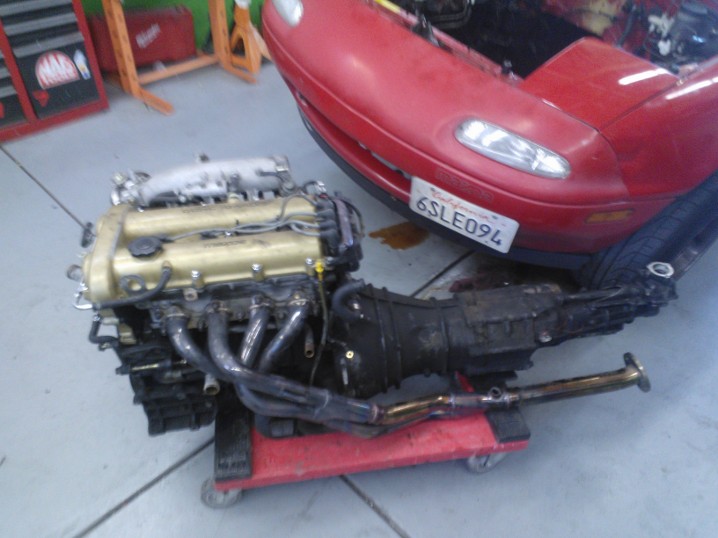

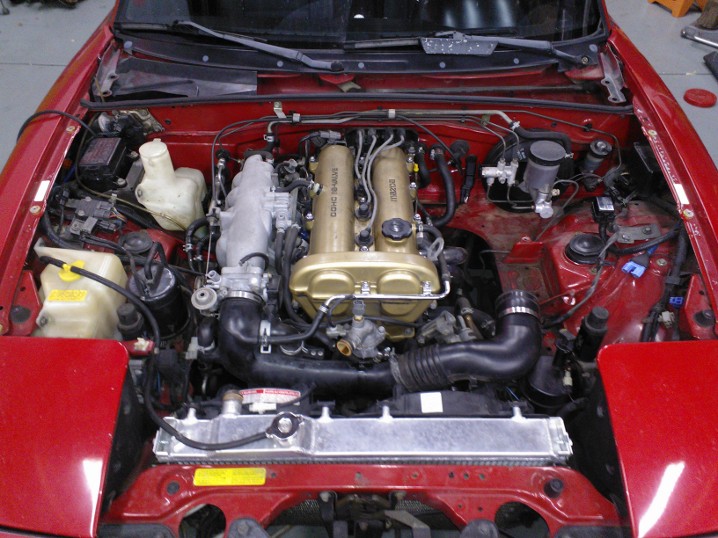

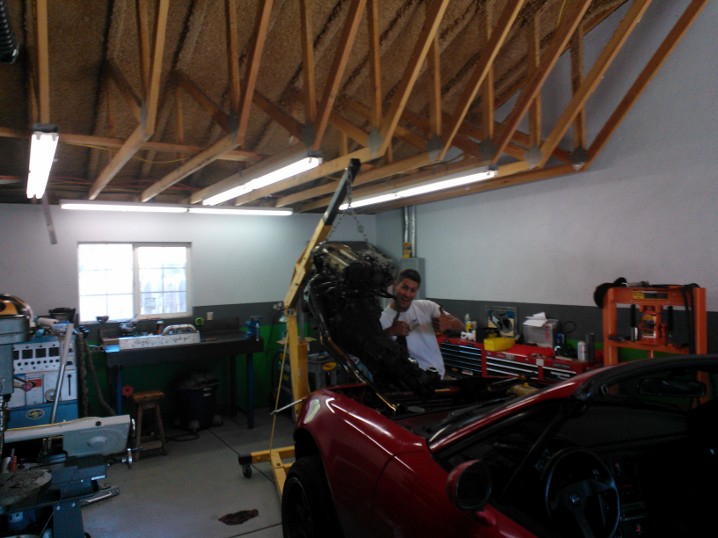

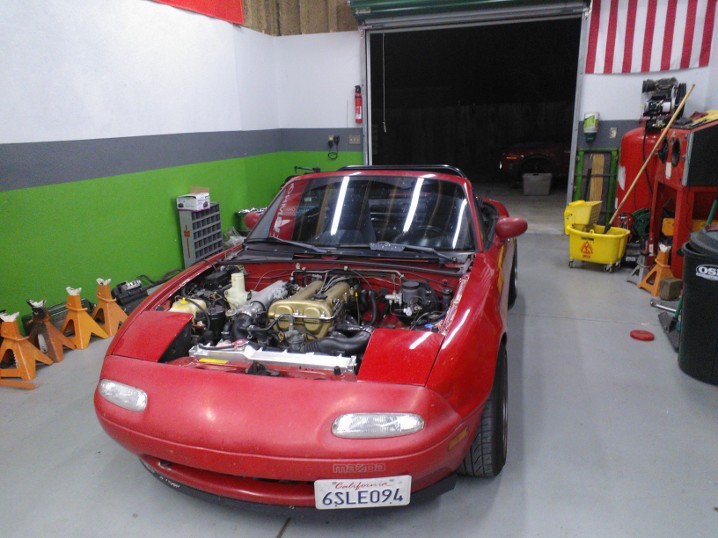

New DIY build and 1.8 Conversion-miata-1.6.jpg   New DIY build and 1.8 Conversion-miata-1.6-2.jpg   New DIY build and 1.8 Conversion-motor-tranny-come-out-together.jpg   New DIY build and 1.8 Conversion-1.8-waiting.jpg   New DIY build and 1.8 Conversion-goodbye-riceland-header.jpg

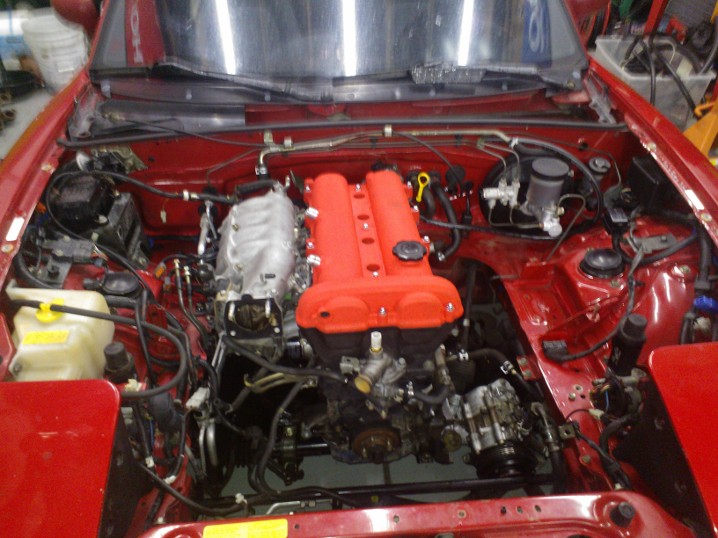

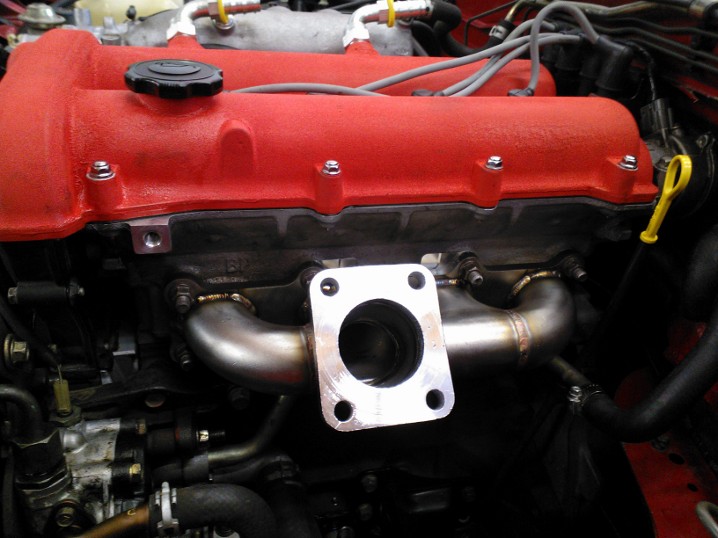

New DIY build and 1.8 Conversion-its-.jpg   New DIY build and 1.8 Conversion-beginning-manifold.jpg   New DIY build and 1.8 Conversion-manifold-part-2.jpg   New DIY build and 1.8 Conversion-down-pipe.jpg   New DIY build and 1.8 Conversion-turbo-.jpg

rickyreese is offline   Reply With Quote
Old 05-08-2012, 01:15 PM   #2
Newb

Join Date: Apr 2012
Location: Kansas City, MO
Posts: 9
Total Cats: 0
Default

Thanks for the pics..I have a pretty well equipped shop and have been waffling between DIY and pre-fabbed. Those pics help tons.
wesmc is offline   Reply With Quote
Old 05-08-2012, 06:36 PM   #3
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

Any chance of you taking it out Friday or Saturday night?
RyanRaduechel is offline   Reply With Quote
Old 05-08-2012, 08:31 PM   #4
Newb
Thread Starter

Join Date: Nov 2011
Location: Modesto ,CA
Posts: 28
Total Cats: 1
Default No Chance

I'm taking it easy on her until i get the intercooler installed and tuned. Did you decide on Wednesday or Thursday to get the block?
rickyreese is offline   Reply With Quote
Old 05-08-2012, 08:34 PM   #5
Newb
Thread Starter

Join Date: Nov 2011
Location: Modesto ,CA
Posts: 28
Total Cats: 1
Default Catch Can

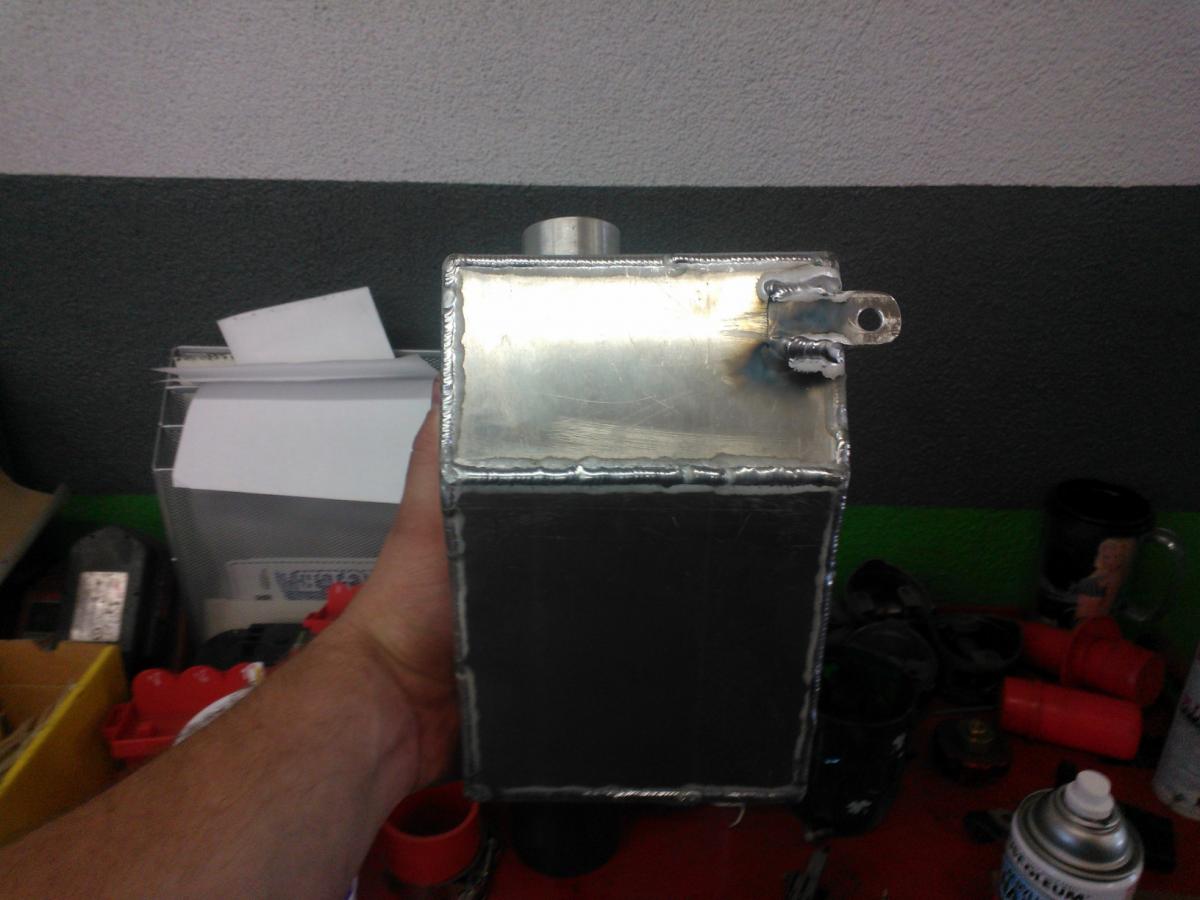

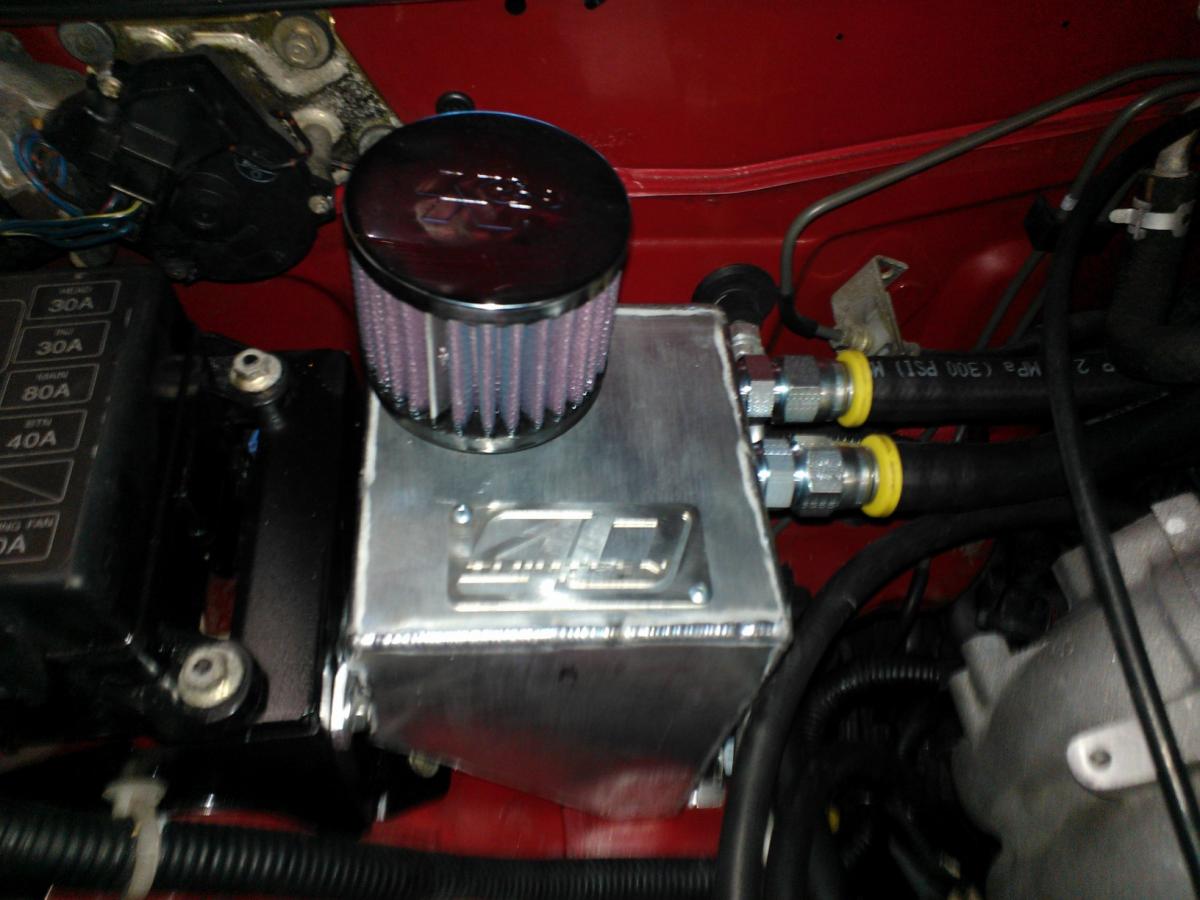

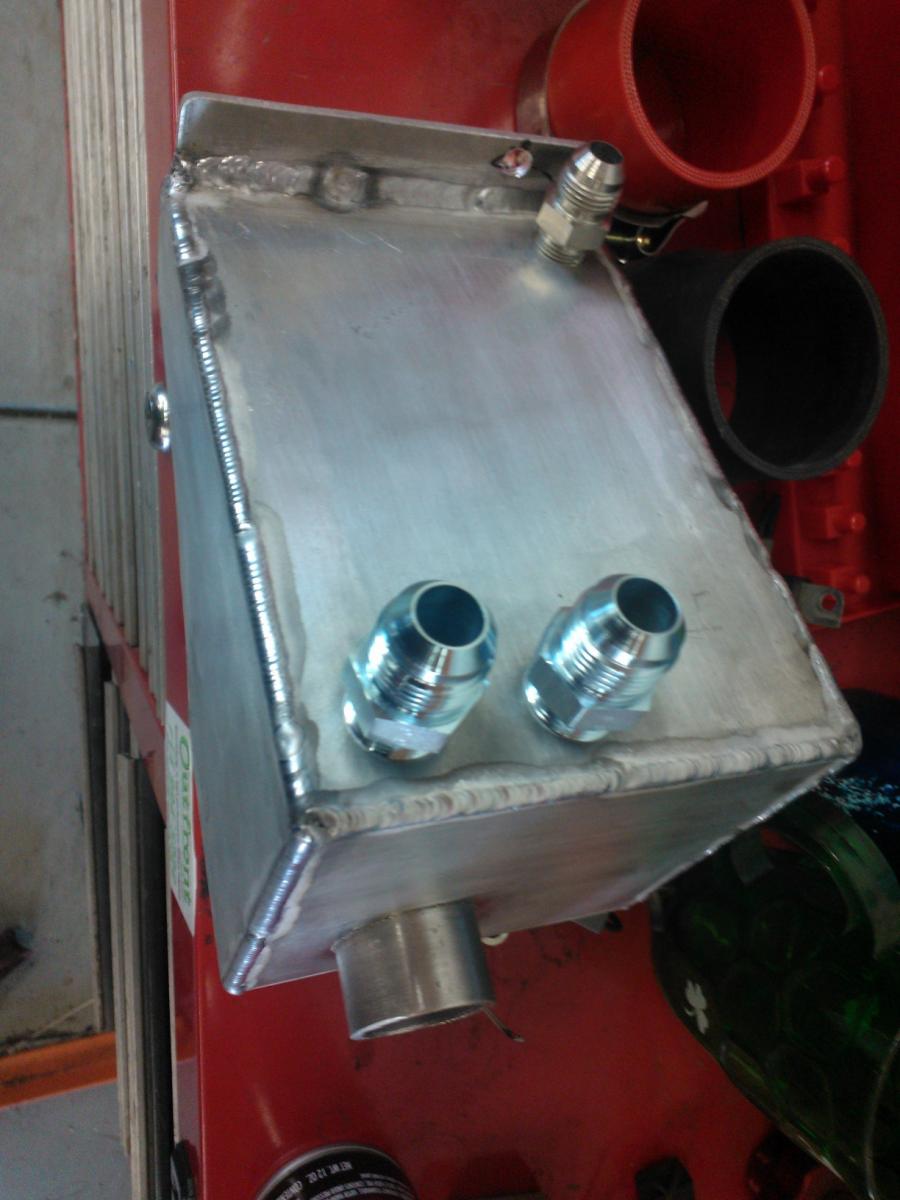

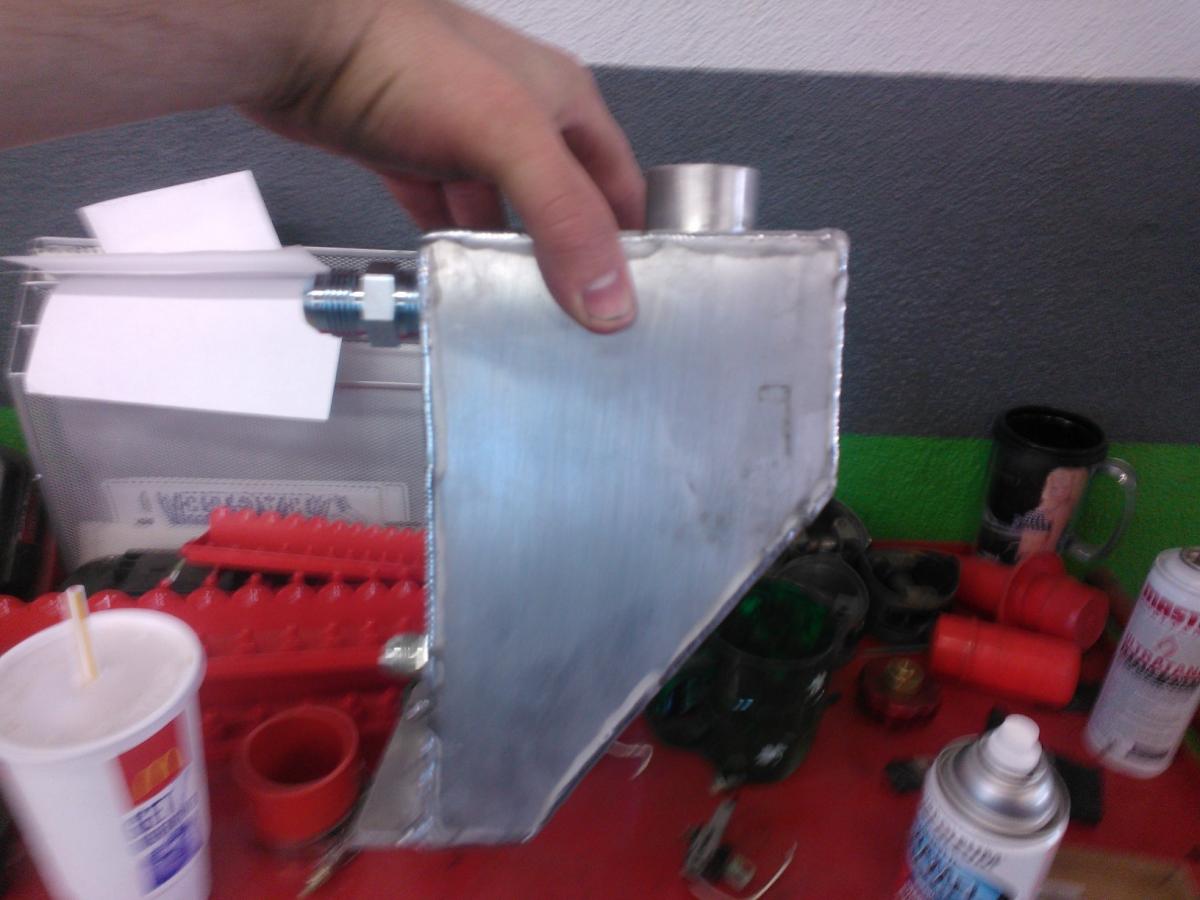

Got the Catch Can Made and installed this weekend! Turned out nice!
Attached Thumbnails
New DIY build and 1.8 Conversion-catch-can-1.jpg   New DIY build and 1.8 Conversion-catch-can-2.jpg   New DIY build and 1.8 Conversion-catch-can-3.jpg   New DIY build and 1.8 Conversion-finished-catch-can.jpg
rickyreese is offline   Reply With Quote
Old 05-09-2012, 01:52 AM   #6
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

Looks much better than the hoses going into the washer fluid bottle. I was thinking tomorrow. I have night classes on Tuesdays and Thursdays so Thursday wont work. Also, dont worry about the stock air box. I am just gonna pay a guy to do it. I dont feel like swapping everything back to stock. Especially if it fails and I have to put a new cat in it just to make it pass for 5 minutes. And I am still looking for my old arm rests... as well as my registration papers. I need to pick up some SS to make my catch can. I think I have a pretty cool idea if what I want to do. I made cardboard templates, just have to get the material.
RyanRaduechel is offline   Reply With Quote
Old 05-26-2012, 03:05 AM   #7
Newb
Thread Starter

Join Date: Nov 2011
Location: Modesto ,CA
Posts: 28
Total Cats: 1
Default Intercooler installed

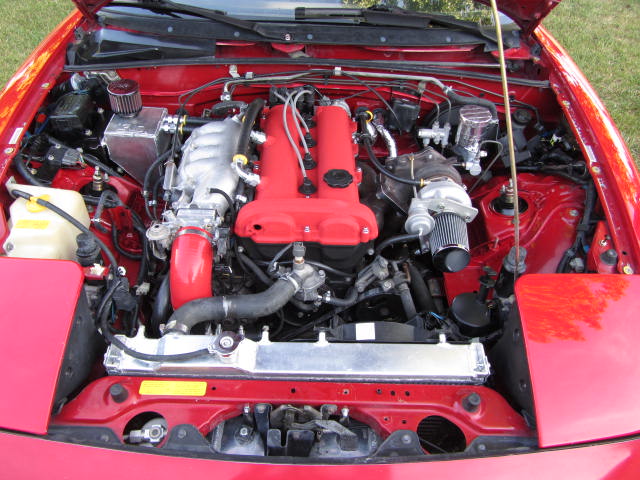

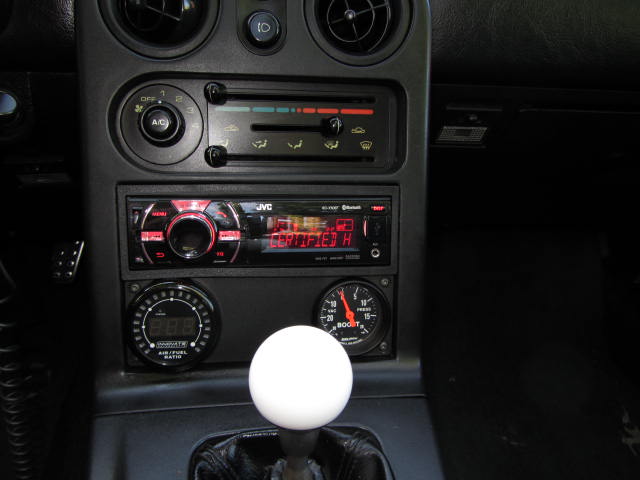

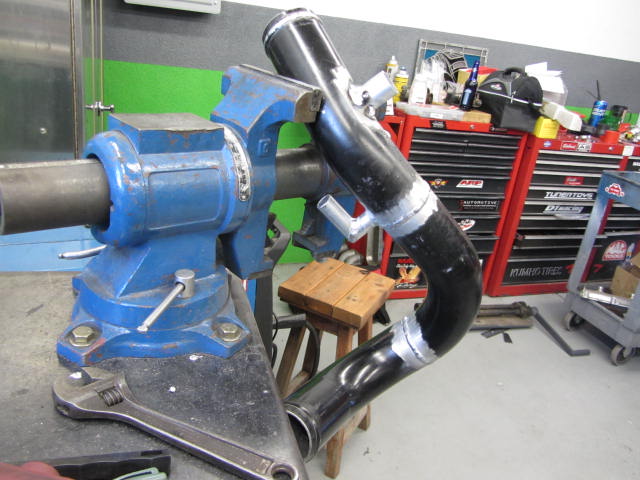

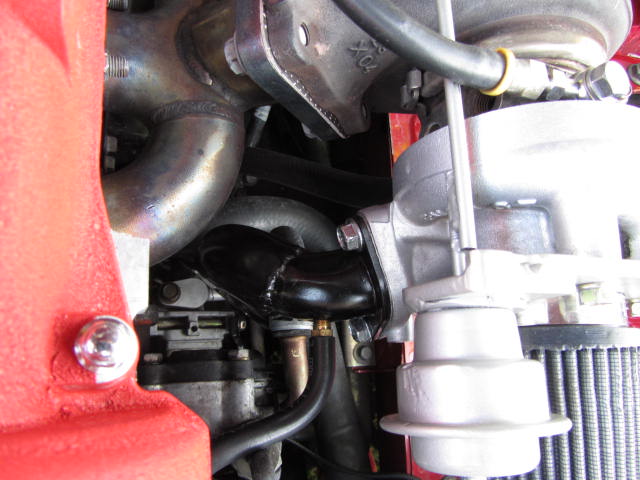

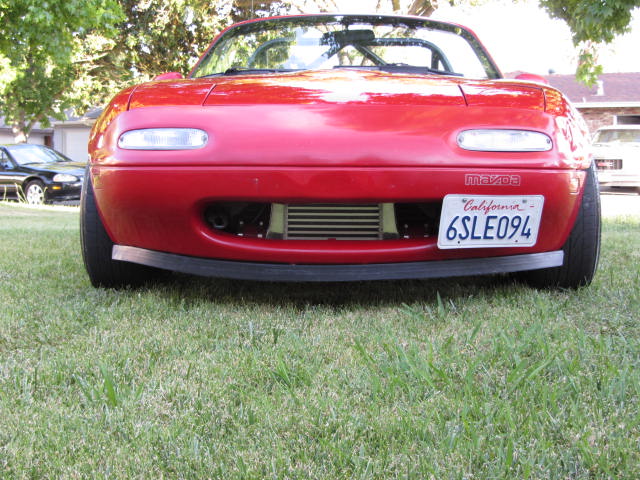

Intercooler was installed this weekend, kept A/C and Power Steering.
