Default New DIY turbo setup from Greece

Hello,
Today i began my building process..

Car '99 1.8
Turbocharger Garrett GT2560
Manifold by hks
305cc supra injectors
Ebay intercooler
Ebay 2.5" intercooler piping
Custom 2.35" exhaust
Ebay mbc
E-manage Blue
Zeitronix Wideband Controller
Olderguy's O2 Clamp
Custom mono-piston vta BOV


I installed some of the things today but unfortunetaly one of the 4 injectors is defective so i have to wait 2 weeks for proper tuning.
My engine is stock and i am planning to take the pressure up at 10 psi.
Any suggestions would be great!
Tomorrow i'm going to post some pics of the install.

Thanks for watching

Last edited by gianic; 11-01-2008 at 12:33 PM.
gianic is offline   Reply With Quote
Old 10-29-2008, 04:34 PM   #2
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by gianic View Post
Hello,
Today i began my building process..

Car '99 1.8
Turbocharger Garrett GT2560
Manifold by hks
305cc supra injectors
Ebay intercooler
Ebay 2.5" intercooler piping
Custom 2.35" exhaust
Ebay mbc
E-manage Blue
Zeitronix Wideband Controller


I installed some of the things today but unfortunetaly one of the 4 injectors is defective so i have to wait 2 weeks for proper tuning.
My engine is stock and i am planning to take the pressure up at 10 psi.
Any suggestions would be great!
Tomorrow i'm going to post some pics of the install.

Thanks for watching
Curious, why the 2.35" pipe, was it the cheapest you could get or readily available? I'm guessing so just wondering
greenday3437 is offline   Reply With Quote
Old 10-29-2008, 04:36 PM   #3
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

tyte JDMz pipes have funny sizes as well (metric conversions?), maybe its just difference in abundances

can't wait, post some pictures of the install
mazda/nissan is offline   Reply With Quote
Old 10-29-2008, 04:40 PM   #4
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by greenday3437 View Post
Curious, why the 2.35" pipe, was it the cheapest you could get or readily available? I'm guessing so just wondering
I've got it for free from a friend of mine who used to run a similar setup. Do you think it's small?

BTW sorry for my english.
gianic is offline   Reply With Quote
Old 10-29-2008, 04:52 PM   #5
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

it may be a bit on the small side, I think 2.5" is a good start, but at least it will get you down the road. Don't worry your english is fine, better than some of the newer member's english
mazda/nissan is offline   Reply With Quote
Old 10-29-2008, 04:53 PM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by gianic View Post
I've got it for free from a friend of mine who used to run a similar setup. Do you think it's small?

BTW sorry for my english.
No, just a weird size. usually you only see 2" 2.25" 2.5" 3" etc...

Your english is fine, even better than some of the people that show up here who only speak english.

EDIT: Dang, beat to it by mazda/nissan this time.
KPLAFIN is offline   Reply With Quote
Old 10-29-2008, 05:05 PM   #7
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Yes it is a weird size, but here in Greece the common sizes are 60 , 63.5 , 70mm

Thanks for the support about my usage of the language!
gianic is offline   Reply With Quote
Old 10-29-2008, 05:13 PM   #8
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by gianic View Post
Yes it is a weird size, but here in Greece the common sizes are 60 , 63.5 , 70mm

Thanks for the support about my usage of the language!
It may be a tad small, but it will do you fine for now, especially for free.

Maybe someday down the road you will benefit from upgrading, but i wouldnt worry about it for now, make sure to take lots of pictures.
greenday3437 is offline   Reply With Quote
Old 10-29-2008, 05:31 PM   #9
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by greenday3437 View Post
It may be a tad small, but it will do you fine for now, especially for free.

Maybe someday down the road you will benefit from upgrading, but i wouldnt worry about it for now, make sure to take lots of pictures.
Alright! The first thing i'm going to do tomorrow morning! (now here is 22:30!)
gianic is offline   Reply With Quote
Old 10-29-2008, 06:12 PM   #10
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

for up to 200hp he should be fine with that size, it's probably a 2.5in outer diameter anyway.
zoom2zoom is offline   Reply With Quote
Old 10-30-2008, 05:04 AM   #11
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by zoom2zoom View Post
for up to 200hp he should be fine with that size, it's probably a 2.5in outer diameter anyway.
I've compared my dimension with an Evo's 7 oem exhaust and figured out that mine was bigger.(i'm talking about the exhaust..)
gianic is offline   Reply With Quote
Old 11-01-2008, 09:51 AM   #12
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Ok, here are some pics as i promised. These pics are 2 days old so and the car is actually ready in the engine bay right now.Unfortunetaly i ran out of battery from my mobile phone.
Please forgive the bad quality..

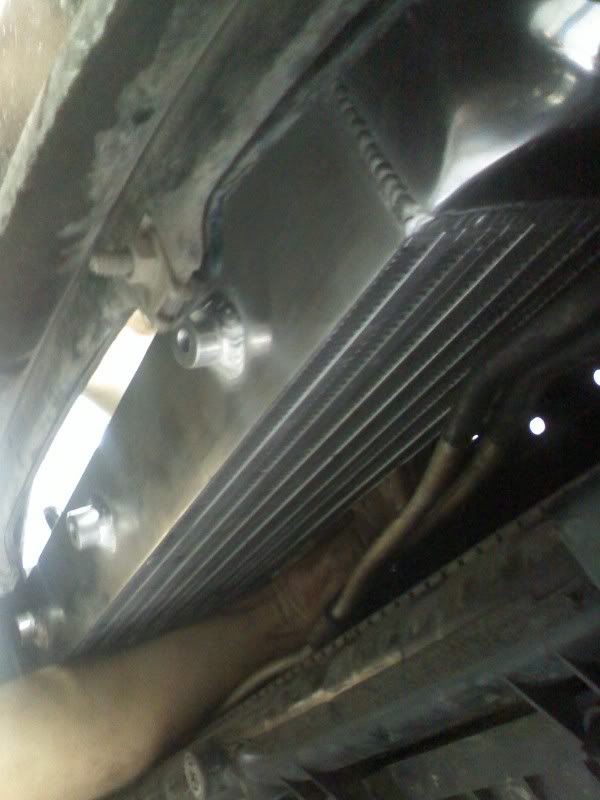

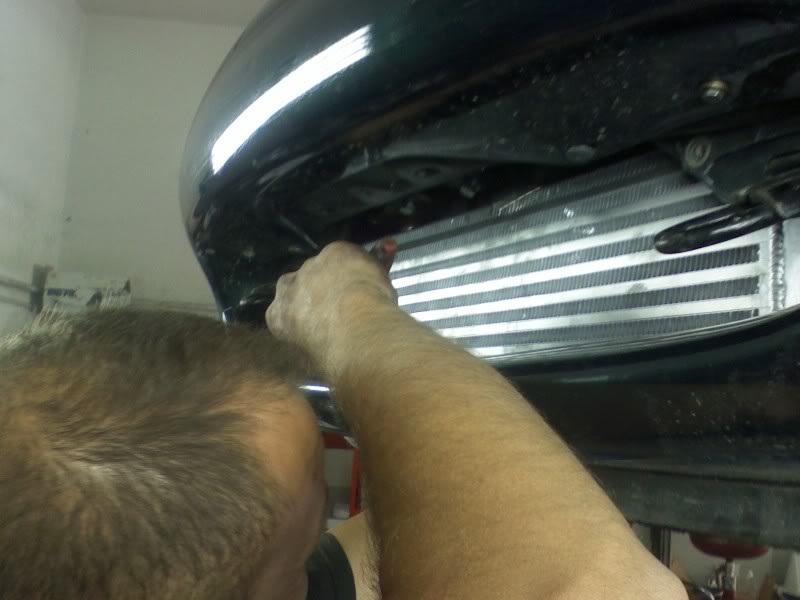

Intercooler was pretty easy to fit thanks to Mazda's ready made holes. Thanks Mazda!
Name:  DC081030001.jpg
Views: 3
Size:  47.8 KB

Name:  DC081030002.jpg
Views: 4
Size:  47.6 KB

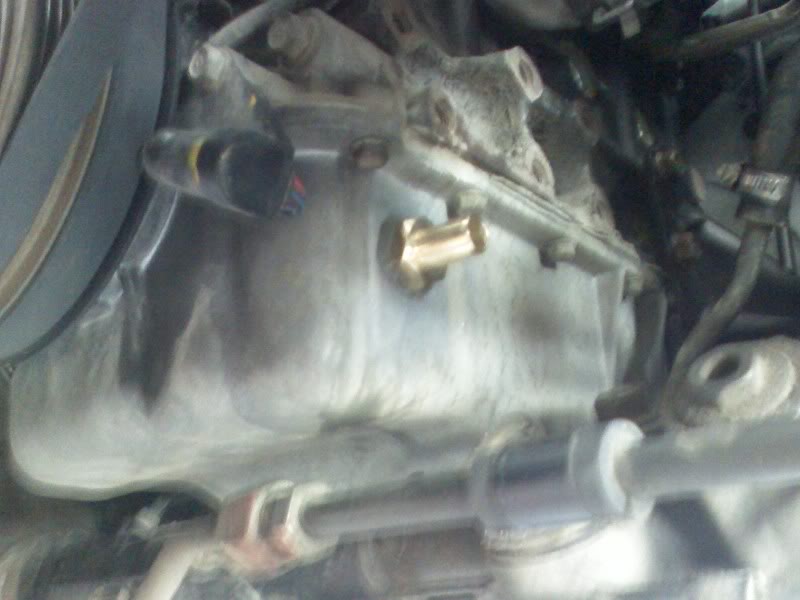

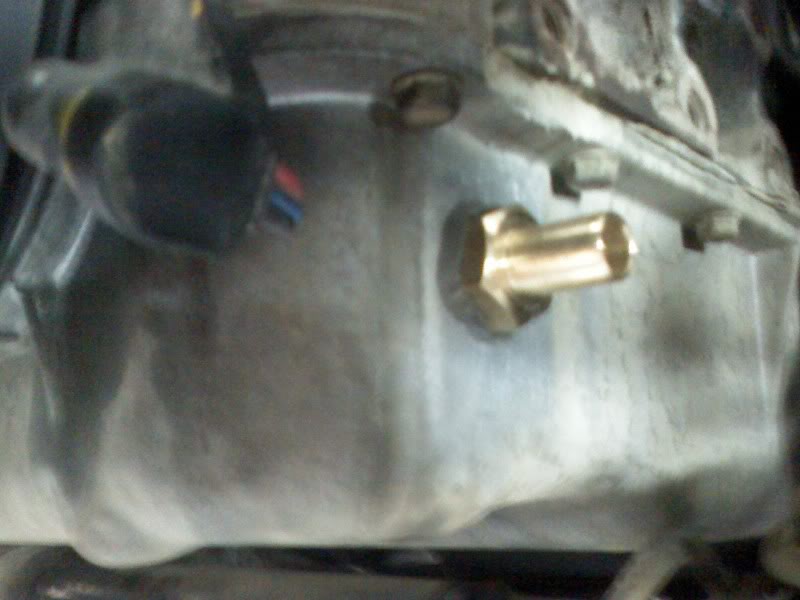

Here is the Oil return..
Name:  DC081030005.jpg
Views: 3
Size:  47.3 KB

Name:  DC081030006.jpg
Views: 3
Size:  47.8 KB

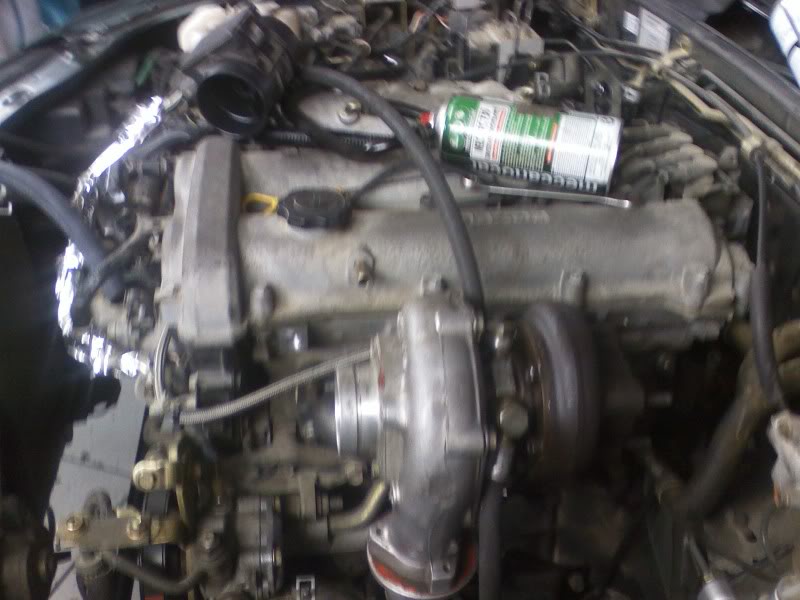

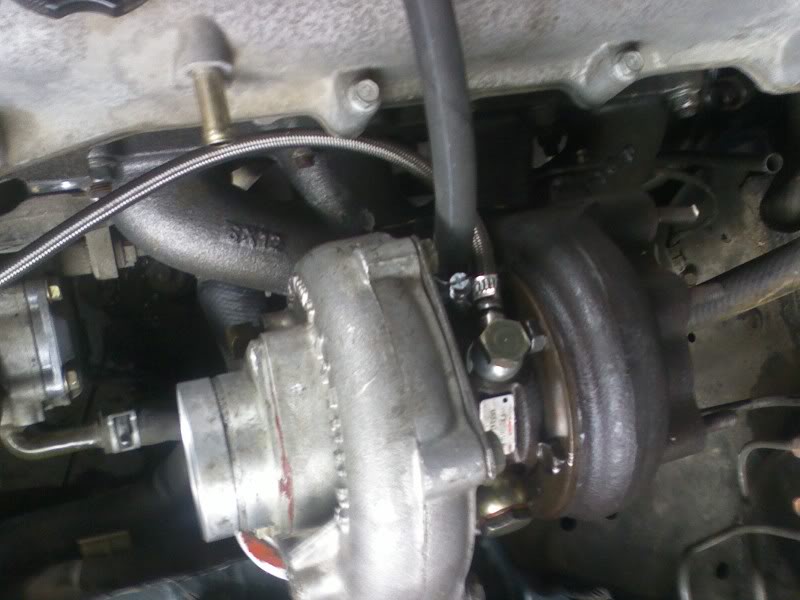

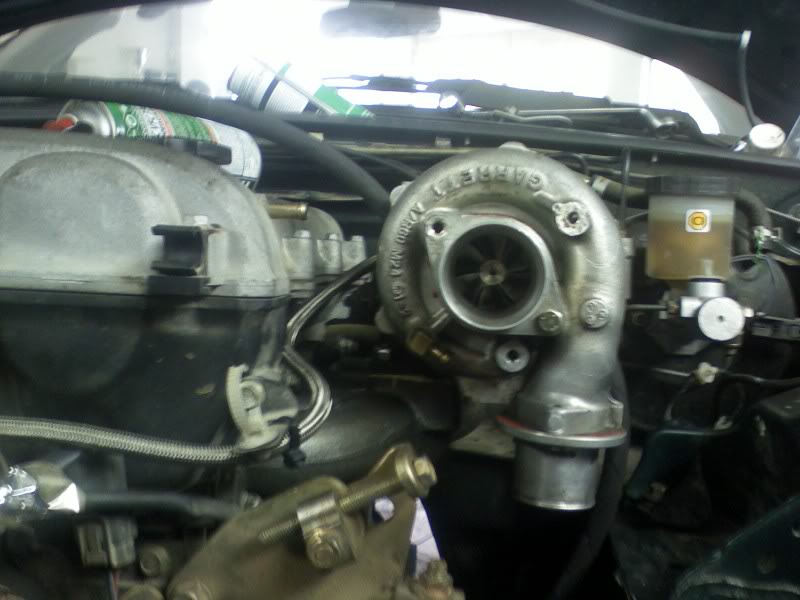

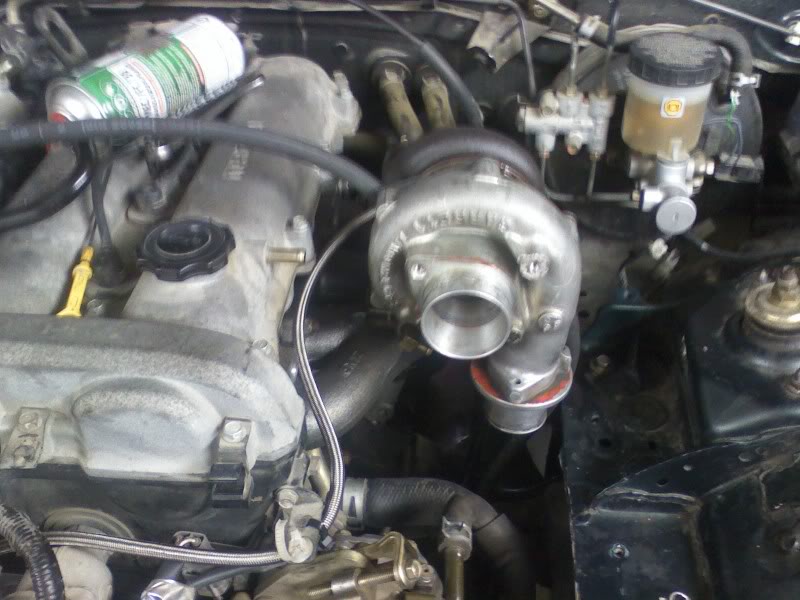

And some general view of the enginebay..

Name:  DC081030008.jpg
Views: 3
Size:  74.1 KB

Name:  DC081030010.jpg
Views: 3
Size:  58.3 KB

Name:  DC081030011.jpg
Views: 4
Size:  57.3 KB

Name:  DC081030012.jpg
Views: 3
Size:  63.2 KB

Fitting of the o2 clamp.. hope it stays dry there.



More pics of the finished engine bay on Monday. Thank you for viewing!
gianic is offline   Reply With Quote
Old 11-01-2008, 10:37 AM   #13
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Looks great man, keep it up!
viperormiata is offline   Reply With Quote
Old 11-01-2008, 11:15 AM   #14
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by greenday3437 View Post
It may be a tad small, but it will do you fine for now, especially for free.

Maybe someday down the road you will benefit from upgrading, but i wouldnt worry about it for now, make sure to take lots of pictures.
+1. Free parts always work better. Nice looking build. More pics would be cool. I'm guessing that's JB Weld or something similar on the drain? I see many people do that. I might do the same.
patsmx5 is online now   Reply With Quote
Old 11-01-2008, 12:31 PM   #15
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by patsmx5 View Post
+1. Free parts always work better. Nice looking build. More pics would be cool. I'm guessing that's JB Weld or something similar on the drain? I see many people do that. I might do the same.
I'm afraid I dont know what JB weld is.
It is some kind of high thermal resistance glue. Dont know much about it, except of the fact that works fine!
gianic is offline   Reply With Quote
Old 11-01-2008, 12:39 PM   #16
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

JB-Weld is a mechanic's best friend EDIT: Except for a BFH.

J-B Weld - Wikipedia, the free encyclopedia
KPLAFIN is offline   Reply With Quote
Old 11-01-2008, 12:50 PM   #17
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by KPLAFIN View Post
JB-Weld is a mechanic's best friend EDIT: Except for a BFH.

J-B Weld - Wikipedia, the free encyclopedia
Yeap!! That's it! I hope it lasts...
gianic is offline   Reply With Quote
Old 11-01-2008, 01:23 PM   #18
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by gianic View Post
Yeap!! That's it! I hope it lasts...
Farmers used to use it here, to splice together broken equipment. It would hold for a good bit. I would break again, but atleast they could get through the day or week till they could get it welded together properly.

It should never go bad for what you are using it for. And that is what FM advises you to use.
Toddcod is offline   Reply With Quote
Old 11-01-2008, 01:35 PM   #19
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by Toddcod View Post
Farmers used to use it here, to splice together broken equipment. It would hold for a good bit. I would break again, but atleast they could get through the day or week till they could get it welded together properly.

It should never go bad for what you are using it for. And that is what FM advises you to use.
That's are some great news Toddcod!
gianic is offline   Reply With Quote
Old 11-01-2008, 01:41 PM   #20
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Lol, we could make a thread on things fixed with JB Weld... Seriously. It's really great stuff. Saw a car where they cracked the oil pan on the automatic transmission. Cleaned it, siliconed it to stop the leak, and JB Welded it. 3 years later they sold it. Still see the car running around once in a while.

Yeah I'll probably do this to my pan I guess. I don't want leaks, that's for sure.
patsmx5 is online now   Reply With Quote
