Old 03-01-2008, 10:10 PM   #1
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default The new setup

CIMG2155.jpg?t=1204423617

1.6 rockin a t3 60-1 with a .82 hotside. Going for 500 whp, at like 13k rpms.

now taking bets on if it can even spool it

Last edited by mxv; 03-01-2008 at 10:25 PM.
mxv is offline   Reply With Quote
Old 03-01-2008, 10:13 PM   #2
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

thats sick
urgaynknowit is offline   Reply With Quote
Old 03-01-2008, 10:30 PM   #3
Senior Member
iTrader: (4)

Join Date: May 2007
Location: Ontario
Posts: 790
Total Cats: 0
Default

Looks like a T3/T4. They don't make pure T3's that large IIRC.

Nice clean setup.
reddroptop is offline   Reply With Quote
Old 03-01-2008, 10:31 PM   #4
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

lets see the manifold
Mach929 is offline   Reply With Quote
Old 03-01-2008, 10:38 PM   #5
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

haha second post and already busted...

its a friends turbo, i am building a turbo setup for his twincharged hatchback

but doesnt it just look like it belongs next to a 1.6 in a miata
mxv is offline   Reply With Quote
Old 03-01-2008, 10:49 PM   #6
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I'd rock it. I bet my 1.6 could spool it by 5.5k, which isnt bad when I can go all the way to 9
neogenesis2004 is offline   Reply With Quote
Old 03-01-2008, 10:52 PM   #7
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

haha, i honeslty dont think it would be that bad, on his hatch it spooled up that big 16g under 2 grand, so i dont see any probs at all with this turbo. i think you might accually have to wait for boost now but i think his engine revs to 9 so i think even if it spooled at 3-4 which is 2 grand later than the 16g i still think it will be extreeemely usable.
mxv is offline   Reply With Quote
Old 03-01-2008, 11:04 PM   #8
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Is he running a B18c? I'm assuming yes, and those motors have amazing VE.
neogenesis2004 is offline   Reply With Quote
Old 03-01-2008, 11:09 PM   #9
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

What dampers are those and is that a PnP radiator?
soflarick is offline   Reply With Quote
Old 03-01-2008, 11:14 PM   #10
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I'm pretty sure those are his own fabbed shock hats. He has a previous thread on them I believe.
neogenesis2004 is offline   Reply With Quote
Old 03-01-2008, 11:39 PM   #11
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

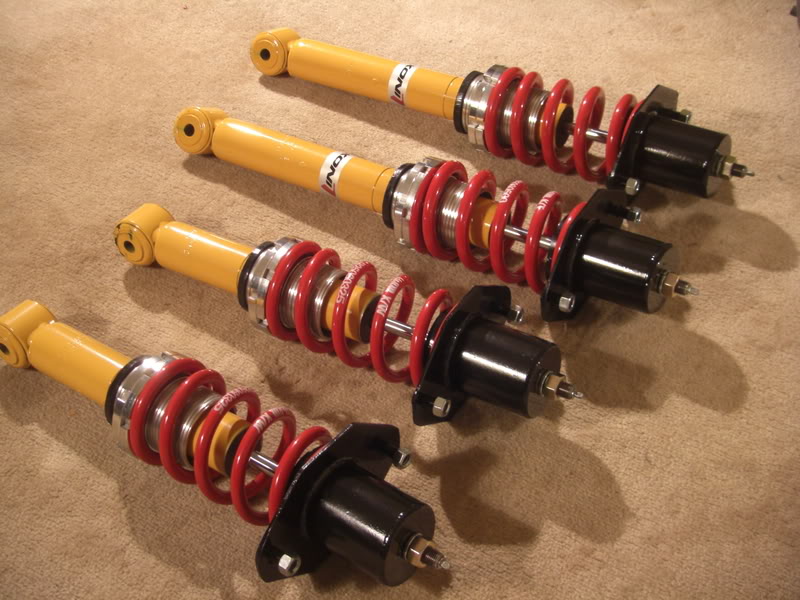

no they are not the same ones i made before... these are the new ones i made...

Name:  CIMG2021.jpg
Views: 1
Size:  126.7 KB
mxv is offline   Reply With Quote
Old 03-02-2008, 01:13 AM   #12
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

HAHA, so picky!
neogenesis2004 is offline   Reply With Quote
Old 03-02-2008, 08:34 AM   #13
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

shocks, spring rates? im going to need some details here sir...
teknikscian is offline   Reply With Quote
Old 03-02-2008, 10:35 AM   #14
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

Quote:
Originally Posted by soflarick View Post
What dampers are those and is that a PnP radiator?
oh and no this is not a pnp radiator. i got a local company to make it for me and i did the brackets for it. there is no way i am paying the ******* prices some of these miata radiator guys want, its insane.

they are just stock valved koni yellows and a set of h&r race springs at 500/325 rates. running a 1" front bar and stock in the rear. fat cat progressive bump stops. i should have about 3" of travel with the control arms flat, f/r . of course i havent driven it yet, since i am still putting the car together.
mxv is offline   Reply With Quote
Old 03-02-2008, 02:31 PM   #15
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

nice, where did you get the sleeves? or are they custom pieces too?
teknikscian is offline   Reply With Quote
Old 03-02-2008, 02:35 PM   #16
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

They look like ebay sleeves actually. Then again they all look the same.
cjernigan is offline   Reply With Quote
Old 03-02-2008, 03:02 PM   #17
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

yea they are just ebay sleeves. no point and spending anything over $20 on a set of those damn things.
mxv is offline   Reply With Quote
Old 03-02-2008, 06:52 PM   #18
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I wanna see pics of the rest of the car, and more info on the engine. It looks nucking futs.
Saml01 is offline   Reply With Quote
Old 03-02-2008, 07:34 PM   #19
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

itll be running in a few weeks i wasnt going to post anything about it till then since everyone wants to see vids once a car is running. ill keep everyone posted.

just thought a miata with a 60-1 looked funny
mxv is offline   Reply With Quote
Old 03-03-2008, 01:12 AM   #20
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Welcome back to the land of the living
miatamania is offline   Reply With Quote
