DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 05-25-2014, 08:00 PM   #1
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default Nissan turbo

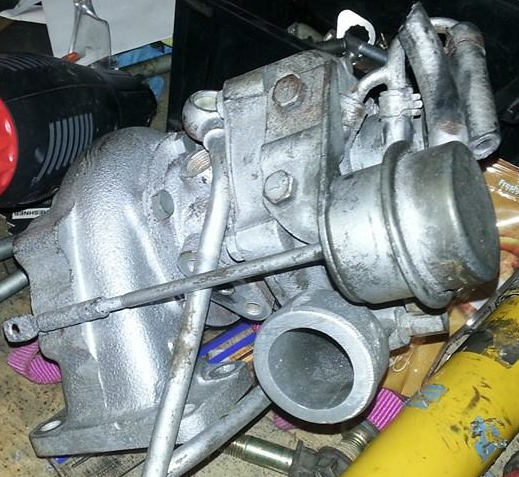

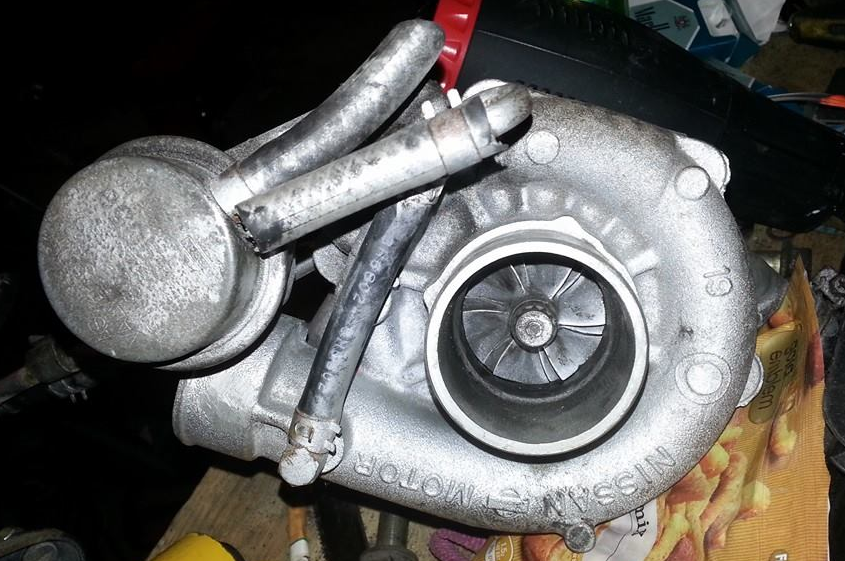

Someone semi-locally has this turbo for sale. I have someone that could pick it up for me, and check for axial/shaft play (seller claims there is none).

He is advertising it as an SR20 turbo, but from what I've seen so far, it seems like most users here that have SR20 turbos still say Garrett on them and not Nissan Motors? So far, I've been searching for the DBB and journal bearing versions of the gt2560R (Garrett ID#s 91F00 or 69F00). All this guy is able to tell me is that it's from an SR20, and that the only visible numbers on the turbo are n83 and 19. It's also obviously been spray painted, and I think I can make out a chip or two in the blades. He's asking $200 OBO. Can anyone chime in with some advice/identification help?



Attached Thumbnails
Nissan turbo-dhytdib.png   Nissan turbo-hsj3hok.png
Schuyler is offline   Reply With Quote
Old 05-25-2014, 08:08 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Bought mine for $75. It needed a rebuild like this one does, and a had a stuck stud. Move on.
curly is offline   Reply With Quote
Old 05-26-2014, 09:45 AM   #3
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

^^ chipped blades are not taken care of in a rebuild.
DNMakinson is offline   Reply With Quote
Old 05-26-2014, 09:26 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

lol 200

move on. not worth it
18psi is offline   Reply With Quote
Old 05-26-2014, 10:35 PM   #5
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

That thing looks horrible. I've got a legit SR20 turbo sitting somewhere in my garage plus a G Pop rebuild kit for said turbo that I spent all of about $200 in total to acquire. There are A LOT of these things out there, you can get a much nicer one for much less. Watch Nicco and the other Nissan forums. You can get a freshly pulled used one for $100~150 if you are quick.
EO2K is offline   Reply With Quote
Old 05-26-2014, 11:09 PM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Thanks. I've been watching Zilvia, but I'll add those to my list of sites to check as well. Passing on this one. The more research I seem to do on what each of these nissan/sr20 turbos, the more confused I have gotten. My current understanding is, this turbo is essentially a 2553, and therefore with a 225whp goal, this would not be the turbo for me. The "SR20 T28" turbos people sell, that are actual garrett turbos and not oem nissan and have garret IDs (91F00 or 69F00) would be DBB or journal bearing versions of the 2560, which would fit my power goals much better and have plenty of room for future increases.

Can someone confirm all above statements are correct? lol

https://www.miataturbo.net/diy-turbo...-2560-a-69434/

Last edited by Schuyler; 05-27-2014 at 09:59 AM.
Schuyler is offline   Reply With Quote
Old 05-27-2014, 10:29 AM   #7
Junior Member

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

I bought a freshly rebuilt SR20 turbo from this guy: www.JDS-PERFORMANCE-PARTS.com

I think it was about $300. Came out fantastic.
Leach0789 is offline   Reply With Quote
Old 05-29-2014, 11:23 PM   #8
Junior Member

Join Date: Oct 2012
Posts: 49
Total Cats: 0
Default

i bought my t28 journal bearing sr20 turbo in perfect working order for $75. Even got to see it on the car running before I bought it. I use this page to help me with the differences of sr20 turbos

Stock T25/28 Turbo Specs - Nissan 240SX Forums
swankyjosh is offline   Reply With Quote
Old 05-30-2014, 09:15 AM   #9
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Looks like an RB25 turbo. Not worth it as they are a t3 like hot side and a t28 style cold side. They also have Ceramic blades that are known to explode with higher boost.
duffbuster243 is offline   Reply With Quote
Old 05-31-2014, 08:34 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Thanks for all the tips/links/advice. Just bought a SR20 T25 (garret branded 0.80 a/r) off of a facebook group for $50, smoking and needs a rebuild. Will be buying a kit and following the guide Sam posted.
Schuyler is offline   Reply With Quote
