Default no oil pressure after rebuild

I've tried searching for over an hour, but can't find any info/suggestions to this:

I've done a rebuild on my 1.6 AVO turbo, got everything back together, but tried cranking it over without plugs (as per Haynes manual), and there is ZERO oil pressure. I triple checked to make sure we put oil in, and it reads full. I had a running system before winter, so the pan was already tapped, so a knick in the pickup tube is not the culprit.

I suspected a bad oil pressure gauge, so I tried unhooking the oil feed line to the turbo to see if there was any flow, but there is nothing. Taking it a step further, I took the oil filter off and cranked it over, expecting some oil to at least dribble or squirt out -- but nothing. (I'm guessing the oil system flow doesn't have to be "closed", per se, to get pressure)

Is the next step to pull the engine and remove that pan to see what the pickup is doing? (or alternately, drop the subframe)

The battery was a little weak, so it wasn't cranking over at full speed. It was cranking at a fairly good rpm (IMHO)...could this be the problem?

The other possibility is a bad oil pump. Iím ďassumingĒ itís good, since it is brand new and OEM. Iíll be certainly pissed if this is the problem.

Any other suggestions??
mcsinc is offline   Reply With Quote
Old 06-23-2007, 07:28 AM   #2
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

It will be 0 psig until the system is primed. How long did you try turning it over?
boostinsteve is offline   Reply With Quote
Old 06-23-2007, 02:18 PM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Turbos only need a few drops of oil at idle. I say hand prime the turbo and start it up for a second. Either you'll see a rise or you won't. As long as you put a little oil in the turbo it should be fine, they barely spin or don't spin at all at idle.
cjernigan is offline   Reply With Quote
Old 06-24-2007, 12:19 AM   #4
Junior Member
Thread Starter

Join Date: May 2005
Location: Kelowna, BC, Canada
Posts: 133
Total Cats: 0
Default

shouldn't I at least get oil flowing/squirting out the oil filter nipple if it is removed though?

I tried cranking over without spark plugs on and off for probably 10 mins, maybe more. I'm scared of doing too much because I just rebuilt with Wiseco/Carillo/ARP bottom end and Supertech topend.
mcsinc is offline   Reply With Quote
Old 06-24-2007, 08:51 PM   #5
Senior Member
iTrader: (8)

Join Date: Oct 2005
Posts: 764
Total Cats: 0
Default

You must pre-lube the oil pump and I presume this step was skipped.
You can accomplish it now with a pre lube device. Ask someone that builds spec Miata engines...they'll know.
Sometimes you can pressurize the crankcase using compressed air through an oil fitting and force oil into the pump.
miatanutz is offline   Reply With Quote
Old 06-24-2007, 09:04 PM   #6
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i just took a 21mm socket on a drill and turned to motor over for a few seconds till i got OP on my mechanical gauge.
magnamx-5 is offline   Reply With Quote
Old 06-24-2007, 10:21 PM   #7
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

I've packed the pump with petroleum jelly- but more recenlty used a preluber made from an old propane tank, plumbing valve, brass fittings and a tire valve. Pre lubers are cool.
m2cupcar is offline   Reply With Quote
Old 06-25-2007, 03:40 AM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

What about those little aerosol prelubbers sold at autoparts stores?
cjernigan is offline   Reply With Quote
Old 06-25-2007, 10:04 AM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

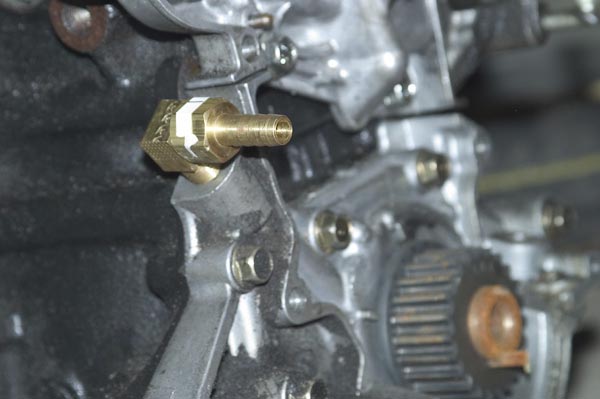

never heard of "mini" prelubers - but that sounds like the thing to do. Just hook it up to the port on the oil pump- intake side (pictured). The only thing to resolve on the bp is the attachment. On the F the pump boss is already threaded.
Attached Thumbnails
no oil pressure after rebuild-preluber3.jpg
m2cupcar is offline   Reply With Quote
Old 06-25-2007, 10:53 AM   #10
Senior Member

steelrat's Avatar

Join Date: Jul 2005
Posts: 514
Total Cats: 0
Default

Is it possible the sender for the oil pressure isn't hooked up? Have you tried playing around with the resistance on the sender to see if it's OK?

What about swapping in another oil pressure gauge?

Priming the system, sounds like a good solution though....

Dave,
steelrat is offline   Reply With Quote
Old 06-25-2007, 11:02 AM   #11
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

if you are talking about the dashboard gauge, if the Oil pump was packed with prelube (i used assembly grease last time) it took me about 20 seconds of cranking over to see pressure, not sure how long if you dont pack the pump first
akaryrye is offline   Reply With Quote
Old 06-25-2007, 11:11 AM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

agreed- on a fresh rebuild it DOES take some serious cranking to get pressure IF the pump is primed.
m2cupcar is offline   Reply With Quote
Old 06-25-2007, 11:16 AM   #13
Junior Member
Thread Starter

Join Date: May 2005
Location: Kelowna, BC, Canada
Posts: 133
Total Cats: 0
Default

ok, so sounds like priming the pump is the way to go. I DIDN'T do that step...haven't read anything about that (in the Haynes manual and I just didn't see it??)

Thanks for the tips, cjernigan and m2cupcar! I'm going to have to take a look at my engine to figure out where that fitting is...what normally goes there? Is there something already in that port (plug?), I don't remember attaching anything there?
mcsinc is offline   Reply With Quote
Old 06-25-2007, 11:29 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

there should be- they usually have a tapered plug that's pressed in. If it's flush, you'll probably need to partially drill the center and use a bolt remover to get it out. Then just tap it back in after priming.
m2cupcar is offline   Reply With Quote
Old 06-25-2007, 04:21 PM   #15
Junior Member
Thread Starter

Join Date: May 2005
Location: Kelowna, BC, Canada
Posts: 133
Total Cats: 0
Default

m2cupcar: I think that's the plug for the oil dipstick when the engine is in the 323. It's on the exhaust side though, if it's the plug I'm thinking of...is your picture possibly reversed/mirror image?
mcsinc is offline   Reply With Quote
Old 06-25-2007, 04:43 PM   #16
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

That's on the intake side of the pump- and actually goes into the pump vs. passing through. Though the photo is of the F pump, the B pumps are the same.
m2cupcar is offline   Reply With Quote
Old 06-25-2007, 05:42 PM   #17
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

the port is on the intake side. It took me a little bit of cranking before i saw OP on my motor with no prelube.
magnamx-5 is offline   Reply With Quote
Old 06-25-2007, 05:48 PM   #18
Junior Member
Thread Starter

Join Date: May 2005
Location: Kelowna, BC, Canada
Posts: 133
Total Cats: 0
Default

OK, I just checked out an old oil pump at my buddies place, and I see where the plug is now. Thanks for all the help. I'll try it tonight...cross your fingers!
mcsinc is offline   Reply With Quote
Old 06-26-2007, 05:25 AM   #19
Junior Member
Thread Starter

Join Date: May 2005
Location: Kelowna, BC, Canada
Posts: 133
Total Cats: 0
Default

Thanks to everyone for their input (esp. M2cupcar for the pic). I tried removing the plug on the intake side of the oil pump, but couldn't bust it loose (ended up rounding out the allen key socket). So, I removed the filter, stuck in a length of clear vinyl hose with a funnel on the end and filled up the pump as much as possible.

Woohoo! It only took about 20 secs of cranking and we got oil pressure, and you could hear within a few seconds when the oil starting getting squirted into the cylinders.

To anyone installing /re-installing their oil pump: make sure you prime the pump by filling it with oil or by packing with petroleum jelly. Note: the Haynes manual talks about the petroleum jelly in the "Inspection" section of the oil pump re & re, NOT in the "Installation" section. I only read the installation section because I bought a new pump and didn't think I needed to inspect it...duh! wrong!
mcsinc is offline   Reply With Quote
Old 06-26-2007, 10:06 AM   #20
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

I used a Haynes manual to rebuild the top end of a KLv6. Got everything back together and it wouldn't run. Rechecked everything by the book. Sounded like spark, so I manually rotated the crank to check the spark order. The Haynes book was had the wrong spark order for the wires!
m2cupcar is offline   Reply With Quote
