Default O2 Clamp Pressure Switch

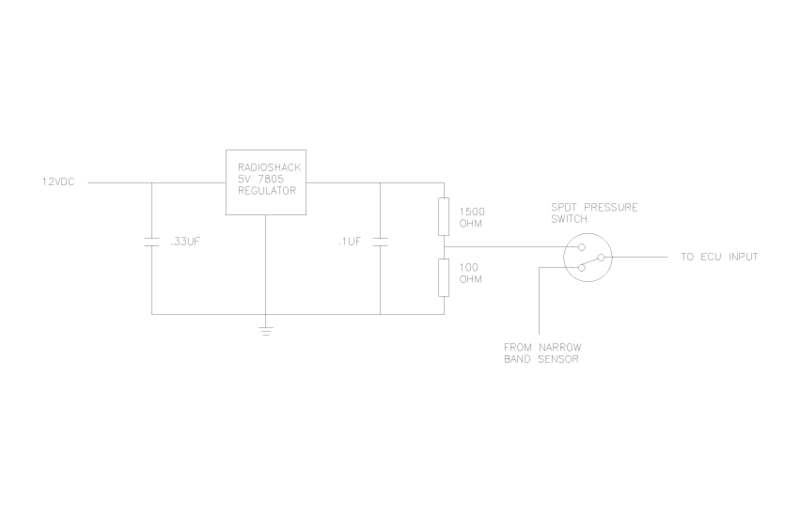

Anybody sourced a pressure switch for an O2 clamp - something inexpensive. I think this will give me an output of ~0.3V.

Name:  O2clampLayout.jpg
Views: 39
Size:  6.1 KB
sv650_ck is offline   Reply With Quote
Old 01-30-2008, 07:46 PM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

I supply one with my O2 clamps, but will sell them individually for $25 shipped in the US. Why don't you make your output variable?
olderguy is offline   Reply With Quote
Old 01-30-2008, 08:26 PM   #3
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by olderguy View Post
I supply one with my O2 clamps, but will sell them individually for $25 shipped in the US. Why don't you make your output variable?
Thanks - If I replace the 100ohm resistor with a 500ohm pot that should give me an adjustable output maxing out at 1.25v.
sv650_ck is offline   Reply With Quote
Old 01-30-2008, 08:35 PM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

I supply my variable O2 clamps set ~.32 volts, but some need to increase the voltage to keep the ECU from throwing in too much fuel and bogging rich. You don't want to set it any higher than stoich or the ECU will start limiting fuel.
olderguy is offline   Reply With Quote
Old 01-31-2008, 12:57 AM   #5
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

As the person who designed the 7805 regulated O2 clamp circuit waaaay back , it is better to use a 10Kohm 25 turn pot for adjustment...before i got rid of my pressure switch i used a "pcb mount" pressure switch from RS components and it worked well..i now use my emanage blue to switch my O2 relay. some people took my design and now use it on thier emanage ultimate o2 clamp circuits..
4sfed5 is offline   Reply With Quote
Old 01-31-2008, 08:09 AM   #6
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by 4sfed5 View Post
As the person who designed the 7805 regulated O2 clamp circuit waaaay back , it is better to use a 10Kohm 25 turn pot for adjustment..

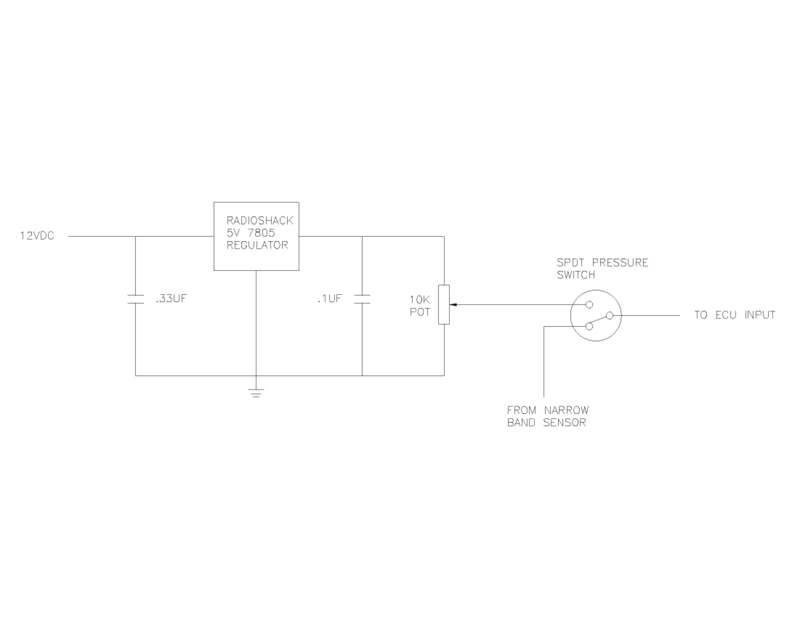

Like this?
Name:  O2clampLayout-1.jpg
Views: 48
Size:  7.8 KB
sv650_ck is offline   Reply With Quote
Old 01-31-2008, 11:32 PM   #7
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

yup..the finer adjustment you have the better...depending on how your mapped you need to adjust the clamping voltage to prevent hiccups on transition...depending on what you can find, you may want to use a 10 turn 5K pot after a 5K resistor etc etc..
