Default Oil from compressor outlet

Hey guys,

I know this question has probably been asked as many times as "how much power can I make" but I searched and couldn't find much.

I fired up my engine for the first time since putting on the turbo. I don't have the IC pipe connected to the throttle body yet. I also have a breather on my valve cover so oil isn't getting into the intake. Is it normal to have oil spitting out my compressor outlet? It's not much, but it seems to me that it will probably be more than a quart between oil changes. Also bear in mind that I only have like 1km on it since installing it - yes, I took it around the block to check for oil/coolant leaks without the IC pipes connected. The turbo is said to have been rebuilt with only about 6k miles on it.

There is no oil burning out the exhaust. I've had that in my last Saab and the turbo had major shaft play. The one I have on my miata right now (SR20 T25) has very little to no shaft play.

Thanks
dgmorr is offline   Reply With Quote
Old 03-01-2010, 03:52 PM   #2
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I don't have any answers for you but I can say I wasn't experiencing any significant oil consumption when I had it on, but it was only on for 3K miles. I did have a bit of oily residue in the outlet but IC was clean, IM was kinda dirty but I chalked that up to PCV valve isses.
Stein is offline   Reply With Quote
Old 03-01-2010, 11:23 PM   #3
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Yeah, I'll keep an eye on it, I just wasn't expecting to see that much, but we'll see. I was going to use the T25 as a little step into the turbo world anyway. I was hoping to upgrade to a GTIR T28 later in the year or if this one fails.

Thanks
dgmorr is offline   Reply With Quote
Old 03-02-2010, 10:44 AM   #4
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Edmonton, Alberta
Posts: 86
Total Cats: 0
Default

I didn't have that much on my sr20 T25 either. I figured whats little of it was coming from my PCV since I didn't have a breather on it. What sized oil pressure/feed line to the turbo are you using? Though, I'm pretty sure it has a built in restrictor so it wouldn't matter as much.
aphongt is offline   Reply With Quote
Old 03-02-2010, 12:12 PM   #5
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

I don't know the spec of the feed line, but I'm pretty sure the nut is 5/16 if that can indicate anything. I believe it may be a 1/8" hole

I filled my oil level to just above the F line on the dipstick. Does too much oil impede the flow of the drain line causing it to backup and shoot through?

I'm getting blue oil smoke out the exhaust if I'm standing still and holding the revs steady at about 2-3k.
dgmorr is offline   Reply With Quote
Old 03-02-2010, 02:53 PM   #6
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

you could be feeding too much oil, try a reducer... of not, seals are shot, needs a rebuild.
Pen2_the_penguin is offline   Reply With Quote
Old 03-03-2010, 02:27 PM   #7
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Seems like it is smoking less now. I'm wondering if it had to do with my oil level and oil draining too slowly.
dgmorr is offline   Reply With Quote
Old 03-03-2010, 04:05 PM   #8
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by dgmorr View Post
Seems like it is smoking less now. I'm wondering if it had to do with my oil level and oil draining too slowly.
I guess it depends on where you positioned your drain. If you have larger then a -3AN oil feed line, then I would think that you need a restrictor.
dustinb is offline   Reply With Quote
Old 03-03-2010, 07:07 PM   #9
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

My drain is pretty much on par with what Fm and Begi spec, 1/4" lower at most. Gonna keep an eye on it. Makes a little bit of smoke at 1k-2.5k rpm when sitting playing with the throttle, but not nearly as much as when I first started it up.
dgmorr is offline   Reply With Quote
Old 04-01-2010, 08:48 AM   #10
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

So I am still getting blue smoke out the back even after fitting the DIY rivet restrictor. It is usually during mid RPM heel-toe throttle blips, and leaves a good stream sometimes while cruising around lightly. Could this be a bad PCV valve, or would that only reveal itself under boost? It does not seem to smoke while under boost. My engine was perfectly fine before putting the turbo on. Is the turbo seal kaput?
dgmorr is offline   Reply With Quote
Old 04-01-2010, 10:56 AM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

which pcv do you have?
hustler is offline   Reply With Quote
Old 04-01-2010, 11:43 AM   #12
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by hustler View Post
which pcv do you have?
It's the stock one from 2001. Should I be using the '89 323GTX valve? That's the consensus I get after reading all the other burning oil threads.

The driver's side nipple has breather filter on it, which stinks like a motha. I'm gonna be tapping the turbo inlet pipe to route that portion back.
dgmorr is offline   Reply With Quote
Old 04-01-2010, 12:04 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by dgmorr View Post
It's the stock one from 2001. Should I be using the '89 323GTX valve? That's the consensus I get after reading all the other burning oil threads.

The driver's side nipple has breather filter on it, which stinks like a motha. I'm gonna be tapping the turbo inlet pipe to route that portion back.
YEs. Get it from Finish Line Performance because Vato zone and or local dealers will sell you the wrong one because they think they know more than I do.
hustler is offline   Reply With Quote
Old 04-01-2010, 01:56 PM   #14
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Yeah, I just went for a an hour drive and think it only happens AFTER I come out of boost. On light cruising after getting over 100kpa I get a nice puff or stream. Is the stock NB one completely useless in the first place?

Is it ok if I disconnect the hose going to the intake manifold off the PCV temporarily?

What's the part number of the PCV from Finish Line?

EDIT: I think I found it
http://www.finishlineperformance.com...1&cat=0&page=1

Last edited by dgmorr; 04-01-2010 at 02:35 PM.
dgmorr is offline   Reply With Quote
Old 04-11-2010, 09:26 PM   #15
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

While I'm waiting for my new PCV to get here, I decided to disconnect the hose back to the intake manifold and plug that up and just vent both sides of the PCV. I was doing this for a few days with no issues and no more oil smoke. Today I was down shifting in mid rpm, and when I blipped the throttle, I noticed puffs of blue smoke out the exhaust. What else can this be from? My engine was perfectly normal before I installed the turbo a few weeks ago. I'm going to do a compression test tomorrow to make sure. I also have the DIY rivet restrictor in my SR20 T25 oil line.

My WG actuator is hooked up after the TB (which I will fix tomorrow). Will this have any effect of trying to create pressure against the TB while in vacuum and excess oil going through the turbo in anyway?

Any thoughts?
dgmorr is offline   Reply With Quote
Old 04-11-2010, 09:54 PM   #16
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by dgmorr View Post
While I'm waiting for my new PCV to get here, I decided to disconnect the hose back to the intake manifold and plug that up and just vent both sides of the PCV. I was doing this for a few days with no issues and no more oil smoke. Today I was down shifting in mid rpm, and when I blipped the throttle, I noticed puffs of blue smoke out the exhaust. What else can this be from? My engine was perfectly normal before I installed the turbo a few weeks ago. I'm going to do a compression test tomorrow to make sure. I also have the DIY rivet restrictor in my SR20 T25 oil line.

My WG actuator is hooked up after the TB (which I will fix tomorrow). Will this have any effect of trying to create pressure against the TB while in vacuum and excess oil going through the turbo in anyway?

Any thoughts?
You should hook that PCV back up asap, the valve cover needs to see vacuum from the intake manifold to properly release pressure.
dustinb is offline   Reply With Quote
Old 04-11-2010, 10:08 PM   #17
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by dustinb View Post
You should hook that PCV back up asap, the valve cover needs to see vacuum from the intake manifold to properly release pressure.

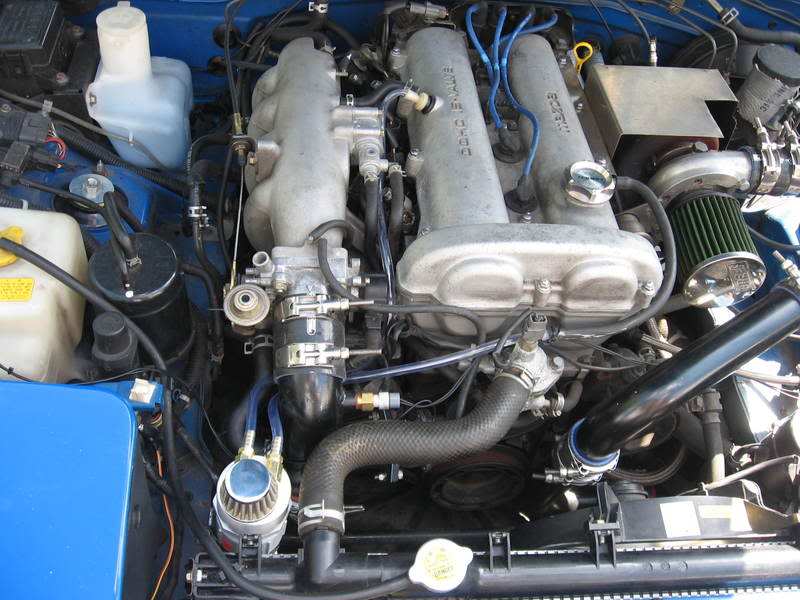

Really? It won't just work it's way out? I've seen a lot of catch cans in between the two valve cover hoses and vented to atmosphere with no vacuum reference.

for example
Name:  IMG_1039.jpg
Views: 1
Size:  84.0 KB
dgmorr is offline   Reply With Quote
Old 06-11-2010, 09:45 PM   #18
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Do blown turbos smoke all the time? I'm starting to worry that my turbo isn't blown, but maybe either a problem with my oil drain or maybe plugged up oil ports in the turbo.

I get smoking when under heavy vacuum for an extended time such as slowing down on the highway off ramp and then giving a little gas afterward. I get blue smoke, and no white smoke, so it's not leaking out the turbine side.
dgmorr is offline   Reply With Quote
Old 06-11-2010, 10:04 PM   #19
Junior Member
iTrader: (2)

rbluemx6's Avatar

Join Date: Apr 2009
Location: San Antonio, TX
Posts: 179
Total Cats: 0
Default

Yes. When the turbo seals are damaged, smoke is constant while the engine is on. Usually the exhaust side is the first to go.

Have you done a compression test and leak down test to rule out rings and valve seals?
rbluemx6 is offline   Reply With Quote
Old 06-12-2010, 01:25 AM   #20
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Yeah, I've done a compression test, have not done a leak down test. When I had the turbo off to rebuild it, I was able to drive around and had no issues with smoke.

I bought a good T28, but last night I had a thought in my sleep thinking my issue could be with the oil drain line or a clogged center section of my old T25 - I didn't fully clean the center section like I should have done.

What's the best way to test the flow of my drain line - hook it up to a funnel and see? It's is exiting the turbo vertically like it should. Have there been known issues of the oil pan fitting going in too far and being impeded by the oil pickup tube? I'm using a 3/8 NPT threaded end in the pan and barbed end to the hose.
