Old 12-18-2010, 10:44 AM   #21
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I also have a sandwich adapter for several years now and I'm pretty happy with it. Mine has 4 ports on it.
Reverant is online now   Reply With Quote
Old 12-18-2010, 11:01 AM   #22
Junior Member

kday's Avatar

Join Date: Aug 2008
Location: Boston
Posts: 223
Total Cats: 0
Default

FWIW, I put an oil temp sensor in line with the turbo feed line, and while it is not totally useless, it does read low and change slowly. In my case the sensor is about 12 inches away from the OPG port on a -4 AN circuit, but there is a restrictor in series at the turbo, so relatively little oil flows past it. In the datalog I can see that OILT follows CLT but ~30F lower.

This is how mine is plumbed:
kday is offline   Reply With Quote
Old 12-18-2010, 11:09 AM   #23
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

Quote:
Originally Posted by curly View Post
Edit: if you're smart, those Npt-AN fittings should get rid of one of this adapters. They're needless potential leak points.
I'll definitely look into the AN fittings. I don't really like having all the adapters. It's not the clean look and like others have said has the potential to have lots of leaking. I'm planning on pressurizing the setup before I install to check for leaking.

I also have an in-pan oil temp sender so once the setup is in and running I'll post up findings on temp in flow and temp in pan. That won't be for a while though.
seraph is offline   Reply With Quote
Old 12-18-2010, 12:19 PM   #24
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by kday View Post
I like that setup. Very nice.
ZX-Tex is offline   Reply With Quote
Old 01-18-2011, 10:03 PM   #25
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

So, went with the advice on the An fittings and definitely agree that it was great advice. I used 3/8 to 4an fittings. I don't have pics of the complete setup because the gauges just came in with the sensors and I haven't put them in yet.

[IMG][/IMG]
seraph is offline   Reply With Quote
Old 01-18-2011, 11:24 PM   #26
Senior Member
iTrader: (1)

Join Date: Jul 2009
Location: Batavia, IL
Posts: 604
Total Cats: 0
Default

If that hose is rubber, you are going to want to keep an eye on it. Over time, oil swells and deteriorates rubber, and peak pressures of 90psi cold aren't going to help either. I have had to rebuild my engine twice because of rubber failure by oil saturation. Ideally you want to use braided SS Teflon lined hose. Using those hose clamps with high pressure is asking for trouble.
Cococarbine3 is offline   Reply With Quote
Old 01-19-2011, 12:24 AM   #27
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

Quote:
Originally Posted by Cococarbine3 View Post
If that hose is rubber, you are going to want to keep an eye on it. Over time, oil swells and deteriorates rubber, and peak pressures of 90psi cold aren't going to help either. I have had to rebuild my engine twice because of rubber failure by oil saturation. Ideally you want to use braided SS Teflon lined hose. Using those hose clamps with high pressure is asking for trouble.
+1 I understand completely and agree with this. I only have rubber coming from the engine to the distr. block and SS lines coming out around the back of the engine. Ideally I want to have SS lines completely but I can't find a BSP to 4an fitting for the engine.

Anyone know where I could find one? I have a 96engine.
seraph is offline   Reply With Quote
Old 01-19-2011, 09:11 AM   #28
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

http://www.pegasusautoracing.com/pro...p?Product=3230

Found in a thread by searching 'oil pressure sender thread'... first link I clicked on.
baron340 is offline   Reply With Quote
Old 01-19-2011, 11:41 AM   #29
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

The whole point of using an fittings is to eliminate hose clamps. Those look like truck air brake fittings.
Gotpsi? is offline   Reply With Quote
Old 01-19-2011, 01:18 PM   #30
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

^^^ If you're refering to the silver elbows, I'm not sure what they are but they came with the Begi kit and fit and seal perfectly with 4an.

Because of positioning there is not enough clearance between firewall and the metal coming from the shock mount to run AN elbows. Sometimes you gotta improvise.

Thanks for the link
seraph is offline   Reply With Quote
Old 01-19-2011, 01:42 PM   #31
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I was thinking about a similar setup, only I wanted to add an oil pressure switch to drive and emergency light/buzzer to let me know if I have catastrophic oil failure.
Rallas is offline   Reply With Quote
Old 01-19-2011, 03:01 PM   #32
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

That's a great little distribution block. Ebay just keeps getting better and better.
Faeflora is offline   Reply With Quote
Old 01-19-2011, 03:05 PM   #33
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

BTW also thank you for the pic of the VDO sender fitament. I was going to tap it in the oil sump but I might go this route instead. Regardless, those blocks are useful.
Faeflora is offline   Reply With Quote
Old 01-19-2011, 03:46 PM   #34
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

The sender that's pictured is the stock one. I got the vdo sender in today so i'll post pics of both senders and temp sender tonight. It seems like this setup will work well as long as everything sealed right (fingers crossed).
seraph is offline   Reply With Quote
Old 01-19-2011, 03:57 PM   #35
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

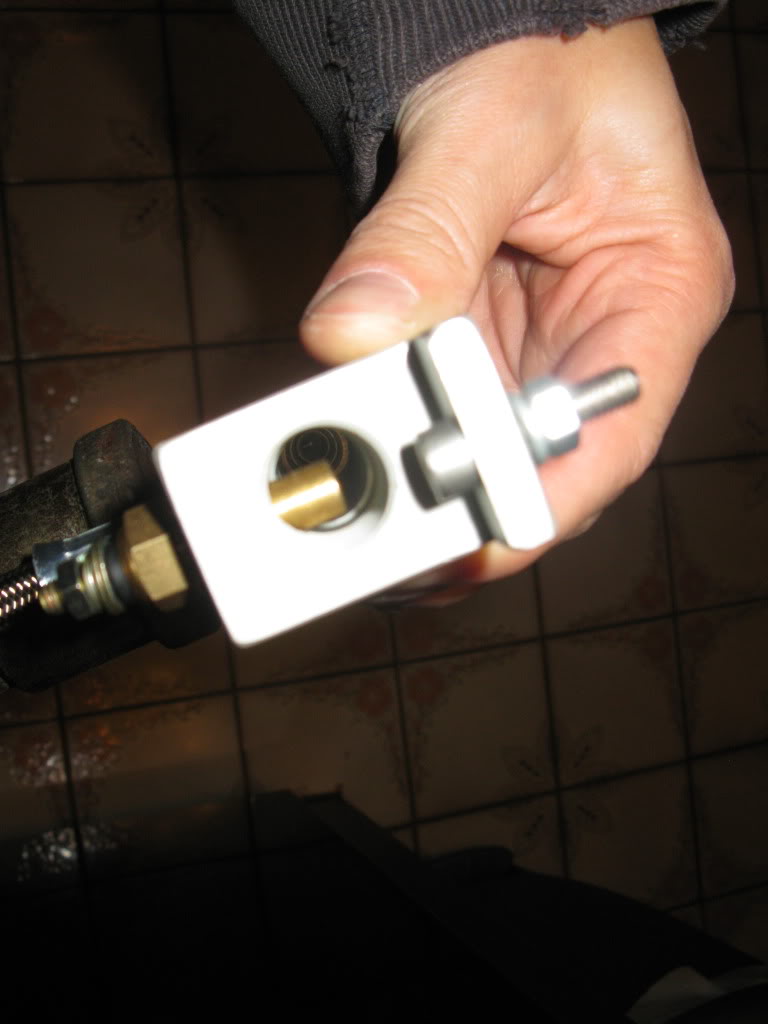

Wut?

What's this one then?

Name:  IMG_1697.jpg
Views: 1
Size:  56.3 KB
Faeflora is offline   Reply With Quote
Old 01-19-2011, 03:57 PM   #36
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I have that long neck type of sensor.
Faeflora is offline   Reply With Quote
Old 01-19-2011, 08:18 PM   #37
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by relte View Post
I was thinking about a similar setup, only I wanted to add an oil pressure switch to drive an accusump system
There fixed that for ya..
baron340 is offline   Reply With Quote
Old 01-19-2011, 08:43 PM   #38
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

Quote:
Originally Posted by Faeflora View Post
I have that long neck type of sensor.
The long neck sensor is the Temp sensor.

Here are some pics of the complete setup with stock press. aftrmkt press. and aftrmkt temp senders. SS lines from block to turbo with AN fittings.

[IMG][/IMG]

I snaked the SS line going to the turbo between the brake lines, so I wrapped it up for added protection.

[IMG][/IMG]

Because of location I had to remove the stock windshield washer resivoir, so with some ideas from CR I added this.

[IMG][/IMG]

Plenty of space between sensors and win. washer tank.

[IMG][/IMG]

Overall I'm happy with the way things worked out. I think it will be exactly what I need for my setup and will make it easy to reach any of the sensors if there is a problem with them. I also feel better about it all not dangling from the T coming off the engine block.
seraph is offline   Reply With Quote
Old 01-19-2011, 10:00 PM   #39
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Hey I didn't give you permission to use my tank ideas.

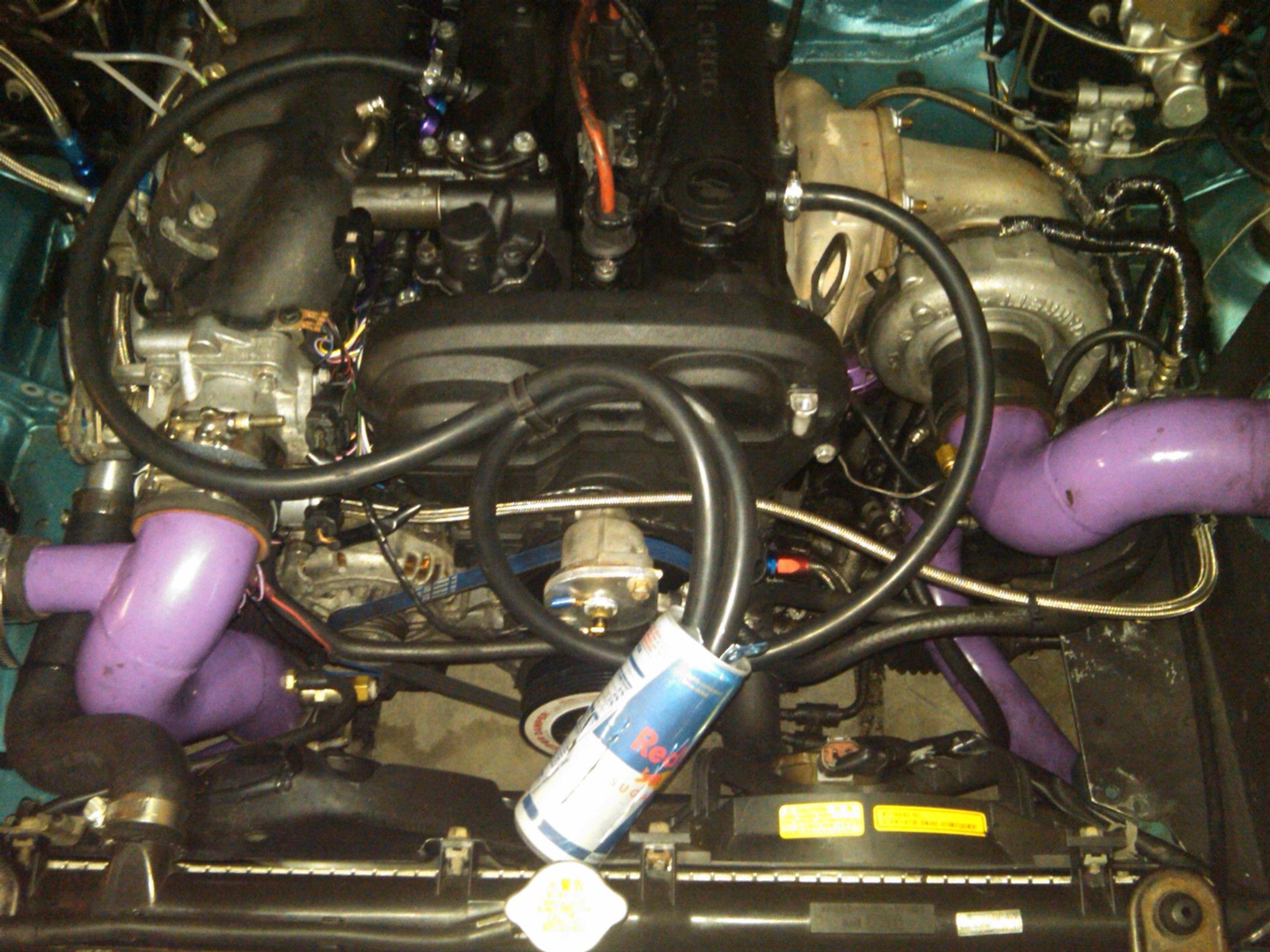

My catch can setup:

Faeflora is offline   Reply With Quote
Old 01-19-2011, 10:21 PM   #40
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Red Bull gives you boost.
