Default Oil drain leakage

For some reason the diy 1/2 npt is still dripping a tiny bit of oil here and there. I've put jb weld around the seal several times(so the layer is pretty thick) but after a couple weeks of driving (or sitting) it has just enough oil leaking so you can touch it and feel it on your fingers. It isn't leaking down the tube and doesn't appear to be coming from anywhere else. I've replaced the drain hose with a better hose but still the same leak. Without ripping the bung out is there any other options besides more jb weld?
Turbo_4 is offline   Reply With Quote
Old 01-17-2010, 06:53 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

I don't think plastering more jbweld will do anything. I think you didn't clean the area good enough with acetone before the jb weld so its not really bonding or developed leaks. I'd take it out, clean it very very thoroughly, and try again.


of course the best solution is to weld it like I did with mine. it was leaking too.
18psi is offline   Reply With Quote
Old 01-17-2010, 08:46 PM   #3
I EAT CUM
Thread Starter
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Is it possible to have it welded while it is still on the car? I have a shop downtown that has done all my exhaust work and what not and I could see if I could scrape off the jb weld and have them weld it up for real.
Turbo_4 is offline   Reply With Quote
Old 01-17-2010, 09:02 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Its possible since I was going to do it while the engine was on the car and went under there with a welder just to see if its even doable. VERY VERY tight squeeze but "possible".
I took out my engine and did it properly though due to other reasons
18psi is offline   Reply With Quote
Old 01-17-2010, 09:05 PM   #5
I EAT CUM
Thread Starter
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

So any idea on removing jb weld?
Turbo_4 is offline   Reply With Quote
Old 01-17-2010, 09:14 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Never used it. No idea
18psi is offline   Reply With Quote
Old 01-17-2010, 10:21 PM   #7
I EAT CUM
Thread Starter
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Looks like google is saying acetone and a dremmel...not sure if I want to take that route though.
Turbo_4 is offline   Reply With Quote
Old 01-17-2010, 11:08 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

That's why, although a pain, its recommend to take the pan off. Most exhaust shops don't have a tig machine, which you'll need to weld to the pan. Your fitting isn't bottoming out before the threads get tight, is it?
curly is offline   Reply With Quote
Old 01-18-2010, 12:09 AM   #9
I EAT CUM
Thread Starter
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Quote:
Originally Posted by curly View Post
That's why, although a pain, its recommend to take the pan off. Most exhaust shops don't have a tig machine, which you'll need to weld to the pan. Your fitting isn't bottoming out before the threads get tight, is it?
What do you mean? I think it might not be screwed in enough...but not really much that can be done about it now.
Turbo_4 is offline   Reply With Quote
Old 01-18-2010, 12:16 AM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

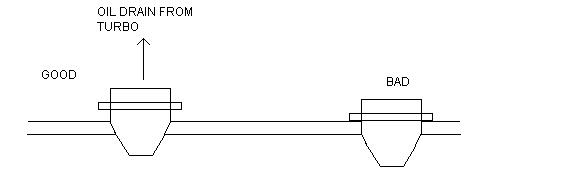

NPT fittings seal on the threads, not the flange of the fitting. If you tapped your threads too far, they'll be too wide and your fitting will bottom out before the threads seal.

Like so:
Name:  oildrain.jpg
Views: 4
Size:  6.2 KB
curly is offline   Reply With Quote
Old 01-18-2010, 12:20 AM   #11
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

How far did you take the tap in? The first time i tapped my pan i didnt run the plug in as far as i should which gave very limited threads. NPT is designed to start and taper up so eventually it gets to a point where its tight. Unlike bolts which have the same thread.
Attached Thumbnails
Oil drain leakage-images.jpg
SKMetalworks is offline   Reply With Quote
Old 01-18-2010, 02:12 PM   #12
I EAT CUM
Thread Starter
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

I put my tap about half way through. Also my flange looks like the "good" picture where it is not flush with the pan.

Edit> I think I might have uncovered a different problem, fuel leak. I'm pretty stuffed up right now and couldn't really smell the liquid. I had the g/f smell it and she said straight gas. I think I might be having a fuel leak that is dripping down somewhere and getting covered in grime/dirt so it has a thicker consistency.
Turbo_4 is offline   Reply With Quote
Old 01-20-2010, 10:19 PM   #13
I EAT CUM
Thread Starter
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Okay never mind, turns out it was the oil drain leaking. I found this stuff called waterweld and it seems to have done a lot better sealing it...so we will so how this does.
Turbo_4 is offline   Reply With Quote
Old 01-20-2010, 10:25 PM   #14
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

Did you use sealing copper washer?
94blackmx5 is offline   Reply With Quote
Old 01-20-2010, 10:37 PM   #15
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by 94blackmx5 View Post
Did you use sealing copper washer?
What.....are you talking about??
Vashthestampede is offline   Reply With Quote
Old 01-20-2010, 10:43 PM   #16
I EAT CUM
Thread Starter
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

That's where I fucked up^^I didn't use any washers so now I'm using this to hopefully make up for it.
Turbo_4 is offline   Reply With Quote
Old 01-20-2010, 10:45 PM   #17
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Anyone tried something like this welded on the pan, instead of the npt?

Holley Performance Products -8 AN Male Weld Fitting 997108ERL

I ask because I'm going to be doing this soon.
webby459 is offline   Reply With Quote
Old 01-20-2010, 10:47 PM   #18
I EAT CUM
Thread Starter
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Just weld it...if this fittings fails, I'll just redo it the right way.
Turbo_4 is offline   Reply With Quote
Old 01-20-2010, 11:14 PM   #19
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

I just drilled and tapped mine, inserted fitting with jb weld around the threads, and put a little bit around the perimeter once I tightened it.

No signs of leakage.
Vashthestampede is offline   Reply With Quote
Old 01-20-2010, 11:30 PM   #20
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

Quote:
Originally Posted by Vashthestampede View Post
I just drilled and tapped mine, inserted fitting with jb weld around the threads, and put a little bit around the perimeter once I tightened it.

No signs of leakage.
i did the same except i used black rtv. i figured it's good enough to seal the pan to your block, plus it won't crack and is easily removed and redone.
