Default The "other" spool question

When driving around on the road, initial spool, i.E. at what rpm does boost really kick in, when in a higher gear, is the most important. This is the question that the "I want your spool data" thread is trying to answer.

But when on the track (not autocross) you're usually always within the right rpm band for your turbo to reach full boost. Here the question is how long does it take to spool up under these conditions.

Interesting to me is: at 5000 rpm, in 3rd or 4th, how long does it take coming off 0% tps from full throttle to full boost?

Suggested parameters: consider the turbo fully spooled at 5kpa below boost target. Consider full throttle to be 95% throttle.

Under these conditions, my trusty old T28 needs between 400ms and 500ms. That's without boost control enabled, since I currently run of the WG on the track.

Car: 99
Total Weight: 2750lbs (estimated)
Gear: 4th of 5
Turbo setup:
- Mystery T28 (Garrett)
- Begi cast manifold
- Old style FM downpipe
- Old style FM IC
- Enthuza 3" exhaust with cat-delete
- MS3X
- target MAP: 172

Measurements
Start rpm: 4863
Spooled rpm: 5088
MAP at spooled rpm: 167.7
Spool time: 442ms

Starting at 4krpm, the spool time goes up to a full second!

It does feel a bit laggy. Is a 2560R faster? How about the EFR 6258?
Anybody willing to share data?

Last edited by stefanst; 09-19-2015 at 07:22 PM.
stefanst is offline   Reply With Quote
Old 09-19-2015, 06:10 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

I think the more helpful way to discuss it is "boost threshold" vs "spool"

for whatever it's worth, yes a proper gt2560r will do it way better than the begi chinacharger

and for whatever else it's worth, the efr6258 I'm tuning now crosses into boost with the touch of the throttle. Like almost exactly as fast as you touch the pedal. I'll see if I can get a log. It's bananas.

I don't think I can even have it pulling vaccum at part throttle past 4k in 4th, it will be at 110kpa already
18psi is offline   Reply With Quote
Old 09-19-2015, 09:01 PM   #3
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Wow, the efr is that fast?
ryansmoneypit is offline   Reply With Quote
Old 09-20-2015, 02:52 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

To give you an idea: as soon as I step on it in at 2000 rpm, it goes up to 3-4psi. Instantly
And then starts building from there.
When you drive it in the upper rpm range, it feels like an N/A car.
18psi is offline   Reply With Quote
Old 09-20-2015, 03:21 AM   #5
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by stefanst View Post
When driving around on the road, initial spool, i.E. at what rpm does boost really kick in, when in a higher gear, is the most important. This is the question that the "I want your spool data" thread is trying to answer.

But when on the track (not autocross) you're usually always within the right rpm band for your turbo to reach full boost. Here the question is how long does it take to spool up under these conditions.

Interesting to me is: at 5000 rpm, in 3rd or 4th, how long does it take coming off 0% tps from full throttle to full boost?

Suggested parameters: consider the turbo fully spooled at 5kpa below boost target. Consider full throttle to be 95% throttle.

Under these conditions, my trusty old T28 needs between 400ms and 500ms. That's without boost control enabled, since I currently run of the WG on the track.

Car: 99
Total Weight: 2750lbs (estimated)
Gear: 4th of 5
Turbo setup:
- Mystery T28 (Garrett)
- Begi cast manifold
- Old style FM downpipe
- Old style FM IC
- Enthuza 3" exhaust with cat-delete
- MS3X
- target MAP: 172

Measurements
Start rpm: 4863
Spooled rpm: 5088
MAP at spooled rpm: 167.7
Spool time: 442ms

Starting at 4krpm, the spool time goes up to a full second!

It does feel a bit laggy. Is a 2560R faster? How about the EFR 6258?
Anybody willing to share data?
This is called real world spool to me. When I want to go into boost and go fast, I don't put it in 5th at 2K and floor it to get it to spool. I downshift and go.

My GT3271 setup was just under 500ms if I was above 6,000 RPMs (rev'd that motor to 8) If it was at 5,000 it was probably more like 700ms, still very fast but not instant.

I did a similar test with the whipple, it will go from full vacuum, to full boost in under 200ms. I'm sure some turbo folks will post that their setup is faster to boost/it's instant/there's no lag at all.
patsmx5 is offline   Reply With Quote
Old 09-20-2015, 10:10 AM   #6
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

<p>
Quote:
Originally Posted by 18psi View Post
To give you an idea: as soon as I step on it in at 2000 rpm, it goes up to 3-4psi. Instantly And then starts building from there. When you drive it in the upper rpm range, it feels like an N/A car.
</p><p>I think that is a little different from what OP is suggesting. He starts at closed throttle, not steady speed.&nbsp;</p>
DNMakinson is offline   Reply With Quote
Old 09-20-2015, 10:30 AM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Yeah once you're fully north of 4k in my car its just a big cube motor, the time the turbo takes to make all the power is pushing the edge of human perception.
Leafy is offline   Reply With Quote
Old 09-20-2015, 11:13 AM   #8
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 644
Total Cats: 27
Default

With a T28, you should have zero difficulties with spool at any RPM. That's a tiny turbo and 8 psi is a very modest boost target. If I can instantly spin T3/T04B/E turbos to 18 psi with no problem above 4-5000 rpm, there is no way you should be having any difficulty with a T28 at 8 psi. You're running a smaller turbine and a smaller compressor wheel and you're aiming for less boost on the same basic motor as me. Your exhaust setup is very similar to mine, just with a smaller diameter DP.

On the track I think you will pretty much never fall out of boost unless you close the throttle and then you'll be back into it the second you crack it open.
AlwaysBroken is offline   Reply With Quote
Old 09-20-2015, 12:20 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Quote:
Originally Posted by DNMakinson View Post
<p></p><p>I think that is a little different from what OP is suggesting. He starts at closed throttle, not steady speed.&nbsp;</p>
Right, but what I'm describing pretty much applies to his situation as well. punching it at high rpm even from decel will result in car lurching forward like its naturally aspirated
18psi is offline   Reply With Quote
Old 09-20-2015, 12:24 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Quote:
Originally Posted by AlwaysBroken View Post
With a T28, you should have zero difficulties with spool at any RPM. That's a tiny turbo and 8 psi is a very modest boost target. If I can instantly spin T3/T04B/E turbos to 18 psi with no problem above 4-5000 rpm, there is no way you should be having any difficulty with a T28 at 8 psi. You're running a smaller turbine and a smaller compressor wheel and you're aiming for less boost on the same basic motor as me. Your exhaust setup is very similar to mine, just with a smaller diameter DP.

On the track I think you will pretty much never fall out of boost unless you close the throttle and then you'll be back into it the second you crack it open.
have you ever actually tried a China t28?
Some of them spool worse than a genuine Garrett 30
18psi is offline   Reply With Quote
Old 09-20-2015, 12:31 PM   #11
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 644
Total Cats: 27
Default

OP, can you post your compressor/turbine wheel exducer/inducer diameters?
AlwaysBroken is offline   Reply With Quote
Old 09-20-2015, 12:33 PM   #12
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 644
Total Cats: 27
Default

Quote:
Originally Posted by 18psi View Post
have you ever actually tried a China t28?
Some of them spool worse than a genuine Garrett 30
He said it was garrett. I have no experience with chinachargers. Chinachargers weren't even a thing when I put my setup together.
AlwaysBroken is offline   Reply With Quote
Old 09-20-2015, 03:49 PM   #13
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

<p>&nbsp;</p><p>&nbsp;</p><p>Actually, on my car, the difference(0-TPS vs Cruise&nbsp;punch)&nbsp;is imperceptible as well, but not so impressive.</p><p>I made 3 runs.0 TPS, then level cruise, then slight uphill cruise.&nbsp;Also, done at 4K, rather than 5K. &nbsp;Here are the results:</p><p>Start TPS: 0&nbsp;&nbsp;&nbsp; Start RPM: 3910&nbsp;&nbsp;&nbsp; Start kPa:15&nbsp;&nbsp;&nbsp; Jumped to 92kPa m&nbsp;&nbsp; Finish RPM: 4110&nbsp;&nbsp;&nbsp; Finish kPa: 149&nbsp;&nbsp;&nbsp; Time: 750 mS</p><p>Start TPS: 6.3&nbsp;&nbsp;&nbsp; Start RPM: 3690&nbsp;&nbsp;&nbsp; Start kPa:31&nbsp;&nbsp;&nbsp; Jumped to 93kPa&nbsp;&nbsp;&nbsp; Finish RPM: 3880&nbsp;&nbsp;&nbsp; Finish kPa: 148&nbsp;&nbsp;&nbsp; Time: 750 mS</p><p>Start TPS: 12.4&nbsp;&nbsp;&nbsp; Start RPM: 3950&nbsp;&nbsp;&nbsp; Start kPa:51&nbsp;&nbsp;&nbsp; Jumped to 72kPa&nbsp;&nbsp;&nbsp; Finish RPM: 4110&nbsp;&nbsp;&nbsp; Finish kPa: 148&nbsp;&nbsp;&nbsp; Time: 560 mS</p><p><img src="http://cimg3.ibsrv.net/gimg/www.miataturbo.net-vbulletin/1125x605/80-0tps_a06f2ce5f0cc4a659235f67b7f999500c25b8d9b.png" title="" /><img src="https://cimg4.ibsrv.net/gimg/www.miataturbo.net-vbulletin/1125x605/80-easy_cruise_0698d7eb7805e84d02e5b01aca98c9c4f71a09 c3.png" title="" /><img src="https://cimg5.ibsrv.net/gimg/www.miataturbo.net-vbulletin/1125x605/80-slight_uphill_b804d9e8dc10f262cf9ca1889f94673978d5 201a.png" title="" />&nbsp;</p><p>&nbsp;</p><p>&nbsp;</p>
DNMakinson is offline   Reply With Quote
Old 09-21-2015, 12:23 AM   #14
Boosting since 1984
Thread Starter
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

That's some great info so far. Thanks!
I have been toying with the 6258 idea for quite a while now....

About my turbo: It's the T28 that came with the FMII kit in 1999 when the car was new. That's the last time I had it off the manifold. I called it a 'mystery' T28, because I know nothing else about it. And I'm not taking it off to measure bits. Once it's off, it's not going back on!

When I'm at part throttle, with the turbo spinning, but pressure in the intake below 100kpa, response is actually pretty good. Depending on MAP and RPM, it is often almost instantaneous. But shifting just kills it. This is why I asked about the response when going from 0% TPS to 100% TPS at rpm.
stefanst is offline   Reply With Quote
Old 09-21-2015, 01:12 AM   #15
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by stefanst View Post
That's some great info so far. Thanks!
I have been toying with the 6258 idea for quite a while now....

About my turbo: It's the T28 that came with the FMII kit in 1999 when the car was new. That's the last time I had it off the manifold. I called it a 'mystery' T28, because I know nothing else about it. And I'm not taking it off to measure bits. Once it's off, it's not going back on!

When I'm at part throttle, with the turbo spinning, but pressure in the intake below 100kpa, response is actually pretty good. Depending on MAP and RPM, it is often almost instantaneous. But shifting just kills it. This is why I asked about the response when going from 0% TPS to 100% TPS at rpm.
If megasquirted, flat shift is your friend! I set this up on my car and it makes gear changes easier and faster, and you're back in the power much faster, and I have an SC so lag isn't really an issue, but still it makes a nice difference.
patsmx5 is offline   Reply With Quote
Old 09-21-2015, 03:54 AM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Quote:
Originally Posted by AlwaysBroken View Post
He said it was garrett. I have no experience with chinachargers. Chinachargers weren't even a thing when I put my setup together.
My mistake, people normally put gt2560r rather than "t28" when talking about the FM garrett turbo kits.

Anyway, I just did it with the EFR and at 4k going from vacuum to 9psi took 160ms.
To reach 16psi took about 500ms, but that's with a janky gate and bleed type-mbc. Basically crap. Tomorrow I should be getting the proper gate and a 3port mac valve to install.

I'll post logs tomorrow if I don't forget.
18psi is offline   Reply With Quote
Old 09-21-2015, 09:23 AM   #17
Boosting since 1984
Thread Starter
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

It's supposedly not a gt2560r. This kit is soooo ancient they did some other Garrett T28 back then. I sent them an email to ask specifics a few years back and all they could say is T28, no further info available. But they seemed pretty certain that it's a journal bearing.
stefanst is offline   Reply With Quote
Old 09-21-2015, 01:44 PM   #18
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

<p>
Quote:
Originally Posted by 18psi View Post
Anyway, I just did it with the EFR and at 4k going from vacuum to 9psi took 160ms. <img alt="" src="images/smilies/biggrin.gif" title="big grin" /></p><p>To reach 16psi took about 500ms, but that's with a janky gate and bleed type-mbc. Basically crap. Tomorrow I should be getting the proper gate and a 3port mac valve to install.
</p><p>That is mad. <img alt="big grin" src="https://www.miataturbo.net/images/smilies/biggrin.gif" style="height:16px; width:16px" title="big grin" />&nbsp;is right</p><p>Question: How hard on the engine is flat-shifting, and how hard is it to set up? I have no plans, but indeed the OP may be interested.</p>
DNMakinson is offline   Reply With Quote
Old 09-21-2015, 02:12 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

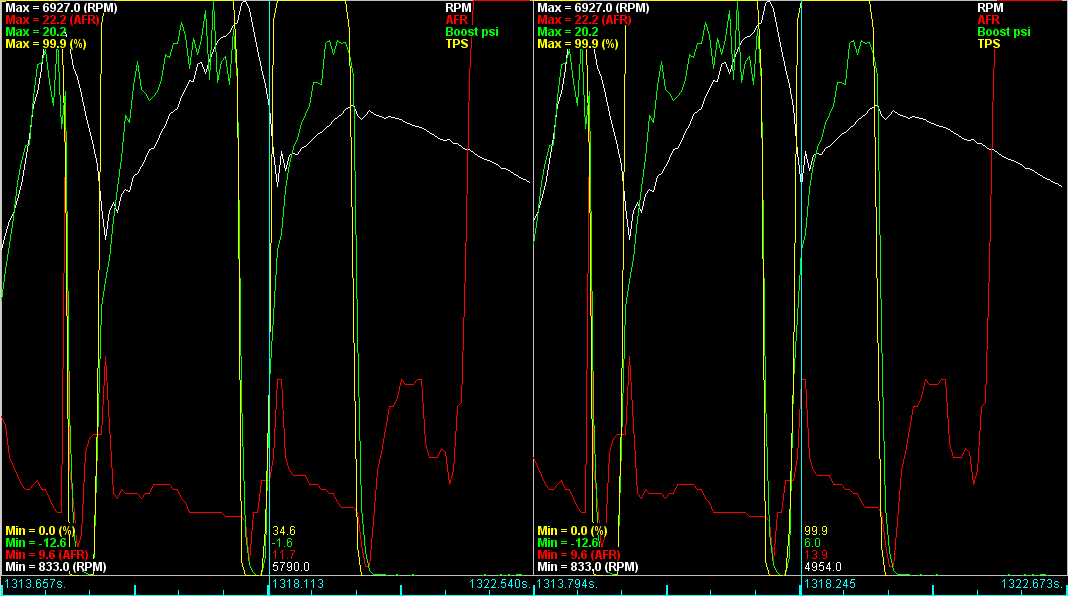

Ok re-ran last night's log, not quite as good as I said but still really good.
And again, this is on terrible boost control. EBC still hasn't shown up in the mail yet.




132ms from vacuum to 6psi
Attached Thumbnails
The &quot;other&quot; spool question-80-transient_boost_adbc33990997db78181a1f921c93f294e4a382b8.png
18psi is offline   Reply With Quote
Old 09-21-2015, 02:16 PM   #20
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

The parameters being measured here are highly dependent upon Accelerator Enrichment settings. The data may be empirical but the variables are not isolated.
sixshooter is online now   Reply With Quote
