Old 06-07-2008, 08:53 PM   #21
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Use some vacuum tubing, i know you have some laying around to make a little bushing. Might help some.
cjernigan is offline   Reply With Quote
Old 06-07-2008, 10:57 PM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

**** looks good to me! Nice work. Wondering if I could do something similar. Probably not though as I'll have a thicker radiator and need room for an 8 rib pulley and tensioners for the SC's.
patsmx5 is offline   Reply With Quote
Old 06-08-2008, 12:01 AM   #23
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

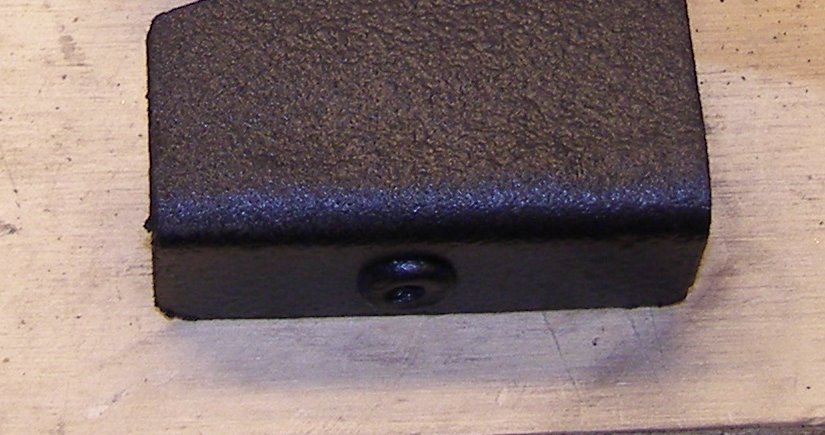

I actually have a small rubber bushing pressed into the radiator mounting bracket. The screw that holds the radiator to the bracket goes through this bushing. Here is a zoomed image...
Attached Thumbnails
Over the top 18x12x4 (yeah 4) intercooler-bushing-zoom.jpg
ZX-Tex is offline   Reply With Quote
Old 06-08-2008, 12:36 AM   #24
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by patsmx5 View Post
**** looks good to me! Nice work. Wondering if I could do something similar. Probably not though as I'll have a thicker radiator and need room for an 8 rib pulley and tensioners for the SC's.
I have some room left over so if I have to upgrade to a Godspeed radiator for example I think it will fit. Not sure about room for supercharger pulleys and belts though
ZX-Tex is offline   Reply With Quote
Old 06-08-2008, 01:42 AM   #25
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I'm not sure you will be able to fit the Godspeed. I truthfully think a 1" radiator would be a much better option for you. Possibly the coolradiator.com rad if its available or maybe a stock NB automatic radiator. They're slightly larger and all metal. Or possibly a koyo 33mm. Judging by how much you have already cut your radiator hose you have minimal room. I'll take better pictures showing how much room i have with the godspeed in stock location tomorrow if I can.

Should I get the cheap ebay fans or should i get some of the 11" SPALs you picked up?
cjernigan is offline   Reply With Quote
Old 06-08-2008, 02:46 AM   #26
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Go to an O'Riley's ond pick up some of their slimline fans. I am currently running 2 12" fans, and have no issues with overheating with the stock radiator at idle.
coastertrav is offline   Reply With Quote
Old 06-08-2008, 02:51 AM   #27
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by cjernigan View Post
I'm not sure you will be able to fit the Godspeed. I truthfully think a 1" radiator would be a much better option for you. Possibly the coolradiator.com rad if its available or maybe a stock NB automatic radiator. They're slightly larger and all metal. Or possibly a koyo 33mm. Judging by how much you have already cut your radiator hose you have minimal room. I'll take better pictures showing how much room i have with the godspeed in stock location tomorrow if I can.

Should I get the cheap ebay fans or should i get some of the 11" SPALs you picked up?
Yeah I think you might be right. Cutting down the stock hose more would not work as it is pretty close to minimum right now. I would have to come up with one that had more of an s-shape to make it work. I agree the 1" radiator from coolradiator is a good idea. I have looked at that one before. I think someone else here runs one. Brain maybe?

The Spals are nice but they are not cheap as you know. The ones that siliconeintakes sell look very similar to the Spals, though the current draws (power consumption) IIRC are not as high. This could indicate they do not flow as much air all else being equal.

I do need to fabricate and install the shroud though as the car is definitely running warmer while cruising. I'll update the thread when I get it in place.
ZX-Tex is offline   Reply With Quote
Old 06-08-2008, 12:26 PM   #28
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Nice install- good job taking advantage of the available vertical space up front.

Ben- I think it's almost as simple to drop the rad on the NA, IF you build some new rad brackets to hang on the OE hooks. For my rad, it's just a simple cradle that hangs on the OE rad hooks. I keep saying there's lots of vertical space available up there. My rad is way taller than the stock unit and the bottom is still above the bottom edge of the nose skin.
m2cupcar is offline   Reply With Quote
Old 06-08-2008, 02:06 PM   #29
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by m2cupcar View Post
Ben- I think it's almost as simple to drop the rad on the NA, IF you build some new rad brackets to hang on the OE hooks. For my rad, it's just a simple cradle that hangs on the OE rad hooks. I keep saying there's lots of vertical space available up there. My rad is way taller than the stock unit and the bottom is still above the bottom edge of the nose skin.
I had thought about that, but unfortunately, I have no welder
Atlanta93LE is offline   Reply With Quote
Old 06-08-2008, 03:05 PM   #30
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by coastertrav View Post
Go to an O'Riley's ond pick up some of their slimline fans. I am currently running 2 12" fans, and have no issues with overheating with the stock radiator at idle.
I don't remember what they cost. And my car was a NA. But when I heard the price of a new OEM fan. I bought the universal from Oriley's. Sold the car to my cousin. 3 yrs later it's still working great.
Toddcod is offline   Reply With Quote
Old 06-08-2008, 03:23 PM   #31
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You can get the same fan oreilly sells on ebay for 1/2 the price. Or from siliconeintakes.com if you don't like ebay. You can also use discount code link987 at SI and get like 10% off.
cjernigan is offline   Reply With Quote
Old 06-08-2008, 05:19 PM   #32
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Yeah, I found that out a little too late.

I needed the fans NOW so I just payed the price...guess thats what I get for waiting till the last minute to get them, but in my defense I didn't even mean to turbo my car the weekend I did, it just happened.
coastertrav is offline   Reply With Quote
Old 06-08-2008, 05:59 PM   #33
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

OK I just finished the first prototype of the cowl. This is the first time I have worked with sheet ABS but it turned out to be a good fabrication material and I am pleased with the results. It will function for sure, and looks decent.



ZX-Tex is offline   Reply With Quote
Old 06-08-2008, 06:05 PM   #34
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks like it bends nicely as well. Did you have to heat it at all to bend it or just bend and let it spring into the static position after bending?
cjernigan is offline   Reply With Quote
Old 06-08-2008, 06:52 PM   #35
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

very nice
m2cupcar is offline   Reply With Quote
Old 06-08-2008, 07:13 PM   #36
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

How thick is the ABS?
Atlanta93LE is offline   Reply With Quote
Old 06-08-2008, 07:18 PM   #37
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks like 1/8" from here.
cjernigan is offline   Reply With Quote
Old 06-08-2008, 07:32 PM   #38
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Yep 1/8" ABS. I think that is about the right thickness to use here. 1/16" would probably not be stiff enough, and 1/4" would be overkill and harder to bend.

Basically I made a template out of cardboard by measuring, cutting, and fitting it in place. I then used that to make the pattern on the ABS. I cut it using a small battery powered circular saw with a fine tooth saw blade. It cuts easily. After that I heated it up with a heat gun and bent it using some boards as straight edges to bend against. It has to get pretty warm before it bends. Once it cools, the bends are sturdy. I drilled the holes for the IC hoses with a hole saw. I used a palm sander with 80 grit paper to clean up the edges. All together it took about 3 hours to fabricate which is not too bad.
ZX-Tex is offline   Reply With Quote
Old 06-09-2008, 10:41 PM   #39
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

that looked great. is there a reason you didn't go with something like this:

http://cgi.ebay.com/ebaymotors/CXRac...mZ250256112067

to save a bend or 2. thanks.
bellwilliam is offline   Reply With Quote
Old 06-10-2008, 11:15 AM   #40
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I looked at that one as well. That IC will also cover up more of the radiator. It could fit but will be tough with the a/c dryer. I think others here have made something like that work by mounting it off-center over to the left side of the car.

The two 90 deg reducing couplers at the IC were only $20 a piece so it was not a big deal. The additional pressure drop is negligible.
ZX-Tex is offline   Reply With Quote
