Default Pinky's Sweet (Air) Box

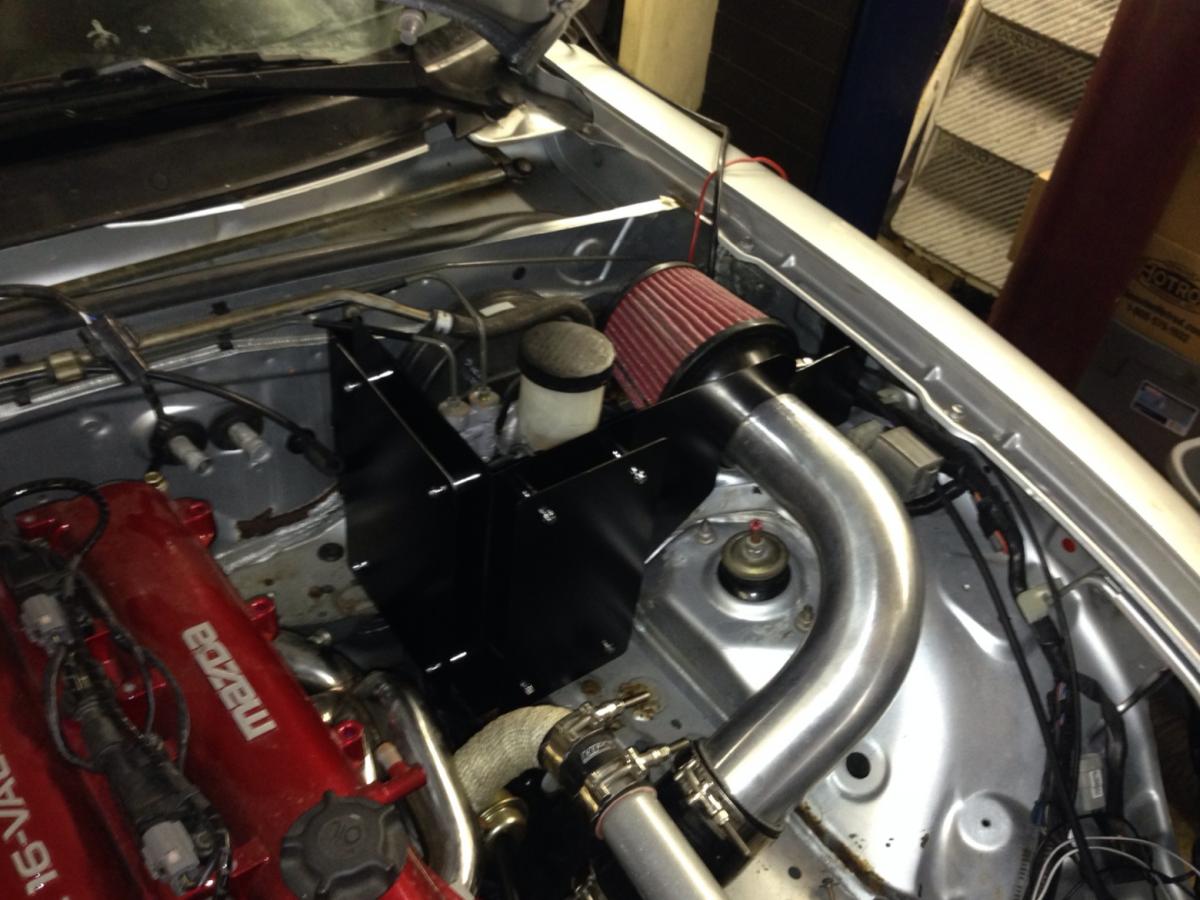

I'm pretty much down to the details on the MSM swap into the FrankenMiata, just killing time until my Rev MS3 gets here, so I whipped up an airbox. (By the way, I'm no better at bending sheet than I am at Origami, which is not surprising given their similarity..)

Anyway, it's pretty much self-explanatory. Mild steel box with stainless heat shields. The whole thing is located right under the louvers in my Simpson Design hood, and should help to keep the master cylinders cool too. And dig my Fat Pipe; intake restriction should not be a problem. Intake noise however, right there at the cowl and under a louver, should be sick.

Attached Thumbnails
Pinky's Sweet (Air) Box-image.jpg
Pinky is offline   Reply With Quote
Old 11-26-2013, 06:57 PM   #2
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

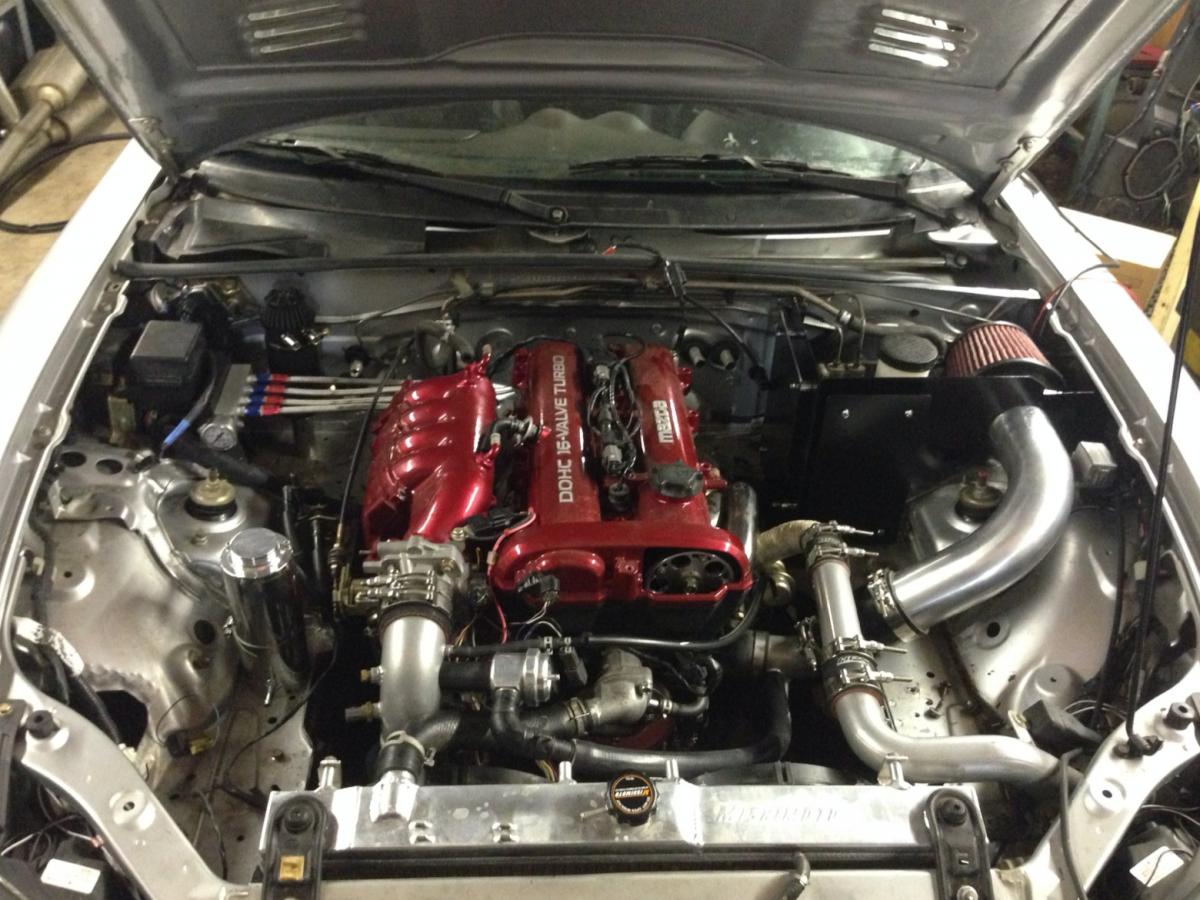

Another pic, in a separate post because iPhone.

Attached Thumbnails
Pinky's Sweet (Air) Box-image.jpg
Pinky is offline   Reply With Quote
Old 11-26-2013, 06:59 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

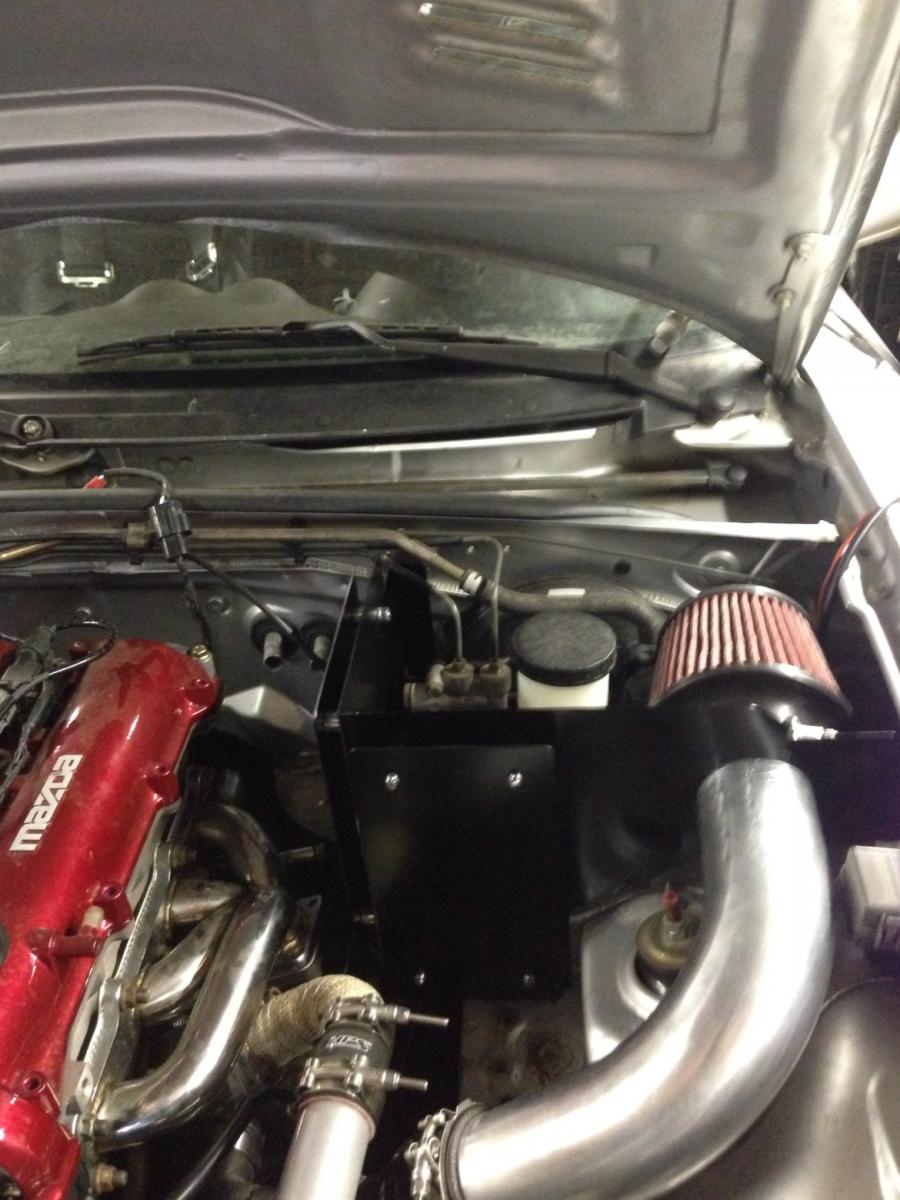

Aaaaaannnnnndddddd another.

Attached Thumbnails
Pinky's Sweet (Air) Box-image.jpg
Pinky is offline   Reply With Quote
Old 11-26-2013, 07:03 PM   #4
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Interesting. I wasn't planning on bothering with a 'cold air intake' for my build, but that has the added bonus of protecting the masters from heat. Keep us updated on how it works out. If you want to try to melt your brake master, just do what I did and forget to reset your timing back to the table from "fixed to 10 degrees" after verifying timing with a light. Then get on the interstate.
thenuge26 is offline   Reply With Quote
Old 11-26-2013, 07:11 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Thanks- it probably would be less effective (if it ends up being effective at all- my fallback will be to add insulation behind the shields) on a hood without an adjacent vent or scoop over it.

(A couple rows of good old-school louvers punched into the hood above it would be pretty sick though..)
Pinky is offline   Reply With Quote
Old 11-26-2013, 07:15 PM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Looks good. My cowl induction makes sick noise too.
hornetball is offline   Reply With Quote
Old 11-26-2013, 08:25 PM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Surprised you painted it black and not silver. Painting black inside and out kind of defeats the purpose. It absorbs all the radiant heat from the engine bay and then emits it all into the air box area. For extra baller status DEI gold foil both sides.
Leafy is offline   Reply With Quote
Old 11-26-2013, 09:52 PM   #8
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Gave props, looks nice, well done.

Dann
nitrodann is offline   Reply With Quote
Old 11-26-2013, 10:09 PM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

your engine bay is far too clean. please pour some tar on it.

btw i'm curious what your solution for engine movement with respect to box non-movement is. I would worry that your big toob would rub on the box and make some sort of evil screechy noise (NOT badass or sick).
y8s is offline   Reply With Quote
Old 11-26-2013, 10:14 PM   #10
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Very cool setup. When you gonna take me for a drive? bahaha
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-26-2013, 10:21 PM   #11
Newb

Join Date: Oct 2013
Posts: 23
Total Cats: 2
Default

Quote:
Originally Posted by Leafy View Post
Surprised you painted it black and not silver. Painting black inside and out kind of defeats the purpose. It absorbs all the radiant heat from the engine bay and then emits it all into the air box area. For extra baller status DEI gold foil both sides.
Is there guidance somewhere for color vs. heat retention/emission? I thought black was good for emitting heat hence the term "black body emitter"? Typically radiators/oil coolers are painted black. I know Swaintech has a black coating for intercoolers and their header/manifold stuff is white.

Just thought I'd ask for clarification.
Luissr20 is offline   Reply With Quote
Old 11-26-2013, 10:33 PM   #12
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by y8s View Post
your engine bay is far too clean. please pour some tar on it.

btw i'm curious what your solution for engine movement with respect to box non-movement is. I would worry that your big toob would rub on the box and make some sort of evil screechy noise (NOT badass or sick).
The Ladies love it when my big toob rubs the box...

I actually hadn't really considered that. Pretty dumb actually, although I have two silicone joints between the "toob" and the turbo inlet, so there may be enough give there. Also, I'm trying to find some edging that's more elegant than split fuel hose to seal around the lower edge of the box and the "toob". Maybe the solution is to add a "bellows/bulbed" style of silicone connector and bolt down the toob to the inner fender.

What say you?
Pinky is offline   Reply With Quote
Old 11-26-2013, 10:50 PM   #13
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Luissr20 View Post
Is there guidance somewhere for color vs. heat retention/emission? I thought black was good for emitting heat hence the term "black body emitter"? Typically radiators/oil coolers are painted black. I know Swaintech has a black coating for intercoolers and their header/manifold stuff is white.

Just thought I'd ask for clarification.
The closer a color is to black the closer it is to being a black body emitter, bbe's are also the best absorbers. White and shinny colors are good reflectors.
Leafy is offline   Reply With Quote
Old 11-26-2013, 10:55 PM   #14
Newb

Join Date: Oct 2013
Posts: 23
Total Cats: 2
Default

Quote:
Originally Posted by Leafy View Post
The closer a color is to black the closer it is to being a black body emitter, bbe's are also the best absorbers. White and shinny colors are good reflectors.
Thanks, that makes total sense. You want heat exchangers to absorb heat (from what's flowing through them).
Luissr20 is offline   Reply With Quote
Old 11-26-2013, 11:00 PM   #15
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Luissr20 View Post
Thanks, that makes total sense. You want heat exchangers to absorb heat (from what's flowing through them).
Thats different. The water inside a radiator is transferring almost 0% of its heat to the radiator by radiation, most of its by convection and a little by conduction. The radiator emits most of its heat by convection and a small amount of it by radiation. Radiation is the only heat transfer type effected by surface color.
Leafy is offline   Reply With Quote
Old 11-26-2013, 11:09 PM   #16
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

You should weather strip the top so it seals to the hood.
jacob300zx is offline   Reply With Quote
Old 11-27-2013, 12:00 AM   #17
Newb

Join Date: Mar 2012
Posts: 38
Total Cats: 1
Default

Wow ! Very nice setup ..
AlwaysOnKill is offline   Reply With Quote
Old 11-27-2013, 12:44 AM   #18
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

You did a great job fabricating this and I wish my engine bay looked half as nice as yours. Maybe this is a stupid question but I have to ask: won't the air box somewhat impede your hood vent from doing its job properly?
RayinNorCal is offline   Reply With Quote
Old 11-27-2013, 01:08 AM   #19
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by RayinNorCal View Post
You did a great job fabricating this and I wish my engine bay looked half as nice as yours. Maybe this is a stupid question but I have to ask: won't the air box somewhat impede your hood vent from doing its job properly?
Shouldn't be too much of a problem; my hood has louver vents on both sides, and an elevated cowl "scoop" area, there are plenty of other paths out for air. (Lol - I hope... Remember, I still haven't fired it up yet so this is all just Hopeful Engineering and Wild Guesses at this point.
Pinky is offline   Reply With Quote
Old 11-27-2013, 01:32 AM   #20
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

I have a **** load of diamond plate aluminum laying around...I think you may have just inspired me to do something like that. I dig it!
thirdgen is online now   Reply With Quote
