DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 04-01-2008, 02:12 AM   #1
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default ports too small?

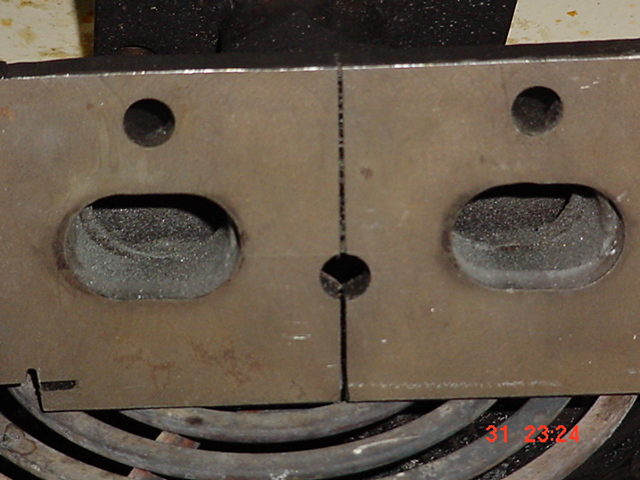

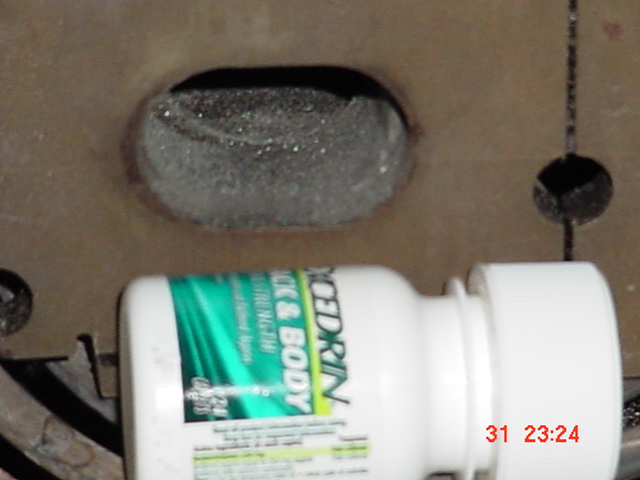

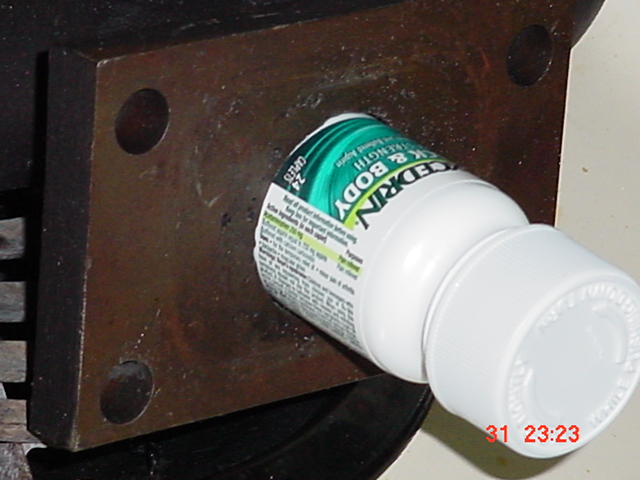

this was made by a forum member and I bought it from the guy he sold it to. the manifold is solid, but worried the ports are too small for the 60 trim I will be running. opinions please!! small excedrin bottle used for reference
Attached Thumbnails
ports too small?-dsc00001.jpg   ports too small?-dsc00004.jpg   ports too small?-dsc00005.jpg   ports too small?-dsc00007.jpg
zoom2zoom is offline   Reply With Quote
Old 04-01-2008, 02:50 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

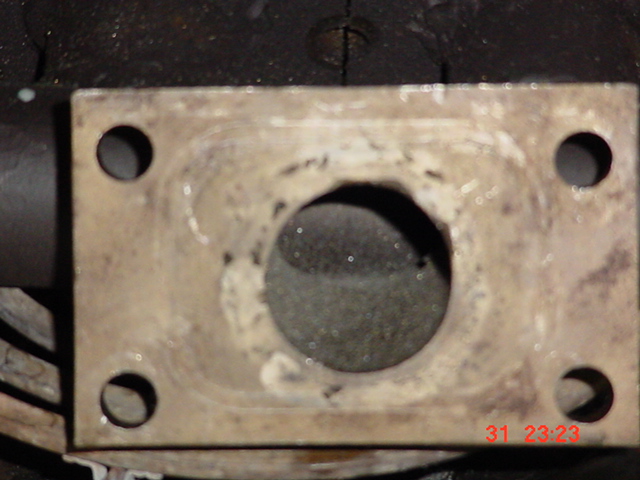

It will work, the turbine inlet is a bit small though, might want to make a that bigger with a piece of box tubing the size of the turbo inlet. Or w/e you want to replace that little tube with. The head side ports are normal.
cjernigan is offline   Reply With Quote
Old 04-01-2008, 02:54 AM   #3
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Is this Loki's old manifold?
jayc72 is offline   Reply With Quote
Old 04-01-2008, 03:19 AM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Pretty sure it is.
cjernigan is offline   Reply With Quote
Old 04-01-2008, 03:21 AM   #5
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Quote:
Originally Posted by jayc72 View Post
Is this Loki's old manifold?
I think it is.
zoom2zoom is offline   Reply With Quote
Old 04-01-2008, 11:12 AM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

y8s is offline   Reply With Quote
Old 04-01-2008, 03:48 PM   #7
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
Ok?? Anything to actually help?
zoom2zoom is offline   Reply With Quote
Old 04-01-2008, 04:00 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

ok ok if you could replace the turbine inlet with something larger (you can reuse the flange, just cut it to match the turbo inlet) then it'd probably be fine.
y8s is offline   Reply With Quote
Old 04-01-2008, 04:06 PM   #9
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

thank you very much!! too bad my welding buddy just left for the Air Force last month.
zoom2zoom is offline   Reply With Quote
Old 04-01-2008, 04:08 PM   #10
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

how much power restriction do you guys think this could cause if I leave it as it is?
zoom2zoom is offline   Reply With Quote
Old 04-01-2008, 04:33 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by zoom2zoom View Post
how much power restriction do you guys think this could cause if I leave it as it is?
3.73e+28 yoctowatt, give or take...

Seriously, that's pretty much an impossible question to answer, other than to say it will be sub-optimal.
Joe Perez is offline   Reply With Quote
Old 04-01-2008, 07:37 PM   #12
Senior Member
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

too small for my opinion if you care. better bigger than smaller.
musanovic is offline   Reply With Quote
Old 04-02-2008, 12:26 AM   #13
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

That's what she said, lol

Seriously Zoom, can't you just make the hole bigger? do you own a cutoff tool and air compressor, or maybe even a dremmel, even though it would take like three days.
Zabac is offline   Reply With Quote
Old 04-02-2008, 12:32 AM   #14
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Quote:
Originally Posted by Zabac View Post
That's what she said, lol

Seriously Zoom, can't you just make the hole bigger? do you own a cutoff tool and air compressor, or maybe even a dremmel, even though it would take like three days.
ha ha, you ever tried grinding solid metal or welded steel that is even harder?
zoom2zoom is offline   Reply With Quote
